16-63mm PPR Pipe Extrusion Line

Yongte's quality 16-63mm PPR Pipe Extrusion Line is a specialized industrial production system designed for the continuous manufacturing of high-quality PPR (polypropylene random copolymer) pipes. These pipes are widely recognized for their exceptionally smooth inner surface and highly uniform dimensional accuracy.

PPR pipe has emerged as the leading solution in global applications such as potable water supply, building drainage, underfloor heating systems, and various industrial fluid transport networks. Its dominant market position is attributed to a set of outstanding inherent advantages: the material is non-toxic and odorless, ensuring water safety; it withstands high temperatures and resists corrosion effectively; and it offers superior thermal insulation performance, contributing to energy efficiency.

By employing advanced high-efficiency single-screw extrusion technology, this extrusion line guarantees a stable and reliable manufacturing process for PPR pipes with outer diameters covering the range from 16mm to 63mm. The equipment is characterized by its high degree of automation, significantly improved production efficiency, and the ability to consistently deliver products of excellent and uniform quality.

Process Flow

PPR resin + color masterbatch → mixing → vacuum feeding → drying → extruder plasticizing (180-210℃) → mold forming → vacuum calibrating → multi-stage spray cooling → laser printing → pull off traction → fixed-length cutting → finished product stacking

Product Parameter

Product details

1. Raw Material Processing System:	Polyethylene (PE) material undergoes uniform mixing with additives, such as color masterbatches, within a mixer. Subsequently, the resultant mixture is automatically transported to the extruder's drying hopper via a vacuum feeder, where moisture is eliminated to maintain the PE material's moisture content at or below 0.1%, a crucial procedure to guarantee product consistency.

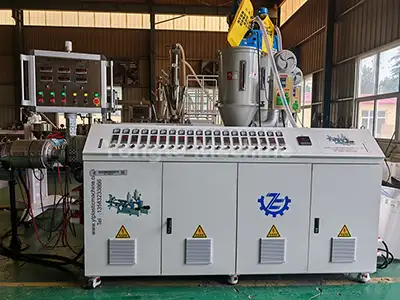

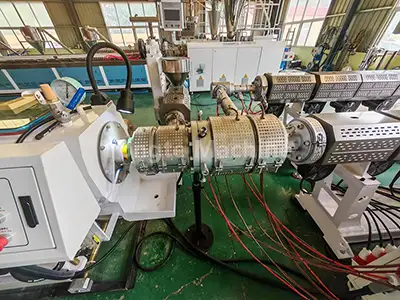

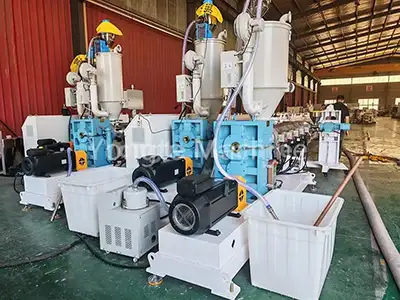

2. PPR Pipe Extruder:	The system is outfitted with an SJ65/33 high-efficiency single-screw extruder, which includes a 55KW energy-saving servo motor that reduces power consumption by approximately 20%. It also features a direct-drive gearbox for enhanced transmission efficiency and simplified maintenance, a wear-resistant and corrosion-resistant screw barrel made from 38CrMoALA alloy steel with nitriding treatment, an efficient heating system utilizing an infrared heating coil, and an automated temperature control system equipped with an Omron temperature controller.
3. Marking Line Extruder:	The SJ25 extruder is utilized to imprint marking lines onto PPR pipes and capable of producing either a single marking line or multiple marking lines, contingent upon the customer's specifications.
4. Specialized PPR Pipe Mold:	The mold is equipped with a basket or spiral structure die head to ensure the uniform extrusion of the material.

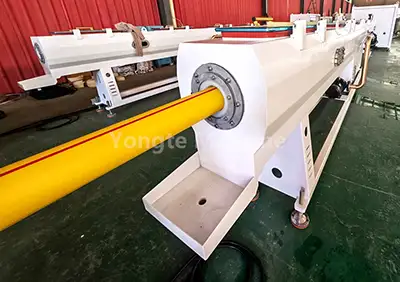

5. Vacuum Calibration Tank:	The tube blank undergoes rapid calibration through vacuum adsorption to guarantee dimensional precision, with a vacuum level ranging from 0.06 to 0.08 MPa. The tank is constructed from stainless steel.
6. Spray Cooling Tank:	This tank equipped with multi-stage spray cooling technology, and it can maintain the water temperature below 20℃ to ensure the rapid and uniform cooling of pipes. It, constructed from stainless steel, offers exceptional corrosion resistance and durability for sustained, stable operation.
7. Pull-off Traction Machine:	The machine draws pipes at a consistent speed (of 3-15 m/min to ensure uniform length and stable production. It is equipped with precision control systems that maintain consistent tension during the traction process, effectively preventing pipe deformation and ensuring dimensional accuracy.

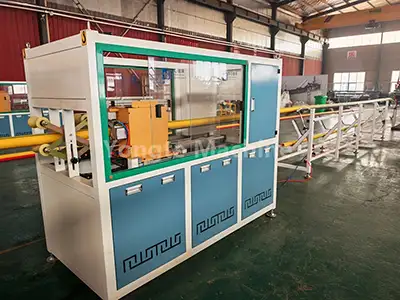

8. Planetary Cutter:	The cutter enables automatic, fixed-length, chip-free cutting with smooth, burr-free edges, specifically optimized for small to medium diameter PPR pipes. Its precision cutting mechanism ensures consistent length accuracy and minimizes material waste during production.

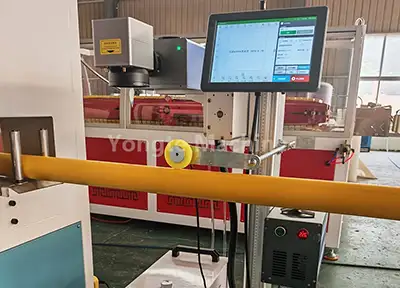

9. Laser Printing Machine:	It employs laser technology to display product specifications and batch information in real-time, eliminating the need for consumables.

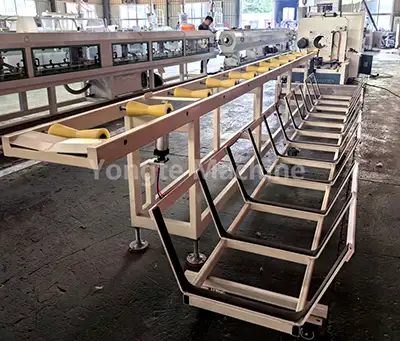

10. Stacking Rack:	The rack automatically stacks finished pipes in an orderly fashion, with adjustable stacking height and layer count to accommodate various pipe lengths and storage requirements. Constructed with a robust frame and anti-slip design, it ensures stable stacking and easy handling of finished products, optimizing post-production storage efficiency.

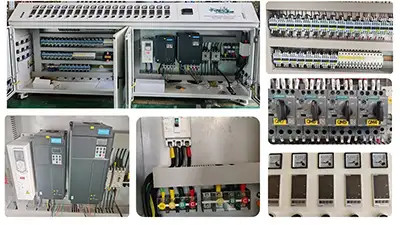

11. Electric Control System:	The system incorporates high-end electrical components, including ABB frequency converters, Siemens contactors, Omron temperature controllers, and Inovance servo controllers.

Product Application

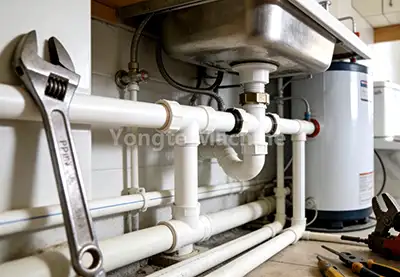

16-63mm PPR (random copolymer polypropylene) pipe, as environmentally friendly, durable, and easy-to-install new type of plastic pipe, has widely replaced traditional galvanized pipes and copper pipes. Due to its core advantages—including non-toxic and odorless composition, high-temperature resistance, corrosion resistance, and excellent thermal insulation properties—it has become the mainstream choice in global water supply, drainage, heating, and industrial fluid transportation fields.

Yongte Machine Advantages - humanized mechanical design and durable quality

After years of innovation and quality focus, we use high-strength, wear-resistant materials for our plastic pipe machinery. These machines undergo precision forging and rigorous quality tests to withstand high-frequency use wear and harsh environment erosion

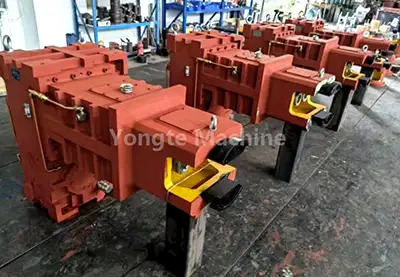

High torque durable Gearbox	High effective Servo Motor
We equip high-quality vertical direct-drive gearboxes with high transmission efficiency, strong load capacity, stable production, space-saving installation, leak-proof sealing, good heat dissipation, and easy maintenance.	We equip Innovance servo motors saving 15-20% power, with precise speed/torque control, fast response, low vibration/noise, long lifespan, low maintenance, and intelligent speed/output control.
High automatic operation system	Advanced quality electricity control system
Equipped with auto-feeding, intelligent temperature control, and precision cutting, the machine enables unmanned core production. Its integrated PLC system centralizes parameter management, streamlining operations and cutting labor costs by over 30% vs. traditional semi-automatic equipment	Equipped with ABB frequency converters, Siemens/Schneider contactors, Omron temperature controllers, and Siemens PLC system, cables/connections are neatly arranged and marked. The electrical cabinet system has passed safety testing and meets international standards: EN ISO 12100 (Safety of machinery), EN 60204-1 (Electrical equipment of machines), and EN 61000 series EMC standards.

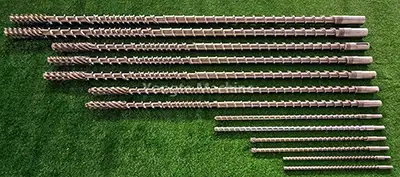

Durable steel material	Screw barrel are made by wearing material
The machine's frame, made of solid steel plate via CNC cutting/polishing for precision/balance, supports 20+ years of stable operation. Material/water-contact parts (feeders, tanks, elbows) use 304 stainless steel to prevent rust.After the machine is manufactured, we apply a powder coating finish to ensure an excellent appearance, enhanced anti-rust performance, and long-lasting color stability	The screw and barrel, made of high-performance wear-resistant materials tailored to the processed material, use premium bimetallic screws and SKD-coated barrels, extending lifespan to 1.5–2x that of conventional 38CrMoAlA materials
3 Years warranty and life time service support	Professional machine testing and installation service
During the 3-year warranty period, we provide free maintenance and replacement services due to manufacturing defects. Beyond the warranty period, we continue to offer maintenance services at a reasonable cost, ensuring that your equipment remains in good working condition for years to come.	All the machines undergo rigorous pre-shipment testing to verify exceptional performance and stable operation, ensuring the consistent production of high-quality products. Our professional engineering team provides comprehensive on-site testing and installation services to guarantee seamless, efficient machine operation at the customer's facility.
