Three Layer PPR Pipe Co Extrusion Machine

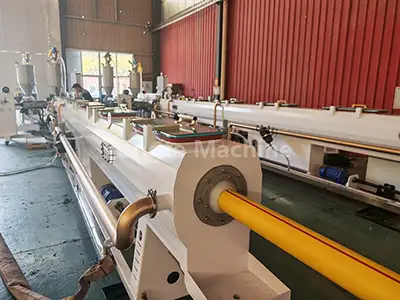

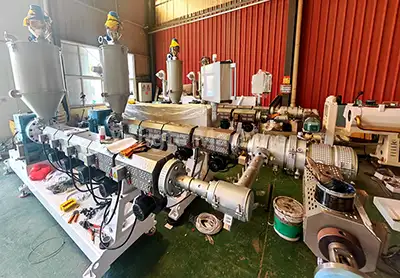

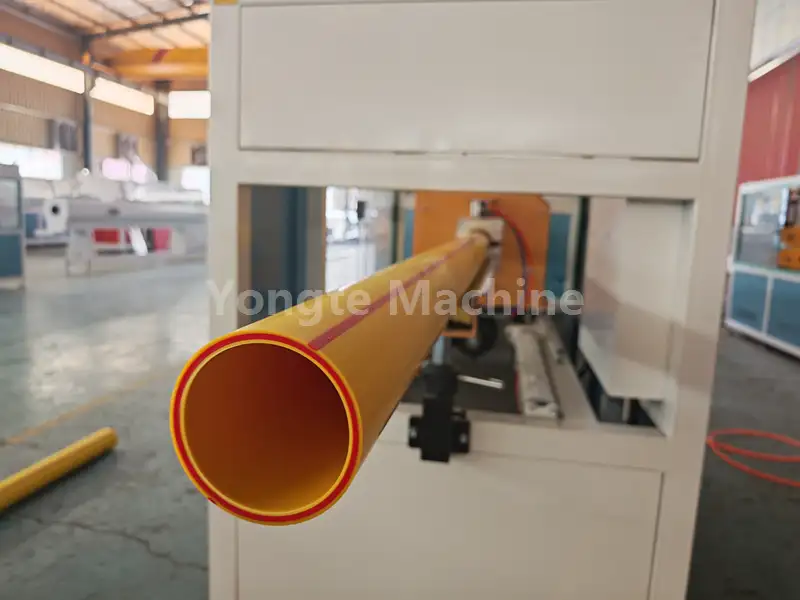

The Yongte, a professional  PPR pipe production line manufacturer in China, our durable Three Layer PPR Pipe Co Extrusion Machine is dedicated to the fabrication of three-layer PPR pipes. This apparatus is engineered to produce ABA structured PPR pipes characterized by their interior surfaces that are free from irregularities and possess uniform dimensions. The PPR pipe has emerged as the preeminent option globally for applications in water supply, drainage systems, heating networks, and the conveyance of industrial fluids, primarily due to its inherent properties such as non-toxicity, absence of odor, resistance to high temperatures, resistance to corrosion, and superior thermal insulation characteristics. Utilizing advanced single-screw extrusion technology, this machinery guarantees the consistent production of PPR pipes with diameters ranging from 16 to 63mm, distinguished by their high level of automation, productivity, and uniformity in product quality.

Process Flow

PPR resin + color masterbatch → mixing → vacuum feeding → drying → extruder plasticizing (180-210℃) and co-extrusion→ mold forming → vacuum calibrating → multi-stage spray cooling → laser printing → pull off traction → fixed-length cutting → finished product stacking

Product Parameter

Core components

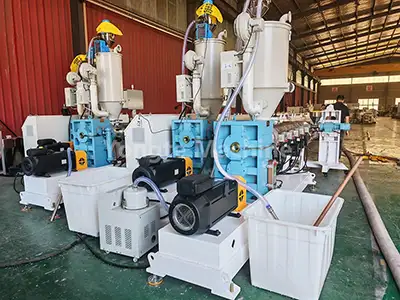

1. Raw Material Processing System	(1) PE material is uniformly mixed with additives (such as color masterbatches) using a mixer. (2) The mixture is then automatically conveyed to the extruder's drying hopper via a vacuum feeder, where moisture is removed to ensure the PE material's moisture content remains below 0.1%, thereby guaranteeing product quality.

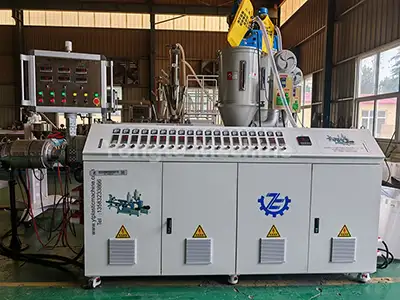

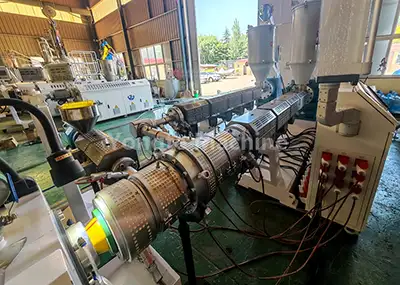

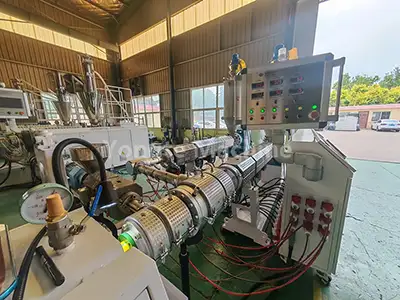

2. PPR Pipe Extruder	(1) Equipped with SJ65/33 and SJ50/33 high-efficiency single-screw extruders, featuring energy-saving servo motors (reducing power consumption by approximately 20%). (2) Direct-drive gearboxes (for high transmission efficiency and easy maintenance). (3) Wear-resistant and corrosion-resistant screw barrels (constructed from 38CrMoALA alloy steel with nitriding treatment). (4) Efficient heating systems (using infrared heating coils). (5) Automated temperature control systems (featuring Omron temperature controllers).
3. Marking Line Extruder	(1) The SJ25 extruder is used to create marking lines on PPR pipes. (2) It can produce either a single marking line or multiple marking lines, depending on the customer's requirements.
4. Specialized PPR pipe Mold	(1) Equipped with basket or spiral structure die head to ensure uniform extrusion of the material.

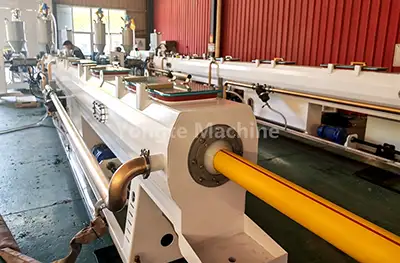

5. Vacuum Calibration Tank	(1) The tube blank is rapidly calibrated via vacuum adsorption to ensure precise dimensional accuracy (vacuum level: 0.06 to 0.08 MPa). (2) The tank is constructed from stainless steel for enhanced durability and corrosion resistance.

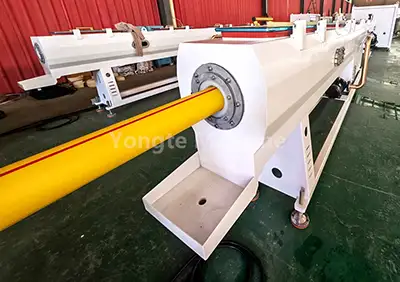

6. Spray Cooling Tank	(1) Equipped with multi-stage spray cooling technology, this tank maintains water temperature below 20℃ to ensure rapid and uniform cooling of pipes. (2) Constructed from stainless steel, it offers excellent corrosion resistance and durability for long-term stable operation.

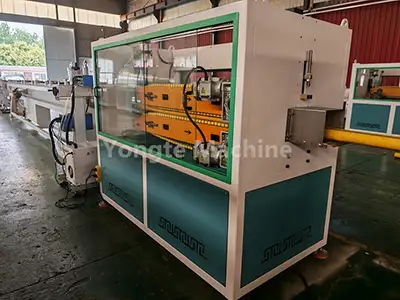

7. Pull-off Traction Machine	(1) Draws pipes at a steady speed (3-15 m/min) to ensure uniform length and stable production. (2) Equipped with precision control systems, it maintains consistent tension during the traction process, effectively preventing pipe deformation and ensuring dimensional accuracy.

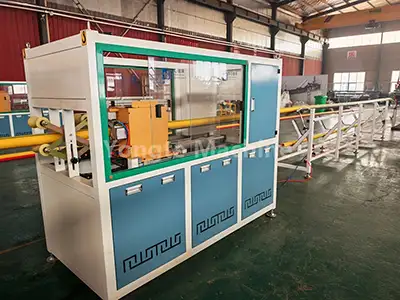

8. Planetary Cutter	(1) Enables automatic fixed-length, chip-free cutting with smooth, burr-free edges, specifically optimized for small to medium diameter PPR pipes. (2) Its precision cutting mechanism ensures consistent length accuracy and minimizes material waste during production.

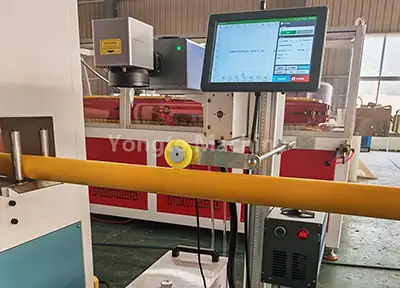

9. Laser printing machine	(1) Displays product specifications and batch information in real-time using laser technology, with no consumables required.

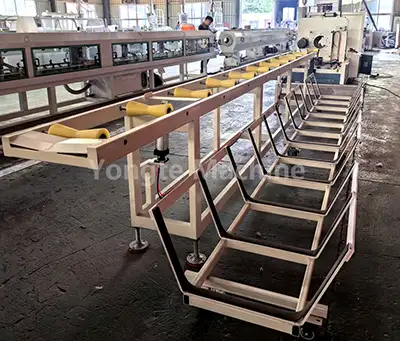

10. Stacking Rack	(1) This device automatically arranges finished pipes in an orderly fashion, with the capability to adjust the stacking height and layer count to suit various pipe lengths and storage needs.

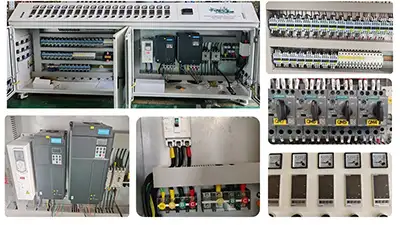

11. Electric control system	(1) Our electrical components utilize internationally renowned high-quality brands, including ABB frequency converters, Siemens or Schneider contactors, Omron temperature controllers, Siemens PLC control system and Innovance servo motors.

Product Application

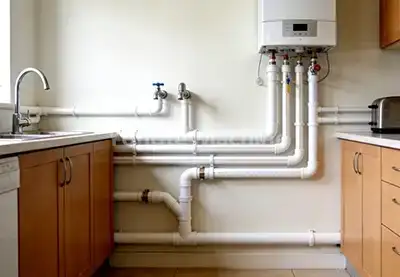

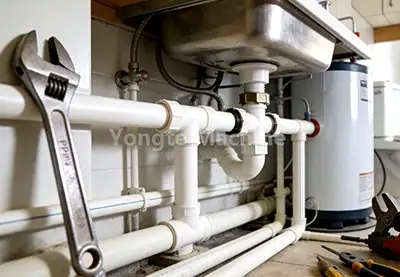

The 16-63mm PPR (random copolymer polypropylene) pipe, an environmentally benign and enduring alternative to traditional galvanized and copper pipes, has extensively supplanted these conventional options. Its intrinsic merits, such as a non-toxic and odorless makeup, resistance to high temperatures, corrosion, and exceptional thermal insulation characteristics, have established it as the preeminent selection across the globe for applications in water supply, drainage systems, heating solutions, and the conveyance of industrial fluids.

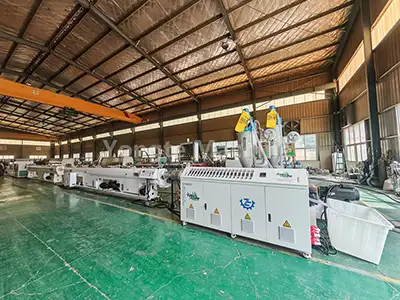

Yongte Machine Advantages - humanized mechanical design and durable quality

After years of innovation and quality focus, we use high-strength, wear-resistant materials for our plastic pipe machinery. These machines undergo precision forging and rigorous quality tests to withstand high-frequency use wear and harsh environment erosion

High torque durable Gearbox	high - efficiency Servo Motor

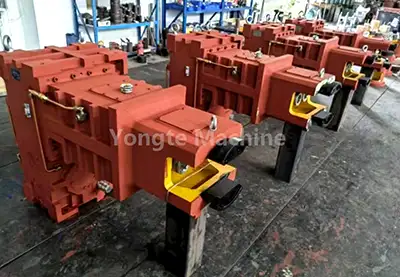

We equip a high-quality vertical direct-connection gearbox with advantages including high transmission efficiency, strong load capacity, stable production, space-saving installation, reliable sealing without oil leakage, excellent heat dissipation and easy maintenance.	We use Innovance servo motors—they cut power use by 15-20%. They give precise speed and torque control, quick response, barely any vibration, low noise, long life, and cheap upkeep, plus smart speed and output control. This makes sure the power output is strong and steady, so it runs smoothly no matter the working conditions.
High automatic operation system	Advanced quality electricity control system
The complete PPR pipe production line is designed for high automation with auto feeding, auto temperature control, auto cutting, auto stacking. we also can supply automatic material mixing and dosing system to achieve a fully automatic production line. combined servo motor and PLC programed control system, it is also optional to achieve speed synchronization automatic adjustment	We use ABB frequency converters, Siemens or Schneider contactors, Omron temperature controllers, and Siemens PLC control systems—all cables and connections are neatly arranged and clearly labeled. The whole electrical cabinet uses advanced smart tech, so it’s easy to operate and adjust parameters precisely. Users can set different working modes based on their needs, which really boosts work efficiency.

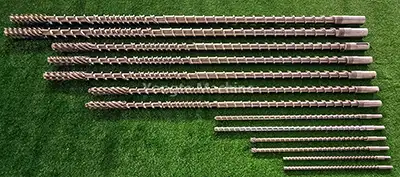

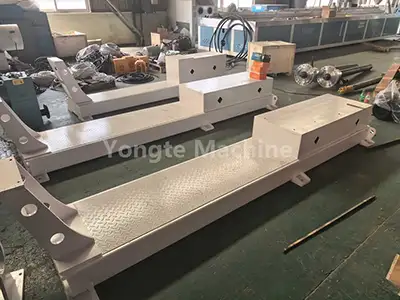

Strong machine basic made by solid steel plate	Screw barrel are made by wearing material
The machine’s basic frame is made of solid steel plates—we use CNC cutting and polishing to get precise sizes and balance, so it can run nonstop and steadily. Even after 20+ years of use, the frame stays intact. All parts touching materials or water are 304 stainless steel to avoid rust.	We use bimetallic screws and SKD barrels—they make the equipment way more resistant to wear and last longer. This setup lets the extruder handle all kinds of materials, even super abrasive ones, without messing up performance. Plus, the screw’s optimized shape melts and mixes stuff better, so the final product is more consistent and top-quality.
Powder coating for surface finishing treatment	Professional Trial and Installation Service
After manufacturing, we apply powder coating for better appearance, anti-rust protection, and consistent color. Electrostatically sprayed thermosetting powder cures at high temperatures to form a dense, scratch-resistant layer. Available in various RAL colors, it matches factory aesthetics and ensures durability in harsh industrial environments.	We offer pro trial and installation services to make sure your machine runs at its best. Our seasoned techs do on-site trials, tweaking settings to boost production efficiency. They also give full installation guidance, so it fits smoothly into your production line.
