16-63mm High Speed PPR Pipe Production Line

Yongte is a leading manufacturer in China specializing in 16-63mm High Speed PPR Pipe Production Lines, which are used to fabricate PPR pipes renowned for their smooth interior surfaces and uniform dimensions. These pipes have become the globally preferred choice for water supply, drainage, heating systems, and industrial fluid conveyance, thanks to their inherent advantages like non-toxicity, odorlessness, high-temperature resistance, corrosion resistance, and excellent thermal insulation. The machinery integrates high-efficiency single-screw extrusion technology, ensuring consistent production of PPR pipes with diameters ranging from 16 to 63mm. It features high automation, productivity, and consistent product quality.

Process Flow

PPR resin + color masterbatch → mixing → vacuum feeding → drying → extruder plasticizing (180-210℃) → mold forming → vacuum calibrating → multi-stage spray cooling → laser printing → pull off traction → fixed-length cutting → finished product stacking

Product Parameter

Product Details

1. Raw Material Processing System	PE material is mixed evenly with additives (e.g., color masterbatches) via a mixer, then automatically conveyed to the extruder's drying hopper by a vacuum feeder to remove moisture (≤0.1% moisture content) for quality assurance.

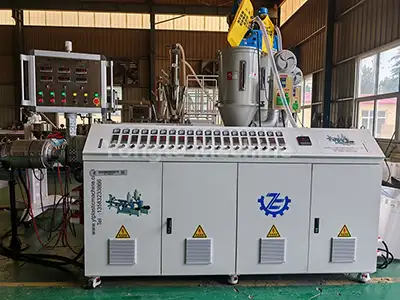

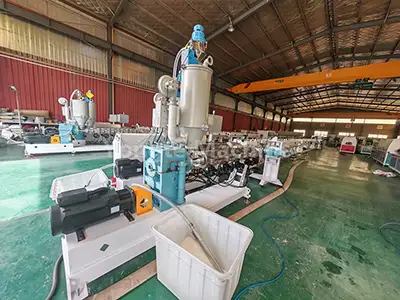

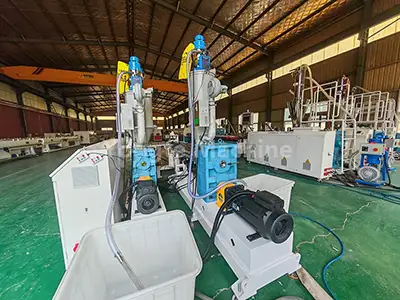

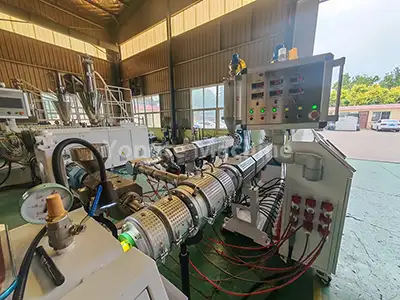

2. PPR Pipe Extruder	Equipped with SJ65/33 high-efficiency single-screw extruder, including 55KW energy-saving servo motor (≈20% power saving), direct-drive gearbox (high transmission efficiency, easy maintenance), wear/corrosion-resistant screw barrel (38CrMoALA alloy steel, nitriding treatment), infrared heating system and Omron automated temperature control system.
3. Marking Line Extruder	SJ25 extruder creates marking lines on PPR pipes (single/multiple lines per customer requirements).

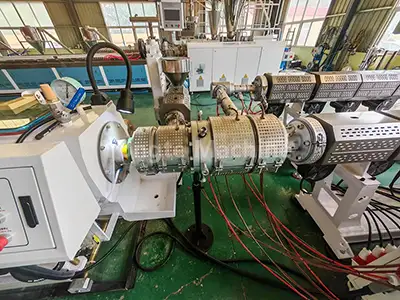

4. Specialized PPR Pipe Mold	Equipped with a basket or spiral structure die head to ensure uniform extrusion of the material.

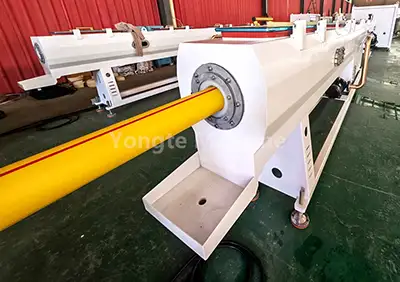

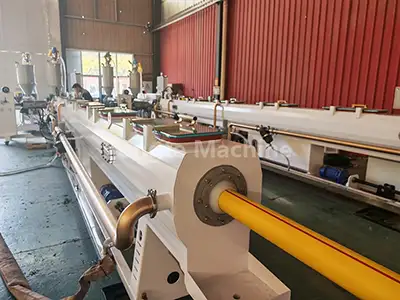

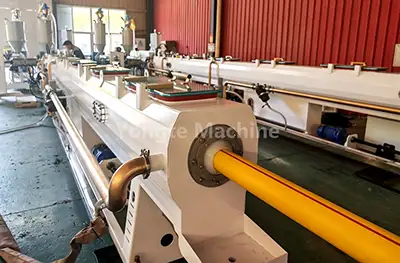

5. Vacuum Calibration Tank	The tube blank is rapidly calibrated through vacuum adsorption to ensure dimensional accuracy (vacuum level 0.06 to 0.08 MPa). The tank is constructed from stainless steel.
6. Spray Cooling Tank	Equipped with multi-stage spray cooling technology, this tank maintains water temperature below 20℃ to ensure rapid and uniform cooling of pipes. Constructed from stainless steel, it offers excellent corrosion resistance and durability for long-term stable operation.

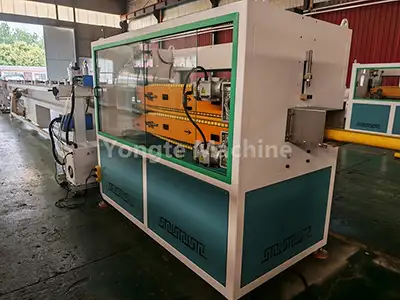

7. Pull-off Traction Machine	Draws pipes at 3-15 m/min steady speed (ensures uniform length/stable production) with precision control for consistent tension, preventing deformation and ensuring dimensional accuracy.

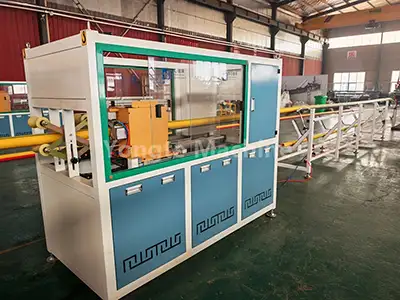

8. Planetary Cutter	Enables automatic fixed-length, chip-free cutting with smooth, burr-free edges, specifically optimized for small to medium diameter PPR pipes. Its precision cutting mechanism ensures consistent length accuracy and minimizes material waste during production.

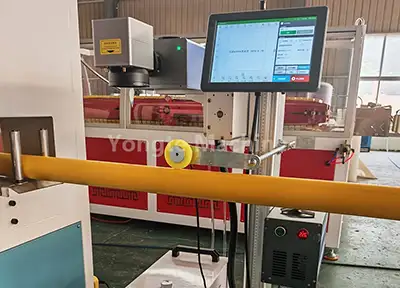

9. Laser Printing Machine	Displays product specifications and batch information in real-time using laser technology, with no consumables required.

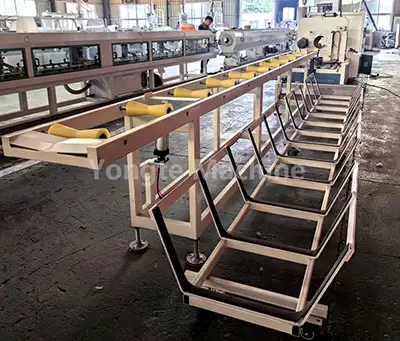

10. Stacking Rack	Automatically stacks finished pipes in an orderly manner, with adjustable stacking height and layer count to accommodate different pipe lengths and storage requirements.
11. Electric Control System	Equipped with high-end components (ABB frequency converters, Siemens contactors, Omron temperature controllers, Inovance servo controllers) with optional PLC touch screen, intelligent temperature control, and alarm/protection systems.

Product Application

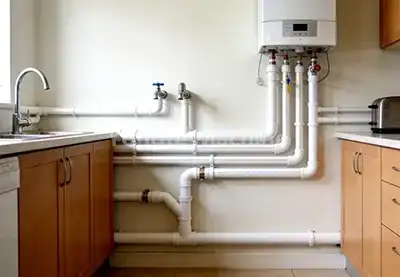

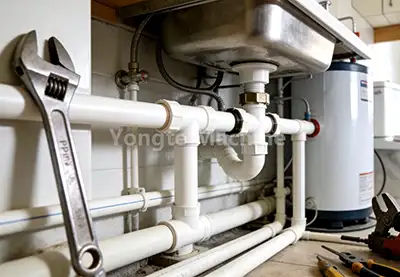

The 16-63mm PPR (random copolymer polypropylene) pipe, an environmentally friendly, durable, and easy-to-install new type of plastic pipe, has widely replaced traditional galvanized pipes and copper pipes. Owing to its core advantages—such as a non-toxic and odorless composition, high-temperature resistance, corrosion resistance, and excellent thermal insulation properties—it has become the mainstream choice in global water supply, drainage, heating, and industrial fluid transportation fields.

Yongte Machine Advantages - humanized mechanical design and durable quality

After years of innovation and quality focus, we use high-strength, wear-resistant materials for our plastic pipe machinery. These machines undergo precision forging and rigorous quality tests to withstand high-frequency use wear and harsh environment erosion.

High-Torque & Durable Gearbox | High-Efficiency Servo Motor	We use a top-notch vertical direct-coupled gearbox—it’s got great perks like high transmission efficiency, strong load-bearing capacity, steady production performance, space-saving design, leak-proof sealing, good heat dissipation, and easy maintenance. We’ve fitted Inovance servo motors (standardized brand) that cut power use by 15-20%. They give precise speed and torque control, quick response, little vibration, low noise, long life, and cheap upkeep—plus smart speed and output adjustment. This keeps power output strong and steady, so the machine runs smoothly no matter the working conditions.
Highly Automated Operation System | High-Precision Electrical Control System	Our full 16-63mm High Speed PPR Pipe Production Line is super automated—it does automatic feeding, temperature control, cutting, and stacking all on its own. We also offer optional automatic material mixing and batching systems to make the whole line fully automated. Plus, if you want, we can add servo motors with a PLC programmable control system for automatic speed sync adjustment. The line uses ABB frequency converters, Siemens/Schneider contactors, Omron temperature controllers, and a Siemens PLC control system. All cables and connections are neatly routed and clearly labeled. The whole electrical cabinet system uses advanced smart tech, so it’s easy to operate and adjust parameters precisely. You can set different working modes based on your production needs, which really boosts work efficiency.

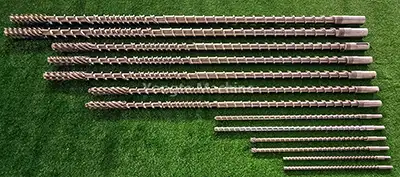

Robust Machine Base (Solid Steel Plate Construction) | Wear-Resistant Screw & Barrel	The machine's base is made from solid steel plates—we use CNC cutting and polishing to get the dimensions just right and keep the structure balanced, so it can run nonstop and stay stable for years. Even after 20+ years of use, the frame still holds up perfectly. All parts that touch materials or water are 304 stainless steel, so they won’t rust or corrode. We use bimetallic screws and SKD barrels—these make the equipment way more resistant to wear and last longer. The extruder can handle all kinds of materials, even super abrasive ones, without losing performance. Plus, the screw’s optimized shape melts and mixes stuff better, so the final products are more uniform and higher quality. After we build the machine, we do a powder coating treatment—it makes it look nicer, keeps it from rusting, and gives it a consistent color. We use electrostatic spraying of thermosetting powder, which cures at high temps to form a tough, scratch-resistant coating. We’ve got a bunch of RAL colors to pick from, so it can match your factory’s look, and it’ll stay durable even in rough industrial spots.
Professional Commissioning & Installation Services | 3-years warranty & lifelong service	We provide professional commissioning and installation services to ensure the machine operates at peak performance. Our seasoned technicians conduct on-site commissioning, fine-tuning parameters to optimize production efficiency. They also offer comprehensive installation guidance, ensuring seamless integration of the equipment into the customer's existing production line. To ensure the seamless operation of your production processes, we extend a comprehensive three-year warranty encompassing all essential machine components, thereby allowing you to function with complete peace of mind throughout the warranty duration. Following the expiration of the warranty period, we remain committed to providing you with lifelong technical support, including: • The availability of our technical expertise at your convenience for any inquiries you may have. • The provision of authentic replacement parts. • Guidance from our specialists on machine maintenance practices, supporting the expansion of your enterprise.

Successful cases

Yongte specializes in fabricating high-quality, innovative plastic pipe machinery. By virtue of consistent technical fine-tuning, its 16-63mm High Speed PPR Pipe Production Line has gained extensive acclaim across both domestic and global markets.
