75-125mm PPR Pipe Making Machine

Yongte is a top Chinese manufacturer of plastic pipe extrusion equipment, specializing in R&D, production, and customization of the 75-125mm PPR Pipe Making Machine—a high-precision extrusion line for medium-diameter PPR pipes. These pipes are ideal for drinking water systems, home/commercial sewage, and underground electrical conduits, so the machine is widely used in residential buildings, municipal projects, and large agricultural irrigation systems. Using advanced single-screw extrusion tech with optimized screw design (segmented mixing zones and precise temperature control), this equipment ensures steady production ofPPR pipesfrom 75 to 125mm in diameter. It’s fully automated (from material feeding to cutting), saves 15% more energy than regular models, and makes high-quality pipes (with ±0.1mm size accuracy and 16 bar pressure resistance).

Process Flow

PPR resin + color masterbatch → mixing → vacuum feeding → drying → extruder plasticizing (180-210℃) → mold forming → vacuum calibrating → multi-stage spray cooling → laser printing → pull off traction → fixed-length cutting → finished product stacking

Product Parameter

Core components

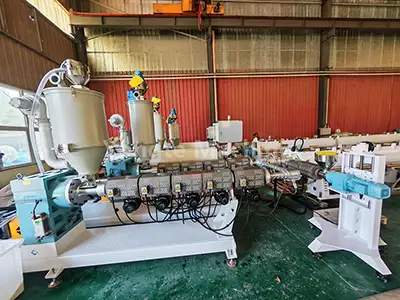

1. Material Feeding and Drying:	The PE material is automatically conveyed to the extruder's drying hopper via a vacuum feeder, where moisture is removed to ensure the PE material's moisture content remains below 0.1%, thereby guaranteeing product quality.

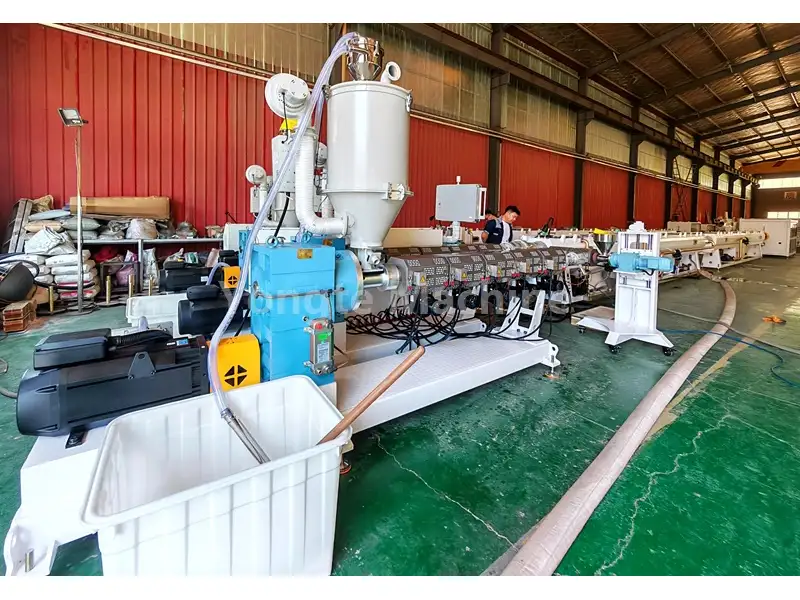

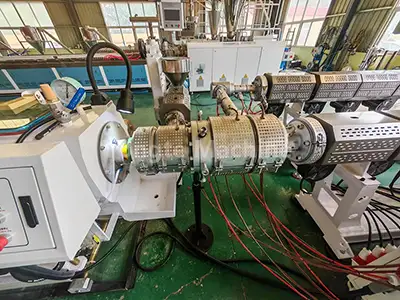

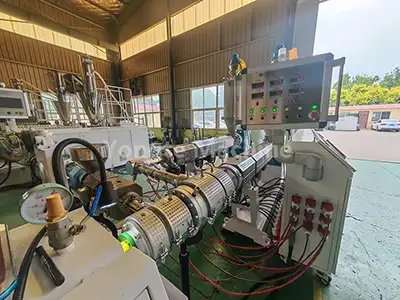

2. PPR pipe Extruder:	Equipped with SJ75/33 high-efficiency single-screw extruder, this component integrates 55KW energy-saving servo motor (reducing power consumption by approximately 20%), direct-drive gearbox (ensuring high transmission efficiency and simplified maintenance), wear-resistant and corrosion-resistant screw barrel (forged from 38CrMoALA alloy steel with precision nitriding treatment), efficient infrared heating coil system, and automated temperature control system (featuring Omron’s high-precision temperature controller). These advanced configurations collectively ensure stable material melting, uniform extrusion pressure, and consistent product quality throughout the production process.

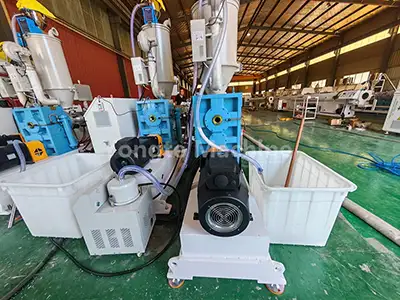

3. Marking Line Extruder:	The SJ25 extruder is utilized to create marking lines on PPR pipes. It can produce either a single marking line or multiple marking lines, depending on the customer's requirements.
4. Specialized PPR pipe Mold:	Equipped with basket or spiral structure die head to ensure uniform extrusion of the material.

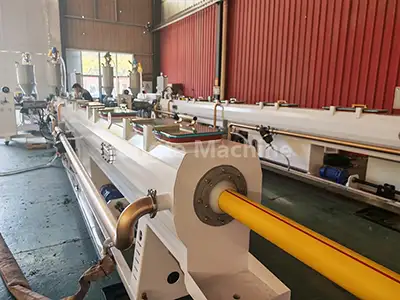

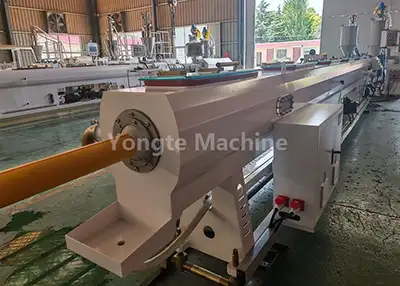

5. Vacuum Calibration Tank:	The extruded tube blank undergoes rapid precision calibration via vacuum adsorption, ensuring strict dimensional accuracy (vacuum level maintained at 0.06–0.08 MPa). Constructed from food-grade stainless steel, the tank features a multi-zone vacuum control system and efficient water circulation cooling, which collectively guarantee consistent pipe roundness, smooth surface finish, and adherence to tight tolerance standards throughout high-speed production.

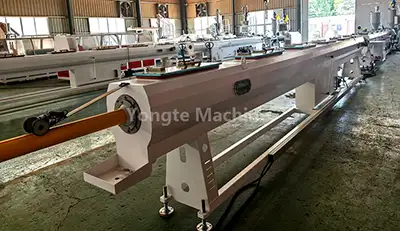

6. Spray Cooling Tank:	Equipped with multi-stage spray cooling technology, this tank maintains water temperature below 20°C to ensure rapid and uniform cooling of pipes. Constructed from stainless steel, it offers excellent corrosion resistance and durability for long-term stable operation.
7. Pull-off Traction Machine:	Draws pipes at a steady speed (3-15 m/min) to ensure uniform length and stable production. Equipped with precision control systems, it maintains consistent tension during the traction process, effectively preventing pipe deformation and ensuring dimensional accuracy.

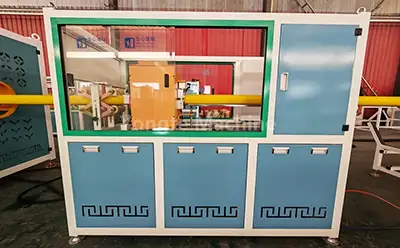

8. Planetary Cutter:	Enables automatic fixed-length, chip-free cutting with smooth, burr-free edges, specifically optimized for small to medium diameter PPR pipes. Its precision cutting mechanism ensures consistent length accuracy and minimizes material waste during production.

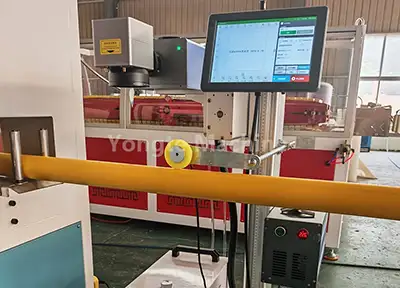

9. Laser printing machine:	Displays product specifications and batch information in real-time using laser technology, with no consumables required.

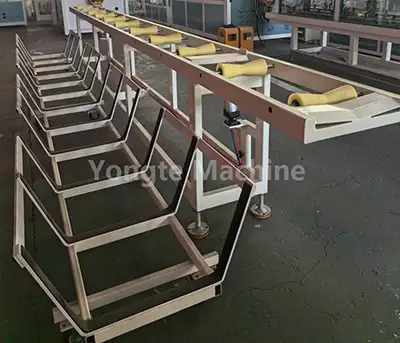

10. Stacking Rack:	Automatically stacks finished pipes in an orderly manner, with adjustable stacking height and layer count to accommodate different pipe lengths and storage requirements. Constructed with a sturdy frame and anti-slip design, it ensures stable stacking and easy handling of finished products, optimizing post-production storage efficiency.

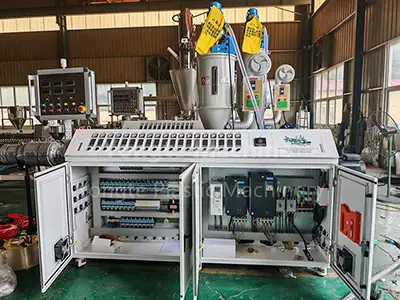

11. Electric control system:	including ABB frequency converters, Siemens contactors, Omron temperature controllers, and Inovance servo controllers.PLC Touch Screen Control System (Optional), Intelligent Temperature Control System, Alarm and Protection System

Product Application

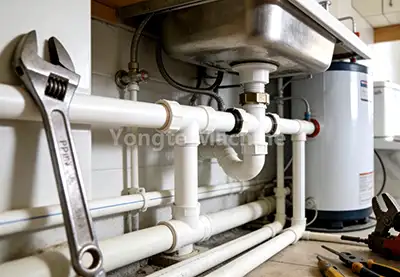

The 75-125mm PPR (random copolymer polypropylene) pipe, an environmentally benign and enduring alternative to traditional galvanized and copper pipes, has extensively supplanted these conventional options. Its intrinsic benefits, such as a non-toxic and odorless composition, resistance to high temperatures, corrosion, and superior thermal insulation characteristics, have established it as the preeminent selection across the globe for applications in water supply, drainage, heating systems, and the conveyance of industrial fluids.

Yongte Machine Advantages - humanized mechanical design and durable quality

After years of innovation and quality focus, we use high-strength, wear-resistant materials for our plastic pipe machinery. These machines undergo precision forging and rigorous quality tests to withstand high-frequency use wear and harsh environment erosion.

1. Robust and Durable Gearbox:	Yongte puts top-notch vertical direct-drive gearboxes in its machines—these gearboxes are the heart of the equipment, and they’ve got some great perks: ▪ Super efficient power transfer ▪ Strong enough to handle heavy loads ▪ Steady performance for non-stop production ▪ Compact vertical design saves factory space ▪ Tight sealing—no oil leaks at all ▪ Great heat dissipation to keep things cool ▪ Easy to maintain and fix
2. High-Efficiency Servo Motor:	We employ servo motors from reputable brands, which achieve a reduction in power consumption ranging from 15% to 20%. The key advantages encompass: ▪ Precise control over speed and torque ▪ Rapid response capabilities ▪ Diminished levels of vibration ▪ Reduced noise emissions ▪ Extended operational lifespan ▪ Minimized maintenance expenses ▪ Intelligent regulation of speed and output
3. Super Easy Automated Operation | User-Friendly Electrical Control:	This whole 75-125mm PPR Pipe Making Machine is built to run almost on its own—super automated! ▪ Feeds materials all by itself, no manual hauling needed ▪ Keeps temperature just right without constant tweaking ▪ Cuts pipes automatically once they’re done ▪ Stacks finished pipes neatly on its own • We also add automatic material mixing and dosing systems so the whole line runs like a well-oiled machine—no extra hands needed! • With fancy servo motors and smart PLC controls, you can even get extras like speed sync or auto parameter adjustments if you want • We use top-brand parts too—ABB inverters, Siemens contactors, Omron temp controllers, and Siemens PLCs—so it’s reliable as can be • The control system is super easy to use, simple to fix if something goes wrong, safe to operate, and never lets you down

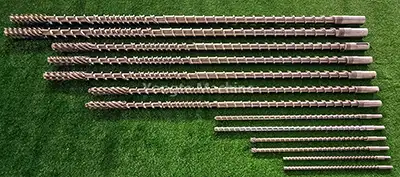

3. Robust Machine Base Crafted from Solid Steel Plate | Wear-Resistant Screw and Barrel:	The machine base is made from tough solid steel plate—we cut and grind it super precisely with CNC machines to make sure it’s the right size and balanced perfectly. This way, the machine can run smoothly and steadily for a long time without any issues. • All parts that touch materials or water are made of 304 stainless steel, so they don’t rust easily. • The screws and barrels are made with special wear-resistant materials—we pick them just for the stuff you’re processing. • After we finish making the machine, we coat it with epoxy powder. This gives it a nice, smooth finish that keeps it from rusting and the color stays looking good for ages.
4. Professional Machine Testing & On-Site Installation Service:	• Before we ship any machine, we put it through super thorough, step-by-step tests to make sure it works perfectly and runs smoothly for years. ▪ These tests include running it nonstop for 72 hours under load, tweaking the extrusion settings just right, and checking key parts for wear—all to guarantee it makes top-quality pipes. • Our team will come to your site to install everything, train your operators really well, and give you custom manuals so your system fits right in and works its best.
5. 3-Year Warranty | Lifetime Technical Support:	• To make sure your production runs smoothly without worries, we offer a three-year warranty that covers all core machine parts—so you can operate stress-free during the warranty period. • Even after the warranty ends, we still provide lifetime technical support, like: ▪ You can ask us technical questions anytime ▪ We’ll supply you with original spare parts ▪ Our experts will guide you on how to maintain the machine—we’ll stick with you as your business grows.

Successful cases

Yongte is dedicated to manufacturing high-quality, innovative plastic pipe machines. Through ongoing optimization, Yongte's 75-125mm PPR Pipe Making Machine has achieved high recognition in both domestic and international markets.

Argentina PE Pipe Machine

African 200-400mm PVC Pipe Making Machine

Algeria 16-63mm Three-layer PPR Pipe Production Line
