PVC Pipe Machine

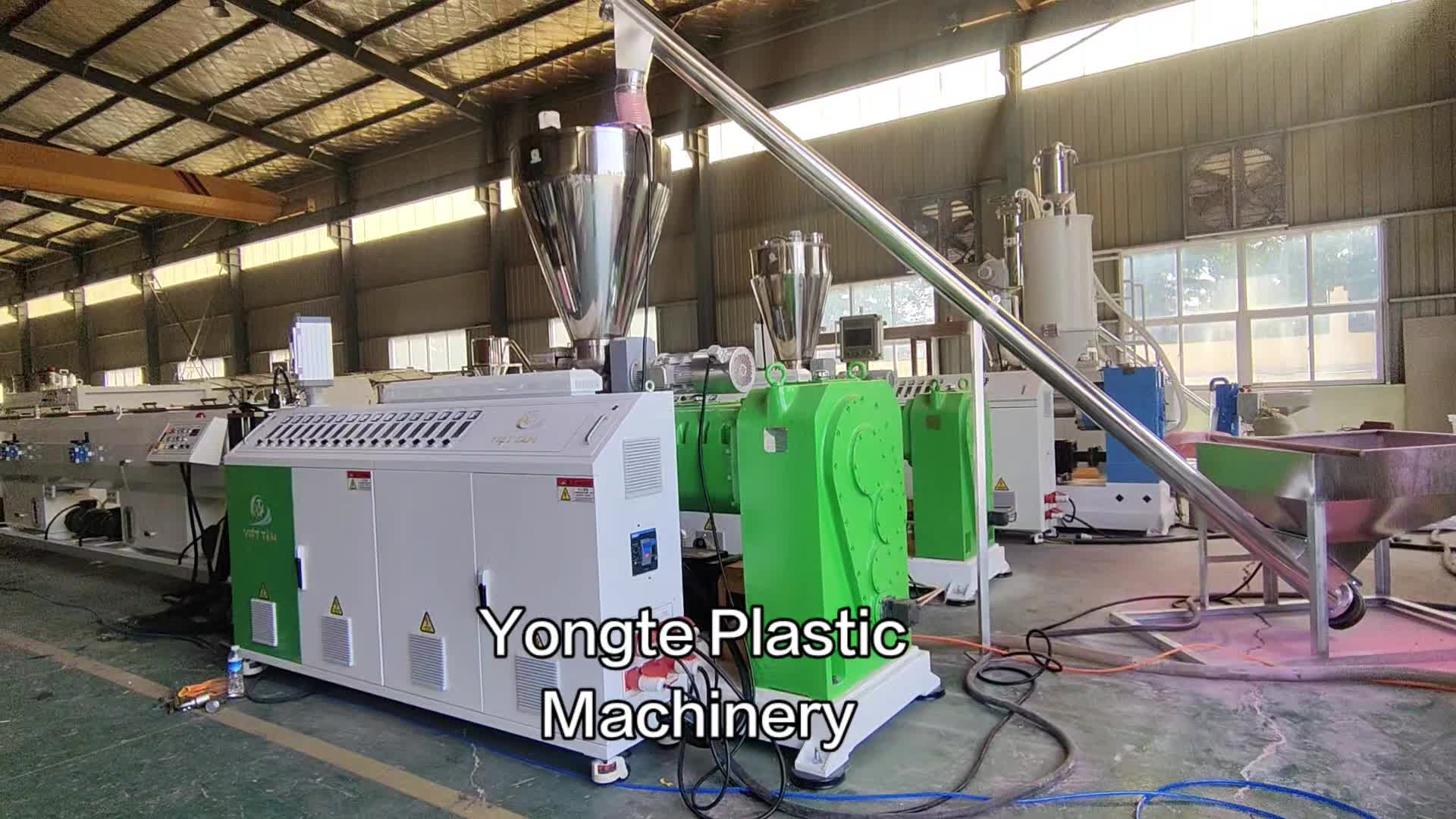

Yongte PVC Pipe Machine is engineered to produce high-quality rigid PVC pipes using PVC resin and CaCO₃. Equipped with conical twin-screw extruder featuring an optimized screw design, this machine ensures uniform plasticization of PVC resins (SG-5, UPVC, CPVC) and accommodates a high percentage of CaCO₃ filler. Notably, it achieves exceptional energy efficiency—reducing power consumption by 20%—via a high-efficiency servo motor and precision speed controller that dynamically adjusts power output based on production demand. Additionally, the production line integrates a high-speed extrusion mold, rapid vacuum calibration and water cooling tank, precision traction device, automatic cutter, and intelligent temperature control system . Its core advantages include full automation, enhanced production efficiency, superior product quality, user-centric mechanical design, energy savings, and intuitive operation.

Technical Specifications

Product Details and Features

1. High-Efficiency Extrusion System:	Equipped with conical twin-screw extruder featuring an optimized screw design, this machine ensures uniform plasticization of PVC resins (SG-5, UPVC, CPVC) and accommodates a high percentage of CaCO₃ filler. Notably, it achieves exceptional energy efficiency—reducing power consumption by 20%—via a high-efficiency servo motor and precision speed controller that dynamically adjusts power output based on production demand.
2. PVC Pipe Mold:	A specialized extrusion tool designed to produce PVC pipes continuously with smooth walls.
3. Precision Calibrating & Cooling Tank:	It integrates a multi-zone vacuum sizing tank and spray cooling system to ensure precise pipe dimensional accuracy. Its design incorporates adjustable vacuum zones, allowing for customized cooling and sizing based on pipe diameter and wall thickness requirements. The spray cooling system utilizes evenly distributed nozzles to ensure uniform temperature reduction across the pipe surface, minimizing internal stress and enhancing overall structural integrity. Additionally, the 304 stainless steel construction guarantees durability and resistance to corrosion, even in harsh production environments.
4. PVC Pipe Traction Machine:	Equipped with a multi-caterpillar drive system powered by servo motors and a double-stage gearbox, the machine enables stable and precise traction of PVC pipes at a consistent speed.
5. PVC Pipe Auto Cutting Machine:	Equipped with a precision-engineered circular saw blade optimized for PVC materials, it delivers burr-free, flat cuts with exceptional accuracy.
6. Electric Control System:	Our electrical components utilize internationally renowned high-quality brands, including ABB frequency converters, Siemens or Schneider contactors, Omron temperature controllers, Siemens PLC control system, and Innovance servo motors.

PVC Pipe Applications

Our PVC pipe-making machine is highly adaptable and can produce various types of PVC pipes, including:

- UPVC water supply pipes (potable water compliant)

- PVC drainage/wastewater pipes

- Electrical conduit pipes

- Agricultural irrigation pipes

Yongte Machine Advantages - Humanized Mechanical Design and Durable Quality

After years of innovation and a relentless focus on quality, we insist on utilizing high-strength, wear-resistant materials for our plastic pipe machinery. These machines undergo precision forging and multiple rigorous quality tests to ensure they can withstand the wear from high-frequency use and the erosion of harsh environments

High torque durable Gearbox	high - efficiency Servo Motor
We equip a high-quality, vertically direct-connected gearbox that boasts advantages such as high transmission efficiency, robust load capacity, stable production, space-saving installation, reliable sealing to prevent oil leakage, excellent heat dissipation, and ease of maintenance.	Equipped with an Innovance servo motor, this system cuts power consumption by 15-20% while delivering precise speed and torque control, rapid response, minimal vibration, low noise, extended lifespan, and reduced maintenance costs. Its intelligent speed and output regulation ensures robust, stable power delivery for smooth operation across diverse working conditions.
High automatic operation system	Advanced quality electricity control system
The complete PVC pipe machine is designed for high automation, featuring automatic feeding, temperature control, cutting, and stacking. Furthermore, we can supply an automatic material mixing and dosing system to achieve a fully automated production line. With a combined servo motor and PLC-programmed control system, speed synchronization and automatic adjustment are also available options.	Equipped with ABB frequency converters, Siemens or Schneider contactors, Omron temperature controllers, and a Siemens PLC control system,all cables and connections are neatly arranged and clearly labeled.The entire electrical cabinet system utilizesadvanced intelligent technology, enabling easy operation and precise parameter adjustment. Users can set various working modes based on specific needs, significantly enhancing work efficiency.
Strong machine basic made by solid steel plate	Screw barrel are made by wearing material
The PVC pipe machine's core structure is fabricated from solid steel plates, which are precision-machined using CNC cutting and polishing to ensure exact dimensions and mechanical balance, enabling uninterrupted and stable operation. Even after 20+ years of continuous use, the machine frame remains structurally intact. All components that interact with raw materials or cooling water are made from 304 stainless steel to resist rust and corrosion.	Bimetallic screws and SKD barrels are utilized to significantly enhance the wear resistance and service life of the equipment. This design ensures that the extruder can process a range of materials with high percentage of filler, without compromising performance. Furthermore, the optimized screw geometry improves melting and mixing efficiency, resulting in a more uniform and high-quality final product.
Powder coating for surface finishing treatment	Professional Trial and Installation Service
After manufacturing the machine, we apply a powder coating to enhance its appearance and provide superior anti-rust protection with a consistent color. This process involves electrostatically spraying a thermosetting powder that cures at high temperatures, forming a dense, scratch-resistant layer. The coating is available in various RAL colors to match your factory's aesthetic and ensure long-term durability, even in harsh industrial environments.	We offer professional trial and installation services to guarantee that the machine functions at its highest efficiency. Our seasoned technicians perform on-site trials, fine-tuning parameters to enhance production efficiency. They also provide thorough installation guidance, ensuring a smooth integration into your production line.

Successful cases

Yongte is dedicated to manufacturing high-quality, innovative plastic pipe machines. Through ongoing optimization, Yongte's PVC pipe machine has achieved high recognition in both domestic and international markets.

Argentina PE Pipe Machine

African 200-400mm PVC Pipe Making Machine

Algeria 16-63mm Three-layer PPR Pipe Production Line
