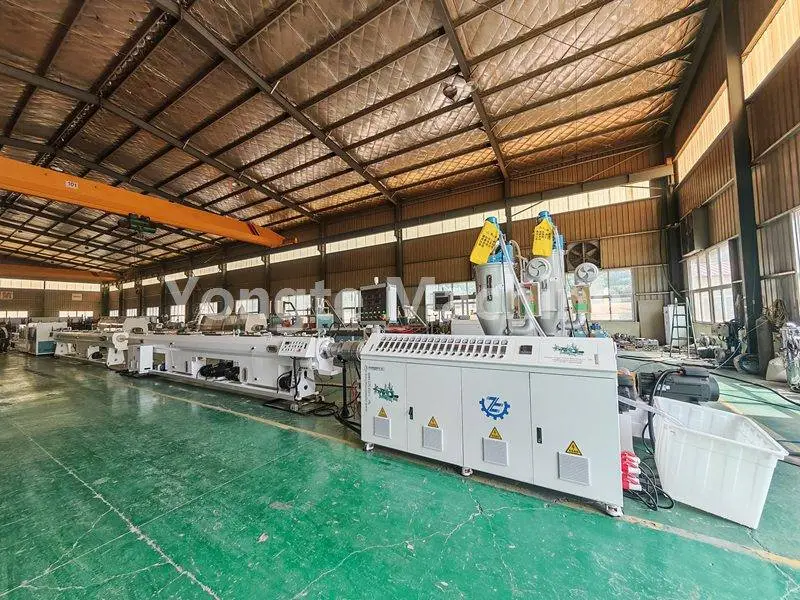

PPR Pipe Extrusion Machine
Model:16-160mm
Yongte is a professional PPR pipe extrusion machine manufacturer in China. Our CE-certified full-automatic PPR pipe extrusion line produces high-quality PPR pipes in diameters 16–160mm, featuring ultra-smooth inner walls, stable dimensions, and ±1mm cutting accuracy.
Yongte PPR pipe extrusion machine adopts high-efficiency extrusion system, precision mold, vacuum calibration, multi-stage spray cooling, servo traction and automatic cutting. It ensures stable production, high automation, low energy consumption, easy operation and uniform pipe quality.
PPR pipe is non-toxic, high temperature resistant, corrosion resistant and heat insulating, making it the first choice for global drinking water supply, heating, plumbing and fluid transportation. Our PPR extrusion line fully meets international standards for safe and stable pipe production.
PPR Pipe Production Process Flow
- PPR resin & color masterbatch mixing
- Vacuum automatic feeding
- Material drying
- Single screw extruder plasticizing (180–210℃)
- Mold forming
- Vacuum calibration shaping
- Multi-stage spray cooling
- Online laser printing
- Servo traction
- Fixed-length chip-free cutting
- Automatic stacking
Product Parameter (Specification)
The following are the detailed specifications of our 16-63mm/20-110mm/75-160mm CE Certified PPR Pipe Extrusion Machine, covering extrusion capacity, motor power, production speed and other key parameters.
| Model | 16-63mm | 20-110mm | 75-160mm |
| Pipe diameter (mm) | 16-63 | 20-110 | 75-160 |
| Extruder model | SJ65/33 | SJ65/33 | SJ75/33 |
| Extrusion capacity (kg/h) | 120-150 | 150-180 | 200-250 |
| Main motor power | 37kW | 45kw | 55kw |
| Production line speed | 3-12m/min | 3-12m/min | 2-10m/min |
| Total installed power | 70 kw | 90 kw | 110 kw |
| Power consumption | 40 kw | 50 kw | 60 kw |
| Vacuum calibration tank | 9m, | 9m | 9m |
| Spraying cooling tank | 9m | 9m | 9m |
| Cutting precision | ±1mm | ±1mm | ±1mm |
| Certification | CE | CE | CE |
| Machine length | 28m | 30m | 32m |
Core components and functions
Our PPR Pipe Extrusion Machine is specially engineered for PPR resin pipes with non-toxic, high-temperature and corrosion resistance properties, fully meeting the global water supply and industrial fluid transportation standards
Raw Material Mixing & Feeding System
Uniform mixing + vacuum feeding + drying; moisture ≤0.1% for stable quality.

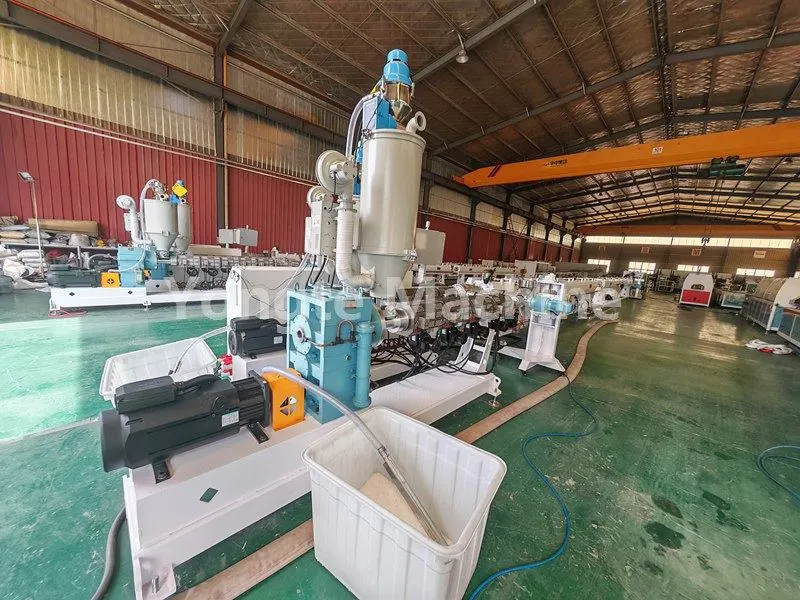

High-Efficiency PPR Extruder
Servo motor (15–20% energy saving), high-torque gearbox, wear-resistant screw & barrel.
Marking Line Co-Extruder
SJ25 extruder for single/multi color lines, customizable.
Precision PPR Pipe Mold
Spiral/basket die head for uniform extrusion.
Vacuum Calibration Tank
0.06–0.08 MPa vacuum; 304 stainless steel; high precision sizing.
Spray Cooling Tank
Multi-stage cooling; water temperature <20℃; stable shaping.
Servo Traction Machine
Stable speed, no deformation, high dimensional accuracy.
Chip-Free Planetary Cutter
Automatic fixed-length cutting; smooth burr-free end.

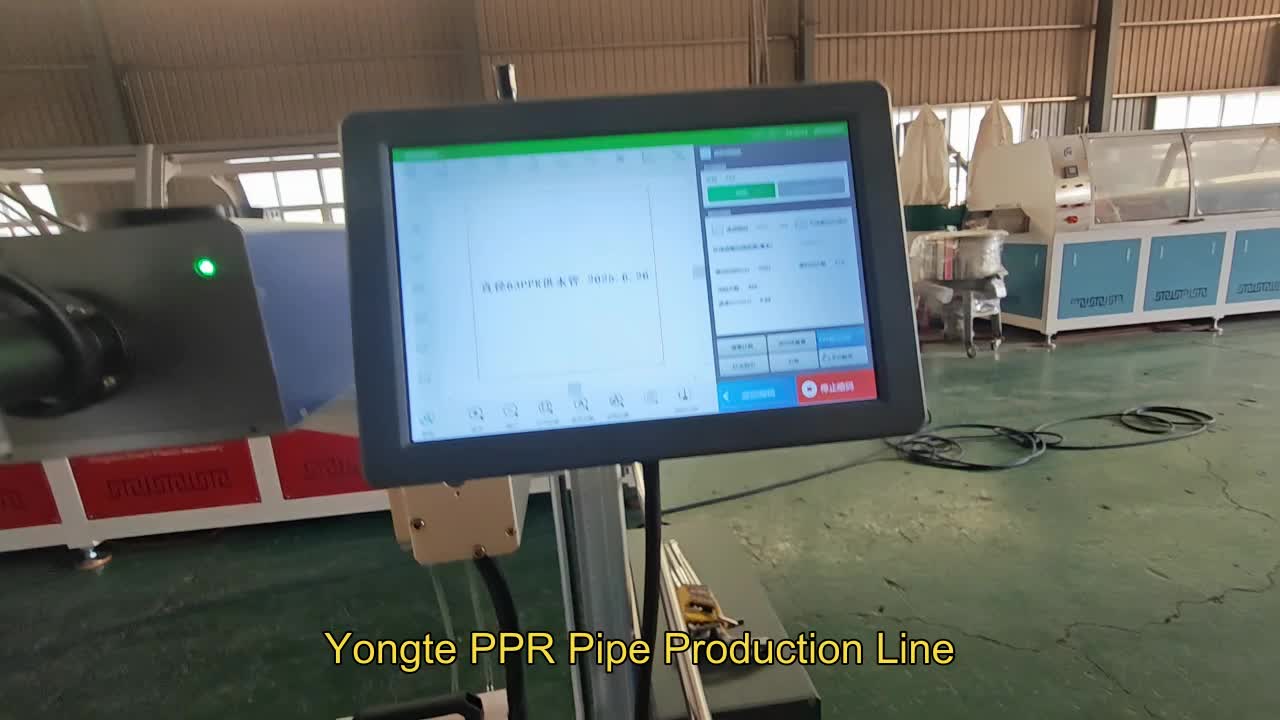

Laser Printer
No consumables; print specs, batch, logo online.
Automatic Stacker
Adjustable height & length; automatic collection & stacking.
Intelligent Electrical Control System
ABB inverter, Siemens PLC/contactor, Omron controller; CE & ISO safety standard.
Product Application
PPR (random copolymer polypropylene) pipe, an environmentally friendly, durable, and easy-to-install new type of plastic pipe, has widely replaced traditional galvanized pipes and copper pipes. With core advantages—including non-toxic and odorless composition, high-temperature resistance, corrosion resistance, and excellent thermal insulation properties—it has become the mainstream choice in global water supply, drainage, heating, and industrial fluid transportation fields. Our PPR Pipe Making Machine is specially engineered for PPR resin pipes with non-toxic, high-temperature and corrosion resistance properties, fully meeting the global water supply and industrial fluid transportation standards
Yongte Machine Advantages - humanized mechanical design and durable quality
After years of innovation and unwavering focus on quality, we insist on utilizing high-strength, wear-resistant materials for our plastic pipe machinery. These machines undergo precision forging and multiple rigorous quality tests to ensure they can withstand the wear from high-frequency use and the erosion of harsh environments
High-Torque GearboxHigh transmission efficiency, strong load, stable running, low noise, long life.
Servo Motor Energy SavingReduce power consumption by 15–20%, precise control, low vibration.
Full AutomationAuto feeding, temp control, traction, cutting, stacking. Save 30% labor cost.
Premium Electrical PartsABB, Siemens, Omron; compliant with EN ISO 12100, EN 60204-1, EMC.
Solid Steel Frame & 304 Stainless SteelCNC machined base, durable for 20+ years; anti-rust, clean, hygienic.
Wear-Resistant Screw & BarrelBimetallic screw & SKD barrel; service life 1.5–2× longer.
CE Certified & Powder CoatedSafe for export; beautiful appearance, anti-corrosion.
Pre-Shipment Test & On-Site ServiceFull test before delivery; overseas installation & training.
Successful cases
Yongte is dedicated to manufacturing high-quality, innovative plastic pipe machines. Through ongoing optimization, Yongte's PPR Pipe Machine has achieved high recognition in both domestic and international markets.
