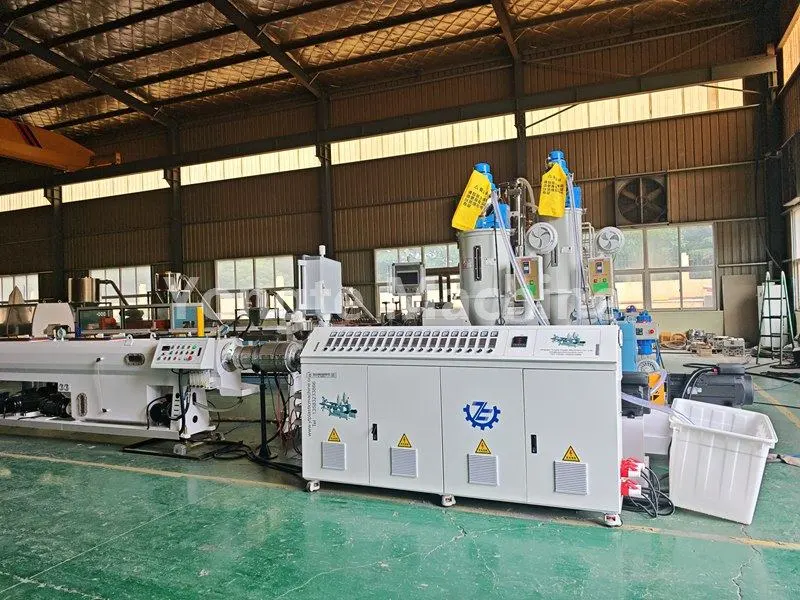

PE Pipe Extruder
Model:SJ75/33
Yongte is PE Pipe Extruder Machine leading Chinese manufacturer specializing in fully automatic CE-certified PE pipe extrusion lines. Our product range covers pipe diameters from 16mm to 630mm, with extrusion capacities ranging from 100kg/h to 600kg/h.
Product Overview
Yongte is PE Pipe Extruder Machine leading Chinese manufacturer specializing in fully automatic CE-certified PE pipe extrusion lines. Our product range covers pipe diameters from 16mm to 630mm, with extrusion capacities ranging from 100kg/h to 600kg/h.
Our PE pipe extruders feature energy-efficient servo drives and intelligent PLC control systems, reducing labor costs by over 30% compared to traditional semi-automatic equipment. The finished PE pipes boast uniform wall thickness, smooth inner and outer surfaces, excellent corrosion resistance, and an impressive 50-year service life. These versatile pipes are widely used in municipal water supply, natural gas transportation, sewage treatment, agricultural irrigation, and industrial fluid transfer applications. We offer comprehensive, customized production solutions tailored to meet the unique needs of pipe manufacturers worldwide.
Core advantages
Technical Parameter
Full Range of PE pipe extruder Specifications: We offer customized PE pipe production lines for different pipe diameters, all with single screw extruders, high cutting precision and stable operation.
| Model Series | Pipe Diameter | Extruder | Output kg/h | Main Motor | Total Power | Application |
|---|---|---|---|---|---|---|
| 16-63mm | 16–63 | SJ65/33 Single Screw | 100–150 | 37kw | 65kw | Small agriculture irrigation branch pipe |
| 20-110mm | 20–110 | SJ75/33 Single Screw | 150–200 | 55kw | 90kw | Rural water supply, small gas pipe |
| 75-250mm | 75–250 | SJ90/33 Single Screw | 200–300 | 75kw | 125kw | Municipal sewage, medium water pipe |
| 90-315mm | 90–315 | SJ90/38 Single Screw | 300–400 | 90kw | 150kw | Natural gas pipeline, municipal water |
| 160-450mm | 160–450 | SJ120/33 Single Screw | 350–450 | 132kw | 200kw | Large urban water supply, gas transmission |
| 315-630mm | 315–630 | SJ150/38 Single Screw | 500–600 | 160kw | 250kw | Super large municipal & industrial pipeline |
Core components and functions
1. Material Feeding and DryingAutomatic vacuum feeder + professional drying hopper Remove moisture thoroughly to avoid air bubbles in pipes Dust-free conveying, stable material supply |
|
2. PE Pipe ExtruderHigh-efficiency single screw extruder with 20% energy-saving Inovance servo motor Wear-resistant bimetallic screw barrel (1.5-2X longer lifespan) Precise automatic temperature control, stable melting & extrusion |
|
3. PE pipe Marking Line Extruder (SJ25)Custom single/multi marking lines for pipes Synchronous operation with main extruder, clear and durable marking |
|
4. Specialized PE Pipe MoldBasket/spiral structure die head, uniform material extrusion High-precision processing, ensure pipe size accuracy Wear-resistant, easy to disassemble and clean |
|
5. PE pipe Vacuum Calibration Tank304 stainless steel construction, corrosion resistance 0.06-0.08MPa stable vacuum, multi-zone control Ensure pipe roundness and smooth surface finish |
|
6. PE pipe Spray Cooling TankMulti-stage spray cooling, water temperature ＜20℃ 304 stainless steel, efficient water circulation Rapid & uniform cooling, prevent pipe deformation |
|
7. PE pipe Pull-off Traction MachineDouble stage reducer, steady and adjustable traction speed Precision control system, consistent tension Adapt to different pipe diameters and production speeds |
|
8. PE Pipe Planetary CutterAutomatic fixed-length, chip-free cutting Burr-free edges, cutting precision ±1mm Minimize material waste, high cutting efficiency |
|
9. Laser Printing MachineReal-time printing of product specs/batch/brand No consumables, clear and permanent marking Easy to operate and adjust printing content |
|
10. Stacking RackAutomatic orderly stacking of finished pipes Adjustable stacking height and layer count Save labor, improve storage efficiency |
|
11. Electric Control SystemABB frequency converters, Siemens contactors, Omron temperature controllers Siemens PLC central control, precise parameter adjustment Clear cable marking, compliant with EN 60204-1/EN 61000 standards |
|
Product Applications
- PE pipes with anti-corrosion, leak-proof and food-grade properties
- Adapt to urban/rural water supply network construction
- Matching models: 75-630mm (large diameter) / 16-110mm (branch pipe)
- High-pressure resistant PE pipes, safe and reliable
- No rust, no scaling, low fluid resistance
- Matching models: 90-450mm
- Sewage discharge, rainwater collection, underground pipeline engineering
- Strong adaptability to complex ground conditions
- Matching models: 75-630mm
- Lightweight, easy to install, suitable for farmland/orchard irrigation
- Corrosion resistance to agricultural chemicals
- Matching models: 16-110mm
- Transport of non-corrosive industrial fluids, chemical raw materials
- High strength, good sealing performance
- Matching models: 20-315mm
Successful cases
Yongte PE pipe extruders have been exported to more than 50 countries and regions, with high recognition from global customers for stable performance and professional service.
