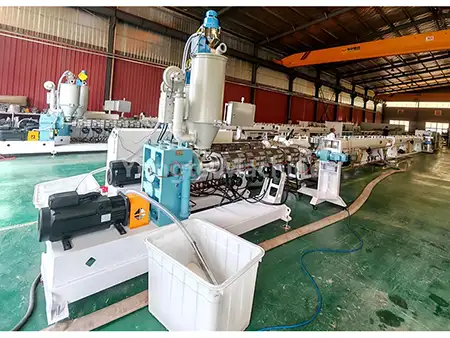

20-110mm HDPE Pipe Extrusion Line

The Yongte quality 20-110mm HDPE Pipe Extrusion Line represents a sophisticated, specialized extrusion system meticulously engineered for the production of small-diameter polyethylene pipes. This system is meticulously tailored for applications encompassing potable water supply, sewage drainage, and electrical conduit systems. It finds extensive application in residential water supply and drainage systems, municipal infrastructure projects, and large-scale agricultural irrigation networks. Utilizing advanced single-screw extrusion technology, complemented by an optimized screw design, this equipment facilitates the stable production of polyethylene pipes with diameters ranging from 20 to 110mm. It is characterized by its full automation capabilities, energy-efficient operation, and a consistent record of superior product quality.

Process Flow

PE resin + color masterbatch → mixing → vacuum feeding → drying → extruder plasticizing (180-210℃) → mold forming → vacuum calibrating → multi-stage spray cooling → laser printing → pull off traction → fixed-length cutting → finished product stacking

Product Parameter

Product details

1. Material Feeding and Drying:	(1) This PE material will automatically convey to the extruder's drying hopper via a vacuum feeder (2) where moisture is removed to make sure the PE material's moisture content keeps below 0.1%, then guaranteeing the product quality.

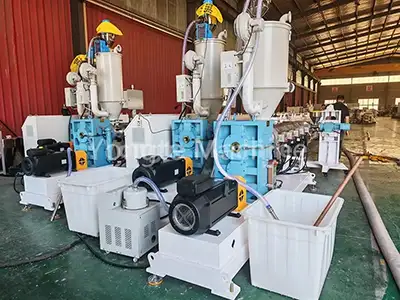

2. PE Pipe Extruder:	Equip with SJ75/33 high-efficiency single-screw extruder (1) integrates 55KW energy-saving servo motor which can reduce power consumption by approximately 20%. (2) direct-drive gearbox which can ensure high transmission efficiency and simplified maintenance. (3) wear-resistant and corrosion-resistant screw barrel which forged from 38CrMoALA alloy steel with precision nitriding treatment. (4) efficient infrared heating coil system (5) automated temperature control system which features Omron’s high-precision temperature controller.
3. Marking Line Extruder:	(1) The SJ25 extruder is utilized to create marking lines on PE pipes. (2) Producing either a single marking line or multiple marking lines, and depending on the customer's requirements.
4. Specialized PE Pipe Mold:	(1) With basket or spiral structure die head (2) Ensure the uniform extrusion of the material.

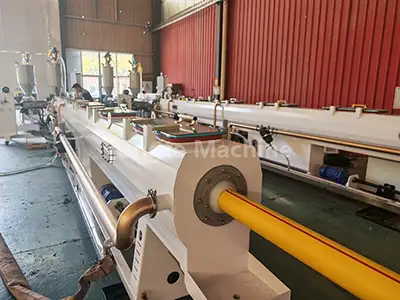

5. Vacuum Calibration Tank:	(1) The extruded tube blank undergoes rapid precision calibration though vacuum adsorption, ensuring strict dimensional accuracy. The vacuum level can maintain at 0.06–0.08 MPa. (2) The tank is constructed from food-grade stainless steel, and features a multi-zone vacuum control system and efficient water circulation cooling. They collectively guarantee consistent pipe roundness, smooth surface finish, and adherence to tight tolerance standards throughout high-speed production.
6. Spray Cooling Tank:	(1) It uses multi-stage spray cooling technology and maintains water temperature below 20°C. This tank can ensure rapid and uniform cooling of pipes. (2) It is constructed from stainless steel and provides excellent corrosion resistance and durability.
7. Pull-off Traction Machine:	(1) This machine can make draws pipes at a steady speed (3-15 m/min) to ensure uniform length and stable production. (2) This machine is equipped with precision control systems, it can keep consistent tension during the traction process, effectively prevent pipe deformation and ensure dimensional accuracy.
8. Planetary Cutter:	(1) Enables automatic fixed-length, chip-free cutting with smooth, burr-free edges (2) Specifically optimized for small to medium diameter PE pipes (3) Ensures consistent length accuracy and minimizes material waste during production by its precision cutting mechanism.
9. Laser printing machine:	(1) Show the product specifications and batch information in real-time using laser technology (2) No consumables required.
10. Stacking Rack:	(1) It can automatically stack finished pipes in an orderly manner (2) It equips with adjustable stacking height and layer count, and then accommodate different pipe lengths and storage requirements.
11. Electric control system:	(1) including ABB frequency converters (2) Siemens contactors (3) Omron temperature controllers (4) and Inovance servo controllers

Product Application

1. 20-110mm PE (Polyethylene) pipes are widely recognized for their outstanding performance attributes

(1) including superior corrosion resistance

(2) reliable leak-proof properties

(3) eco-friendly

(4) and an ultra-long service life (up to 50 years)

2. As a versatile "multi-purpose" solution, they are extensively applied across

(1) construction

(2) municipal engineering

(3) agricultural irrigation

(4) and industrial fluid transport sectors.

Yongte Machine Advantages - humanized mechanical design and durable quality

Our 20-110mm HDPE Pipe Extrusion Line is durable with Human-centered mechanical design. After years of innovation and focus on quality, we use high-strength, wear-resistant materials for plastic pipe machinery. These machines undergo precision forging and rigorous quality tests to withstand high-frequency use wear and harsh environment erosion.

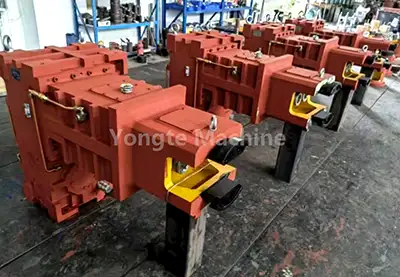

1. Robust and Durable Gearbox:	Yongte equips its machines with high-quality vertical direct-drive gearboxes, boasting ▪ high transmission efficiency ▪ strong load-bearing capacity ▪ stable production performance ▪ space-saving installation design ▪ superior sealing (zero oil leakage) ▪ excellent heat dissipation ▪ easy maintenance
High-Efficiency Servo Motor:	We adopt renowned-brand servo motors that reduce power consumption by 15–20%, with key benefits including ▪ precise speed and torque control ▪ fast response ▪ low vibration ▪ low noise ▪ long service life ▪ minimal maintenance costs ▪ intelligent speed and output regulation

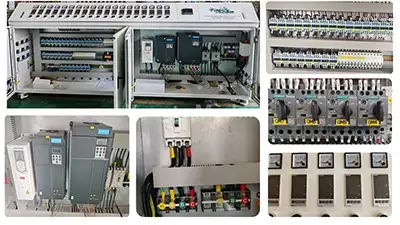

2. Highly Automated Operation System | Advanced Electrical Control System:	• The complete PE pipe production line is engineered for high automation ▪ featuring fully automatic feeding ▪ precise temperature control ▪ automated cutting ▪ intelligent stacking • We also provide advanced automatic material mixing and dosing systems to enable fully integrated automated production lines • By integrating high-performance servo motors and PLC-programmed control systems, optional functions such as speed synchronization and automatic parameter adjustment are available •Equipped with premium components including ABB inverters, Siemens contactors, Omron temperature controllers, and Siemens PLC • The electrical control system is designed for user-friendly operation, simplified maintenance, enhanced safety, and consistent reliability

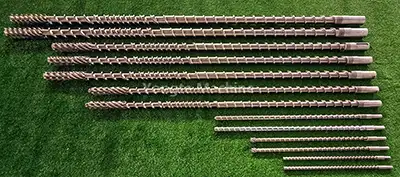

3. Robust Machine Base Crafted from Solid Steel Plate | Wear-Resistant Screw and Barrel:	• The machine base is constructed from heavy-duty solid steel plate, processed via precision CNC cutting and grinding to ensure accurate dimensions and optimal balance—supporting long-term stable operation of the machine. ▪ All parts in contact with materials or water are made of 304 stainless steel for enhanced corrosion resistance. ▪ Screws and barrels are manufactured from customized wear-resistant materials tailored to the specific processed materials. • After manufacturing, machines undergo epoxy powder coating for a high-quality finish—delivering excellent rust resistance and long-lasting color stability.
4. Professional Machine Testing & On-Site Installation Service:	• Before shipment, each machine is subjected to thorough, multi-stage performance testing to ensure optimal functionality and stable, long-term operation. ▪ The tests encompass 72-hour continuous load runs, extrusion parameter calibration, and key component stress checks, ensuring high-quality pipe production. • Our team provides comprehensive on-site installation services, thorough operator training programs, and customized manuals specifically designed to ensure seamless integration and optimal performance of your systems.
5. 3-Year Warranty | Lifetime Technical Support:	• To fully safeguard your production operations, we offer a three-year warranty that covers core equipment components, ensuring worry-free operation throughout the warranty period. • Beyond the warranty, we provide lifetime technical support services, including: ▪ Permanent technical consultation ▪ Supply of genuine spare parts ▪ Professional maintenance guidance—accompanying your business development for the long term.

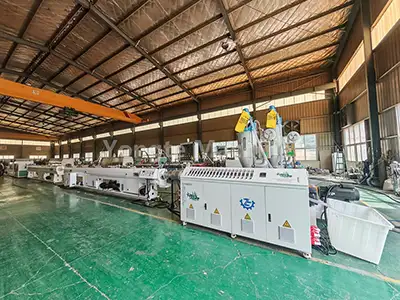

Successful cases

Yongte is dedicated to manufacturing high-quality, innovative plastic pipe machines. Through ongoing optimization, Yongte's plastic manufacturing equipment has achieved high recognition in both domestic and international markets. Welcome to contact us and buy 20-110mm HDPE Pipe Extrusion Line!
