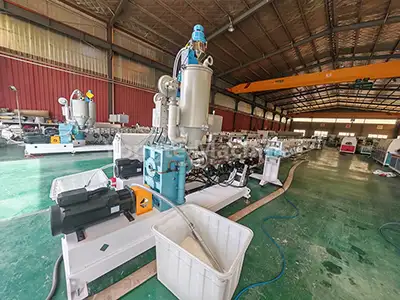

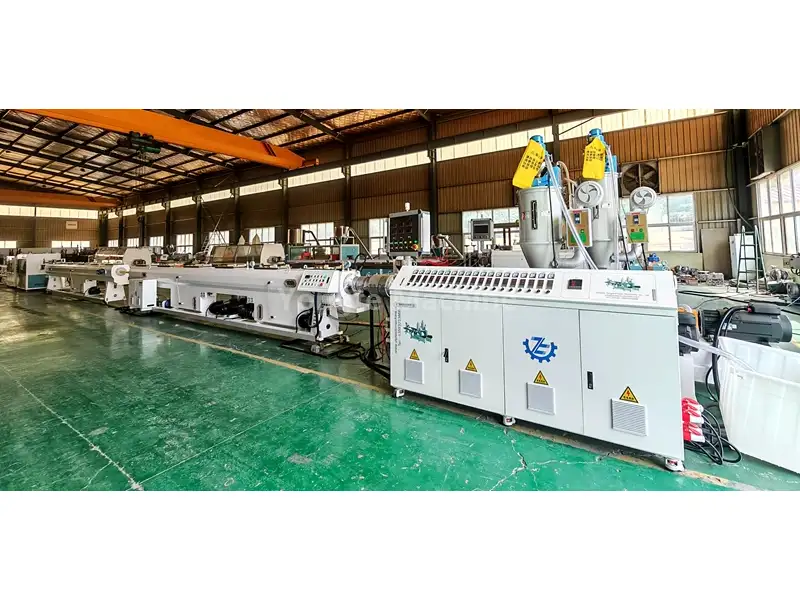

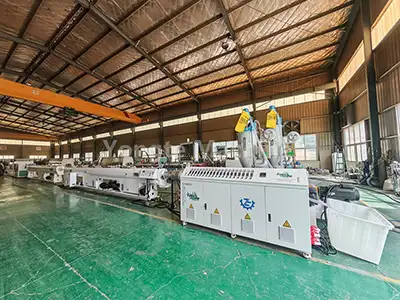

16-63mm PE Pipe Making Machine

Yongte, a leading manufacturer based in China, specializes in the production of 16-63mm PE pipe making machine. These machines form a custom extrusion line, meticulously engineered for the fabrication of small-diameter polyethylene pipes, designed specifically for water supply, drainage, and conduit applications. The equipment is extensively used in the construction of building water supply and drainage systems, municipal engineering projects, and agricultural irrigation networks. Utilizing advanced single-screw extrusion technology, the machinery ensures the consistent production of PE pipes with diameters ranging from 16 to 63mm. It is characterized by its high automation capabilities, efficient production output, and the maintenance of uniform product quality.

PE Pipe Production Process Flow

PE resin + color masterbatch → mixing → vacuum feeding → drying → extruder plasticizing (180-210℃) → mold forming → vacuum calibrating → multi-stage spray cooling → laser printing → pull off traction → fixed-length cutting → finished product stacking

Product Parameter

Product details

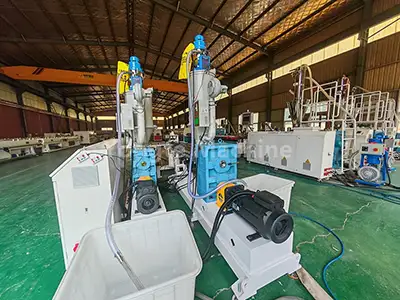

1. Raw Material Processing System:	The PE material undergoes uniform mixing with additives, (such as color masterbatches, within a mixer. Subsequently, the mixture is automatically transported to the extruder's drying hopper via a vacuum feeder, where moisture is eliminated to maintain the PE material's moisture content at or below 0.1%, ensuring product quality.

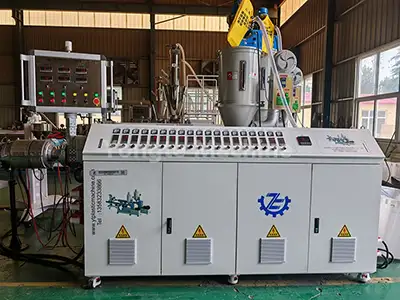

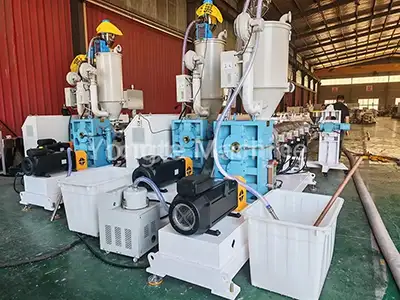

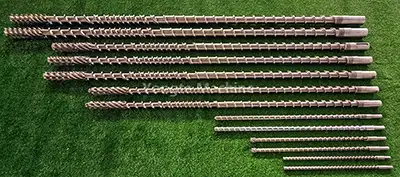

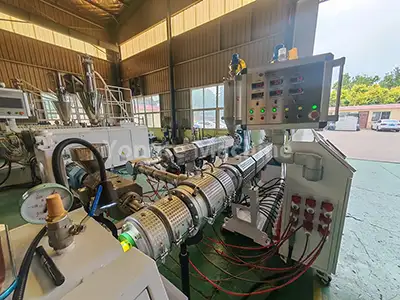

2. PE Pipe Extruder:	The system is outfitted with an SJ65/33 high-efficiency single-screw extruder, which includes a 55KW energy-saving servo motor that reduces power consumption by approximately 20%. It also features a direct-drive gearbox for enhanced transmission efficiency and simplified maintenance, a wear-resistant and corrosion-resistant screw barrel made from 38CrMoALA alloy steel with nitriding treatment, an efficient heating system utilizing an infrared heating coil, and an automated temperature control system with an Omron temperature controller.
3. Marking Line Extruder:	The SJ25 extruder is utilized to imprint marking lines on PE pipes, capable of producing either a single marking line or multiple marking lines, contingent upon customer specifications.

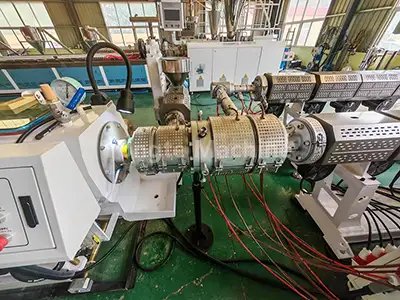

4. Specialized PE Pipe Mold:	The mold is equipped with a basket or spiral structure die head to ensure the uniform extrusion of the material.

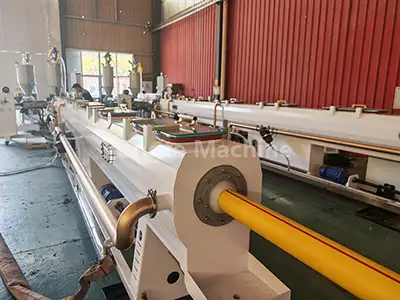

5. Vacuum Calibration Tank:	The tube blank is swiftly calibrated through vacuum adsorption to guarantee dimensional precision, with a (vacuum level ranging from 0.06 to 0.08 MPa. The tank is constructed from stainless steel.

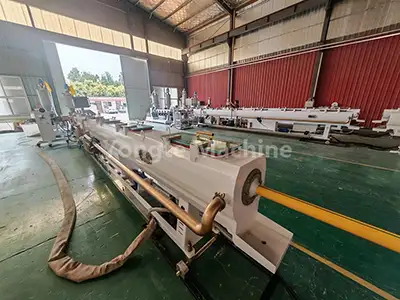

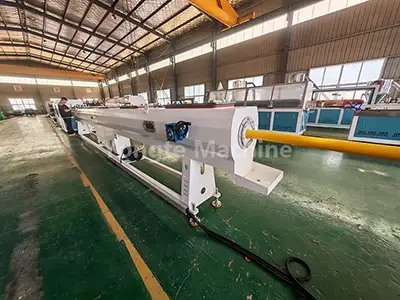

6. Spray Cooling Tank:	Equipped with multi-stage spray cooling technology, this tank maintains water temperature below 20℃ to ensure rapid and uniform cooling of pipes. Constructed from stainless steel, it offers excellent corrosion resistance and durability for sustained, stable operation.
7. Pull-off Traction Machine:	The machine draws pipes at a consistent speed (of 3-15 m/min to ensure uniform length and stable production. It is equipped with precision control systems that maintain consistent tension during the traction process, effectively preventing pipe deformation and ensuring dimensional accuracy.

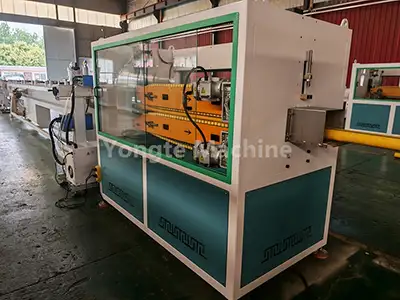

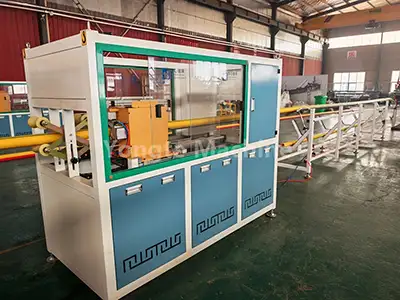

8. Planetary Cutter:	The cutter enables automatic fixed-length, chip-free cutting with smooth, burr-free edges, specifically optimized for small to medium diameter PE pipes. Its precision cutting mechanism ensures consistent length accuracy and minimizes material waste during production.

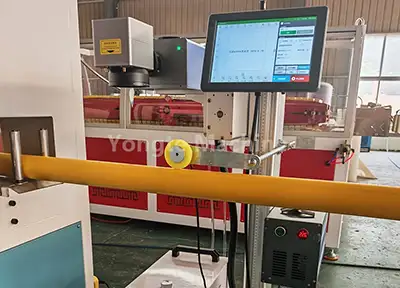

9. Laser Printing Machine:	The machine employs laser technology to display product specifications and batch information in real-time, eliminating the need for consumables.

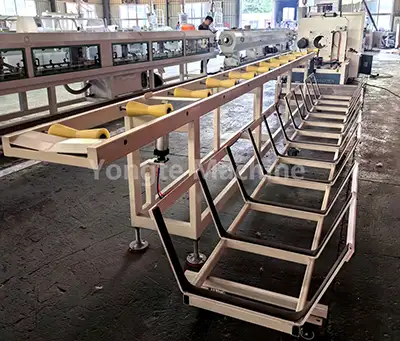

10. Stacking Rack:	The rack automatically stacks finished pipes in an orderly fashion, with adjustable stacking height and layer count to accommodate various pipe lengths and storage requirements. Constructed with a robust frame and anti-slip design, it ensures stable stacking and easy handling of finished products, optimizing post-production storage efficiency.

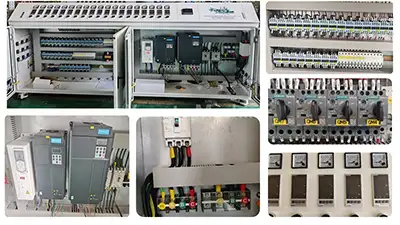

11. Electric Control System:	The system includes ABB frequency converters, Siemens contactors, Omron temperature controllers, and Inovance servo controllers.

Product Application

1. 16-63mm PE (Polyethylene) pipes are widely recognized for their outstanding performance attributes

(1) including superior corrosion resistance

(2) reliable leak-proof properties

(3) eco-friendly

(4) an ultra-long service life (up to 50 years)

2. As a versatile "multi-purpose" solution, they are extensively applied across

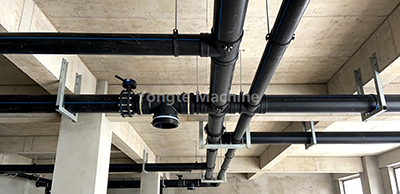

(1) construction

(2) municipal engineering

(3) agricultural irrigation

(4) industrial fluid transport sectors.

Yongte Machine Advantages - humanized mechanical design and durable quality

Through decades of innovation and commitment to excellence, our company uses high-strength, abrasion-resistant materials for plastic pipe machinery. We always produce quality and durable 16-63mm PE pipe making machine for customers. These mechanisms undergo meticulous forging and strict quality assessments to ensure resilience against frequent operation wear and severe environmental corrosion.

1. Robust and Durable Gearbox | High-Efficiency Servo Motor:	1. Yongte equips its machines with high-quality vertical direct-drive gearboxes, boasting (1) high transmission efficiency (2) strong load-bearing capacity (3) stable production performance (4) space-saving installation design (5) superior sealing (zero oil leakage) (6) excellent heat dissipation (7) easy maintenance 2. We adopt renowned-brand servo motors that reduce power consumption by 15–20%, with key benefits including (1) precise speed and torque control (2) fast response (3) low vibration (4) low noise (5) long service life (6) minimal maintenance costs (7) intelligent speed and output regulation
2. Highly Automated Operation System | Advanced Electrical Control System:	1. The complete PE pipe production line is engineered for high automation (1) featuring fully automatic feeding (2) precise temperature control (3) automated cutting (4) intelligent stacking 2. We also provide advanced automatic material mixing and dosing systems to enable fully integrated automated production lines 3. By integrating high-performance servo motors and PLC-programmed control systems (1) optional functions such as speed synchronization and automatic parameter adjustment are available 4. Equipped with premium components including ABB inverters, Siemens contactors, Omron temperature controllers, and Siemens PLC (1) The electrical control system is designed for user-friendly operation (2) simplified maintenance (3) enhanced safety (4) consistent reliability
3. Robust Machine Base Crafted from Solid Steel Plate | Wear-Resistant Screw and Barrel:	1. The PE pipe making machine base is constructed from heavy-duty solid steel plate, processed via precision CNC cutting and grinding to ensure accurate dimensions and optimal balance—supporting long-term stable operation of the machine. (1) All parts in contact with materials or water are made of 304 stainless steel for enhanced corrosion resistance. (2) Screws and barrels are manufactured from customized wear-resistant materials tailored to the specific processed materials. 2. After manufacturing, machines undergo epoxy powder coating for a high-quality finish—delivering excellent rust resistance and long-lasting color stability.
4. Professional Machine Testing & On-Site Installation Service:	1. Prior to shipment, all machines undergo rigorous performance testing to ensure optimal functionality and stable operation, guaranteeing consistent production of high-quality products. 2. Our professional engineering team provides on-site installation support and comprehensive operator training at the customer’s facility.
5. 3-Year Warranty | Lifetime Technical Support:	1. To fully safeguard your production operations, we provide a 3-year warranty covering core equipment components, ensuring worry-free operation during the warranty period. 2. Beyond the warranty, we offer lifetime technical support services (1) including permanent technical consultation (2) genuine spare parts supply (3) and professional maintenance guidance—accompanying your business development for the long term.

Successful cases

Yongte is committed to producing high-quality, cutting-edge plastic pipe machinery. Through continuous refinement, Yongte's 16-63mm PE pipe making machine has garnered wide acclaim in both domestic and global markets.

Argentina PE Pipe Machine

African 200-400mm PVC Pipe Making Machine

Algeria 16-63mm Three-layer PPR Pipe Production Line
