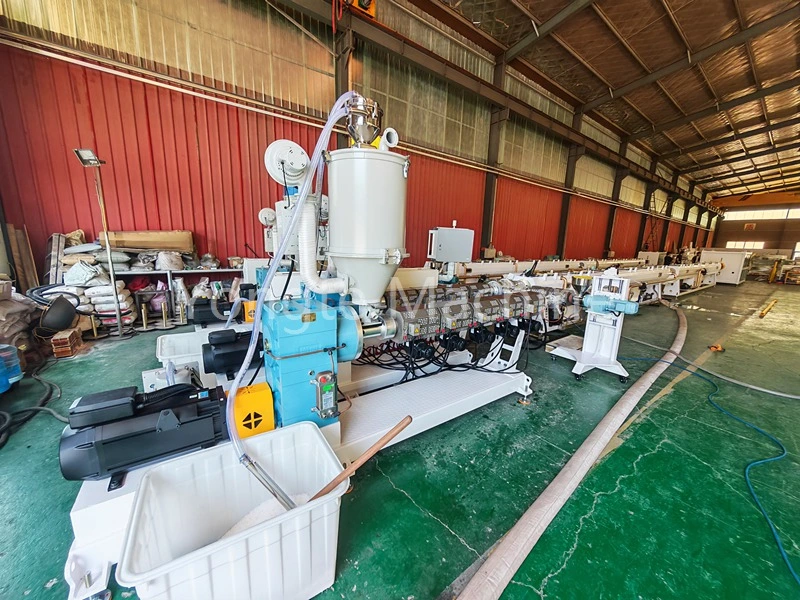

HDPE Pipe Production Line
Model:16-630mm
CE certified 16-630mm HDPE Pipe Production Line with 100-600kg/h extrusion capacity. 3-year warranty, lifetime after-sales service, fully automated operation. Customized solutions for water supply, gas transmission, municipal & industrial applications. Get your quote now!
Product Overview
Yongte, a leading Chinese manufacturer with over 15 years of expertise in plastic extrusion technology, specializes in CE-certified fully automated HDPE pipe production line, engineered to produce high-quality polyethylene pipes with a diameter range of 16-630mm and an extrusion capacity of 100-600kg/h. Our HDPE pipe production lines strictly comply with global industry and environmental standards, integrating energy-efficient drive systems and intelligent automation technology that reduces labor costs by over 30% compared to traditional semi-automatic equipment while ensuring 99.8% production yield.
The HDPE pipes produced by our extrusion lines feature exceptional dimensional precision, ultra-smooth inner/outer walls, and superior performance characteristics—including outstanding corrosion resistance, zero-leak structural integrity, and an extended service life of up to 50 years. Ideally suited for municipal water supply networks, natural gas transmission systems, urban infrastructure projects, agricultural irrigation systems, and industrial fluid transport applications, our HDPE pipe production linesdeliver a reliable, long-lasting manufacturing solution trusted by customers across global markets.
HDPE Pipe Production Process Flow
- Raw Material Mixing → PE resin + color masterbatch
- Vacuum Feeding → Automatic material conveying
- Material Drying → Moisture content ≤ 0.1%
- Extruder Plasticizing → 180-210℃, SJ75/33 single-screw extruder
- Mold Forming → Basket/spiral structure die head for uniform extrusion
- Vacuum Calibrating → 0.06-0.08MPa, precise dimension calibration
- Multi-stage Spray Cooling → Water temperature ＜20℃, full and uniform cooling
- Laser Printing → Real-time non-consumable marking of product specs & batch info
- Pull-off Traction → 3-15m/min stable speed, tension control to prevent deformation
- Fixed-length Cutting → Chipless cutting, ±1mm precision
- Finished Product Stacking → Automatic orderly stacking, adjustable height & layers
Process Advantage：Fully automated continuous production ensures high efficiency, stable pipe quality and minimal material waste, realizing seamless connection of all production links.
Product Parameter
Comprehensive Range of HDPE Pipe Production Line Specifications: We provide fully customized HDPE pipe manufacturing solutions tailored to diverse diameter requirements, featuring high-performance single-screw extruders, precision cutting systems, and stable operation with minimal maintenance needs.
|
Model |
16-63mm |
20-110mm |
75-250mm |
90-315mm |
160-450mm |
315-630mm |
|
Pipe diameter (mm) |
16-63 |
20-110 |
75-250 |
90-315 |
160-450 |
315-630 |
|
Extruder model |
SJ65/33 |
SJ75/33 |
SJ90/33 |
SJ90/38 |
SJ120/33 |
SJ150/38 |
|
Extruder type |
Single screw extruder |
Single screw extruder |
Single screw extruder |
Single screw extruder |
Single screw extruder |
Single screw extruder |
|
Extrusion capacity (kg/h) |
100-180 |
200-250 |
250-350 |
300-400 |
350-450 |
500-600 |
|
Main motor power (kw) |
37 |
55 |
75 |
90 |
132 |
160 |
|
Production line speed (m/min) |
5-15 |
3-12 |
2-10 |
1-5 |
0.5-3 |
0.5-3 |
|
Total installed power (kw) |
65 |
90 |
125 |
150 |
200 |
250 |
|
Power consumption (kw) |
30 |
40 |
55 |
70 |
90 |
110 |
|
Vacuum calibration tank |
9m |
9m |
9m |
9m |
9m |
9m |
|
Spraying cooling tank |
9m |
9m |
6m*2 |
6m*2 |
6m*2 |
9m*2 |
|
Cutting precision |
±1mm |
±1mm |
±1mm |
±1mm |
±1mm |
±1mm |
|
Machine Length |
28m |
28m |
32m |
33m |
35m |
40m |
Core components and functions
1. Material Feeding and DryingAutomatic vacuum feeder + professional drying hopper Remove moisture thoroughly to avoid air bubbles in pipes Dust-free conveying, stable material supply |
|
2. PE Pipe ExtruderHigh-efficiency single screw extruder with 20% energy-saving Inovance servo motor Wear-resistant bimetallic screw barrel (1.5-2X longer lifespan) Precise automatic temperature control, stable melting & extrusion |
|
3. PE pipe Marking Line Extruder (SJ25)Custom single/multi marking lines for pipes Synchronous operation with main extruder, clear and durable marking |
|
4. Specialized PE Pipe MoldBasket/spiral structure die head, uniform material extrusion High-precision processing, ensure pipe size accuracy Wear-resistant, easy to disassemble and clean |
|
5. PE pipe Vacuum Calibration Tank304 stainless steel construction, corrosion resistance 0.06-0.08MPa stable vacuum, multi-zone control Ensure pipe roundness and smooth surface finish |
|
6. PE pipe Spray Cooling TankMulti-stage spray cooling, water temperature ＜20℃ 304 stainless steel, efficient water circulation Rapid & uniform cooling, prevent pipe deformation |
|
7. PE pipe Pull-off Traction MachineDouble stage reducer, steady and adjustable traction speed Precision control system, consistent tension Adapt to different pipe diameters and production speeds |
|
8. PE Pipe Planetary CutterAutomatic fixed-length, chip-free cutting Burr-free edges, cutting precision ±1mm Minimize material waste, high cutting efficiency |
|
9. Laser Printing MachineReal-time printing of product specs/batch/brand No consumables, clear and permanent marking Easy to operate and adjust printing content |
|
10. Stacking RackAutomatic orderly stacking of finished pipes Adjustable stacking height and layer count Save labor, improve storage efficiency |
|
11. Electric Control SystemABB frequency converters, Siemens contactors, Omron temperature controllers Siemens PLC central control, precise parameter adjustment Clear cable marking, compliant with EN 60204-1/EN 61000 standards |
|
Product Advantages - why choose Yongte HDPE pipe production line?
-
Energy-Saving & Low Cost
- Inovance servo motor saves 15-20% power consumption
- Fully automated operation, reduce labor cost by over 30%
-
High Precision & Stability
- Cutting precision ±1mm, strict dimensional tolerance
- Stable extrusion pressure, uniform pipe wall thickness
-
Durable & Long-Lifespan
- Machine frame made of solid steel plate, lifespan over 20 years
- Bimetallic screw barrel, 1.5-2X longer than conventional materials
-
Global Certification & Compliance
- CE certified, comply with EN ISO 12100/EN 60204-1
- Meet international environmental and safety standards
-
High Automation
- Automatic feeding/cutting/stacking, unmanned key links
- PLC central control, one-click operation, easy to learn
-
Premium Material & Craft
- 304 stainless steel for water/contact parts, rust-proof
- Powder coating surface treatment, corrosion/abrasion resistance
-
Professional After-Sales
- 3-year warranty for the whole machine
- Lifetime free technical support, global spare parts supply
-
Customizable Solution
- Customize pipe diameter/capacity according to customer demand
- On-site installation, commissioning and technical training
Product Applications
- PE pipes with anti-corrosion, leak-proof and food-grade properties
- Adapt to urban/rural water supply network construction
- Matching models: 75-630mm (large diameter) / 16-110mm (branch pipe)
- High-pressure resistant PE pipes, safe and reliable
- No rust, no scaling, low fluid resistance
- Matching models: 90-450mm
- Sewage discharge, rainwater collection, underground pipeline engineering
- Strong adaptability to complex ground conditions
- Matching models: 75-630mm
- Lightweight, easy to install, suitable for farmland/orchard irrigation
- Corrosion resistance to agricultural chemicals
- Matching models: 16-110mm
- Transport of non-corrosive industrial fluids, chemical raw materials
- High strength, good sealing performance
- Matching models: 20-315mm
Successful cases
Yongte HDPE pipe production lines have been exported to more than 50 countries and regions, with high recognition from global customers for stable performance and professional service.
