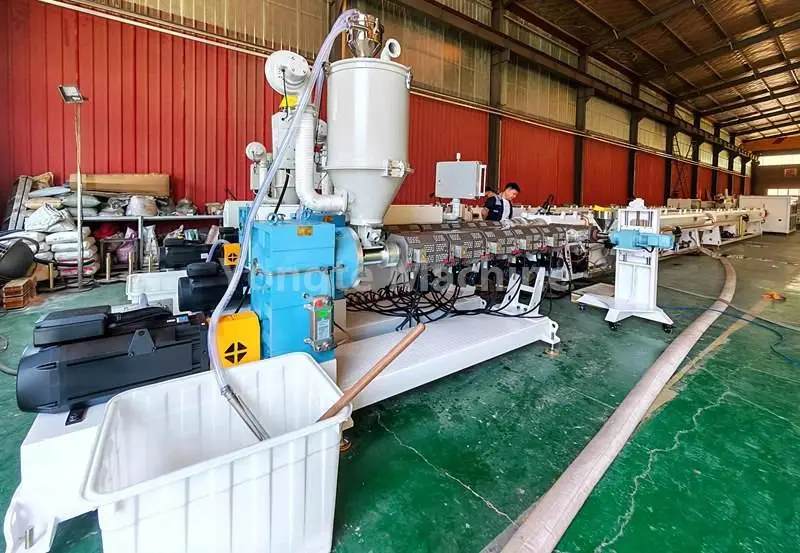

16-63mm PPR Pipe Co Extrusion Line
Model:SJ65/33
Yongte 16-63mm PPR Pipe Co Extrusion Line is a fully automatic, high‑efficiency production line dedicated to manufacturing ABA‑structure three‑layer PPR pipes with smooth inner walls, stable dimensions, and consistent quality. It adopts advanced single‑screw extrusion and servo‑driven control, ideal for water supply, heating, drainage, and industrial fluid piping systems.
High‑Speed ABA‑Structure Production Line for 16–63mm PPR Pipes
Yongte 16-63mm PPR Pipe Co Extrusion Line is a fully automatic, high‑efficiency production line dedicated to manufacturing ABA‑structure three‑layer PPR pipes with smooth inner walls, stable dimensions, and consistent quality. It adopts advanced single‑screw extrusion and servo‑driven control, ideal for water supply, heating, drainage, and industrial fluid piping systems.
Key Advantages
- High automation: Auto feeding, temperature control, cutting, and stacking
- Energy saving: Servo motor reduces power consumption by 15–20%
- Stable output: Up to 220 kg/h, line speed 3–12 m/min
- Precision forming: Vacuum calibration + multi‑stage spray cooling
- Long service life: Wear‑resistant screw barrel, solid steel frame
- International brands: Siemens PLC, Omron thermostat, ABB inverter
Main Technical Parameters of PPR pipe co-extrusion line
| Item | Specification | Remarks |
|---|---|---|
| Raw material | PPR resin + color masterbatch | Random copolymer polypropylene |
| Pipe diameter | 16–63 mm | Standard: 16,20,25,32,40,50,63 mm |
| Extruder model | SJ65/33 | Screw Diameter=65 mm, L/D=33:1 |
| Output | 120-220 kg/h | Slight variation by formula |
| Main motor | 55 kW | Innovance servo motor for saving power |
| Line speed | 3–12 m/min | According to pipe size and thickness |
| Installed power | Approx. 90 kW | |
| Running power | Approx. 40 kW | |
| Cooling system | 9 m vacuum + 9 m spray | Water temp. <20°C |
| Cutting precision | ±1 mm | Chipless cutting |
| Voltage | 380V/50Hz 3‑phase | Customizable |
| Line length | Approx. 32 m | Optional 22–24 m |
Core Components

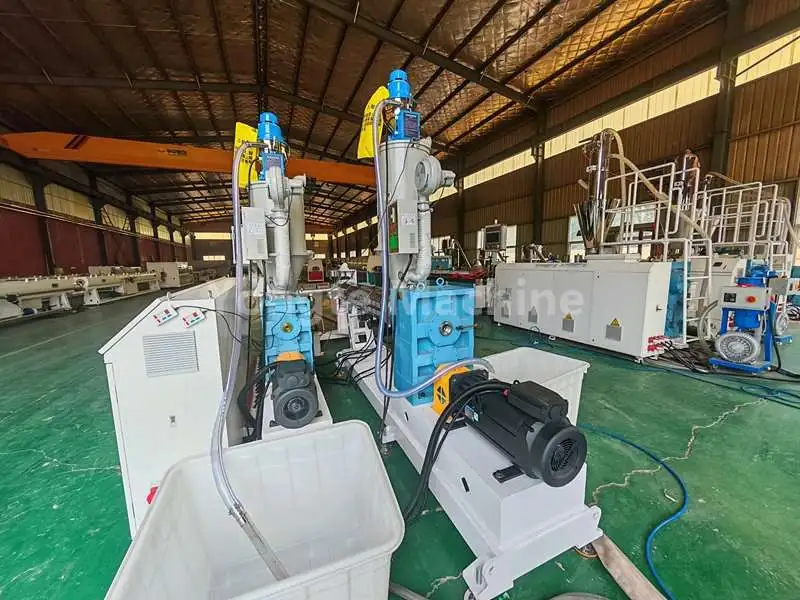

Material system: Mixer, vacuum feeder, dryer (moisture <0.1%)

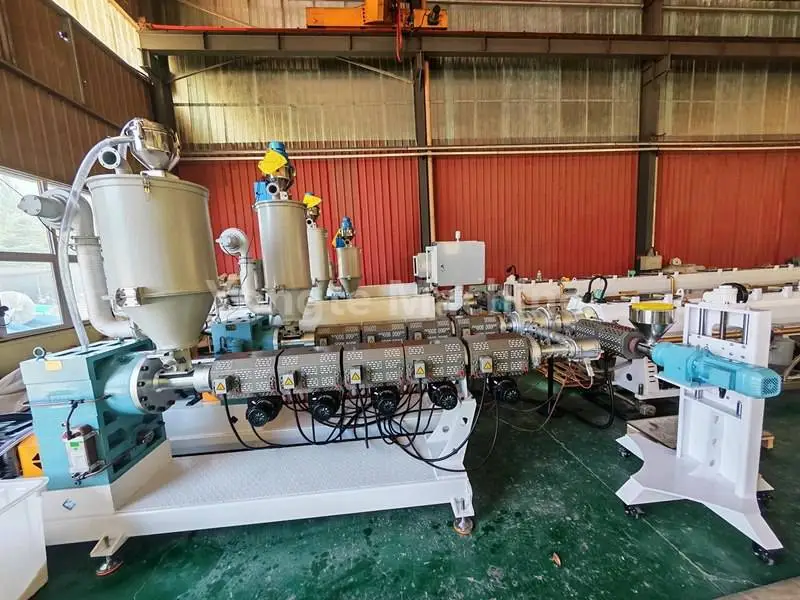

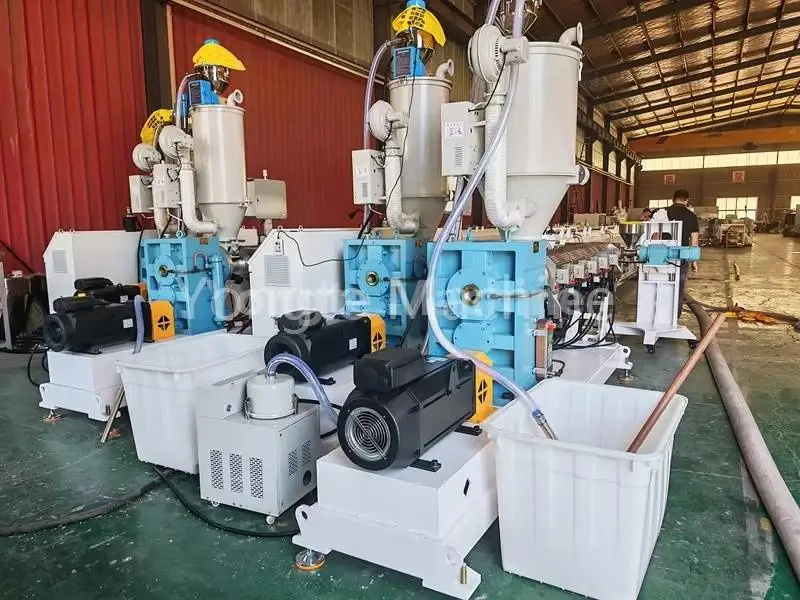

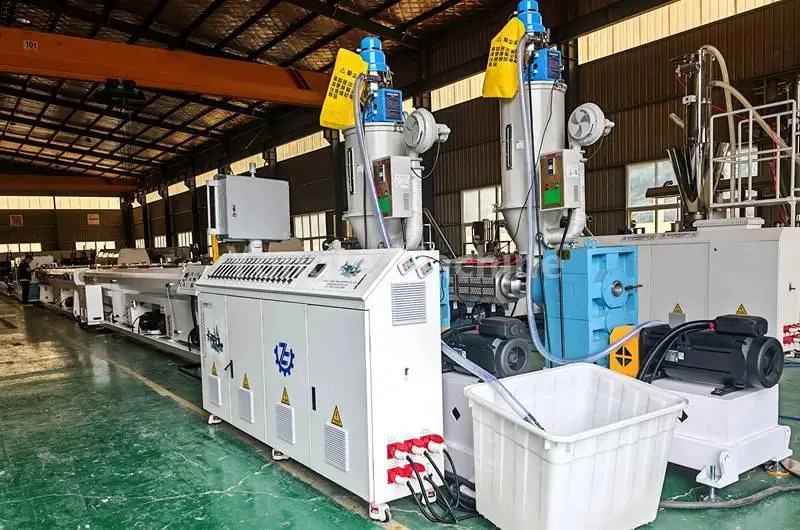

Main extruder: SJ65/33 high‑efficiency single screw and SJ50/30 Co-extruder, servo motor, nitrided alloy barrel

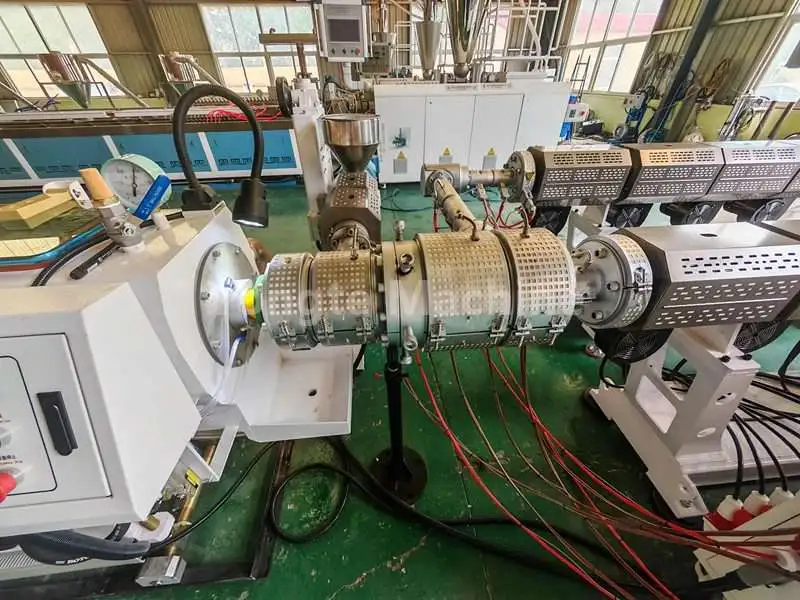

Marking extruder: SJ25 for single/multi lines

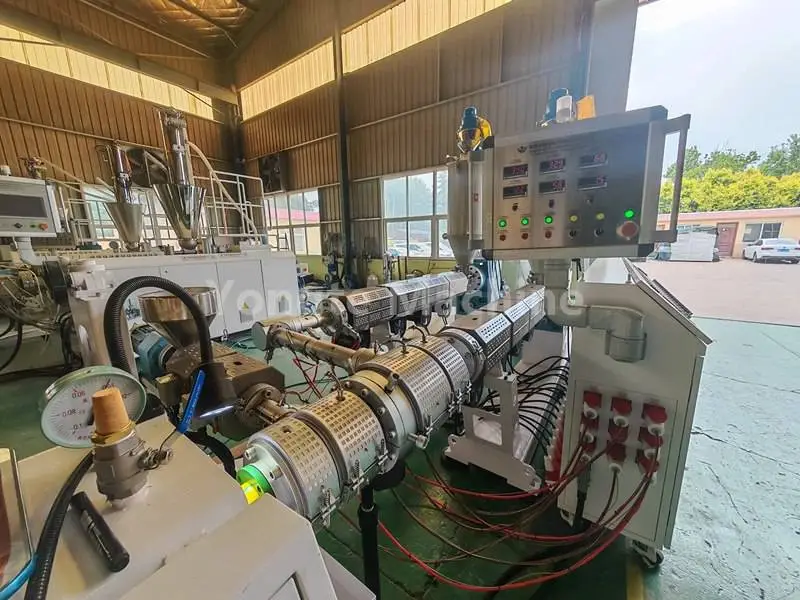

Die head: Basket or spiral structure for uniform extrusion

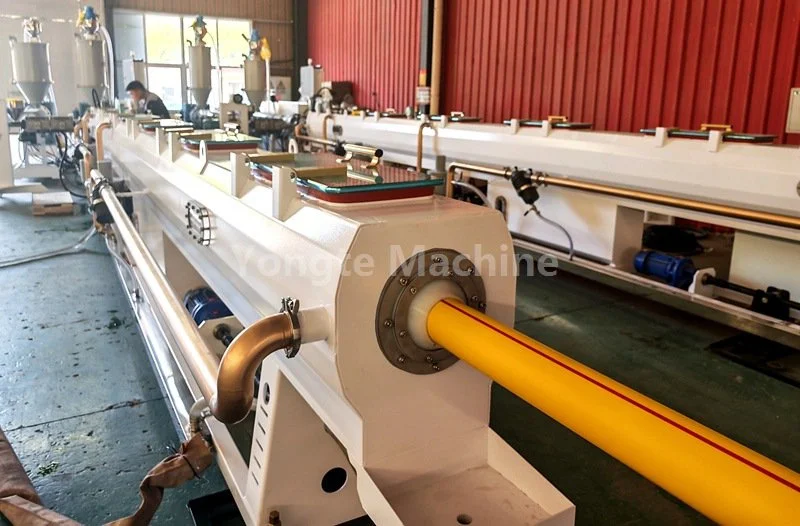

Vacuum calibration tank: 0.06–0.08 MPa, stainless steel, 9m length

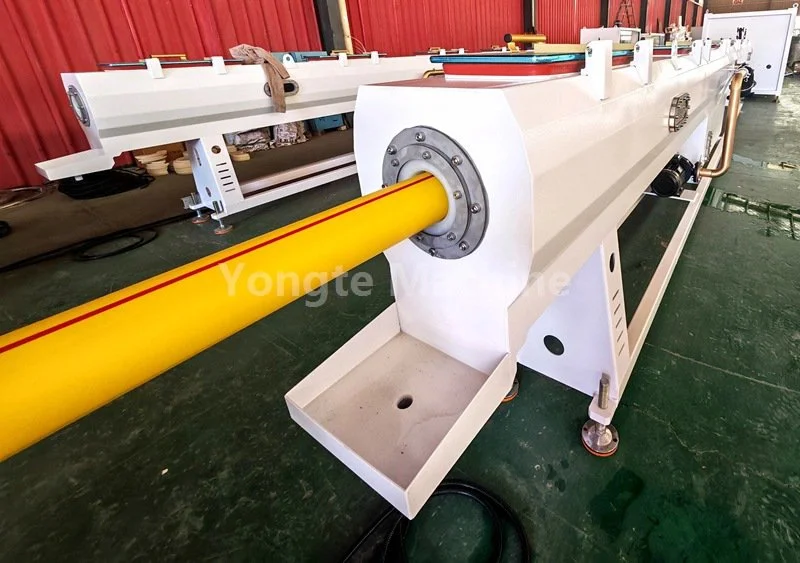

Spray cooling tank: Multi‑stage, fast uniform cooling

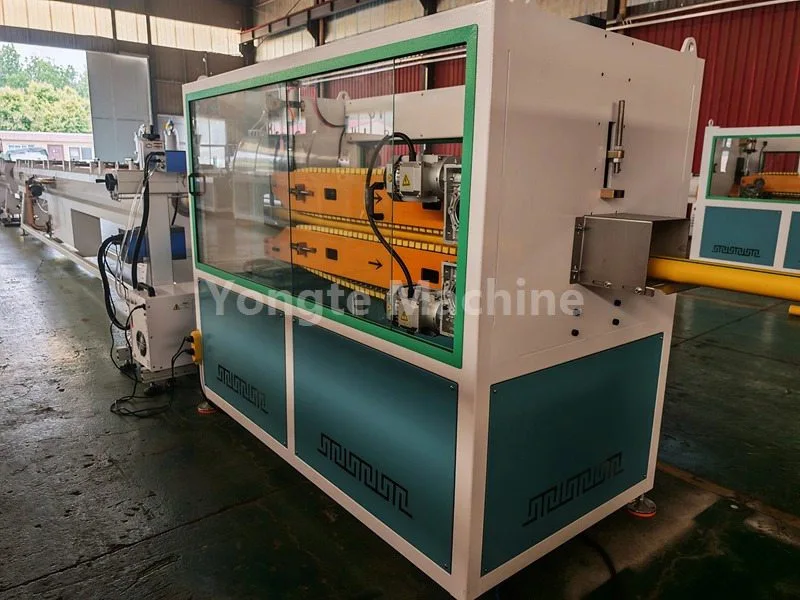

Haul‑off: Stable tension, 3–15 m/min

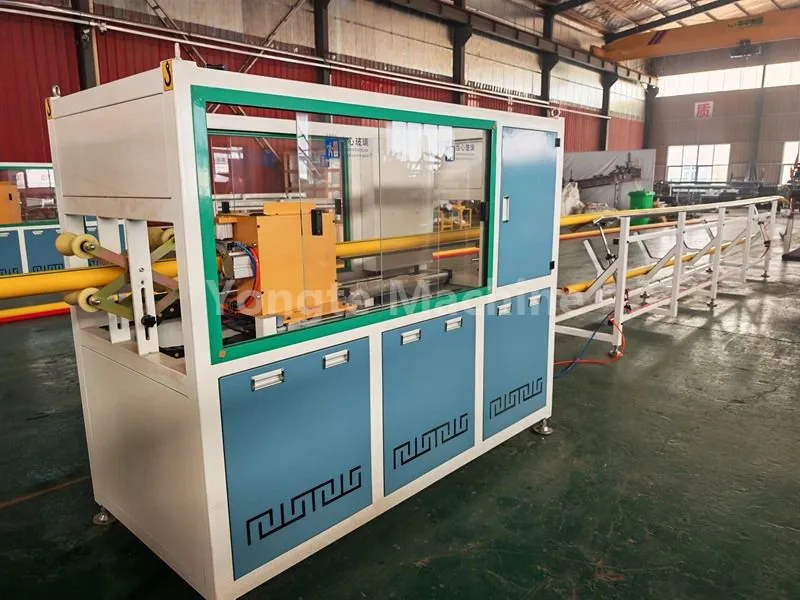

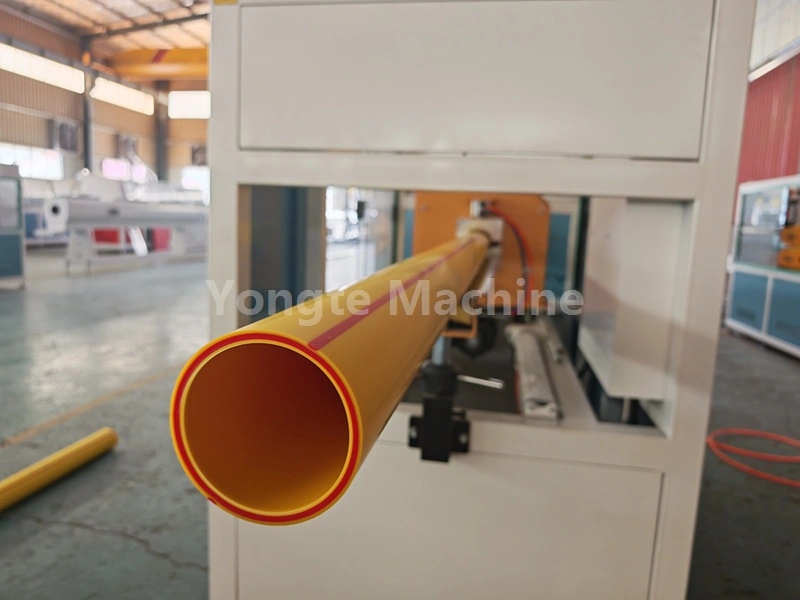

Chipless cutter: Smooth burr‑free cut

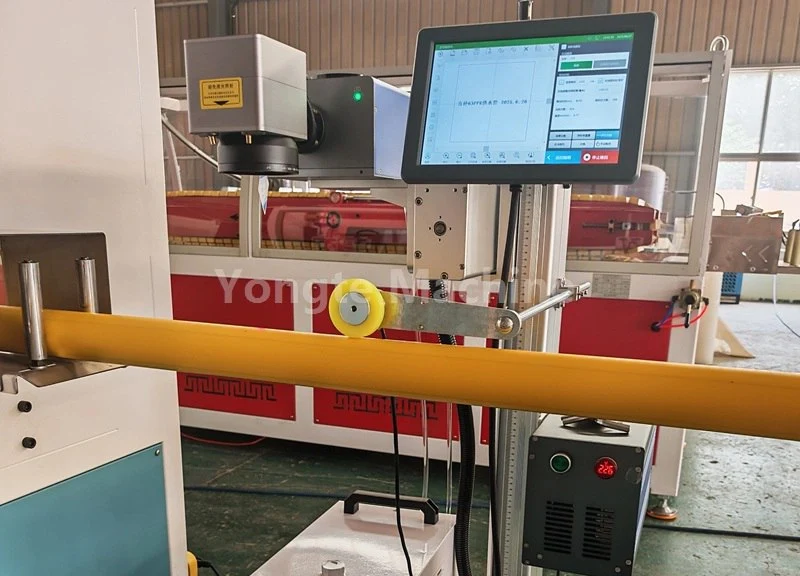

Laser printer: No consumables, real‑time marking

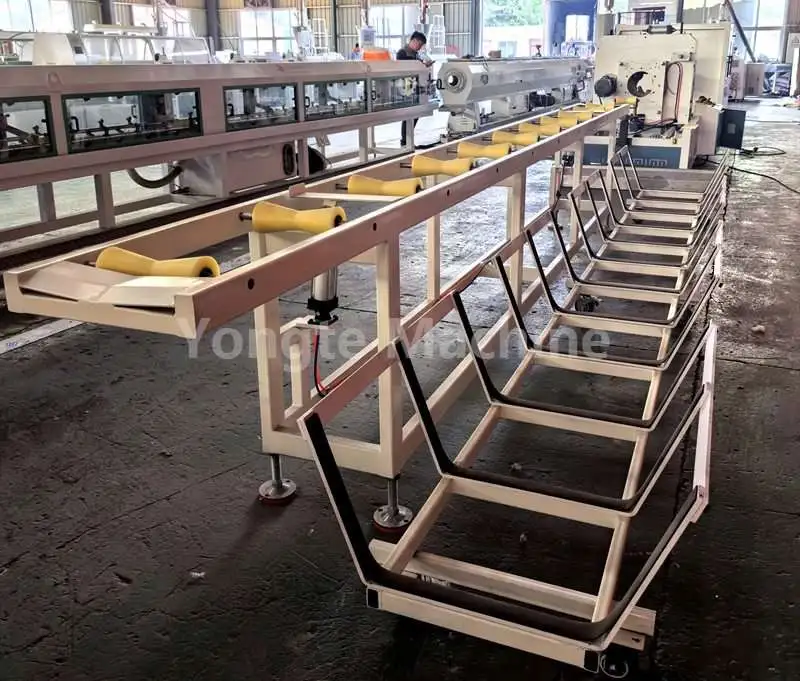

Stacker: Auto arrangement, height adjustable

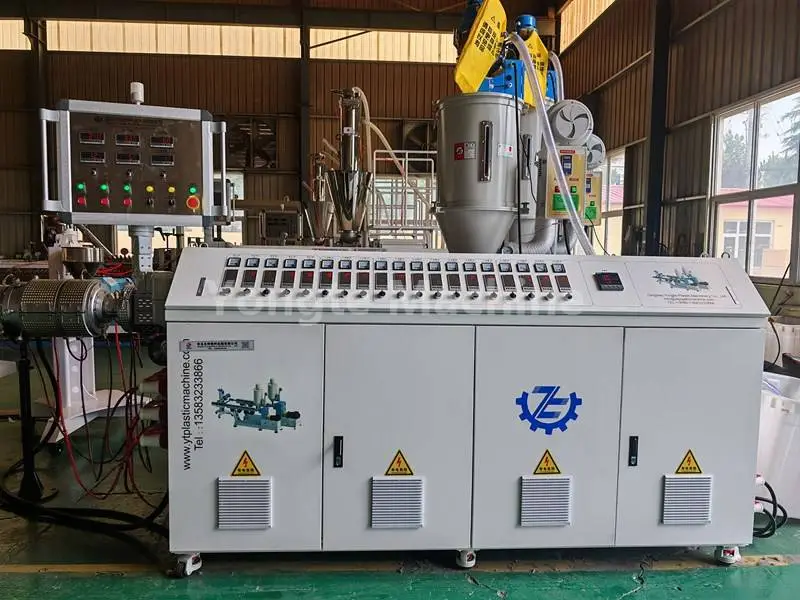

Control system: Siemens PLC (optional), Omron temperatrue controller, ABB inverter, Innovance servo controller
Applications
Three‑layer PPR pipe is non‑toxic, heat‑resistant, corrosion‑resistant, and heat‑insulating. Widely used in:

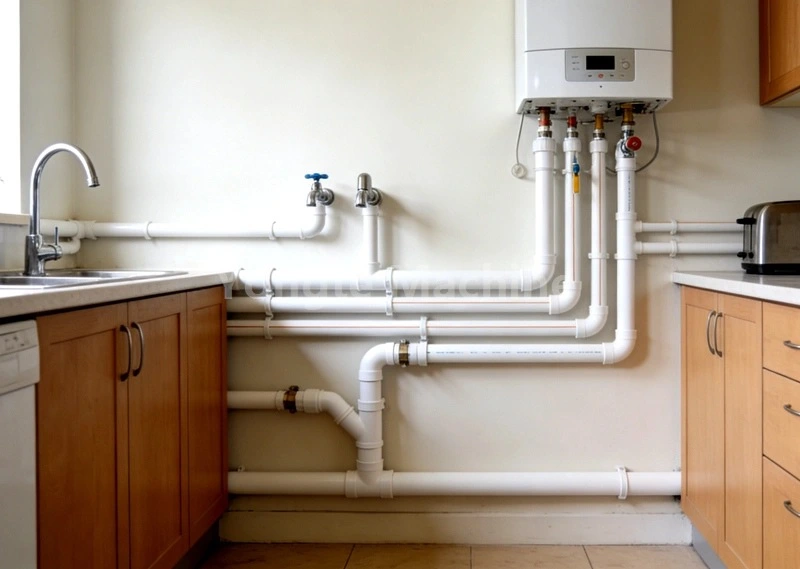

- Residential & commercial water supply
- Heating systems
- Drainage networks
- Industrial fluid transportation
Why Choose Yongte
- High torque gearbox: High efficiency, no oil leakage, easy maintenance
- Servo energy saving: Lower power cost, precise control
- Full automation: One‑key operation, less labor
- Heavy‑duty frame: Solid steel, stable long‑term running
- Wear‑resistant parts: Bimetallic screw, SKD barrel
- Powder coating: Anti‑rust, durable finish
- Professional service: On‑site installation, commissioning, training
Certifications & Warranty
- CE certified
- 3‑year warranty
- Customization available
