200-400mm PVC Pipe Production Equipment

Yongte dedicates itself to the manufacturing of high quality 200-400mm PVC Pipe Production Equipment, specializing in the production of large-diameter rigid pipes for applications in construction, agriculture, and industry. The company provides the SJSZ92/188 conical twin-screw extruder, which features an enhanced screw configuration. This sophisticated machinery ensures uniform plasticization of PVC resins, including SG-5, UPVC, and CPVC, as well as various additives. Designed to maintain a consistent production rate of 400-500 kg/hour, the equipment's primary advantages encompass heightened automation, superior productivity, exceptional product quality, a user-friendly mechanical design, energy conservation, and ease of operation. Notably, the machine's impressive energy efficiency is highlighted by its power consumption of only 100kW (with an installed capacity of approximately 250kW), resulting in a reduction of energy usage by 15-20% compared to conventional PVC pipe production machines of equivalent size. This remarkable efficiency primarily stems from the extruder's optimized screw design, which diminishes material resistance and energy loss during the plasticization process. Additionally, the incorporation of high-efficiency servo motors and servo speed converters enables dynamic adjustment of power output to align with production demands.

Technical Specifications

Product Details and Features

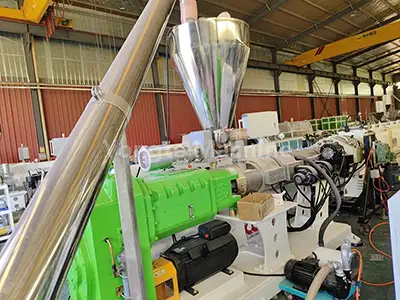

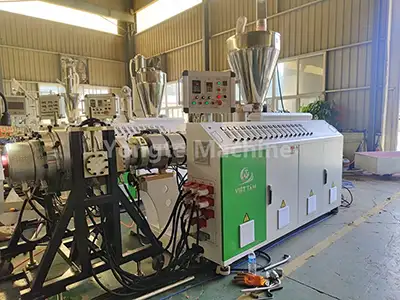

1. High-Efficiency Extrusion System:	Our 200-400mm PVC Pipe Production Equipment comes with the SJSZ92/188 conical twin-screw extruder—we’ve optimized the screw design so it melts PVC resin (SG-5, UPVC, CPVC) and additives super evenly. The screw and barrel are made from top bimetallic alloy with SKD coating, so they’re really tough against wear and rust. We’ve also added 110kW high-efficiency servo motors plus a smart speed controller that adjusts power based on what you need for production. This setup saves 15-20% on electricity and works super efficiently.
2. PVC Pipe Mold:	specialized extrusion tool, built for cranking out big PVC rigid pipes (200-400mm) nonstop—they’ve got nice smooth walls with even thickness all around.

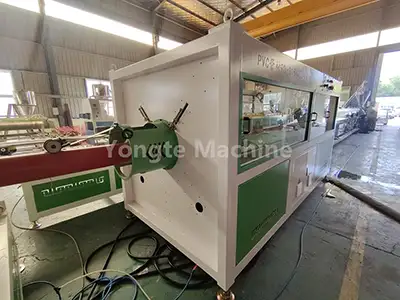

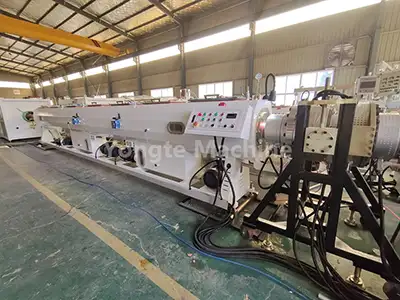

3. Precision Calibrating & Cooling Tank:	This unit’s designed with precision-engineered multi-zone vacuum sizing tank and a high-efficiency spray cooling system built right in—they work together to make sure the pipes stay super accurate in size and don’t warp. The whole tank’s made of 304 stainless steel, so it doesn’t rust easily and lasts way longer.

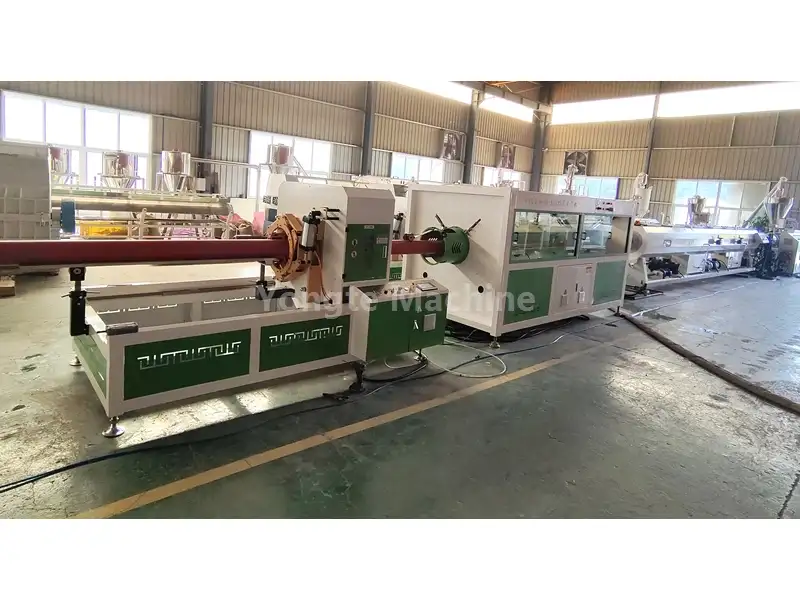

4. PVC Pipe Traction Machine:	The machine is outfitted with a multi-caterpillar drive system, which comprises high-precision servo motors and a double-stage torque-amplifying gearbox. This configuration ensures the stable extrusion of PVC pipes, thereby maintaining precise dimensional accuracy throughout the production process.

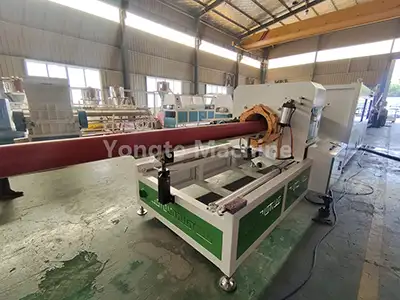

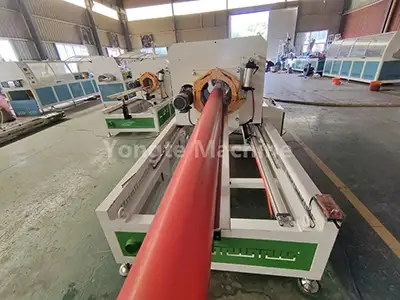

5. PVC Pipe Auto Cutting Machine:	Endowed with a precision-engineered circular saw blade tailored for PVC materials, it ensures cuts that are free from burrs and flat, with remarkable precision.
6. Electric Control System:	Our electrical components use top international brands, like ABB frequency converters, Siemens or Schneider contactors, Omron temperature controllers, Siemens PLC control system, and Innovance servo motors.

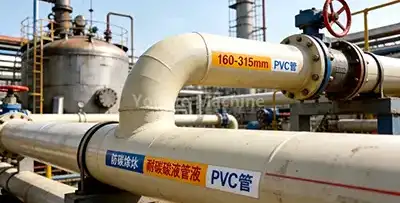

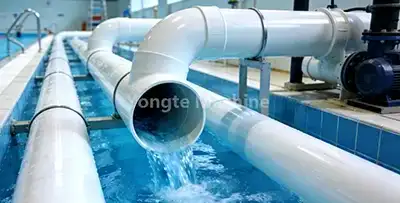

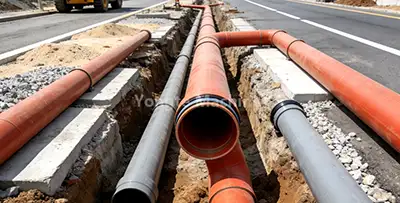

PVC Pipe Applications

Our PVC pipe making machine is highly adaptable and can produce various PVC pipe types, including:

- UPVC water supply pipes (potable water compliant)

- PVC drainage/wastewater pipes

- Electrical conduit pipes

- Agricultural irrigation pipes

Yongte Machine Advantages - Humanized Mechanical Design and Durable Quality

After years of innovation and quality focus, we use high-strength, wear-resistant materials for our plastic pipe machinery. These machines undergo precision forging and rigorous quality tests to withstand high-frequency use wear and harsh environment erosion

High-torque, durable gearbox	high - efficiency Servo Motor
We are equipped with a high-quality gearbox that features a direct vertical connection. This gearbox offers numerous advantages, including high transmission efficiency, substantial load-bearing capacity, stable production capabilities, compact installation requirements, reliable sealing to prevent oil leakage, superior heat dissipation, and ease of maintenance.	Endowed with an Innovance servo motor, this system achieves a reduction in power consumption ranging from 15% to 20%, while simultaneously ensuring precise control over speed and torque. It offers rapid response times, minimal vibration and noise, a prolonged operational lifespan, and reduced maintenance expenses. The intelligent speed and output regulation capabilities provide a consistent power supply, ensuring seamless operation across a variety of conditions.
Highly automated operation system	Advanced Quality Electricity Control System
The comprehensive200-400mm PVC Pipe Production Equipmentis engineered for a high degree of automation, incorporating features such as automatic feeding, temperature regulation, cutting, and stacking. Additionally, we are equipped to provide an automatic material mixing and dosing system, facilitating a production line that is fully automated. The integration of a combined servo motor with a PLC-programmed control system enables speed synchronization and automatic adjustment, which are also available as options.	The electrical cabinet system is outfitted with frequency converters from ABB, contactors from Siemens or Schneider, temperature controllers from Omron, and a control system featuringa Siemens PLC. All cables and connections are meticulously organized and distinctly marked.The system leveragessophisticated intelligent technology, facilitating straightforward operation and precise parameter tuning. Users have the capability to establish a variety of operational modes tailored to individual requirements, thereby markedly improving productivity.

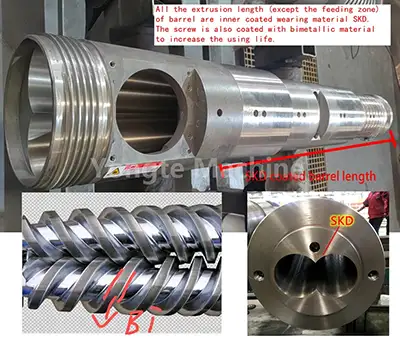

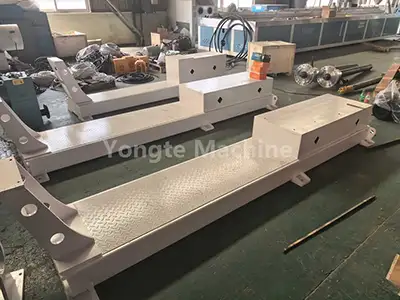

Strong machine basic made by solid steel plate	Screw barrels are fabricated from materials that exhibit resistance to wear.
The machine's primary structure is composed of robust steel plates, meticulously crafted using CNC cutting and polishing techniques to guarantee exact measurements and equilibrium, facilitating uninterrupted and steadfast performance. Despite enduring over two decades of operation, the machine's framework has sustained no damage. All elements that come into contact with materials or water are constructed from 304 stainless steel, thereby preventing corrosion.After manufacturing the machine, we apply a powder coating for better appearance, anti-rust protection, and consistent color.	The utilization of bimetallic screws and SKD barrels serves to markedly augment the wear resistance and extend the operational lifespan of equipment. This configuration ascertains that the extruder is capable of processing an array of materials, encompassing those with elevated abrasive properties, without compromising performance. Furthermore, the refined screw geometry enhances the efficiency of melting and mixing processes, culminating in a final product that is more homogenous and of superior quality.
Professional Trial and Installation Service	3-year warranty and lifetime service support
We offer specialized trial and installation services to guarantee optimal operational efficiency of the machinery. Our seasoned technicians perform in-situ trials, diligently fine-tuning parameters to enhance production efficiency. Additionally, they provide thorough installation guidance, ensuring a flawless integration into your existing production line.	WARRANTY PERIOD: 3 YEARS ▪ Free maintenance/replacement for manufacturing defects ▪ Dedicated after-sales team for technical support (minimal downtime) ▪ Regular maintenance checks & software updates for optimal performance LIFELONG SERVICE SUPPORT: ▪ Post-warranty maintenance at reasonable cost (long-term equipment performance). ▪ Experienced technicians for technical issues/upgrades (smooth production).

Successful cases

Yongte is dedicated to manufacturing high-quality, innovative plastic pipe machinery. With consistent technical refinement, its 200-400mm PVC Pipe Production Equipment has won substantial recognition in both domestic and overseas markets.

Argentina PE Pipe Machine

African 200-400mm PVC Pipe Making Machine

Algeria 16-63mm Three-layer PPR Pipe Production Line
