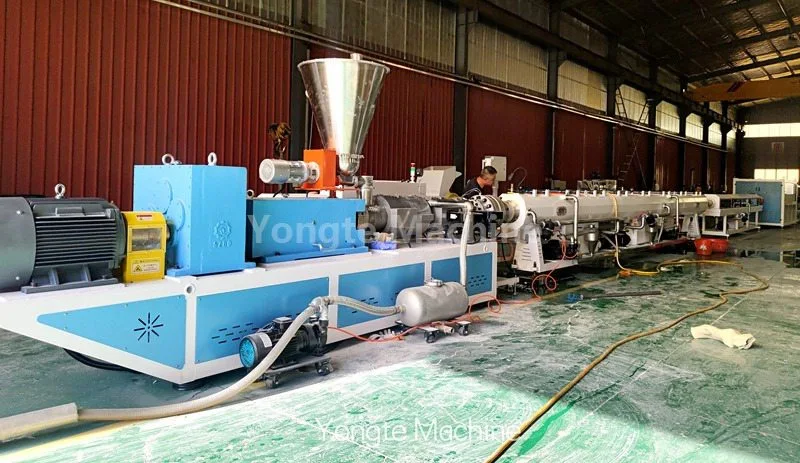

50-160mm Water drainage PVC Pipe Manufacturing Machine

The Yongte 50-160mm Water Drainage PVC Pipe Manufacturing Machine is an advanced, fully integrated production system engineered for the high-efficiency manufacturing of superior rigid PVC pipes. These pipes are widely utilized across multiple sectors such as construction projects, agricultural irrigation systems, and various industrial applications. The machine is built around a robust conical twin-screw extruder that incorporates an optimally designed screw geometry, which ensures thorough and uniform plasticization of a diverse range of PVC resin formulations—including SG-5, UPVC, and CPVC—along with other necessary additives. With a consistent and reliable production capacity ranging from 150 to 200 kilograms per hour, this system delivers outstanding operational performance. Key advantages of the machine encompass state-of-the-art automation controls, significantly elevated productivity levels, and exceptional end-product quality characterized by high dimensional accuracy and material durability. Furthermore, it boasts an ergonomic mechanical structure designed for operator safety and ease of maintenance, as well as energy-efficient operation that helps reduce overall power consumption. The user-friendly interface ensures straightforward operation, minimizing training requirements and enhancing overall workflow efficiency.

Technical Specifications

Product Details and Features

1. High-Efficiency Extrusion System	(1) Equipped with an SJSZ65/132 conical twin-screw extruder featuring an optimized screw design, our PVC pipe-making machine ensures uniform plasticization of PVC resin (SG-5, UPVC, CPVC) and additives. (2) The screw and barrel are made of high-quality bimetallic alloy and SKD-coated, offering exceptional wear resistance and corrosion resistance. (3) The adoption of high-efficiency servo motors and speed controllers that adjust power output dynamically based on production demand allows the machine to achieve exceptional energy efficiency and reduce power consumption by 15-20%.
2. PVC Pipe Mold	(1) A specialized extrusion tool designed to produce PVC pipes continuously with smooth walls.
3. Precision Calibrating & Cooling Tank	(1) It integrates a multi-zone vacuum sizing tank and spray cooling system to ensure precise pipe dimensional accuracy. (2) The tank is fully constructed from 304 stainless steel.
4. PVC Pipe Traction Machine	(1) Equipped with a double caterpillar drive system powered by servo motors and a double-stage gearbox, the machine pulls PVC pipes at a stable speed.
5. PVC Pipe Auto Cutting Machine	(1) Equipped with a precision-engineered circular saw blade optimized for PVC materials, it delivers burr-free, flat cuts with exceptional accuracy.
6. Electric Control System	(1) Our electrical components utilize internationally renowned high-quality brands, including ABB frequency converters, Siemens or Schneider contactors, Omron temperature controllers, Siemens PLC control system, and Innovance servo motors.

PVC Pipe Applications

Our PVC pipe manufacturing equipment demonstrates exceptional versatility and adaptability, enabling the production of a diverse range of PVC pipe types tailored to various industrial and residential applications. The machine is capable of manufacturing:

- UPVC water supply pipes that comply with potable water standards, ensuring safe and reliable drinking water transportation

- PVC drainage and wastewater pipes designed for efficient fluid removal and sewage systems

- Electrical conduit pipes that provide durable and protective housing for electrical wiring installations

- Agricultural irrigation pipes optimized for water distribution in farming and crop management systems

Yongte Machine Advantages - Humanized Mechanical Design and Durable Quality

After years of innovation and quality focus, we use high-strength, wear-resistant materials for plastic pipe machinery. Precision forging and rigorous tests ensure resistance to high-frequency wear and harsh environment erosion.

1. Robust and Durable Gearbox	Yongte uses top-tier vertical direct-drive gearboxes (core of equipment) with key benefits: ▪ High power transfer efficiency ▪ Heavy load capacity ▪ Stable non-stop production performance ▪ Compact vertical design (space-saving) ▪ Leak-proof sealing ▪ Excellent heat dissipation ▪ Easy maintenance
2. High-Efficiency Servo Motor	We employ servo motors from reputable brands, which achieve a reduction in power consumption ranging from 15% to 20%. The key advantages encompass: ▪ Precise control over speed and torque ▪ Rapid response capabilities ▪ Diminished levels of vibration ▪ Reduced noise emissions ▪ Extended operational lifespan ▪ Minimized maintenance expenses ▪ Intelligent regulation of speed and output
3. Super Easy Automated Operation | User-Friendly Electrical Control	This whole 50-160mm Water drainage PVC Pipe Manufacturing Machine is built to run almost on its own—super automated! ▪ Feeds materials all by itself, no manual hauling needed ▪ Keeps temperature just right without constant tweaking ▪ Cuts pipes automatically once they’re done ▪ Stacks finished pipes neatly on its own • We also add automatic material mixing and dosing systems so the whole line runs like a well-oiled machine—no extra hands needed! • With fancy servo motors and smart PLC controls, you can even get extras like speed sync or auto parameter adjustments if you want • We use top-brand parts too—ABB inverters, Siemens contactors, Omron temp controllers, and Siemens PLCs—so it’s reliable as can be • The control system is super easy to use, simple to fix if something goes wrong, safe to operate, and never lets you down
3. Robust Machine Base Crafted from Solid Steel Plate | Wear-Resistant Screw and Barrel	The machine base is made from tough solid steel plate—we cut and grind it super precisely with CNC machines to make sure it’s the right size and balanced perfectly. This way, the machine can run smoothly and steadily for a long time without any issues. • All parts that touch materials or water are made of 304 stainless steel, so they don’t rust easily. • The screws and barrels are made with special wear-resistant materials—we pick them just for the stuff you’re processing. • After we finish making the machine, we coat it with epoxy powder. This gives it a nice, smooth finish that keeps it from rusting and the color stays looking good for ages.
4. Professional Machine Testing & On-Site Installation Service	• Before we ship any machine, we put it through super thorough, step-by-step tests to make sure it works perfectly and runs smoothly for years. ▪ These tests include running it nonstop for 72 hours under load, tweaking the extrusion settings just right, and checking key parts for wear—all to guarantee it makes top-quality pipes. • Our team will come to your site to install everything, train your operators really well, and give you custom manuals so your system fits right in and works its best.
5. 3-Year Warranty | Lifetime Technical Support	• To make sure your production runs smoothly without worries, we offer a three-year warranty that covers all core machine parts—so you can operate stress-free during the warranty period. • Even after the warranty ends, we still provide lifetime technical support, like: ▪ You can ask us technical questions anytime ▪ We’ll supply you with original spare parts ▪ Our experts will guide you on how to maintain the machine—we’ll stick with you as your business grows.

Successful cases

Specializing in premium, cutting-edge plastic pipe equipment, Yongte has engineered a 50-160mm Water drainage PVC Pipe Manufacturing Machine that has won widespread acclaim across global and domestic markets through persistent optimization.
