PP Corrugated Pipe Machine
  • PP Corrugated Pipe MachinePP Corrugated Pipe Machine

PP Corrugated Pipe Machine

Model:9-50mm
Yongte high-speed single wall PP corrugated pipe machine reach production speed up to 30 m/minuteof plastic single-wall corrugated pipes, which find extensive applications across various sectors including drainage systems, agricultural irrigation, underground cable protection, and multiple other industrial uses.

Yongte PP corrugated pipe machine is a specialized industrial device made for efficiently producing plastic single-wall corrugated pipes. These pipes are widely used in many areas, like drainage systems, farm irrigation, underground cable protection, and lots of other industrial uses. It comes with top-notch technology and creative engineering, so it can produce pipes efficiently while making sure the quality is excellent—always meeting and even going beyond strict industry standards. Our advanced high-speed PP corrugated pipe machine stands out because it can make pipes at an amazing speed of up to 30 meters every minute, which really boosts how much it can produce and how productive the operation is.

Technical Parameters of various models of PP corrugated pipe machine

Model

4.5-11mm

9-32mm

16-63mm

9-50mm high speed

Extruder

SJ45

SJ50

SJ65

SJ65 high speed

Main motor power

7.5kw

15kw

18.5kw

30kw

Mold quantity

42 pairs

50 pairs

50 pairs

72 pairs

Cooling method

Vacuum cooling

Air cooling

Air cooling

Water cooling

Production speed

8-12m/minute

6-10m/minute

6-10m/minute

20-30m/minute

Extrusion capacity

30-40 kg/h

40-50 kg/h

60-80 kg/h

80-100kg/h

Suitable material

PP PE PVC PA EVA

Product type

Single wall corrugated pipe

Production method

Extrusion and blow molding

Certification CE certified

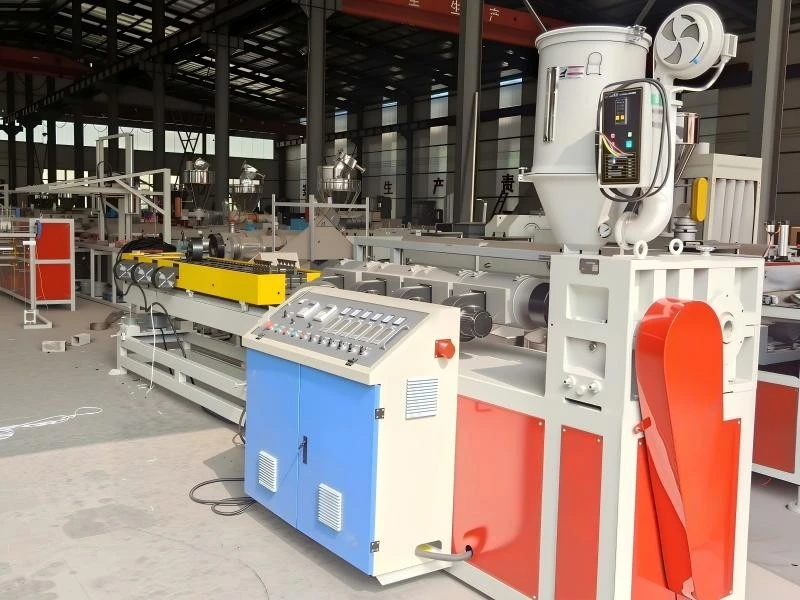

Equipment list and pictures of 9-50mm high speed PP corrugated pipe machine



NO.

Equipment Name


1

Vacuum Feeder and drying hopper: automatic feeding

PP corrugated pipe machine

2

SJ-65/30 Single Screw Extruder : high efficiency extrusion system, energy saving servo motor

PP corrugated pipe machine

3

Die head and sizers: 9-50mm

PP corrugated pipe machine

4

Corrugated pipe moulds (72 pairs/set): wear-resistance mold material, 40Cr with nitrating treatment, double small size can be made at the same mold blocks.

PP corrugated pipe machine

5

High-speed wate-cooled forming machine: automatic lubricant system, high wear-resistance running truck. easy move forward and back

PP corrugated pipe machine

6

Double station winder: customized size, with meter counting

PP corrugated pipe machine

7

Electric control system:  ABB inverter, Omron temperature controller, Siemens contractors

PP corrugated pipe machine



Application of single wall corrugated pipe

Single wall corrugated pipes are super versatile because of their special structure and material. They work really well for drainage systems in homes and businesses, moving rainwater and wastewater smoothly and quickly. When it comes to cables, these pipes are great for protecting electrical and communication lines—they're tough but easy to install. They're light, so they're simple to handle during setup, and they don't rust, which means they last a long time no matter where you use them. Plus, they're also used in farm irrigation to get water to crops exactly where it's needed, helping make watering more efficient and saving resources.

single wall corrugated pipe
