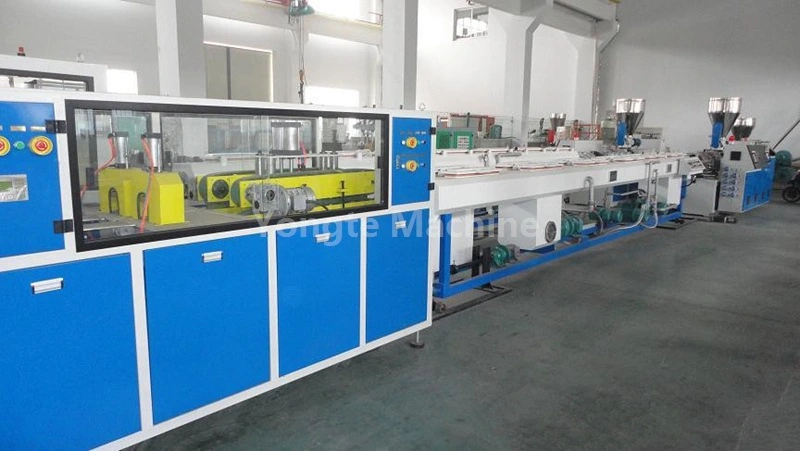

16-50mm PVC Double Pipe Production Line

The Yongte factory's 16-50mm PVC Double Pipe Production Line is a state-of-the-art, high-performance manufacturing system specifically engineered for the simultaneous and continuous extrusion of two PVC pipes in a single operation, significantly enhancing overall production efficiency and output consistency. This advanced production line incorporates a specially designed conical twin-screw extruder, which is equipped with an optimized screw geometry and enhanced mixing capabilities to ensure thorough and uniform plasticization of various PVC resin types—such as SG-5, UPVC, and CPVC—along with other necessary additives. As a result, it achieves an impressive production speed of 12 to 15 meters per minute for double-cavity PVC pipes within the 16-50mm diameter range. Key advantages of this system include a high degree of automation, exceptional operational efficiency, superior product quality, an ergonomic mechanical structure, notable energy-saving performance, and an intuitive, user-friendly control interface.

Technical Specifications

Product Details and Features

• High-Efficiency Extrusion System	▪ Equipped with a conical twin-screw extruder featuring an optimized screw design, our PVC pipe making machine ensures uniform plasticization of PVC resin (SG-5, UPVC, CPVC) and additives. The screw and barrel are made of high-quality bimetallic alloy and SKD-coated, offering exceptional wear and corrosion resistance.
• Double Cavity PVC Pipe Mold	▪ A specialized extrusion tool designed to produce two PVC pipes simultaneously in a single production line. It features two identical channels (cavities) that allow molten PVC to flow through and form two pipes at the same time.
• Precision Calibrating & Cooling Tank	▪ Integrates a multi-zone vacuum sizing tank and spray cooling system to ensure pipe dimensional accuracy. The tank is fully made of 304 stainless steel.
• Double Cavity PVC Pipe Traction Machine	▪ Equipped with two independent traction cavities (double tracks), the machine pulls two PVC pipes simultaneously with speed synchronization. Each track features an adjustable clamping mechanism (pneumatic/hydraulic options) to apply uniform pressure, preventing pipe slippage, deformation, or length discrepancy between the two pipes.
• Double Cavity Auto PVC Pipe Cutting Machine	▪ Equipped with two independent, synchronized cutting units (one per pipe cavity), the machine executes simultaneous cuts with ultra-high synchronization accuracy. Each unit features a precision-engineered circular saw blade optimized for PVC material to deliver burr-free, flat cuts. The synchronized design guarantees identical pipe lengths (tolerance ±2mm) for both cavities, eliminating waste from mismatched dual pipes and ensuring compliance with ISO/ASTM/GB dimensional standards.
• Electric Control System	▪ Our electrical components utilize internationally renowned high-quality brands, including ABB frequency converters, Siemens or Schneider contactors, Omron temperature controllers, Siemens PLC control system, and Innovance servo motors.

PVC Pipe Applications

Our PVC pipe making machine is highly adaptable and can produce various types of PVC pipes, including:

- UPVC water supply pipes (potable water compliant)

- PVC drainage/wastewater pipes

- Electrical conduit pipes

- Agricultural irrigation pipes

Successful cases

Yongte focuses on high-quality, innovative plastic pipe machines. Ongoing upgrades have made its 16-50mm PVC Double Pipe Production Line highly acclaimed at home and abroad.

Argentina PE Pipe Machine

African 200-400mm PVC Pipe Making Machine

Algeria 16-63mm Three-layer PPR Pipe Production Line
