WPC Door Frame Making Machine

Yongte Advanced WPC Door Frame Making Machine is engineered for high-efficiency production of Wood Plastic Composite (WPC) door frames.Equipped with an automatic feeding system, high-performance extrusion unit, rapid calibration and cooling module, stable traction mechanism, and precision auto-cutting system, this machine integrates precision engineering with high-speed operation to ensure optimal productivity and consistent quality throughout the manufacturing process.Featuring an intuitive user interface, it allows operators to easily adjust parameters and monitor production metrics in real-time. Its rugged construction ensures long-term durability and reliable performance, making it the ideal solution for both small-scale workshops and large manufacturing facilities.

Core advantages

The Yongte WPC Door Frame Making Machine boasts core competitive advantages:

• High production efficiency: Optimized extrusion structure and precise process control enable rapid, stable mass production, effectively improving output;

• Superior forming quality: Ensures uniform density, smooth surface, and precise dimensions of WPC door frame profiles, reducing defective rates;

• Energy-saving performance: Equipped with energy-efficient components and optimized drive systems, significantly lowering power consumption and operational costs;

• High automation level: Full-process automated control reduces manual intervention, simplifies operation, and minimizes human error;

• Durable reliability: Adopts high-strength, wear-resistant materials for key components, with strict quality testing, ensuring long-term stable operation;

• Easy maintenance: Modular design and standardized parts facilitate quick maintenance, reducing downtime.

Product Parameter (Specification)

Product details

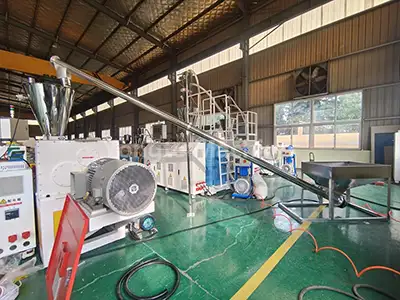

1. Automatic Feeder:	The spiral screw feeder is suitable for PVC and WPC compound materials and is entirely made of 304 stainless steel with seamless welding.

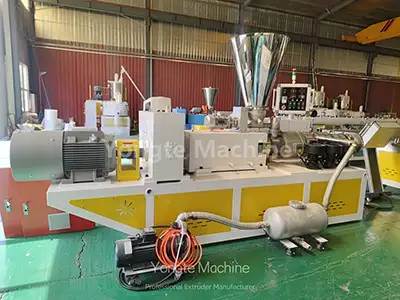

2. SJSZ65/132 Conical Twin Screw Extruder:	With its deep-groove feeding section and gradual plasticizing section, the WPC door profile extruder provides a stable melt output for wood-plastic materials, ensuring efficient and stable production. The extruder is equipped with a servo motor to save 15-20% power, an optional vertical gearbox for stable and powerful production, bimetallic screws and SKD barrels for long-term use, and an automatic temperature control system.

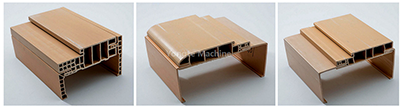

3. WPC Door Frame Mold:	Crafted from high-quality 3Cr17 mold steel, featuring precise zoned temperature control, a modular design for stable shaping dimensions, and quick-positioning pins for easy installation.

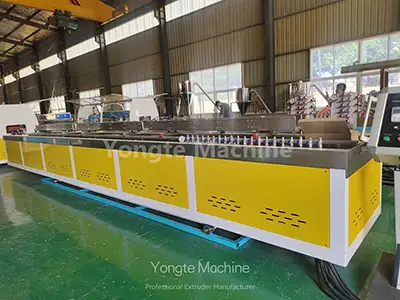

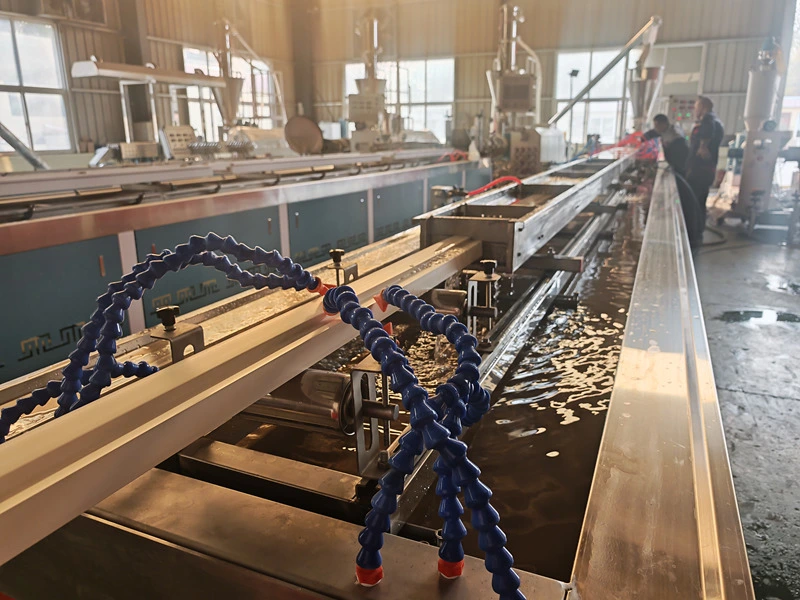

4. Calibration and Cooling Table:	Constructed from a single sheet of 304 stainless steel and featuring a well-planned pipeline design, this table offers overall electric lifting and left-right adjustment capabilities, as well as a water system that runs its entire length. It is ideal for rapid cooling systems, being straightforward to install and maintain. Additionally, the water tank includes a filter to prevent contamination.

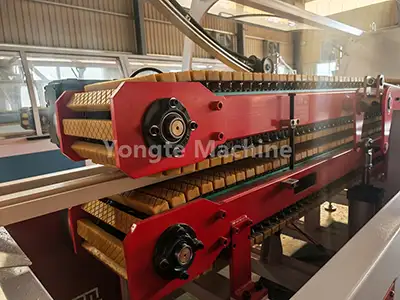

5. Traction Machine:	High-quality rubber ensures durability, the tire tread surface guarantees traction friction, dual-stage reduction provides sufficient traction torque, and the bird-wing protective cover simplifies operation and maintenance.

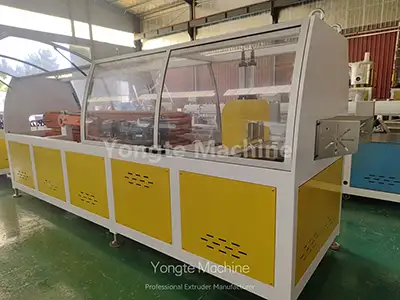

6. Cutting Machine:	Featuring automatic fixed-length cutting, a 304 stainless steel panel, a fully enclosed dust collection system to minimize dust pollution, and equipped with a servo motor. It also includes special material cutting blades designed for high-speed cutting to prevent chipping.
7. Electric Control System:	Our electrical components employ internationally recognized high-quality brands, such as ABB frequency converters, Siemens or Schneider contactors, Omron temperature controllers, a Siemens PLC control system, and Innovance servo motors. This ensures precise process control, including closed-loop regulation of temperature, speed, and pressure, and also adheres to the voltage standards and safety certifications of various countries/regions. The entire electrical cabinet system has been subjected to safety testing and conforms to international safety standards, including EN ISO 12100 ((Safety of machinery), EN 60204-1 ((Electrical equipment of machines), and the EN 61000 series EMC standards.

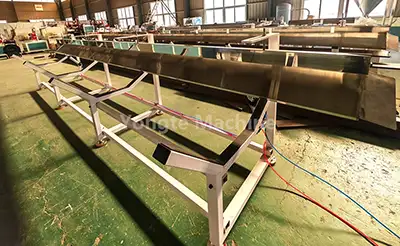

8. Product Stacker:	A 6-meter automatic stacker made of stainless steel, with an optional auto robot for automatic stacking.

Product application

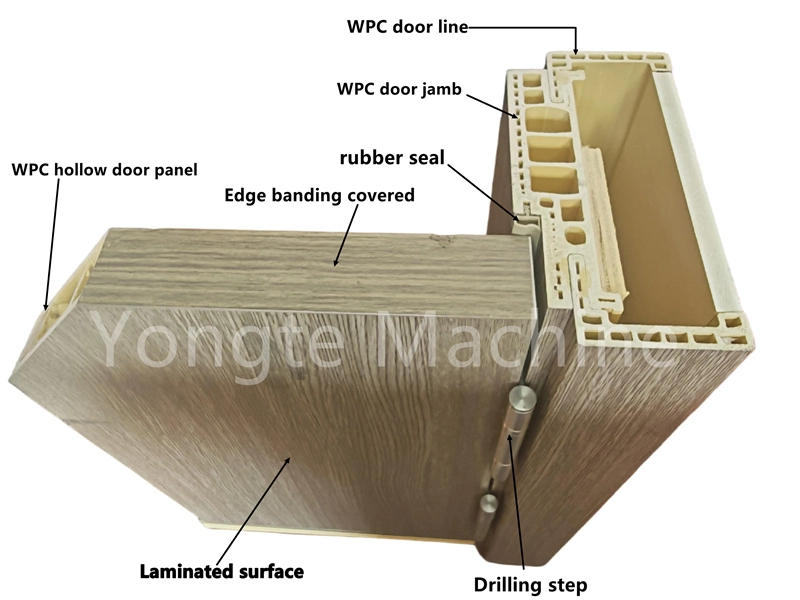

PVC wood plastic composite (PVC WPC) door profiles are environmentally friendly building materials that combine the natural aesthetics of wood with the unmatched durability of PVC. They offer advantages such as easy production, high strength, water resistance, anti-mildew and anti-insect properties, fire resistance, easy installation and maintenance, and the ability to customize size and appearance. These profiles are widely used for decorative purposes in door frames, door lines, and door jambs. Welcome to buy WPC Door Frame Making Machine!
