PVC Wall Panel Production Line

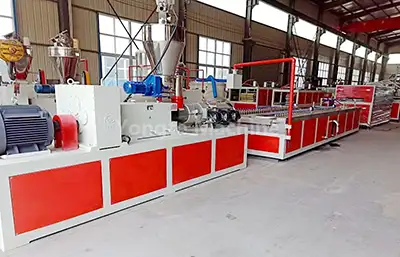

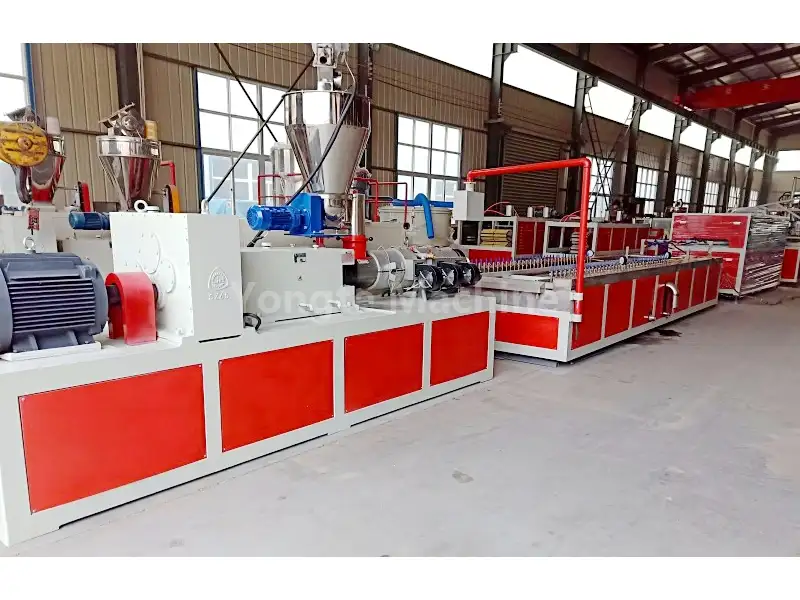

Yongte is a professional manufacturer of PVC Wall Panel Production Lines, specializing in wall panel manufacturing via extrusion molding. Raw materials—including PVC resin, wood flour, and calcium carbonate—are blended using our optimized formula to produce high-quality, cost-effective products. A professionally engineered conical twin-screw extruder applies high temperature and pressure to heat, melt, and plasticize the PVC compound, which is then extruded through a custom mold tailored to specific product dimensions.

After calibration, cooling, and precision cutting, the finished PVC wall panels are ready for use. The Yongte PVC Wall Panel Production Line offers core advantages: durable construction, user-friendly design, high automation, efficient output, energy savings, environmental compliance, easy operation, and simplified maintenance. CE-certified and compliant with EU machine standards, it is widely utilized in construction, decoration, and advertising industries.

Product Parameters (Specifications)

Product Details

Components and characteristic of PVC Wall Panel Production Line

Equipment	Characteristic	Picture
Automatic Feeder	spiral screw feeder suitable for PVC compound material, fully made of 304 stainless steel with seamless welding.

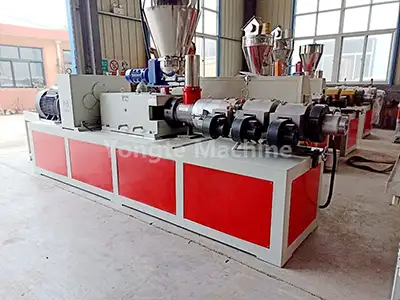

SJSZ65/132 Conical Twin - Screw Extruder	The PVC wall panel extruder, featuring a deep-groove feeding section and a gradual plasticizing section, ensures a stable melt output for wood-plastic materials, thereby maintaining efficient and stable production. Equipped with a servo motor, the extruder offers power savings of 15-20%. It also includes a vertical gearbox for ensuring stable and powerful production, a bimetallic screw and SKD barrel for long-term use, and an automatic temperature control system.

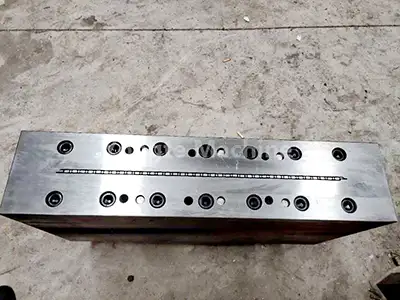

Wall Panel Mold	Constructed from high-quality 3Cr17 mold steel with precise zoned temperature control, modular design ensures stable shaping dimensions, and quick-positioning pins enable easy installation.

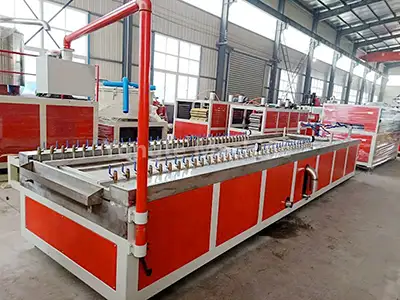

Calibration and Cooling Table	Made from a single sheet of 304 stainless steel, with a reasonable pipeline design, it features overall electric lifting and left - right adjustment, and a water system along its entire length. It is suitable for rapid cooling systems, easy to install and maintain, and the water tank is equipped with a filter to prevent contamination.

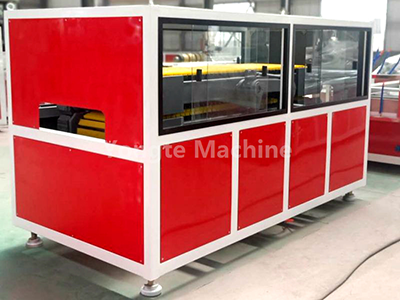

Traction Machine	High - quality rubber ensures durability, the tire tread surface guarantees traction friction, dual - stage reduction provides sufficient traction torque, and the bird - wing protective cover simplifies operation and maintenance.

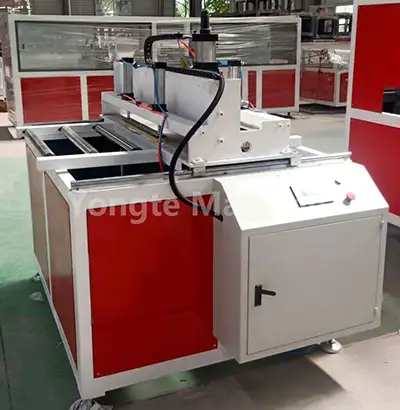

Cutting Machine	Automatic fixed - length cutting, 304 stainless steel panel, fully enclosed dust collection system to reduce dust pollution, equipped with a servo motor, and special material cutting blades for high - speed cutting, avoiding chipping.

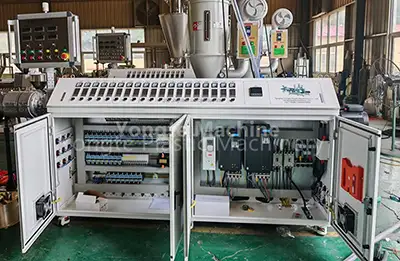

Electric Control System	Equipped with ABB inverter, Omron temperature controller, Siemens contractor, and PLC control system is also optional.
Product Stacker	6 meter auto stacker made of stainless steel table

Product Application

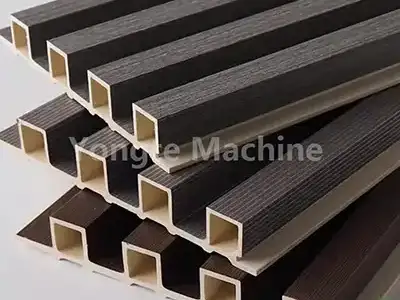

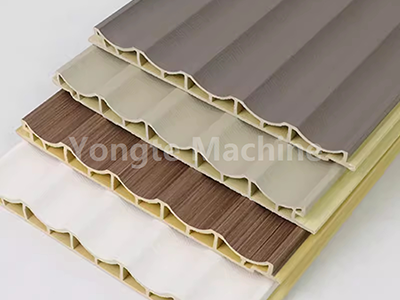

PVC wall panels are recognized as an environmentally friendly material, produced through sustainable manufacturing processes and recyclable. Beyond eco-friendliness, they offer high durability with resistance to wear, impact, and moisture, ensuring long-term usability. These panels provide excellent heat insulation to maintain indoor comfort and enhance energy efficiency, while their fire-resistant properties add critical safety in residential and commercial spaces. Featuring smooth, non-porous surfaces, they are exceptionally easy to clean and maintain. Owing to these advantages, PVC wall panels are widely applied in home interiors and public building decorations, serving as versatile materials for ceilings, wall claddings, partition walls, and other architectural elements, combining functionality with aesthetic appeal.

Yongte Machine Advantages: Humanized Mechanical Design & Durable Quality

Features Table

Component	Features	Benefits	Picture
High-torque, Durable Gearbox	High-quality, vertically direct-connected; High transmission efficiency; Reliable sealing to prevent oil leakage; Excellent heat dissipation;	Robust load capacity, stable production, space-saving installation, ease of maintenance
High-efficiency Servo Motor	Equipped with an Innovance servo motor; Achieves 15–20% energy savings; Precise speed and torque control; Rapid response; Minimal vibration; Low noise; Extended lifespan; Reduced maintenance costs; Intelligent speed and output regulation	Robust, stable power delivery; Smooth operation across diverse industrial working conditions
Highly Automated Operation System	Automatic feeding; Precise temperature control; Automatic cutting; Orderly stacking; Can supply a customized automatic material mixing and dosing system; Integrated servo motor and PLC - programmed control system; Speed synchronization; Intelligent automatic adjustment	High automation for production
Advanced Quality Electricity Control System	Equipped with ABB frequency converters, Siemens or Schneider contactors, Omron temperature controllers, a Siemens PLC control system; Neatly arranged and clearly labeled cables and connections; Advanced intelligent technology; Real - time fault diagnosis and alarm functions	Easy operation; Precise parameter adjustment; Minimize downtime; Ensure continuous production

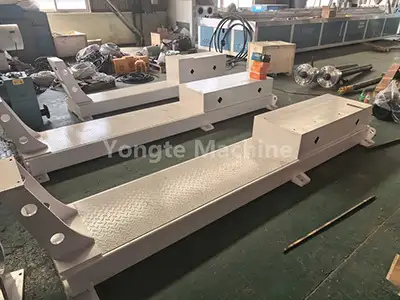

Strong Machine Base Made by Solid Steel Plate	Uses solid steel plates, CNC - cut and polished; All material/water contact components are 304 stainless steel; Powder coating after manufacturing	Continuous stable operation; Prevent corrosion; Enhanced appearance and anti - rust protection

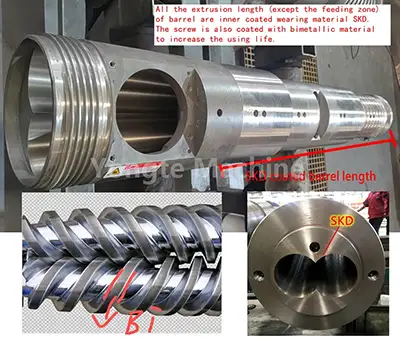

Screw Barrels Made from Wear - Resistant Materials	Bimetallic screws and SKD barrels; Optimized screw geometry	Enhanced wear resistance and service life; Process a variety of materials; More uniform and high - quality final product
Professional Trial and Installation Service	On - site trials by experienced technicians; Comprehensive installation guidance	Ensure the machine operates at peak efficiency; Seamless integration into production line
3 - Year Warranty and Lifetime Support	36 - month warranty starting from the day of delivery; Free service during warranty for quality - related damage; Lifelong service supply

Successful cases

After years of technological innovation and a commitment to quality, we utilize high-strength, wear-resistant materials in our plastic extrusion machinery. These machines undergo precision forging and stringent quality tests to endure the wear of high-frequency use and harsh industrial environments, ensuring long-term reliability and stable performance. Yongte's PVC Wall Panel Production Line has achieved high recognition in both domestic and international markets.
