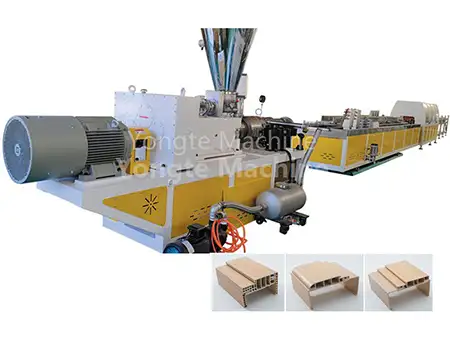

PVC Door Profile Extrusion Line

Yongte durable PVC Door Profile Extrusion Line is specifically engineered for precision manufacturing of PVC door frame profiles, integrating advanced extrusion technology with innovative material science. The system employs a multi-stage extrusion molding process to homogenize 30-60% filler (wood powder or CaCo3) with PVC resin and functional additives (stabilizers, lubricants, impact modifiers), producing door frame products that retain wood's texture and natural grain while exhibiting plastic's superior durability—resistant to moisture, corrosion, termite infestation, and thermal expansion. As a professional manufacturer, Yongte's PVC Door Profile Extrusion Line offers an ideal solution for environmentally friendly, high-performance door frames.

Technical Parameter

Product Details

Components of PVC Door Profile Extrusion Line

Equipment	Details and Features	Picture

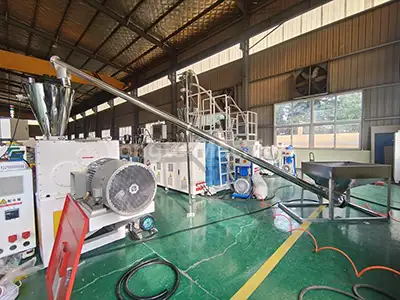

Automatic Feeder	1.Type: spiral screw feeder 2.Material: 304 Stainless steel 3.Power: 2.2KW

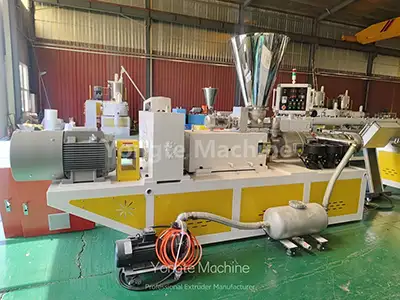

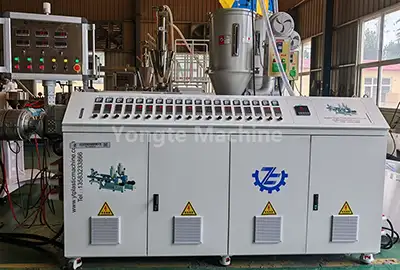

SJSZ65/132 Conical Twin - Screw Extruder	It is equipped with (1) 37KW servo motor to reduce energy consumption by 15–20% (2) Durable high torque ertical gearbox for stable and powerful operation (3) bimetallic screws and SKD coated barrels for long - term durability (4) automatic temperature control system. Features: deep - groove feeding section and gradual plasticizing section, this PVC door profile extruder delivers stable melt output for wood - plastic materials, ensuring efficient and consistent production.

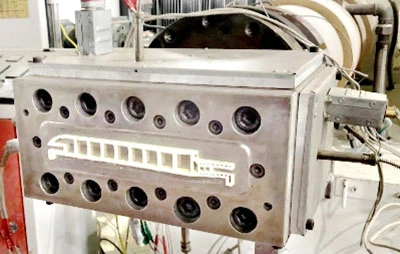

WPC Door Frame Mold	1. Crafted from high - quality 3Cr17 mold steel 2. It features precise zoned temperature control 3. modular design for stable calibration dimensions 4. Quick - positioning pins for easy installation

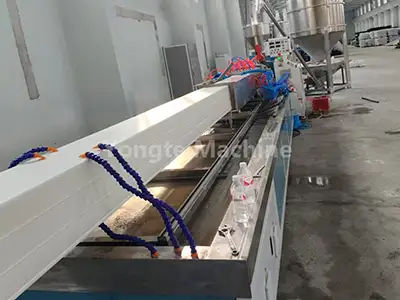

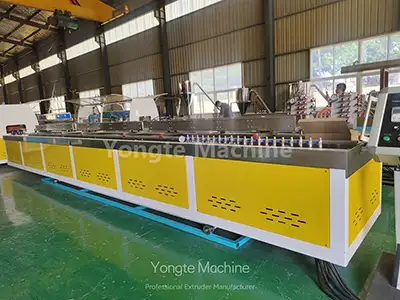

Calibration and Cooling Table	1. Constructed from a single sheet of 304 stainless steel with a well - designed pipeline system 2. this table offers electric lifting and left - right adjustment capabilities 3. along with a full - length water circulation system 4. It is ideal for rapid cooling 5. easy to install and maintain 6. includes water tank filter to prevent contamination
Traction Machine	1. High - quality rubber ensures durability 2. the tire tread surface guarantees traction friction 3. dual - stage reduction provides sufficient traction torque 4. the bird - wing protective cover simplifies operation and maintenance

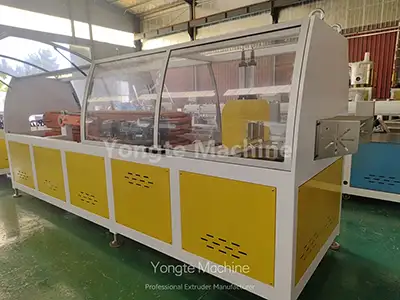

Cutting Machine	1. Features automatic fixed - length cutting 2. 304 stainless steel cutting table 3. fully enclosed dust collection system to minimize dust pollution 4. Motor: 2.2kw servo motor 5. It also includes special material cutting blades designed for high - speed cutting to prevent chipping
Electric Control System	1. Our electrical components use internationally recognized high - quality brands (1) ABB frequency converters (2) Siemens or Schneider contactors (3) Omron temperature controllers (4) Siemens PLC control system (optional) (5) Innovance servo motors

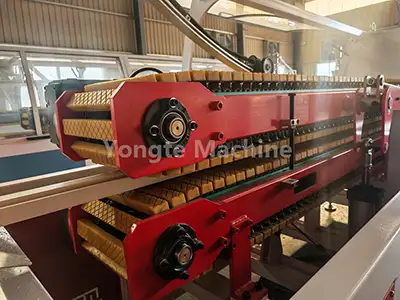

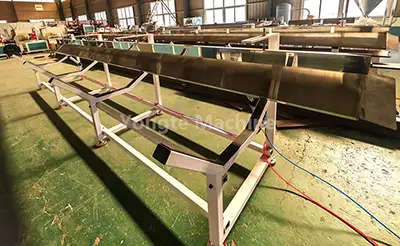

Product Stacker	6 - meter automatic stacker (1) made of stainless steel (2) with an optional auto robot for automatic stacking

Product Application

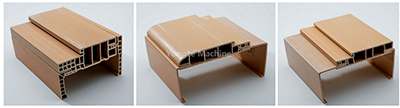

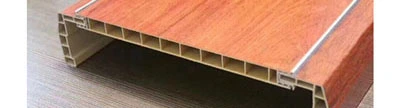

PVC door profiles are eco-friendly building materials that combine the natural aesthetics of wood with the superior durability of PVC. They offer benefits such as ease of manufacturing, high strength, water resistance, anti-mildew and anti-insect properties, fire resistance, ease of installation and maintenance, and the ability to customize sizes and appearances. These profiles are widely used for decorative and functional purposes in door frames, door lines, and door jambs in residential, commercial, and industrial buildings.

Yongte Machine Advantages: Humanized Mechanical Design & Durable Quality

After years of technological innovation and unwavering quality focus, we use high-strength, wear-resistant materials for plastic extrusion machinery. Each machine undergoes precision forging and rigorous quality testing to withstand high-frequency wear and harsh industrial erosion, ensuring long-term reliability and stable performance.

High-torque, durable gearbox	High-efficiency Servo Motor
1. We equip a high-quality, vertically direct-connected gearbox that boasts advantages such as (1) high transmission efficiency (2) robust load capacity (3) stable production (4) space-saving installation (5) reliable sealing to prevent oil leakage (6) excellent heat dissipation (7) ease of maintenance	1. Equipped with an Innovance servo motor 2. this system achieves 15–20% energy savings 3. while delivering (1) precise speed and torque control (2) rapid response (3) minimal vibration (4) low noise (5) extended lifespan (6) reduced maintenance costs 4. Its intelligent speed and output regulation ensures (1) robust, stable power delivery (2) smooth operation across diverse industrial working conditions
Highly Automated Operation System	Advanced Quality Electricity Control System
1. The completePVC Door Profile Extrusion Line is designed for high automation, featuring (1) automatic feeding (2) precise temperature control (3) automatic cutting (4) orderly stacking 2. Furthermore, we can supply a customized automatic material mixing and dosing system to build a fully automated production line tailored to your needs. 3. Equipped with an integrated servo motor and PLC-programmed control system, functions such as (1) speed synchronization (2) intelligent automatic adjustment are also available as optional features.	1. Equipped with (1) ABB frequency converters (2) Siemens or Schneider contactors (3) Omron temperature controllers (4) a Siemens PLC control system 2. all cables and connections are neatly arranged and clearly labeled. 3. The entire electrical cabinet system utilizes advanced intelligent technology, enabling easy operation and precise parameter adjustment. 4. The system also features real-time fault diagnosis and alarm functions, which can quickly identify and alert operators to potential issues such as overheating, voltage fluctuations, component malfunctions 5. minimizing downtime and ensuring continuous production.

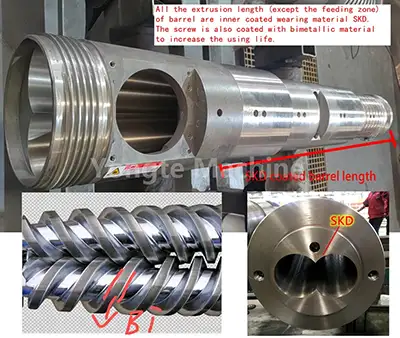

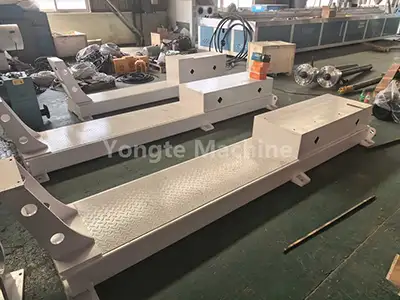

Strong machine basic made by solid steel plate	Screw barrels are made from wear-resistant materials.
1. The machine's frame uses solid steel plates, CNC-cut and polished for precise dimensions and balance, enabling continuous stable operation. The frame remains intact after over 20 years of use. 2. All material/water contact components are 304 stainless steel to prevent corrosion. 3. Post-manufacturing, we apply powder coating for enhanced appearance and anti-rust protection with consistent color.	1. Bimetallic screws and SKD barrels are used to significantly enhance the wear resistance and service life of equipment. 2. This design ensures that the extruder can process a variety of materials, including those with high abrasiveness, without sacrificing performance. 3. Additionally, the optimized screw geometry improves melting and mixing efficiency, resulting in a more uniform and high-quality final product.
Professional Trial and Installation Service	3-Year Warranty and lifetime Support
1. We provide professional trial and installation services to ensure that the machine operates at peak efficiency. (1) Our experienced technicians conduct on-site trials, meticulously adjusting parameters to optimize production efficiency. (2) They also offer comprehensive installation guidance, guaranteeing a seamless integration into your production line.	1. WARRANTY PERIOD: 36 MONTHS, STARTING FROM THE DAY OF DELIVERY FROM SELLER’S SITE. 2. SERVICES AND SPARE PARTS: FREE-OF-CHARGE SERVICE THROUGHOUT THE ENTIRE EQUIPMENT WARRANTY PERIOD IF DAMAGE BECAUSE OF QUALITY PROBLEM. 3. LIFELONG SERVICE SUPPLY: WHENEVER CUSTOMER NEEDS.

Successful cases

Yongte’s commitment centers on manufacturing high-quality, innovative plastic extrusion machinery. By advancing technological capabilities and enhancing quality consistently, its PVC Door Profile Extrusion Line has won extensive recognition in domestic and international markets alike.
