PVC Rain Gutter Machine

The Yongte PVC Rain Gutter Machine from China is a fully integrated production system that covers the entire process from raw materials to finished products, specifically designed for manufacturing high-quality, cost-effective PVC rain gutters. It integrates core processes, including raw material mixing, extrusion plasticizing, precision calibration and cooling, traction cutting, and an intelligent electric control system. Key components of this production line(, such as the extruder screw, mold, and vacuum pump, are crafted from wear-resistant alloy materials. Additionally, the production line is equipped with a servo energy-saving drive system and an automated control system for optimized performance.

Product Parameters (Specifications)

Product Details

1. Automatic Feeder:	The spiral screw feeder is suitable for PVC compound materials and is entirely constructed from 304 stainless steel with seamless welding.

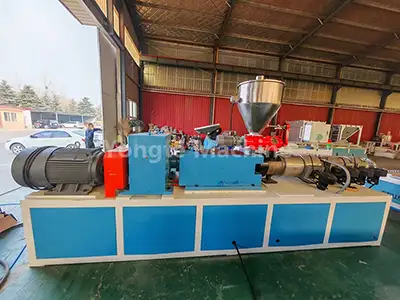

2. SJSZ65/132 Conical Twin-Screw Extruder:	With its deep-groove feeding section and gradual plasticizing section, the PVC extruder delivers stable melt output for wood-plastic materials, ensuring efficient and consistent production. The extruder is equipped with a servo motor to reduce energy consumption by 15–20%, an optional vertical gearbox for stable and powerful operation, bimetallic screws and SKD-coated barrels for long-term durability, and an automatic temperature control system.

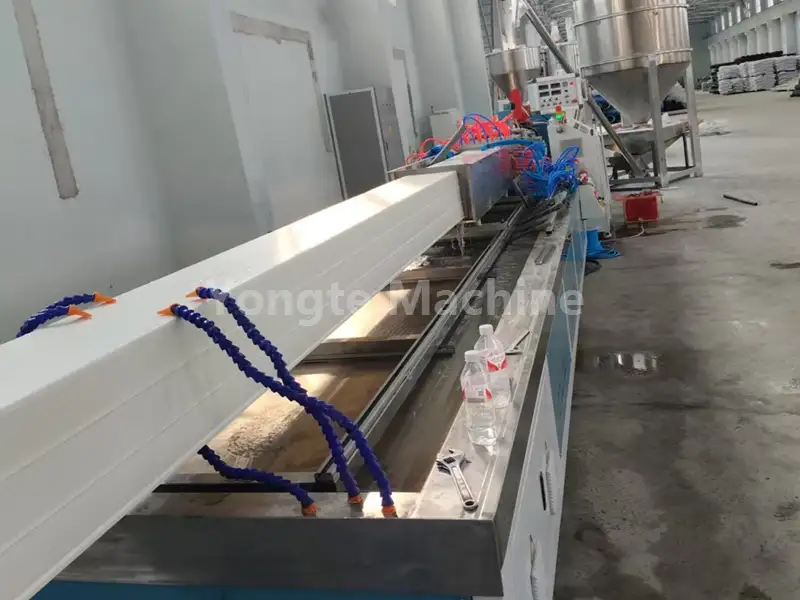

3. Calibration and Cooling Table:	Crafted from a single sheet of 304 stainless steel with an optimized pipeline layout, this table features integrated electric lifting and left-right adjustment functions, plus a full-length water circulation system. It is ideal for high-efficiency cooling processes, featuring simplified installation and maintenance. Notably, the water tank is equipped with a filter to prevent contamination.
4. Traction Machine:	High-quality rubber ensures durability, the tire tread surface guarantees traction friction, dual-stage reduction provides sufficient traction torque, and the bird-wing protective cover simplifies operation and maintenance.

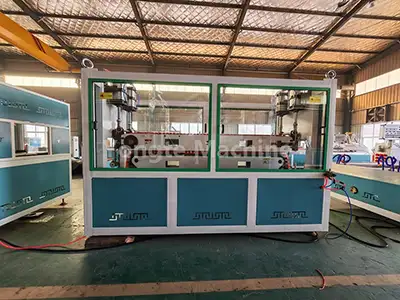

5. Cutting Machine:	Boasting automatic fixed-length cutting functionality, a 304 stainless steel panel, and a fully enclosed dust collection system to minimize dust emissions, this machine is equipped with a high-precision servo motor. It also features specialized cutting blades optimized for high-speed operations, effectively preventing material chipping.
6. Electric Control System:	Our electrical components employ internationally recognized high-quality brands, such as ABB frequency converters, Siemens or Schneider contactors, Omron temperature controllers, Siemens PLC control system, and Innovance servo motors.

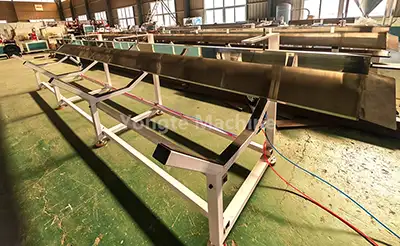

7. Product Stacker:	6 meter automatic stacker made of stainless steel, with an optional auto robot for fully automated stacking.

Product Application

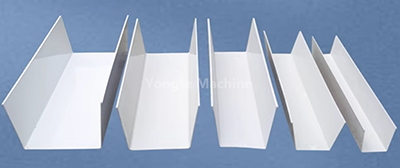

PVC Rain Gutter Machines are eco-friendly building materials with multiple advantages: efficient production, high mechanical strength, excellent waterproofing, mildew and insect resistance, fire retardancy, easy installation and maintenance, as well as customizable sizes and appearances.

Yongte Machine Advantages: Humanized Mechanical Design & Durable Quality

Features Table

Component	Features	Pictures

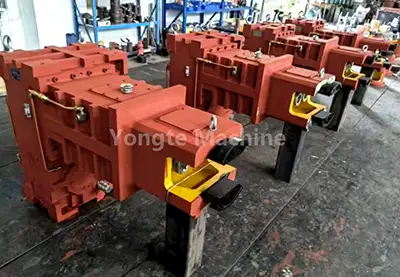

High-Torque, Durable Gearbox	High-quality, vertically direct-connected; high transmission efficiency; reliable sealing to prevent oil leakage; excellent heat dissipation; robust load capacity, stable production, space-saving installation, ease of maintenance.

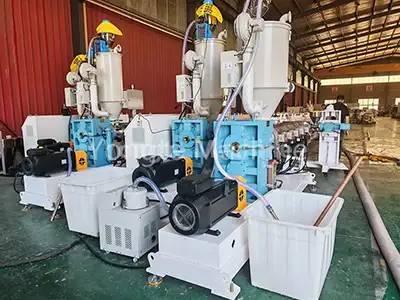

High-Efficiency Servo Motor	Equipped with an Innovance servo motor, achieving 15–20% energy savings through precise speed and torque control. Features rapid response, minimal vibration, low noise operation, extended service life, and reduced maintenance costs, with intelligent speed and output regulation capabilities.
Highly Automated Operating System	Automatic feeding, precise temperature control, automatic cutting, and orderly stacking capabilities. Optional customized automatic material mixing and dosing system, integrated with servo motor and PLC-programmed control system for speed synchronization and intelligent automatic adjustment.

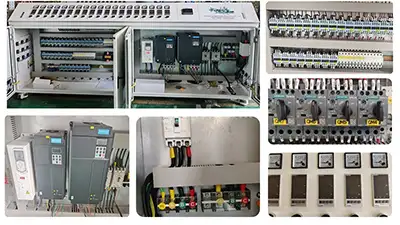

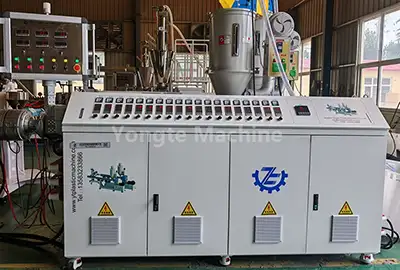

Advanced Quality Electricity Control System	Equipped with ABB frequency converters, Siemens/Schneider contactors, and Omron temperature controllers, integrated with a Siemens PLC control system. Features neatly arranged, clearly labeled cables and connections, advanced intelligent technology, and real-time fault diagnosis with alarm functions

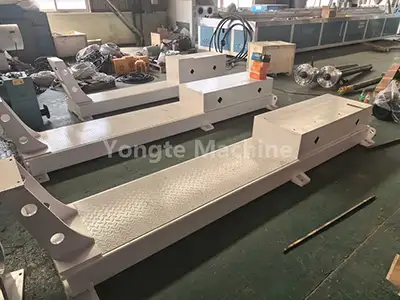

Strong Machine Base Made of Solid Steel Plate	Constructed with solid steel plates, CNC-cut and polished, with all material/water contact components made of 304 stainless steel. Features powder coating post-manufacturing for continuous stable operation, corrosion prevention, and enhanced appearance with anti-rust protection

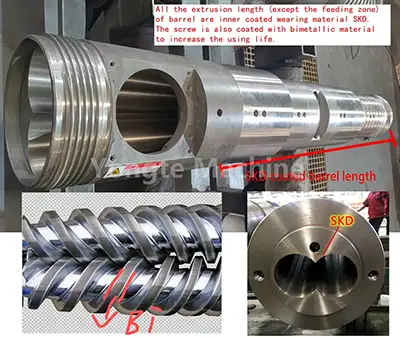

Screw Barrels Made from Wear-Resistant Materials	Bimetallic screws and SKD barrels with optimized screw geometry, enhancing wear resistance and extending service life. Capable of processing various materials, delivering more uniform and high-quality final products
Professional Trial and Installation Service	On-site trials conducted by experienced technicians, combined with comprehensive installation guidance, ensure the machine operates at peak efficiency and enables seamless integration into the production line
3 - Year Warranty and Lifetime Support	36-month warranty starting from the day of delivery; free service during the warranty period for quality-related damage; lifelong service supply.

Successful cases

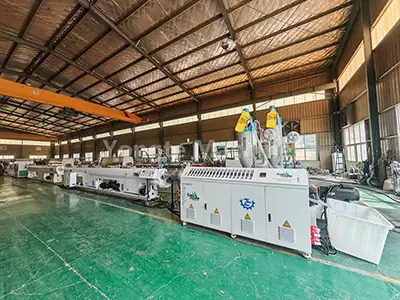

Yongte pledges itself to crafting high-quality, innovative plastic extrusion machines. With sustained advancements in technology and quality optimization, its PVC Rain Gutter Machine has earned widespread acclaim across both domestic and international markets.

China PVC Rain Gutter Profile Making Machine

four cavity PVC profile extrusion machine installed in China

China ABS Profile Extrusion Line
