PVC Window Profile Machine

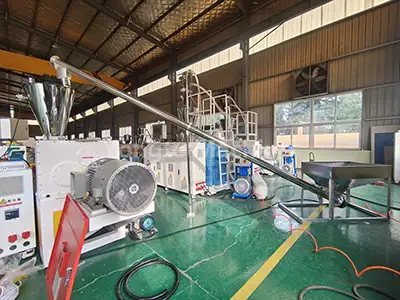

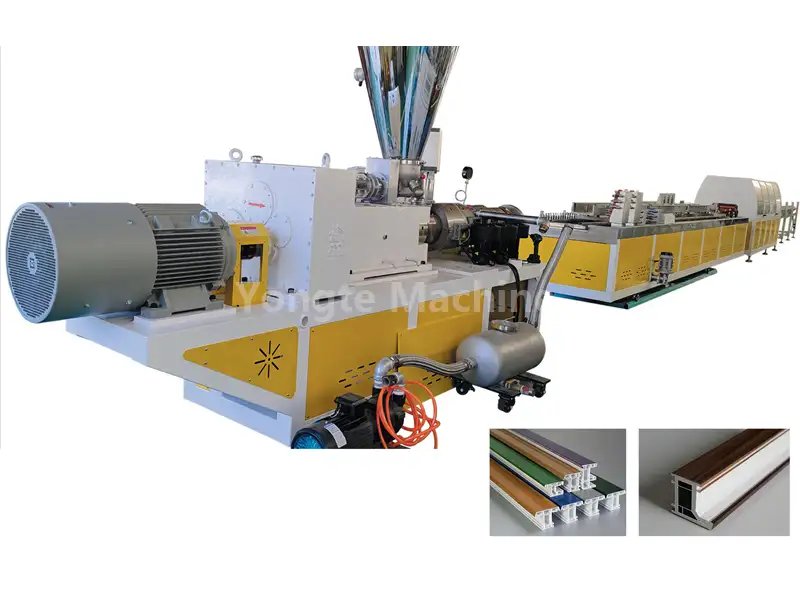

Yongte quality PVC Window Profile Machine is specialized in manufacturing high-performance PVC window profiles via continuous extrusion and molding processes. It integrates an automatic feeder, conical twin-screw extruder, high-speed extrusion mold, rapid vacuum calibration and cooling table, stable traction machine, automatic cutting machine, and product stacker for seamless production.

Technical Specifications

Product Details and Features

Components of PVC Window Profile Extrusion Line

Equipment	Details	Picture
Automatic Feeder	Designed for PVC compound materials, fully constructed from 304 stainless steel with seamless welding for corrosion resistance and hygiene

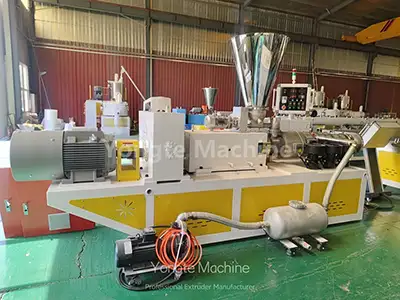

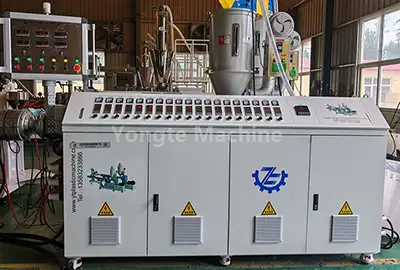

SJSZ65/132 Conical Twin - Screw Extruder	Featuring a deep - groove feeding section and gradual plasticizing section, delivers stable melt output for PVC compound materials. Equipped with a servo motor (saving 15%–20% energy), optional vertical gearbox for stable high - power operation, bimetallic screw and SKD - coated barrel for extended service life, and an automatic temperature control system for precise thermal management

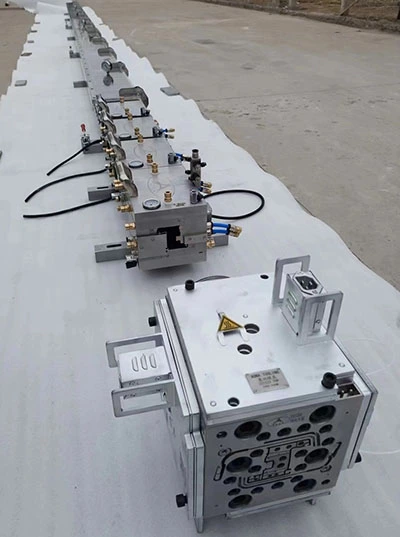

PVC Window Profile Extrusion Mold	Crafted from high - quality 3Cr17 mold steel, features precise zoned temperature control, a modular design for stable dimensional accuracy, and quick - positioning pins for easy installation and replacement

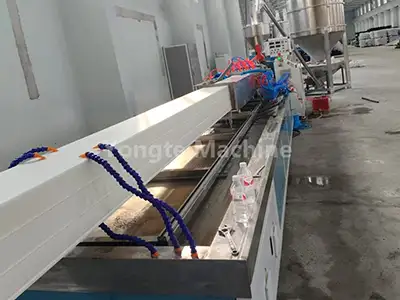

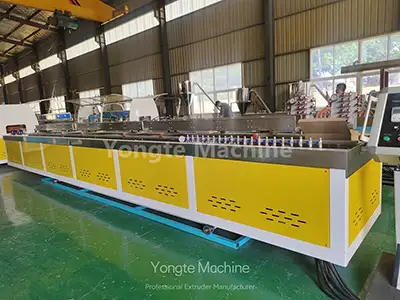

Calibration and Cooling Table	Constructed from a single sheet of 304 stainless steel with optimized pipeline design, offers electric lifting and left - right adjustment capabilities, plus a full - length water circulation system for rapid cooling. The integrated water filter prevents contamination, simplifies maintenance and ensures consistent product quality

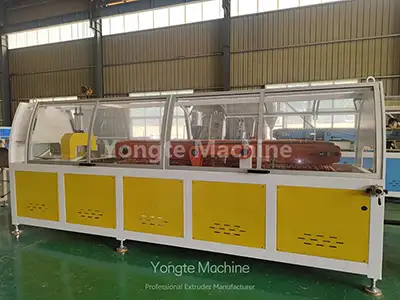

Traction Machine	High - grade rubber tires provide durable traction friction, dual - stage reduction ensures sufficient torque, and a bird - wing protective cover simplifies operation and maintenance for enhanced safety

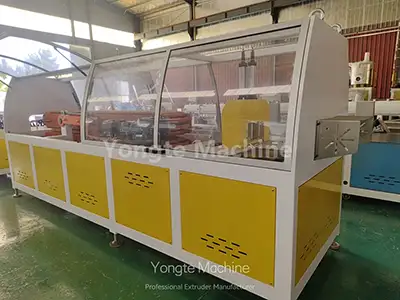

Cutting Machine	Equipped with automatic fixed - length cutting, a 304 stainless steel panel, fully enclosed dust collection system (minimizing pollution), servo motor for precision, and specialized blades to prevent chipping during high - speed cutting
Electric Control System	Electrical components use internationally renowned brands—including ABB frequency converters, Siemens motors, Schneider contactors, Omron temperature controllers, and Siemens PLC systems—ensuring reliable, precise operation

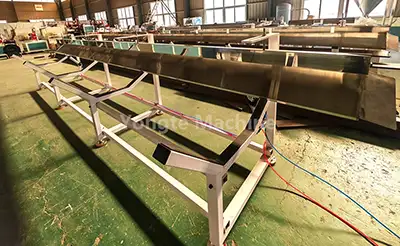

Product Stacker	6 - meter stainless steel automatic stacker with an optional robotic stacking system for fully automated end - of - line handling

Product Application

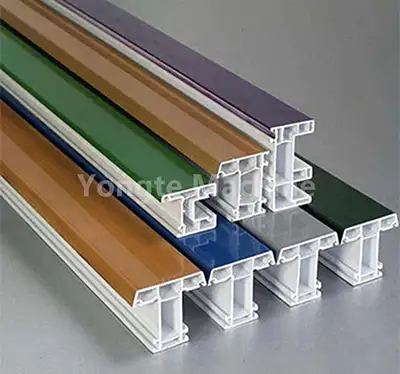

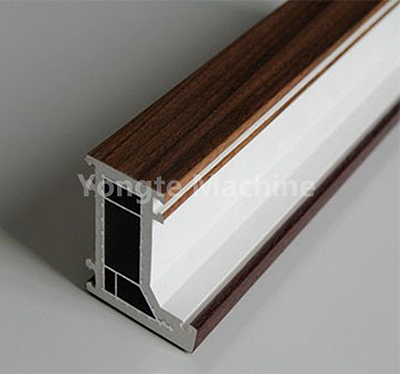

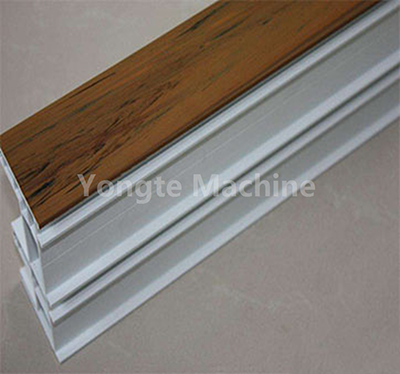

PVC window profiles represent a highly sustainable and eco-friendly category of building materials, effectively blending the natural aesthetic charm of real wood with the outstanding durability and resilience of polyvinyl chloride. Among their primary benefits are exceptional structural integrity and load-bearing capacity, superior resistance to moisture and water infiltration, as well as inherent anti-mildew and anti-insect characteristics. Additionally, these profiles possess fire-retardant qualities that enhance building safety, along with notable ease of installation and low-maintenance requirements. Available in a wide range of customizable dimensions, colors, and surface finishes, PVC window systems are extensively utilized across residential housing, commercial complexes, and industrial construction projects due to their versatility, long service life, and overall environmental efficiency.

Yongte Machine Advantages - Humanized Mechanical Design and Durable Quality

High-torque, durable gearbox	High-efficiency Servo Motor
We equip a high-quality, vertically direct-connected gearbox that boasts advantages such as (1) high transmission efficiency (2) robust load capacity (3) stable production (4) space-saving installation (5) reliable sealing to prevent oil leakage (6) excellent heat dissipation (7) ease of maintenance	We equip Innovance servo motor, Its intelligent regulation ensures stable power delivery for smooth operation in diverse industrial conditions.the system achieves 15–20% energy savings with (1) precise speed/torque control (2) rapid response (3) minimal vibration (4) low noise (5) extended lifespan (6) reduced maintenance costs
Highly Automated Operation System	Advanced Quality Electricity Control System
1. The completePVC Window Profile Machine features high automation (1) automatic feeding (2) precise temperature control (3) automatic cutting (4) orderly stacking 2. Optional customized systems include (1) automatic material mixing/dosing for full automation (2) integrated servo motor and PLC control (1) speed synchronization (2) intelligent adjustment	1. Equipped with (1) ABB inverters (2) Omron temperature controllers (3) Siemens contactors (4) optional Siemens PLC control 2. Electrical cabinets feature (1) neatly arranged components with standardized labeled wires (2) sufficient clearance for easy maintenance (3) quick-connect auxiliary plugs (no on-site wiring required) ensuring convenience and reliability

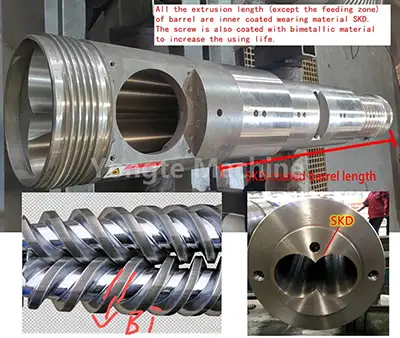

Robust machine base constructed with solid steel plates	Screw barrels are made from wear-resistant materials.

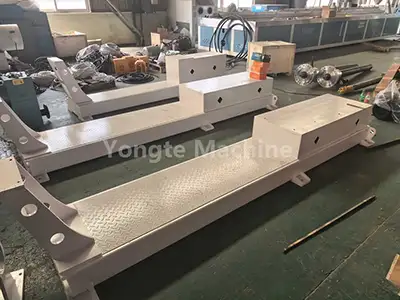

1. The machine's structure uses solid steel plates, CNC-cut and precision-polished for dimensional accuracy and balance, enabling continuous stable operation. 2. The frame remains intact after 20+ years of use. 3. All material/water contact components are 304 stainless steel to prevent corrosion. 4. The machine surface is coated with powder using electrostatic spraying, where the thermosetting powder cures at high temperatures to form a dense, scratch-resistant layer.	1. Bimetallic screws and SKD barrels are utilized to substantially improve the wear resistance and extend the service life of equipment. 2. This design ensures that the extruder can process a range of materials, including those with high abrasiveness, without compromising performance. 3. Furthermore, the optimized screw geometry enhances melting and mixing efficiency, resulting in a more uniform and superior final product.
Professional Trial and Installation Service	3 - Year Warranty and Lifetime Support
We offer professional trial and installation services to ensure that the machine operates at its peak efficiency. (1) Our professional technicians conduct on-site trials, carefully adjusting parameters to optimize production efficiency. (2) They also provide comprehensive installation guidance, ensuring a seamless integration into your production line.	1. 36-month comprehensive warranty, which includes all core mechanical components, electrical systems, and precision parts to ensure long-term operational reliability 2. Free service during the warranty period for quality-related damage 3. Lifelong service supply: whenever customer needs

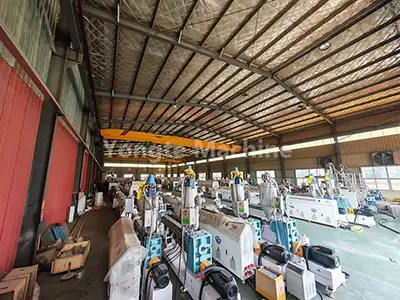

Successful cases

After years of technological innovation and unwavering quality focus, our plastic machinery utilizes high-strength, wear-resistant materials. Precision-forged and subjected to rigorous testing, these machines withstand high-frequency wear and harsh industrial erosion.Yongte is dedicated to manufacturing high-quality, innovative plastic extrusion machines. Through continuous technological optimization, Yongte's PVC Window Profile Machine has earned widespread acclaim in both domestic and international markets.

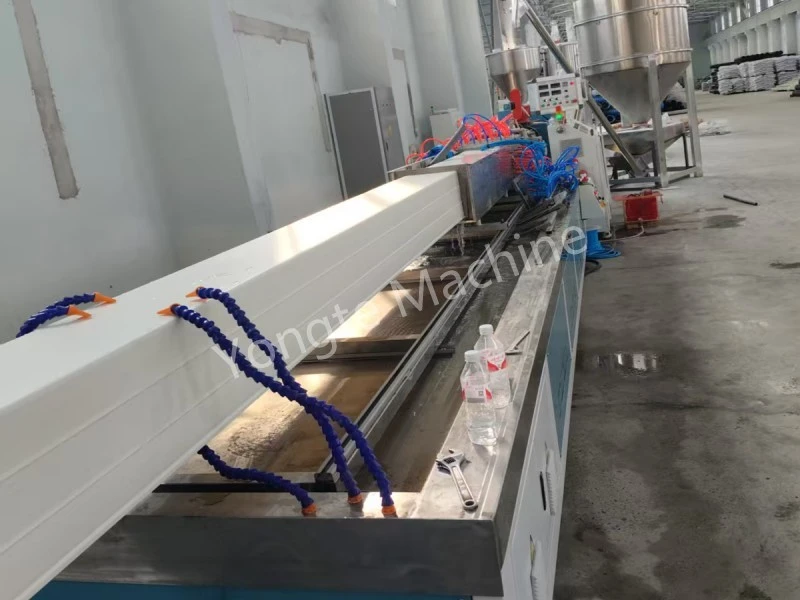

China PVC Rain Gutter Profile Making Machine

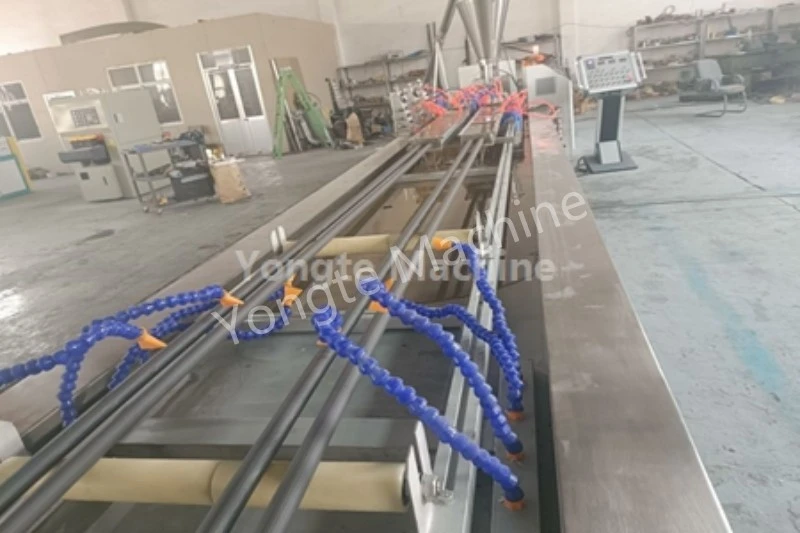

four cavity PVC profile extrusion machine installed in China

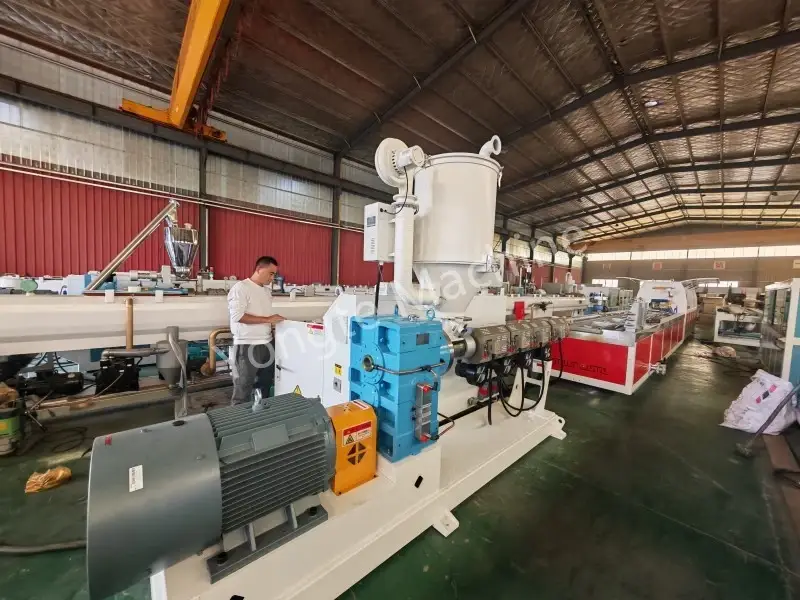

China ABS Profile Extrusion Line
