Plastic Film Recycling Pelletizer

Yongte 350 Plastic film recycling pelletizer machine | High density plastic Pellet Making Machine

Product Overview

This plastic film recycling pelletizer machine is independently developed by Yongte Plastic Machinery. It is designed to process waste plastic film and bags, producing high-density pellets. The machine adopts a vertical flat die structure with a direct-connected reducer drive, ensuring stable operation and easy maintenance. It is widely used for recycling plastic film and bags, as well as for low-density plastic granulation and agglomeration.

Main Working Principle

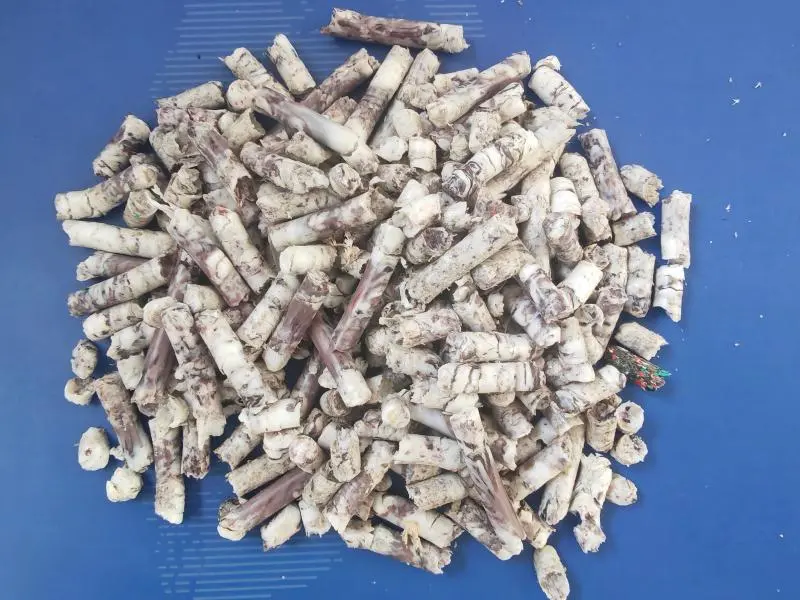

Plastic film or bag materials enter the feeding hopper after being crushed, then fall evenly onto the flat die. The rotating pressing rollers force the materials through the mold holes, extruding them into cylindrical pellets. These are subsequently cut into uniform finished pellets automatically. This machine does not have a heating function; therefore, it does not melt the plastic but merely compresses the plastic film or bags into high-density pellets. This facilitates easy transportation and feeding into the extruder.

The absence of thermal processing preserves the original polymer structure, ensuring minimal degradation during pelletizing. The high-density output maintains consistent shape and size, which enhances feeding efficiency in downstream recycling or manufacturing processes. Additionally, the mechanical compression reduces air pockets within the material, resulting in improved bulk density and storage stability.

Core Advantages

① Heavy-duty gear reducer, high torque, low failure rate. Ensures stable operation under continuous load, delivering consistent pellet quality with minimal maintenance requirements.

② Wear-resistant alloy mould & pressing rollers, long service life

③ The wear-resistant alloy components maintain dimensional stability under high-pressure conditions, reducing downtime for replacements. This design also minimizes material adhesion during compression, ensuring smooth operation and uniform pellet formation throughout extended production cycles.

④ Quick-opening clamping structure, convenient to replace die and rollers, This mechanism allows operators to swiftly disassemble and reassemble critical components without specialized tools, significantly shortening maintenance intervals. The intuitive design enhances operational efficiency, particularly during frequent material changes or routine inspections, while maintaining precise alignment for consistent pellet quality.

⑤ Integrated base frame, easy installation, no complicated foundation construction, ensures stable operation with minimal vibration, while the rigid structure supports long-term durability under continuous load. The streamlined setup process reduces initial deployment time and allows for quick relocation or reconfiguration as production needs evolve.

⑥ Using soft-start method: effectively reduces the impact of starting current on the power grid, prevents equipment damage caused by excessive instantaneous loads, and extends the service life of motors and transmission components.

Technical Parameter

Application

The Yongte MS350 Plastic Film Recycling Pelletizer Machine efficiently converts waste plastic films, bags, and similar materials into high-density plastic pellets. These pellets can be directly used in subsequent processes such as injection molding and blow molding, facilitating the recovery of resources from plastic waste, enhancing its added value, reducing environmental impact, and promoting sustainable development in the plastics industry.

It is particularly suitable for processing LDPE, HDPE, and PP films commonly found in agricultural, packaging, and household waste streams. The machine’s stable performance and consistent pellet quality make it a reliable choice for recycling facilities aiming to integrate circular economy practices into their operations.
