Waste Plastic Extrusion and Molding Machine
Model:YT150
Waste Plastic Extrusion and Molding Machine is engineered to upcycle waste plastics into customized, market-ready products. Our high-efficiency extruder directly melts and plasticizes waste plastics; it then compression-molds the material into plastic products—including affordable, durable plastic basins, buckets, pallets, stools, and more.
Product Introduction
Yongte Waste Plastic Extrusion and Molding Machine is engineered to upcycle waste plastics into customized, market-ready products. Our high-efficiency extruder directly melts and plasticizes waste plastics; it then compression-molds the material into plastic products—including affordable, durable plastic basins, buckets, pallets, stools, and more. Yongte design the plastic extrusion and molding machine with high efficiency extrusion system and compression molding system, the compression molds can be made according to customer’s plastic wastage material and required product specification, it is a good solution for recycling and reusing plastic wastage.
This Waste Plastic recycling extruder can directly process plastic waste films/bags without the need for crushing or washing. Its large-diameter twin-screw extruder efficiently feeds and melts the plastic waste, then the molten material will be feed into customized compression molds with required weight according to the products. Then the compressing machine shall close the mold with high pressure for forming the product shape and cooling the material to make a final product. The advantage of this machine is easy to operation, low power consumption, wide adaptability of recycled material, easy to maintenance.
Technical Parameter
Extrusion machine models
|
Model |
SJZ180 |
SJZ250 |
|
Input material |
PP/PE/ABS plastic wastage |
PP/PE/ABS plastic wastage |
|
Output product |
Plastic basins, buckets, pallets, stools, tanks etc |
Plastic basins, buckets, pallets, stools, tanks etc |
|
Extruder type |
double screw extruder |
double screw extruder |
|
Molding type |
Molding by pieces |
Molding by pieces |
|
Screw diameter |
180mm |
250mm |
|
Main motor power |
45-55kw |
90kw for different capacity |
|
Extrusion capacity |
300-400 kg/h |
500-600 kg/h |
|
Molding method |
Compression molding |
Compression molding |

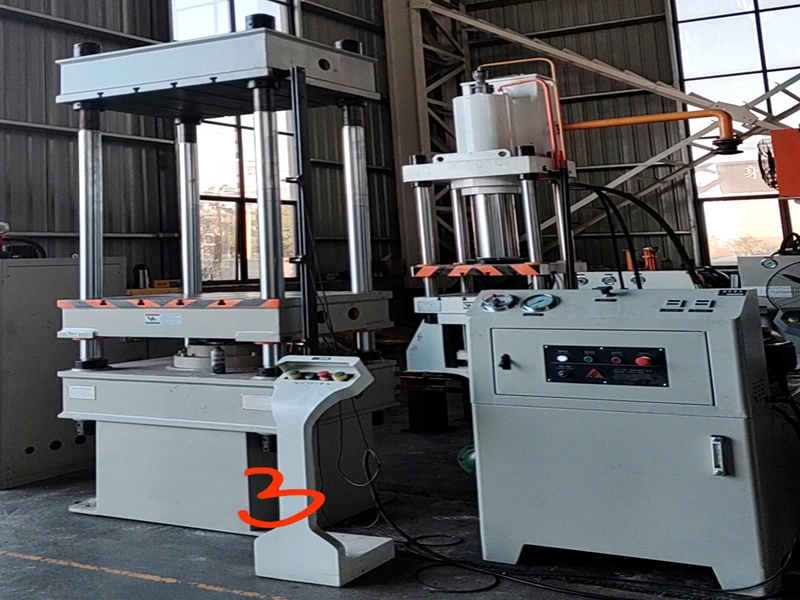

Compression molding machine models
|
1 |
Item |
Unit |
150T |
315T |
500T |
800T |
|
|
2 |
Nominal pressure of the main cylinder |
KN |
1500 |
3150 |
5000 |
8000 |
|
|
3 |
maximum liquid pressure |
MPA |
25 |
25 |
25 |
25 |
|
|
4 |
Slider stroke (customizable) |
mm |
600 |
750 |
750 |
750 |
|
|
5 |
Maximum opening height (customizable) |
mm |
1400 |
1300 |
1300 |
1300 |
|
|
6 |
Workbench effective area (customizable) |
Between the left and right pillars |
mm |
800 |
1260 |
1500 |
1800 |
|
From the front-end to the back-end of the workbench |
mm |
800 |
1200 |
1500 |
1800 |
||
|
7 |
Sliding block travel speed (based on product design) |
no-load downlink speed |
mm/s |
48 |
42 |
36 |
36 |
|
pressing speed |
mm/s |
10-24 |
10-24 |
10-24 |
10-24 |
||
|
opening speed |
mm/s |
50 |
50 |
50 |
50 |
||
|
8 |
power of motor |
K W |
15 |
30 |
45 |
55 |
|
|
9 |
Hydraulic column material |
|
45# steel |
45# steel |
45# steel |
45# steel |
|
|
10 |
Cooling type |
|
Water cooling |
Water cooling |
Water cooling |
Water cooling |
|
|
11 |
Product example |
|
Water basin, small chair, buckets |
Trash bin, water tank, big stools |
Trash bin, water tank, big stools |
Pallet, big tank |
|
Product Application

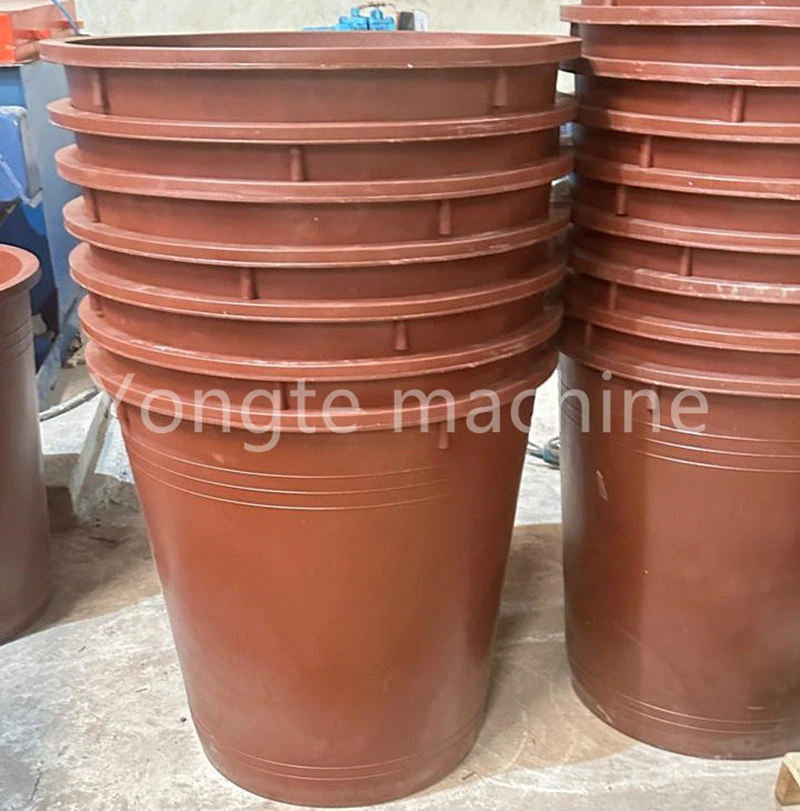

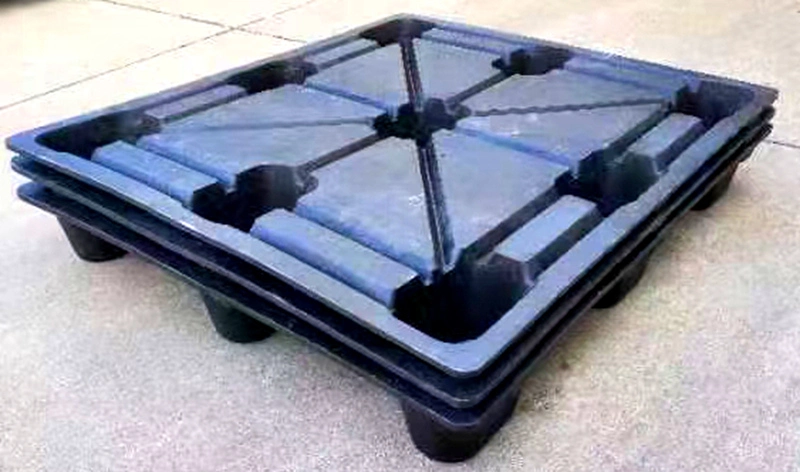

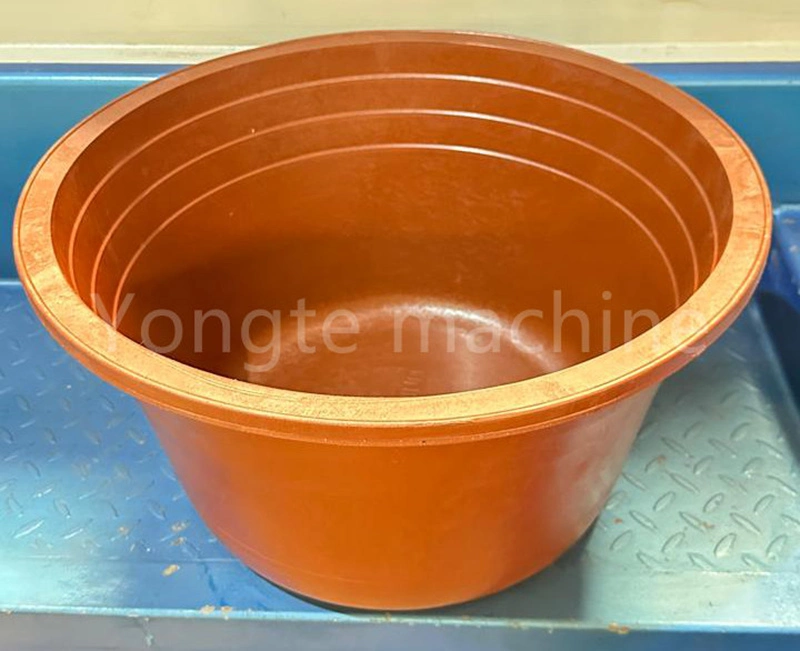

This plastic extrusion and molding machine can make durable plastic products with cheap cost, such as plastic basins, buckets, pallets, and stools—become highly sought-after goods in the African market.
