Plastic Pelletizing Machine for film recycling
Model:YTSJ150-140
Yongte Advanced Double stage plastic pelletizing machine for film recycling is specifically designed for the efficient recycling of film materials, transforming waste film into high-quality plastic pellets with capacity for 150-450kg/hour.with CE certified quality, this machine has advantages of high effiency, high automation, power saving, easy operation and environment friendly

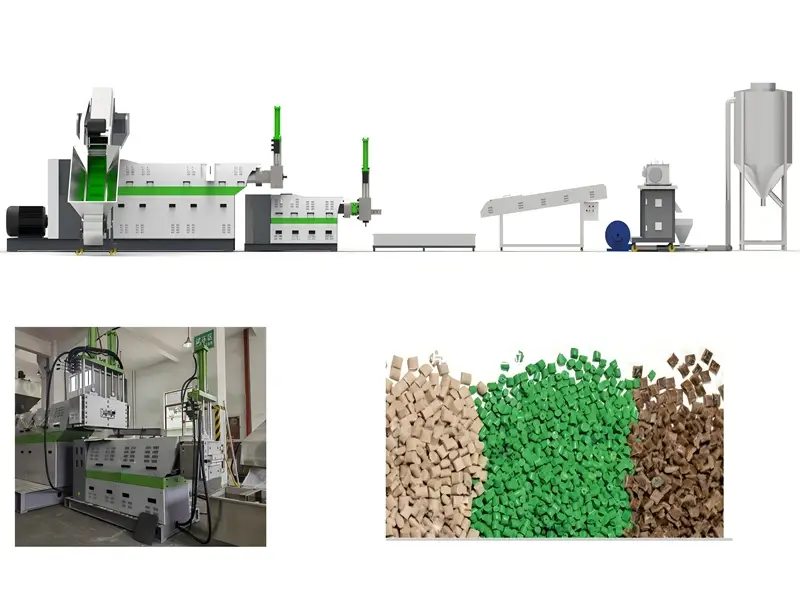

Double stage Plastic pelletizing machine - ideal solution for plastic wet film recycling
Yongte Advanced Double stage plastic pelletizing machine for film recycling is specifically designed for the efficient recycling of film materials, transforming waste film into high-quality plastic pellets. It boasts a robust construction and advanced technology to ensure stable operation and consistent output. With a capacity ranging from 150 to 450 kilograms per hour, it meets the demands of medium to large-scale recycling operations. It adopts double stage extrusion system which enhances the melting and homogenization of the film materials, resulting in superior quality plastic pellets. The system is equipped with precision-engineered screws and barrels that ensure uniform melting and extrusion, minimizing degradation and maximizing the yield of recycled plastic. Additionally, the machine features an advanced filtration system that effectively removes impurities and contaminants from the melted plastic, ensuring the production of clean and high-grade plastic pellets.
The machine also incorporates an automatic control system that monitors and regulates various parameters such as temperature, pressure, and speed. This system ensures optimal performance and reduces the need for manual intervention, enhancing operational efficiency and minimizing downtime. Furthermore, it is designed with energy-saving features, including an efficient heating system and optimized power consumption, which contribute to lower operating costs and environmental sustainability. The compact and modular design of the machine allows for easy installation, operation, and maintenance, making it an ideal choice for recycling facilities with limited space. Its user-friendly interface provides intuitive controls and real-time data display, enabling operators to monitor the recycling process and make adjustments as needed.
Technical Parameters
|
Technical |
Specifications |
||
|
Model |
YTSJ150-140 |
YTSJ250-180 |
|
|
Input raw material |
Plastic film, bags |
Plastic film, bags |
|
|
Output material |
Plastic granules |
Plastic granules |
|
|
Mother Extruder |
Screw diameter |
150mm |
250mm |
|
L/D |
21:1 |
16:1 |
|
|
Main motor |
55kw |
132kw |
|
|
Screen changer |
Hydraulic |
Hydraulic |
|
|
Baby Extruder |
Screw diameter |
140mm |
180mm |
|
L/D |
10:1 |
10:1 |
|
|
Main motor |
18.5kw |
55kw |
|
|
Screen changer |
Hydraulic |
Hydraulic |
|
|
Capacity |
150-200 kg/h |
400-450kg/h |
|
|
Water cooling tank |
4000mm |
4000mm |
|
|
Plastic granule cutter |
4kw |
7.5kw |
|
|
Material storage tank |
304 stainless steel |
304 stainless steel |
|
|
Certification |
CE certification |
CE certification |
|
Equipment List and Picture
|
Equipment |
Picture |
|

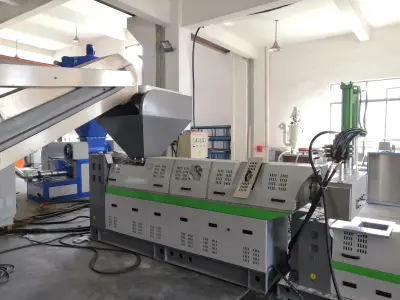

1, Main Mother Extruder for first step melting plastic film or plastic bags wastage |
|
|

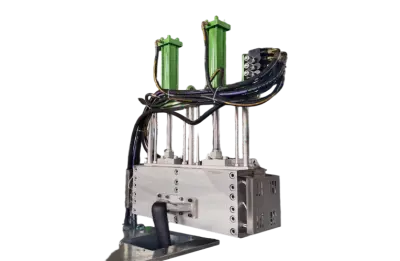

2, Hydraulic Double Screen changer for first step removes impurities |
|
|

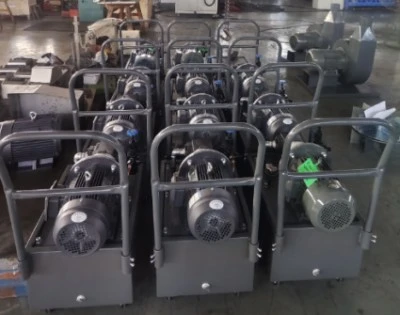

3, Hydraulic Station for screen changer |
|
|

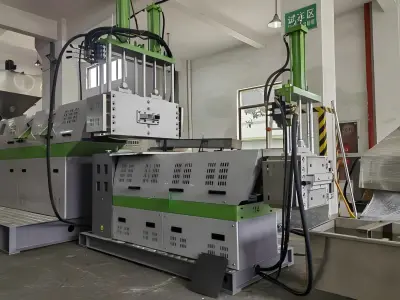

4, Second Baby Extruder, Screen changer and pelletizing die head: for second step homogenization of the plastic film/bag materials into high quality material, and come out many pieces of plastic strips for pelletizing |
|
|

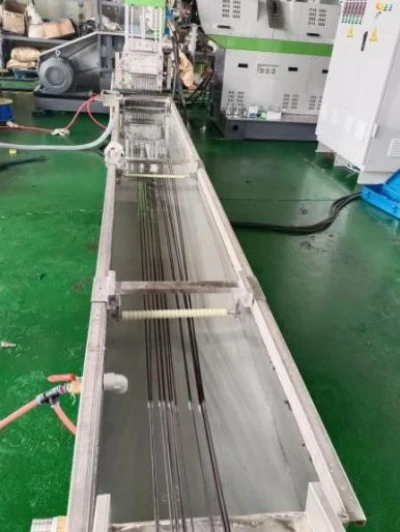

5, 4000mm Water Cooling Tank for cooling the plastic pelletizing strips |
|
|

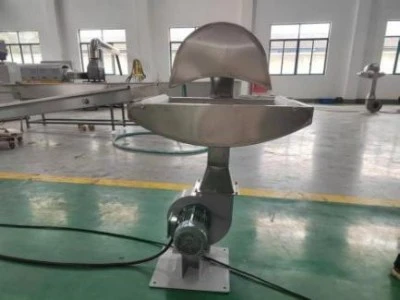

6, Air Blower for drying water on the plastic pelletizing strips after water cooling |
|
|

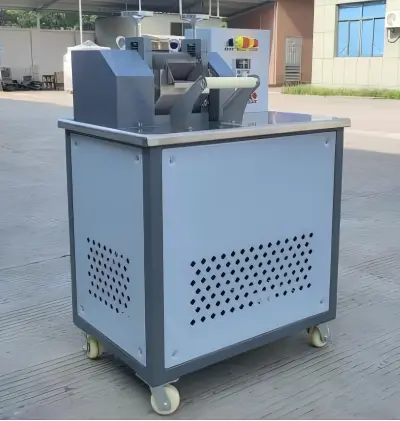

7, Plastic Granule Cutter for cutting the plastic strips into pellets with uniform sizes |
|
|

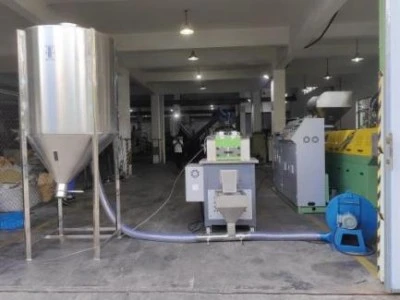

8, Storage tank for collecting the final plastic pellets made by the plastic pelletizing machine |
|
|

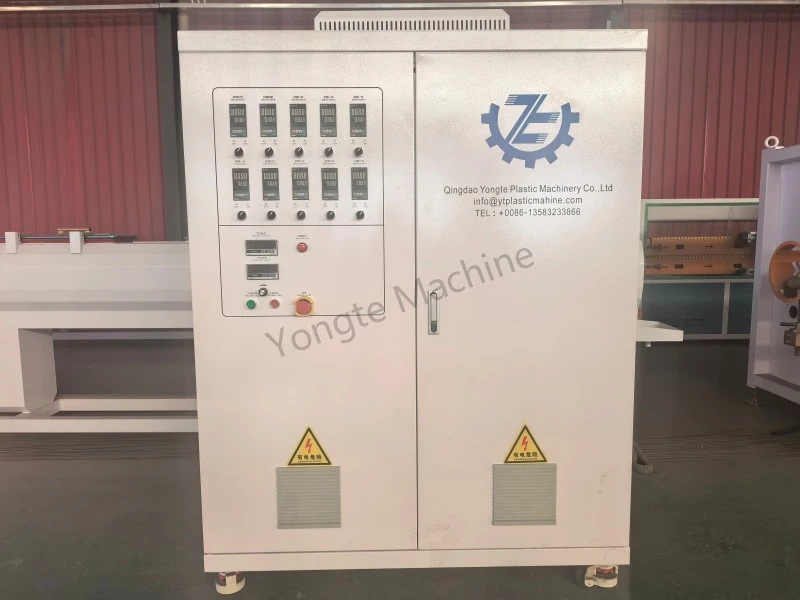

9, Electric Control System for speed adjustment, temperature control and operation of the complete plastic pelletizing machine |
|
