Overall Structure & Layout

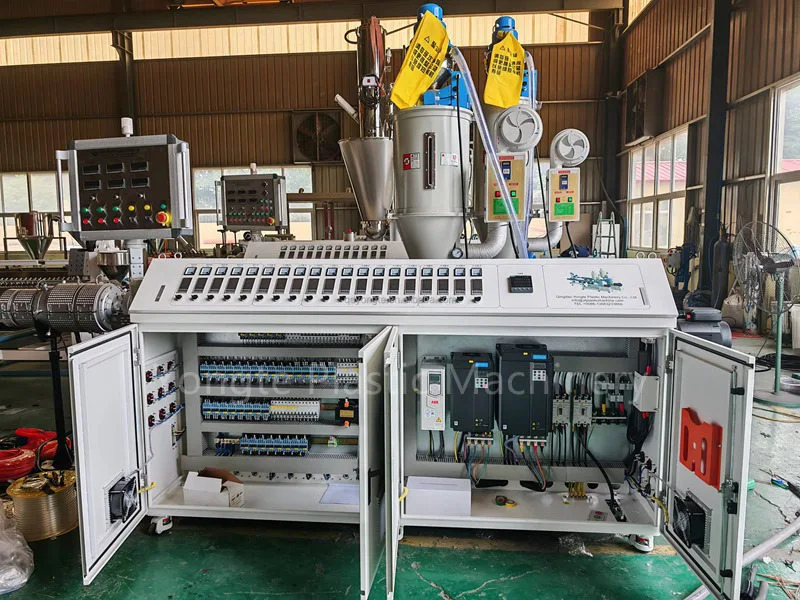

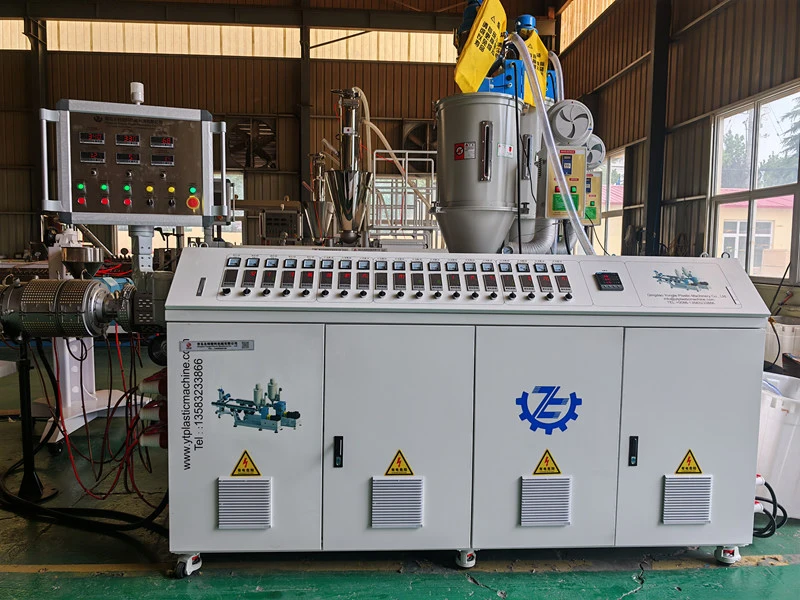

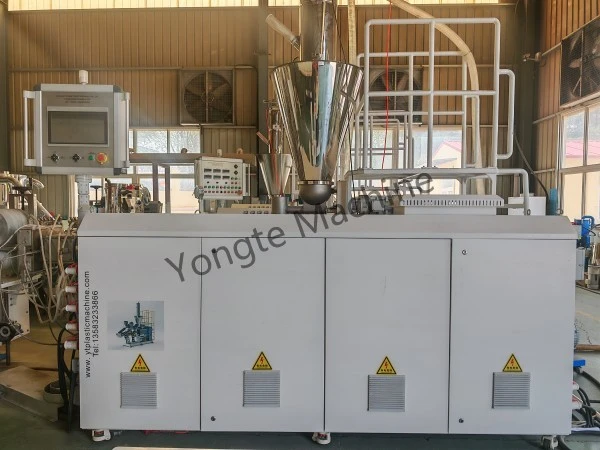

The Yongte electrical control cabinet for plastic extruders is an industrial-grade control system designed specifically for Yongte plastic extrusion lines. It provides power distribution, logic control, signal transmission, and safety protection for the entire extrusion system.

Layout Design Highlights

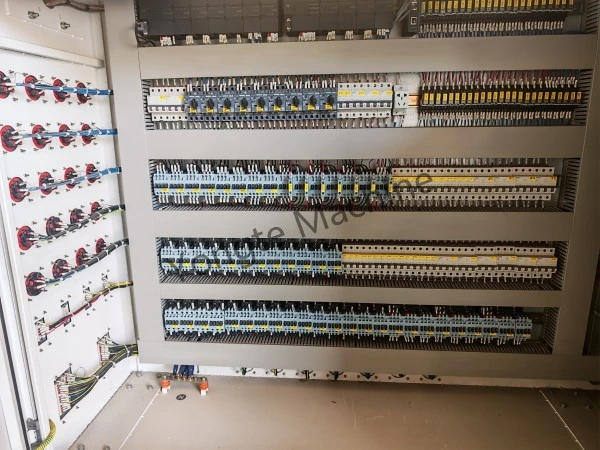

- Layered Modular Layout: The cabinet features a multi-layer horizontal zoning design, arranged top to bottom as follows:

- Top layer: PLC and control modules; terminal blocks (signal wiring area)

- Middle layer: Main circuit breakers, branch air switches, contactor/relay groups

- Lower layer: High-density intermediate relays; terminal blocks (I/O signal area)

- Left side: Cable inlet/outlet terminals; grounding and equipotential bonding terminals

- Clear Zoning & Physical Separation of Power and Control Circuits: High-current power components (e.g., main breakers, contactors) are physically isolated from low-voltage control elements (e.g., relays, signal terminal blocks) to eliminate electromagnetic interference and simplify maintenance.

- Standardized Wiring & Premium Craftsmanship: All cables are color-coded (per industrial standards—red (L1), blue (L2), yellow (L3), black (neutral), and green/yellow (ground)—for power and control circuits. Terminal blocks are uniformly numbered, and wiring is orderly and secure, meeting stringent requirements for industrial electrical installations.

1. Core Advantages & Technical Features

High Reliability & Safety

- Comprehensive Protection System:

Multi-stage air switches and circuit breakers provide coordinated overload, short-circuit, and residual-current (leakage) protection for both the main power supply and individual branch loads—preventing cascading failures and ensuring system-wide operational continuity.

High-voltage warning labels are affixed to the cabinet exterior, and the cabinet door incorporates a safety interlock that automatically cuts power upon opening—fully compliant with GB/T 5226.1 and other international industrial safety standards.

An independent grounding copper busbar is installed at the cabinet base, ensuring reliable, low-impedance grounding of all internal equipment enclosures to mitigate static discharge and leakage hazards.

- High-Spec Component Selection:

Core components—including circuit breakers, contactors, and relays—are sourced from leading industrial-grade manufacturers (e.g., Siemens, Schneider Electric, Chint), selected for exceptional durability under frequent start-stop cycles and electromagnetic interference, supporting uninterrupted 24/7 extruder operation.

Terminal blocks employ high-current spring-clamp or screw-type designs to ensure robust, vibration-resistant connections—minimizing risks of loosening, arcing, or thermal degradation during long-cycle, high-load operation.

Modularity & Scalability

- Standardized Modular Design:

Both power and control circuits follow standardized modular architecture, enabling rapid adaptation across diverse Yongte extruder configurations—including (single-screw, twin-screw, and models spanning various motor power ratings—and facilitating seamless integration of future production line upgrades (e.g., auxiliary feeding systems, automated workstations, or inline quality monitoring).

- Ample Reserved Space:

The cabinet includes generous reserved terminal block positions and mounting space, allowing flexible expansion of I/O signals and power circuits to accommodate customer-specific requirements—such as gravimetric metering feeders, real-time online sensors, or automatic screen changers.

Anti-Interference & Operational Stability

- EMC-Compliant Design:

Strict physical separation between power and control wiring, use of shielded cables for sensitive signals, and an optimized grounding topology effectively suppress electromagnetic interference generated by high-power devices (e.g., inverters, motors), ensuring stable, noise-free operation of PLCs, sensors, and HMI displays.

- Thermal Management & Environmental Adaptability:

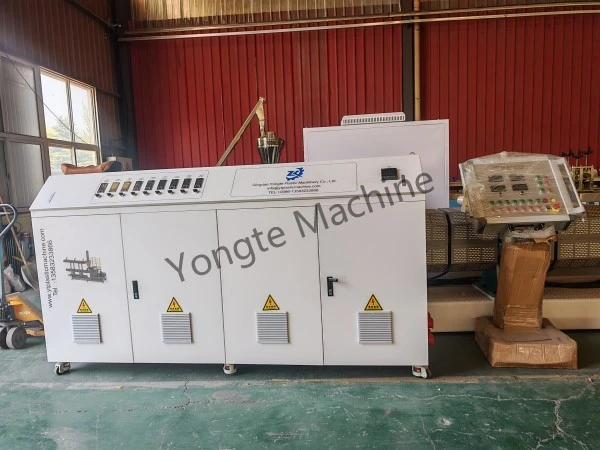

Ventilation louvers integrated into cabinet doors and side panels promote natural convection cooling, maintaining optimal operating temperatures for internal components and preventing thermal aging.

A dust-sealed cabinet design—featuring gasketed doors and sealed cable entries—ensures reliable performance in demanding factory environments characterized by dust, oil mist, and mechanical vibration, thereby extending component service life.

Ease of Operation & Maintenance

- Intuitive Human-Machine Interaction:

A built-in touchscreen operator panel on the cabinet exterior enables real-time monitoring and one-touch adjustment of critical extrusion parameters—including barrel temperature, screw speed, melt pressure, and output rate—with a clear, user-friendly interface optimized for operator efficiency.

- Fast Maintenance Design:

All components and terminal blocks are uniformly labeled and cross-referenced to the official electrical schematics—enabling rapid fault diagnosis and resolution.

The layered physical layout allows technicians to isolate and access faulty circuits without extensive disassembly, significantly reducing unplanned downtime.

The dedicated left-side cable inlet zone uses independent, strain-relieved terminals for secure cable anchoring—streamlining future reconfiguration or field modifications.

Extruder-Specific Customization

- Precise Power Matching:

Power circuits are engineered to match the exact motor power, heating load, and auxiliary drive requirements of Yongte extruders—guaranteeing stable, non-fluctuating supply to heaters, main and auxiliary motors, water pumps, and other critical loads—eliminating risks of overload, undervoltage, or phase imbalance.

- Optimized Control Logic:

Preloaded extruder-specific control algorithms support segmented barrel temperature profiling, closed-loop screw speed regulation, synchronized feeding control, and intelligent fault self-diagnosis—tailored to the unique process demands of diverse thermoplastic applications, including WPC, PVC, PE, and recycled PET extrusion.

- Redundancy Design:

Critical circuits—including those for the main drive motor and individual heating zones—incorporate built-in capacity headroom to absorb transient load fluctuations and sustain continuous, uninterrupted production—even under variable operating conditions.

2. Synergy Advantages with the Complete Extruder System

- Integrated System Integration:

The cabinet is fully pre-wired and factory-tested in conjunction with the extruder main unit. All internal cabling and functional commissioning are completed prior to delivery—requiring only on-site connection of the main power supply for immediate production readiness, thereby minimizing field installation time and complexity.

- Mobility & Environmental Protection:

Heavy-duty casters mounted at the cabinet base enable smooth, tool-free relocation within the workshop. The cabinet enclosure utilizes corrosion-resistant, oil-proof powder-coated sheet metal—engineered for long-term durability in industrial manufacturing environments.

- Branding & Regulatory Compliance:

The cabinet prominently displays the Yongte brand logo and official contact information. It complies fully with key export certification standards—including CE and UL—to meet global regulatory and compliance requirements for overseas customers.

Summary

The Yongte extruder electrical control cabinet is an industrial-grade, highly reliable, and application-optimized electrical control system. Its core advantages include:

✅ Safe & Reliable: Multi-level protective architecture, premium industrial components, and 24/7 operational readiness

✅ Rational Layout: Modular, layered physical organization; strict separation of power and control circuits; effective EMI mitigation; simplified maintenance access

✅ High Scalability: Generous reserved space for I/O expansion and power upgrades—supporting evolving production line needs and custom integrations

✅ Premium Craftsmanship: Standardized, color-coded wiring; uniform labeling; precision assembly aligned with international electrical installation standards

✅ High Process Adaptability: Extrusion-specific control logic and redundancy—ensuring consistent, stable performance across diverse plastic processing applications

This advanced control cabinet serves as the foundational guarantee for stable, efficient, and dependable operation of Yongte extruders—particularly suited for high-reliability production environments, including wood-plastic composite (WPC) lines, plastic pipe extrusion, plastic sheet and profile lines, and waste plastic recycling systems.
