600mm PVC Sheet Extrusion Machine

Yongte 600mm PVC Sheet Extrusion Machine - High Efficiency Production Solutions  for furniture edge banding

Yongte 600mm PVC Sheet Extrusion Machine is a fully automatic, high-performance turnkey production system engineered for premium PVC sheet manufacturing. As a customized solution, it specializes in producing 600mm width and 0.4-2mm thickness rigid PVC thin sheets, primarily used for furniture edge banding applications.Designed specifically for high-quality rigid and semi-rigid PVC sheet production, this extrusion line integrates Yongte's 20 years of engineering expertise in plastic extrusion technology. The system incorporates a high-torque twin-screw extruder, precision three-roll calendering unit, automatic temperature control system, and advanced material feeding mechanism—ensuring exceptional thickness uniformity, superior surface finish, and reliable production stability.

Technical Parameters for 600mm PVC sheet extrusion machine

Equipment List for 600mm PVC Sheet extrusion machine

Equipment	Description
Material loader	Auto screw loaded made by 304 stainless steel
Extruder	SJSZ65/132 conical twin screw extruder Screw diameter: 65mm L/D ratio: 22:1 Main power: 37kw Barrel heater: Aluminum heater Barrel cooling: fan blower Extrusion capacity: 200-250kg/h
Mold	T die Product width: 600mm Product thickness: 0.4-2mm
Three roller calendaring machine	roller material: seamless steel tube, roller surface is quenching treatment Roller hardness: HRC≥62 Driving motor: 0.55kw *3 sets (servo motor)
Cooling bracket	5m length combined by SS roller
Edge trimmer	Automatic trim online, the trimming wastage will be automatic collected
Haul-off device	Double rubber roller traction Rubber roller size:  φ246*800mm Power: 2.9kw servo motor
Sheet winder	Double station auto winder
Electric control system	PLC control: optional Temperature controller: Omran brand Inverters: ABB brand Servo controller: Innovance brand Contractors: Siemens or Schneider brand

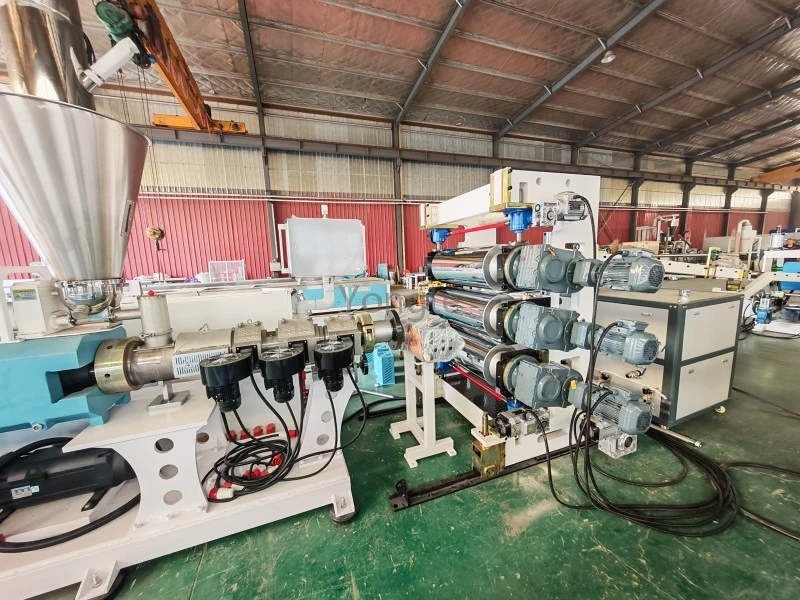

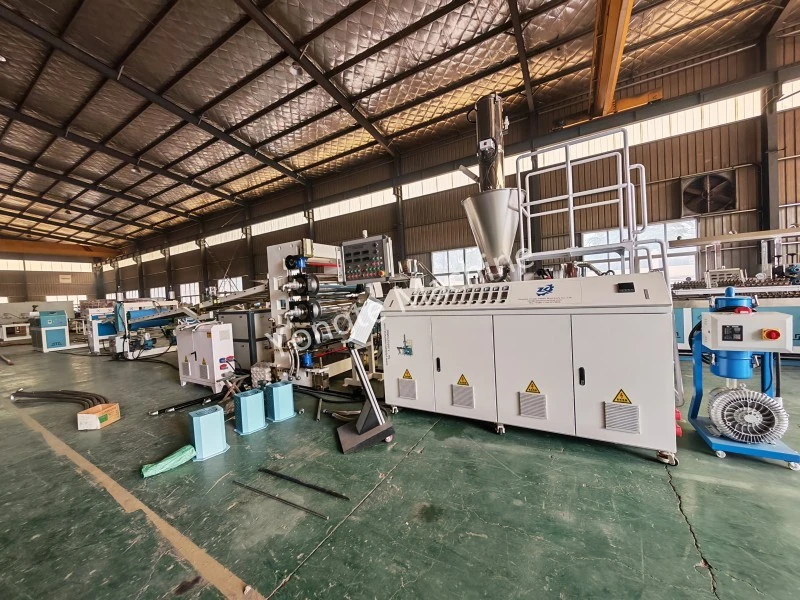

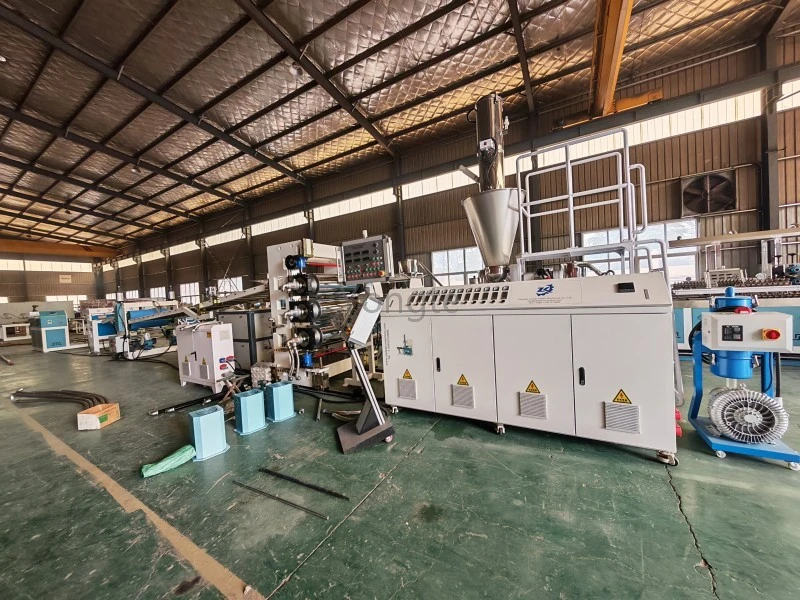

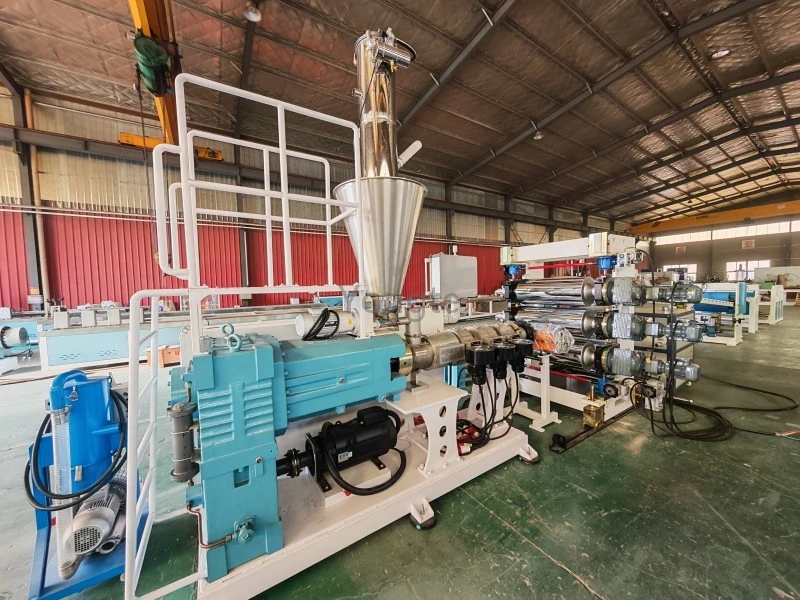

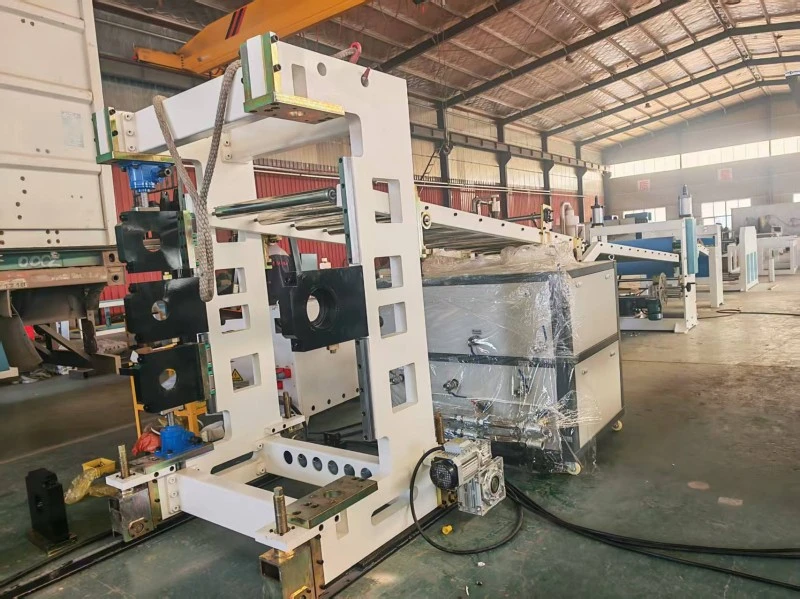

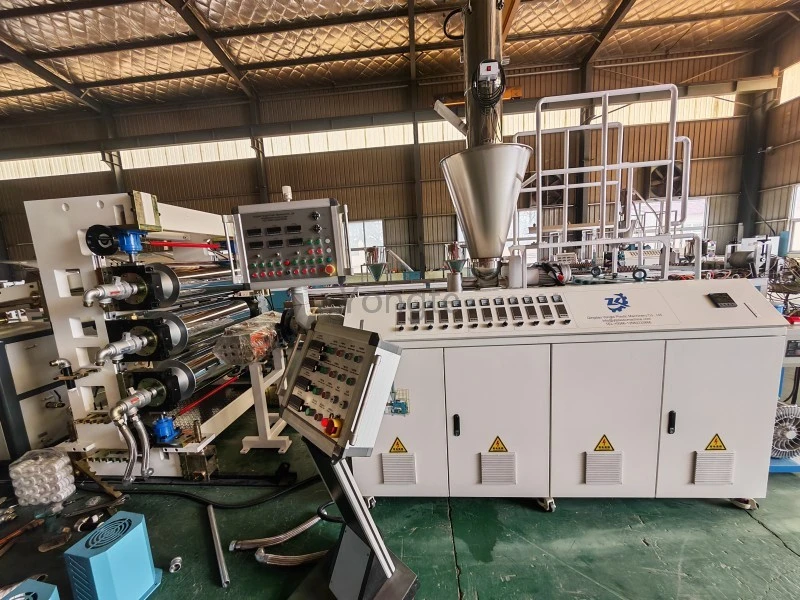

Pictures for 600mm PVC sheet extrusion machine

Advantages of Yonggte PVC sheet extrusion machine

1.  The high-torque twin-screw extruder, featuring a segmented barrel with precision temperature zones and optimized screw profiles, ensures thorough plasticization and uniform melt distribution, even when processing PVC formulations with varying additive ratios.

2.  Its robust drive system delivers consistent torque output, enabling stable production speeds of 15-30 meters per minute depending on sheet thickness.

3.  The precision three-roll calendering unit, equipped with servo-motor controlled roll gap adjustment and internal cooling channels, maintains roll temperatures within ±1℃, ensuring tight thickness control of ±0.03mm across the entire 600mm sheet width.

4.  The automatic material feeding mechanism integrates a loss-in-weight feeder with closed-loop feedback, precisely regulating material input to minimize composition fluctuations.

5.  This, combined with the system's PLC-based control panel featuring a 10-inch HMI touchscreen, allows operators to monitor key parameters—including melt pressure, roll temperatures, and sheet thickness—in real-time and make instant adjustments.

6.  The line also includes an integrated cooling conveyor with adjustable air knives and a tension control system, ensuring proper sheet solidification and preventing warping during the cooling process.

7.  Designed for continuous 24/7 operation, the machine incorporates quick-change die lips and roll cleaning systems to reduce downtime during material or thickness transitions.

8.  Its compact footprint, measuring approximately 18 meters in length, optimizes factory space utilization while maintaining accessibility for maintenance.

9.  Backed by Yongte's comprehensive after-sales support, including on-site installation, operator training, and spare parts supply, this extrusion system offers furniture manufacturers a reliable, high-efficiency solution for producing premium edge banding sheets that meet strict quality standards for adhesion, durability, and visual appeal.
