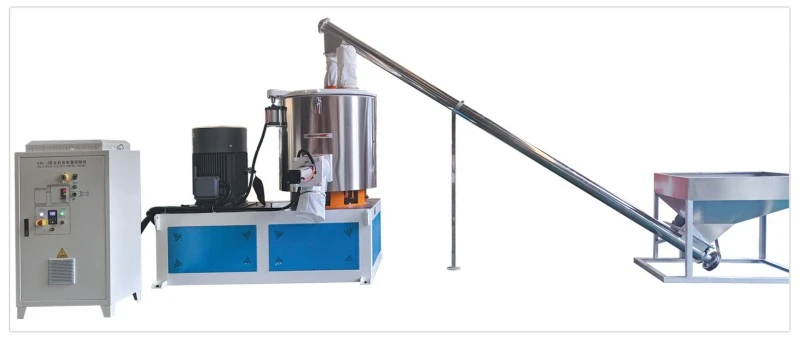

WPC Heating Mixer
Equipped with high-torque high efficiency motor with inverter control, specially designed mixing blade system, the Yongte WPC Heating Mixer can handle uniform mixing for high percentage(60-70%) of wood material, recycled PP/PE and chemical additives.
WPC Heating Mixer is an advanced device engineered for precise and efficient mixing of wood-plastic composites (WPC) under precisely controlled elevated temperature conditions. As a core equipment in modern composite material processing lines, it integrates four key functional modules: an automatic feeder made by 304 stainless steel, a automatic heating mixing pot with 304 stainless steel inner liner, a reinforced main structure with anti-vibration design, and a electronic control system with ABB inverter control. The mixer incorporates automatic self-friction heating for energy saving with temperature accuracy of ±1℃, ensuring uniform heat distribution across the 500L mixing chamber—this critical feature promotes optimal polymer matrix melting and consistent dispersion of wood fiber reinforcements, achieving material homogeneity up to 98%. Equipped with high-torque high efficiency motor with inverter control, specially designed mixing blade system, the Yongte WPC Heating Mixer can handle uniform mixing for high percentage(60-70%) of wood material, recycled PP/PE and chemical additives.
Technical Parameters of WPC Heating Mixer Machine
|
Model |
SHRL500A |
SHRL800A |
|
Total Volume |
500L (only hot pot) |
800L (only hot pot) |
|
Valid Volume |
375L (only hot pot) |
650L (only hot pot) |
|
Heating mode |
self-friction |
self-friction |
|
Feeding |
With spiral screw feeder made by stainless steel |
With spiral screw feeder made by stainless steel |
|
Main motor |
75kw with ABB inverter control |
110kw with ABB inverter control |
|
Material of mixing pot |
6mm thickness 304 Stainless steel |
6mm thickness 304 Stainless steel |
|
Basic structure material |
45# steel welded heavy structure |
45# steel welded heavy structure |
|
Electric control system |
Standard exporting cabinet with English language, ABB inverter control, Siemens contractor |
Standard exporting cabinet with English language, ABB inverter control, Siemens contractor |
|
Mixing time |
10-15 minutes |
10-15 minutes |
|
Suggested heating temperature |
105 - 110 °C |
105 - 110 °C |
Hot Tags: WPC Heating Mixer, China, Advanced, Durable, Quality, Factory, Manufacturer, Supplier, in Stock, CE, 3 Years Warranty
