WPC Profile Extrusion Machine

Yongte is a leading WPC profile extrusion machine manufacturer & supplier in China. Our CE-certified turnkey WPC production line converts recycled PP/PE plastic waste and wood fiber into high-performance WPC products including decking, wall cladding, fence, pergola and panels.

Yongte’s WPC profile extrusion machine is engineered for high-efficiency, stable, and cost-effective WPC production. It supports a wide range of raw materials: recycled PP/PE, wood powder, fiberglass, sand, recycled PCB material, textile waste and other fillers.

With optimized mechanical design and exclusive formulas, our WPC line achieves:

• High wood powder loading: up to 70%
• Lower raw material cost: 20–30% cost reduction by using recycled plastic
• Low unqualited product: Stable dimensional performance for mass production
• High output: 150-600kg/h different models can be equipped
• low energy consumption: 15-20% less consumption by using servo motor and speed controller
• High automatic: automatic production line with advanced design

WPC Full Process (From Waste to Finished Products)

Our one-stop turnkey project service is a core strength of Yongte, seamlessly integrating customized plastic recycling machines, wood powder making machines, WPC granulation machines, WPC extrusion lines, auxiliary equipment, and intelligent control systems. We deliver end-to-end solutions covering the entire process from raw material processing to finished product manufacturing, ensuring optimal equipment compatibility and streamlined process optimization for clients.

1. Plastic Recycling – Crush, wash, dry waste plastic
2. Wood Powder Making – Chip, crush, grind wood into fine powder
3. Material Mixing – High-speed heating mixing with formula
4. WPC Granulation – Parallel twin-screw extrusion & pelletizing
5. Profile Extrusion – Conical twin-screw profile forming
6. Co-extrusion – Weather-resistant surface layer (10+ years outdoor life)
7. 3D Embossing – Realistic wood grain & anti-slip
8. Sanding & Brushing – Natural wood-like finish

Equipment function	Picture
Raw Materials: We provide customized material formulas for textile–plastic, PCB–plastic, sand–plastic, and fiberglass–plastic composites to meet different market demands. This helps you maximize waste recycling, lower costs, and improve product competitiveness.	Plastic: Recycled PP/PE Fiber/filler: Wood powder, fiberglass, sand, recycled PCB, textile waste, etc. Fiber ratio: 60–70% Additives: PE wax, stearic acid, coupling agent, pigments Surface: Co-extrusion anti-UV & anti-aging layer
Plastic Recycling Machine Input: PP/PE waste, film, bags, bottles, tanks Function: Crushing, washing, dewatering, squeezing, drying Capacity: 300–500 kg/h
Wood Powder Making Machine Chipping → Crushing → Grinding → Drying Capacity: 400–500 kg/h
WPC Mixing Machine Type: Heating mixer Capacity: 500–600 kg/h
WPC Granulation Machine Extruder: SH75 parallel twin screw Output: WPC granules / flakes Capacity: 400–500 kg/h

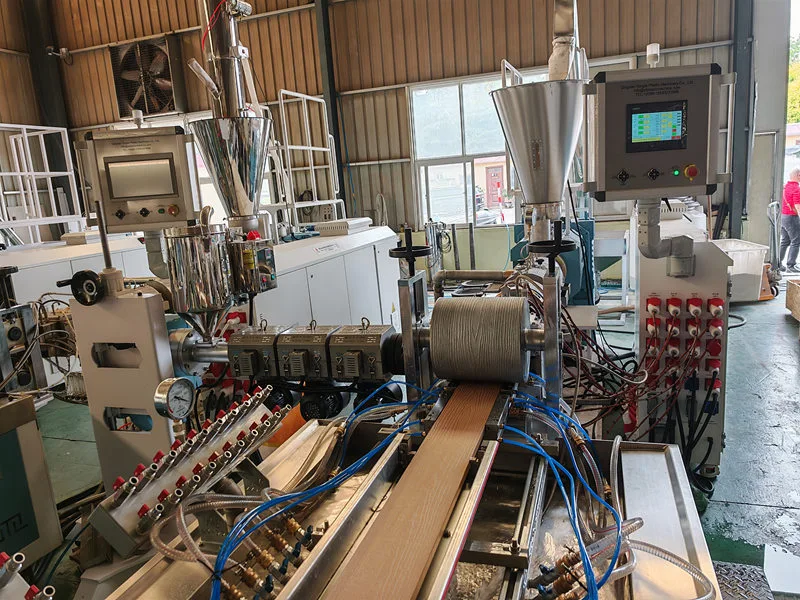

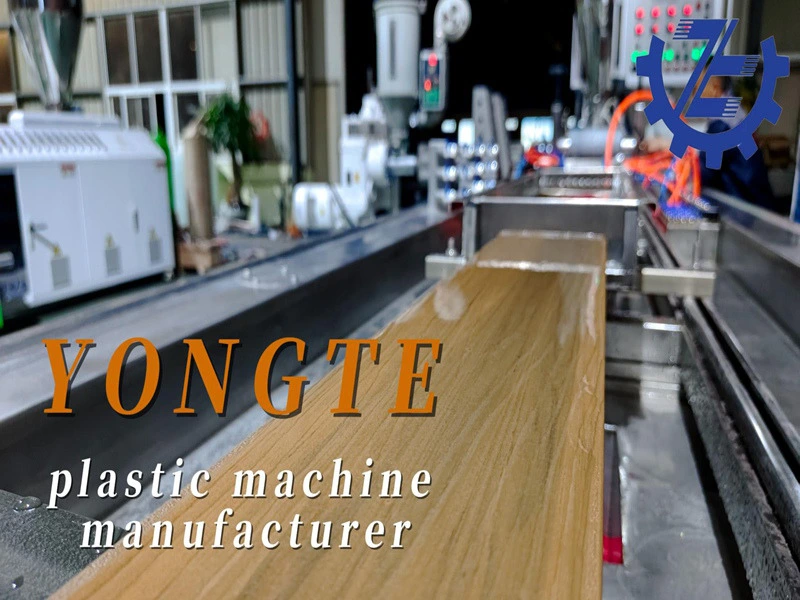

WPC Profile Extrusion Line Main extruder: SJSZ65/132 conical twin screw Co-extruder: SJ35 / SJ45 single screw Capacity: 150–200 kg/h Products: WPC decking, cladding, fence, pergola, post, panel
Co-extrusion System To address the shortcomings of poor weather resistance and uneven color caused by recycled materials, we integrate a co-extrusion process. By co-extruding a layer of high-quality modified PE on the WPC core, we create various wood grain colors and ensure over 10 years of outdoor service life—greatly expanding the application scope of WPC products.
Surface Treatment Online 3D deep wood embossing Offline light embossing / sanding / brushing Sanding & brushing for co-extrusion wood texture
Sanding and brushing Machine This specially configured machine creates the wood-like rough texture on WPC surfaces. We offer multiple configurations to match clients’ desired roughness levels, further optimizing the natural wood appearance of WPC products.

WPC extrusion machine Core Advantages

• Robust Gearbox & High-Efficiency Servo MotorStable transmission, strong load, 15–20% energy saving, low noise, long service life.
• High Automation SystemAuto feeding, temperature control, cutting, stacking. 80% less labor, supports unmanned production.
• Premium Electrical ComponentsABB inverter, Siemens PLC/contactors, Omron controller.Compliance: EN ISO 12100, EN 60204-1, EN 61000 EMC.
• Heavy-Duty Structure & Wear PartsSolid steel base, 304 stainless steel contact parts.Bimetallic screws / SKD barrels → 1.5–2× longer life.
• Pre-shipment Test & Overseas ServiceFull performance testing before delivery.On-site installation, commissioning and operator training.
• 3-Year Warranty & Lifetime SupportCore parts warranty + lifelong technical support + spare parts supply.

WPC Product Application

Wood Plastic Composite WPC products combine the texture and physical processing properties of wood (cuttable, sawable, strong nail-holding power) with the corrosion resistance of plastics (insect-proof, mildew-proof, waterproof). Wood Plastic Composite products are widely used in the construction industry.

Global WPC Project Cases

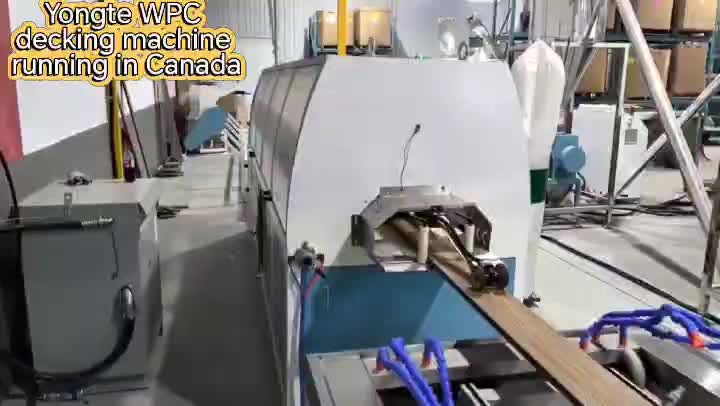

WPC complete plant to Canada for recycling waste fiberglass into WPC decking products

we provided a turnkey WPC production plant that utilized recycled plastic and PCB recycled fiberglass for the core WPC layer, paired with weather-resistant material for the surface layer

WPC Profile Machine working in Romania for making WPC decking/fence/pergola with turnkey project

our Romanian customer has adopted advanced WPC co-extrusion machine to replace traditional single-layer WPC, now offering products with over 10 years of warranty.

WPC Production Solution for india customer to transform plastic road wastage into green building material

in our WPC production project for an Indian client, the customer employed road waste mixed with various colored plastics for the core layer, complemented by an anti-aging co-extruded surface layer featuring custom colors.
