WPC Door Sanding Machine
  • WPC Door Sanding MachineWPC Door Sanding Machine

WPC Door Sanding Machine

Model:SR-RP1300
Yongte WPC Door Sanding Machine is designed for sanding and polishing the surface of WPC doors, ensuring a smooth and uniform finish.this machine can process width 1300mm and thickness 2-150mm WPC board and WPC door

Yongte WPC Door Sanding Machine is designed for sanding and polishing the surface of WPC doors, ensuring a smooth and uniform finish. It is equipped with advanced sanding technology that can adjust according to different door thicknesses and materials, providing a high-quality sanding effect. The machine features a user-friendly interface, allowing operators to easily set parameters such as sanding speed and pressure. Its robust construction ensures durability and long-term stable performance, even under continuous operation. Additionally, the dust collection system effectively captures sanding debris, maintaining a clean working environment and reducing the need for frequent cleanups. This makes it an ideal choice for large-scale WPC door production facilities.. After sanding, the surface of WPC door panels becomes smoother, resulting in better adhesion of adhesives and providing a better substrate for subsequent painting or lamination processes.

Technical Parameters of WPC door sanding machine

Parameter/Model

SR-RP1300

Max processing width

1300mm

Mini processing length

540mm

Thickness range

2-150mm

conveyor speed

5-36m/min

Sand belt size

1330×2200mm

power of first shaft motor

37KW

second sand frame motor power

22KW

driving power of belt conveyor

4KW (Frequency Conversion Speed Control)

power of lift motor

Lifting motor for conveyor belt 0.55 kW

first roll

¢270 eccentric spiral steel roller

second sand roller

¢210 spiral eccentric rubber roller hardness 70SH+ polishing pad

compressed air pressure

0.6Mpa

consumption of compressed air

14m³/h

Dust suction capacity

9000m³/h

outline dimension

2036*2536*2150

weight

3800kg

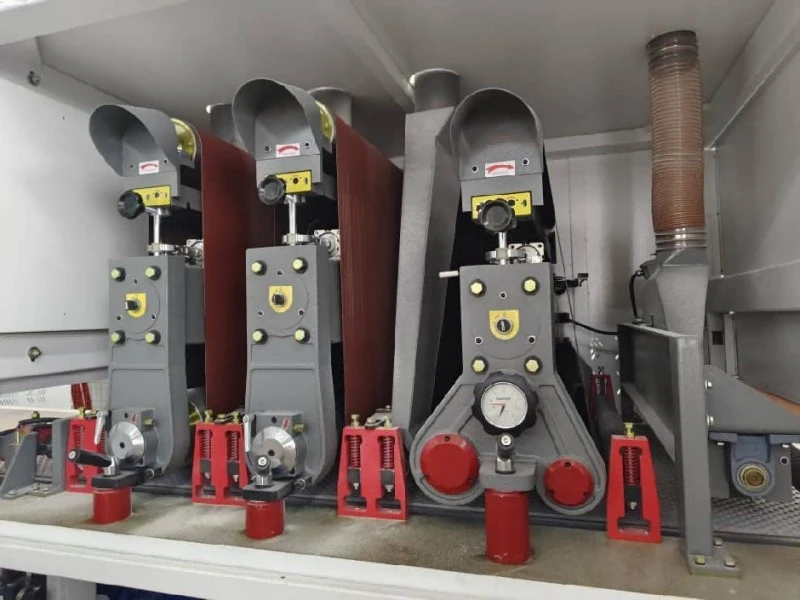

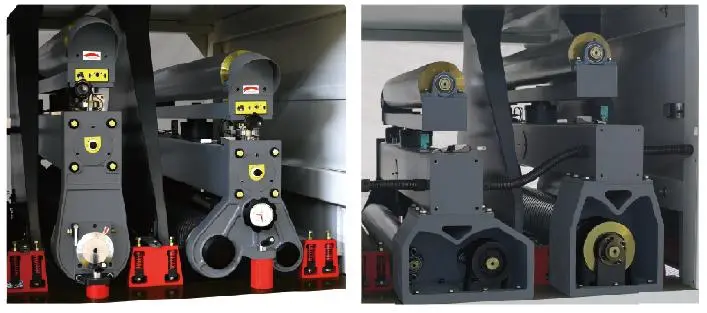

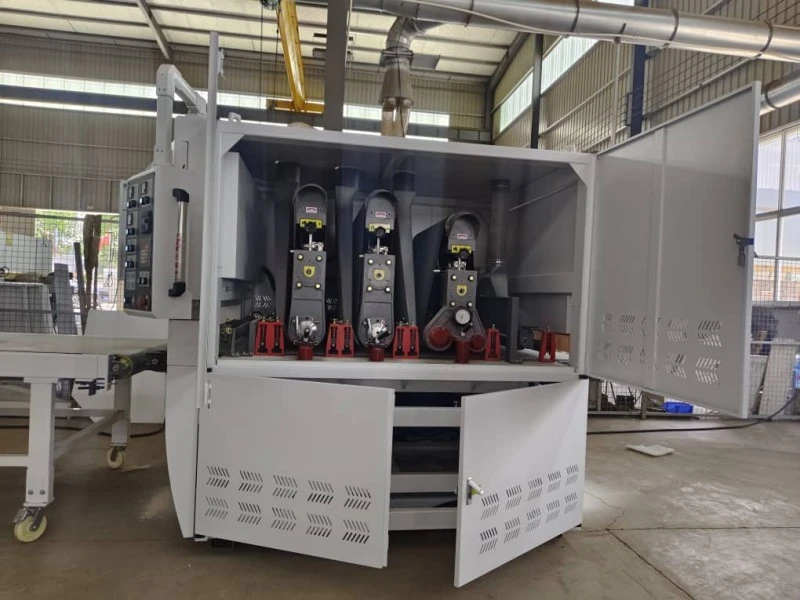

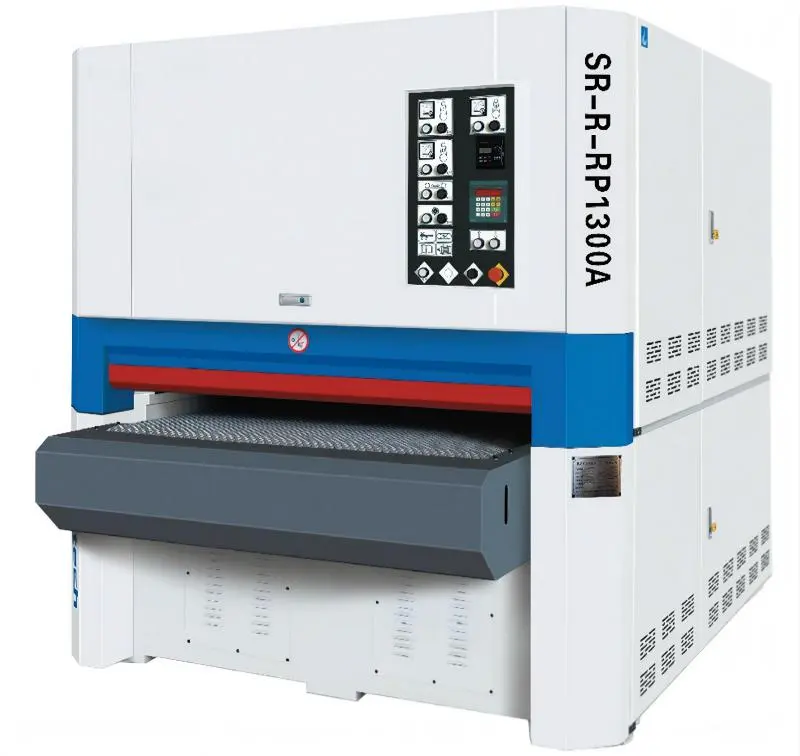

Pictures of WPC door sanding machine

WPC Door Sanding Machine

WPC Door Sanding Machine

WPC Door Sanding Machine
