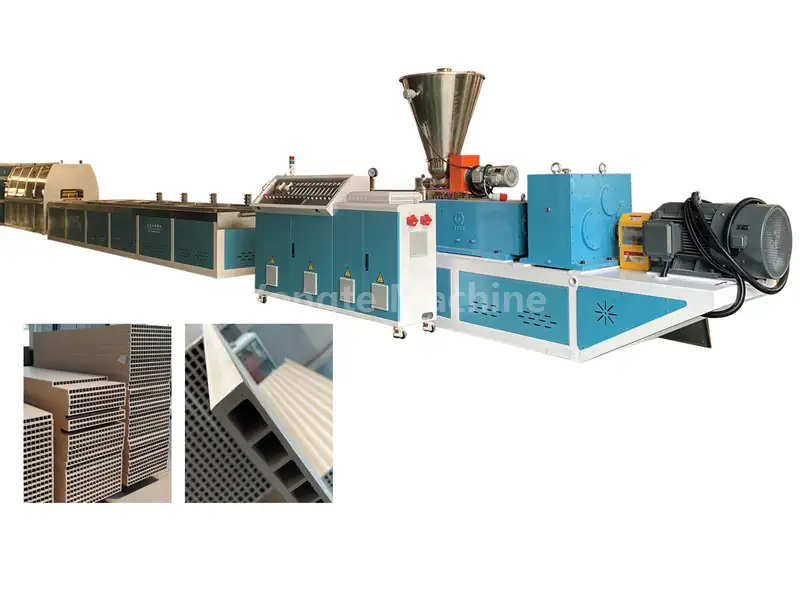

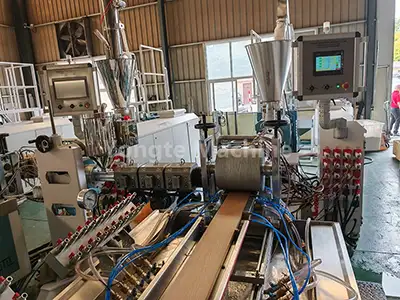

WPC Door Panel Extrusion Line

Yongte factory's high quality WPC Door Panel Extrusion Line in stock is custom-engineered for manufacturing premium-quality wood-plastic composite (WPC) door panels. It specializes in processing PVC resin and wood flour raw materials via cutting-edge extrusion and molding technology, ensuring uniform material blending and precise panel formation. Integrating cutting-edge technologies such as high-efficiency material blending, precision extrusion, and fine molding, this panel extrusion line boasts core advantages including high automation, user-friendly design, high efficiency, energy saving, and easy maintenance.

The complete production line comprises core and auxiliary equipment for a seamless workflow:

1. automatic material feeder (stable feeding. reducing manual intervention).

2. high-efficiency conical twin-screw extruder (core component for thorough plasticization of PVC-wood flour composites).

3. customizable WPC door panel mold (supports diverse width and thickness requirements to match market demands).

4. vacuum calibration & water cooling table (ensures dimensional accuracy and smooth surface of door panels).

5. stable caterpillar puller (uniform traction to avoid deformation).

6. automatic length cutting machine (precise cutting with adjustable length settings).

7. product stacker (automatic stacking for easy storage and transportation).

8. premium electrical control system (reliable operation and intelligent monitoring).

Product Parameter (Specification)

Product details

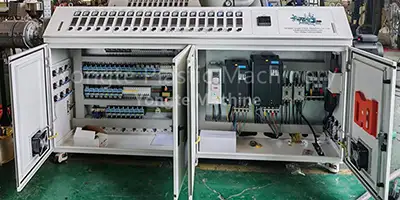

1, Electric control system:	Our electrical components utilize internationally renowned high-quality brands, including ABB frequency converters, Siemens or Schneider contactors, Omron temperature controllers, Siemens PLC control system and Innovance servo motors. This not only achieves precise process control (such as closed-loop regulation of temperature, speed, and pressure) but also meets the voltage standards and safety certifications of different countries/regions. The entire electrical cabinet system has undergone safety testing and complies with international safety standards: EN ISO 12100 Safety of machinery, EN 60204-1 Electrical equipment of machines, and EN 61000 series EMC standards.

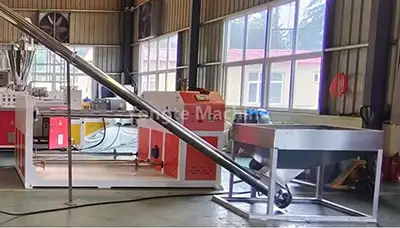

2, Feeding System:	automatic spiral screw feeder which can evenly convey raw materials to the extruder, it is fully made by 304 stainless steel by seamless welding

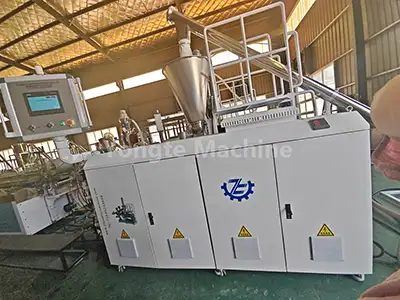

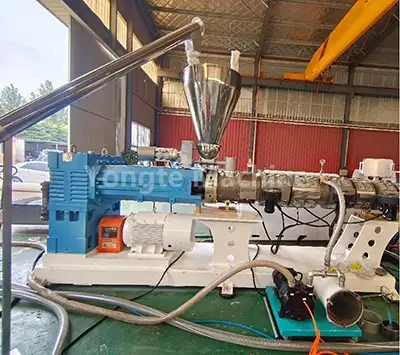

3, Extruder machine:	The specially designed conical twin-screw extruder can efficiently transport wood flour and PVC resin mixtures, quickly plasticize materials to avoid wood flour carbonization or PVC degradation, improve production efficiency and reduce energy consumption. It equip with servo motor for reducing 15-20% power consumption, direct-drive vertical gearbox with high transmission efficiency and running stably, durable and energy-efficient automatic heating and temperature control system.
4, Mold:	The mold is customized according to the shape and size requirements of the door panel and it determines the cross-sectional shape and size of the WPC door panel. Our WPC door panel mold is professional designed to ensure the melt flow to form the uniform panel wall thickness.

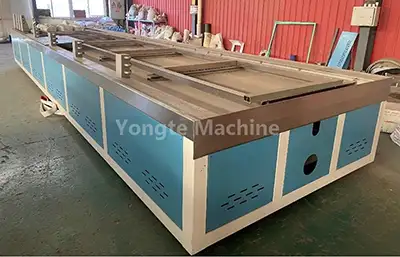

5, Calibration and Cooling System:	Composed of vacuum calibration and water cooling, the calibration table is made of full 304 stainless steel and full water pipeline is good designed to supply stably water flow. The calibration method is by stably strong vacuum and the cooling method is forced spraying to shape and cool the extruded door panel to ensure its dimensional accuracy and surface quality.
6, Haul-off Machine:	It is used to pull the cooled door panel at constant speed to ensure stably and continuously production, it equip with double stage gearbox and servo motor driving to ensure precision speed control and high torque output.

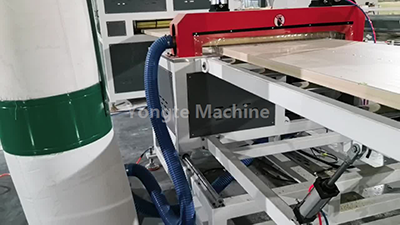

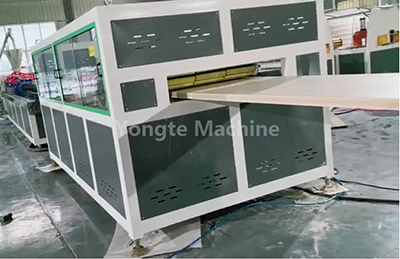

7, Cutting Machine:	Equipped with PLC control system for automatic length cutting by setting through an instrument counter or sensor switch, high quality saw blade to ensure cutting section without chips, 5.5KW dust collector to suction the cutting dusts
8, Stacking Machine:	pneumatic unloading and stacking the cut WPC door panels neatly

Advantages of Yongte Machinery - Humanized Mechanical Design and Durable Quality

Through years of innovation and a relentless focus on quality, Yongte insists on the use of high-strength, wear-resistant materials for its Wood Plastic machines. These machines undergo meticulous forging and numerous quality assessments to guarantee their resilience against the wear of frequent use and the corrosive effects of severe environmental conditions.

1. The WPC Door Panel Extrusion Lines are equipped with superior vertical direct-connection gearboxes, which boast:	√ - High transmission efficiency and robust load-bearing capacity √ - Stable production output and a space-efficient compact design √ - Exceptional sealing (eliminating oil leakage) and effective heat dissipation √ - Simplified maintenance procedures to minimize downtime
2. The system is integrated with Innovance servo motors, offering:	√ - A 15–20% reduction in power consumption, yielding cost savings √ - Precise regulation of speed and torque, complemented by rapid response capabilities √ - Low vibration, minimal noise, and an elongated service life √ - Intelligent modulation of speed and output, ensuring seamless alignment with production requirements
3. Yongte's WPC door panel extrusion line is designed for high automation:	√ - Automated feeding, temperature control, precise cutting, and stacking √ - An optional automated material mixing and dosing system for comprehensive solutions √ - PLC-programmed control + servo motor synchronization (automatic speed adjustment) √ - Reduction in labor costs and human error, ensuring uniform product quality
4. The machine features an advanced electric control system constructed with premium components:	√ - ABB frequency converters, Siemens/Schneider contactors, Omron temperature controllers √ - A Siemens PLC control system for user-friendly operation √ - Cables and connections are neatly organized and clearly marked √ - Adherence to EN ISO 12100 (machinery safety), EN 60204-1 (electrical equipment), and EN 61000 series (EMC) standards
5. The machine boasts a robust machine body:	√ - The machine base is crafted from thick, solid steel plates √ - CNC-cut and precision-polished to ensure dimensional precision and operational equilibrium √ - It sustains over 20 years of continuous, stable operation without structural impairment √ - All components in contact with materials and water are constructed from 304 stainless steel, offering rust and corrosion resistance √ - High-quality powder coating for a smooth, uniform appearance, superior anti-rust, and corrosion protection (ideal for industrial settings)
6. Professional Testing & On-Site Service & Comprehensive Support:	√ - Rigorous pre-shipment testing (performance, stability, and quality verification) √ - On-site installation by Yongte's professional engineering team √ - Practical operator training for smooth commissioning √ - Ensures rapid startup and optimal machine performance √ - A 3-year warranty period and lifetime service support

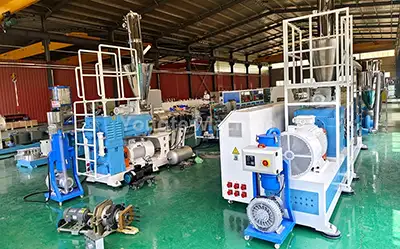

Successful cases

Yongte is committed to producing high-quality, innovative WPC door manufacturing machine. Through continuous optimization, Yongte's WPC Door Panel Extrusion Line has gained high recognition in domestic and international markets.

Russian WPC Door Panel Machine

Russian WPC Door Making Machine

Polish WPC Granulation Machine

Product application

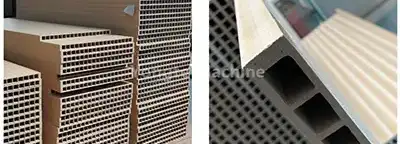

With its core advantages such as waterproofing, moisture resistance, corrosion and insect resistance, environmental friendliness (formaldehyde-free), easy of maintenance, sound insulation and heat insulation, WPC doors are widely applicable to various scenarios including residential, commercial buildings, and public facilities.
