WPC Door Profile Extrusion Line

Product Overview

Yongte factory's durable and high quality WPC Door Profile Extrusion Line from China is custom-engineered for the sophisticated production of WPC (wood-plastic composite) door frame profiles. Leveraging advanced extrusion molding technology, it precisely fuses wood flour and PVC resin to create door frame products that seamlessly blend the natural aesthetic texture of wood with the superior durability of plastic—achieving a harmonious integration of traditional charm and modern performance.

As premier solution for manufacturing eco-friendly, high-performance WPC door frames, the line represents Yongte's continuous refinement of machine engineering and material formulation. We have developed a highly efficient, high-speed production system that not only caters to large-scale manufacturing demands but also guarantees consistent product quality, garnering widespread acclaim from customers across the globe.

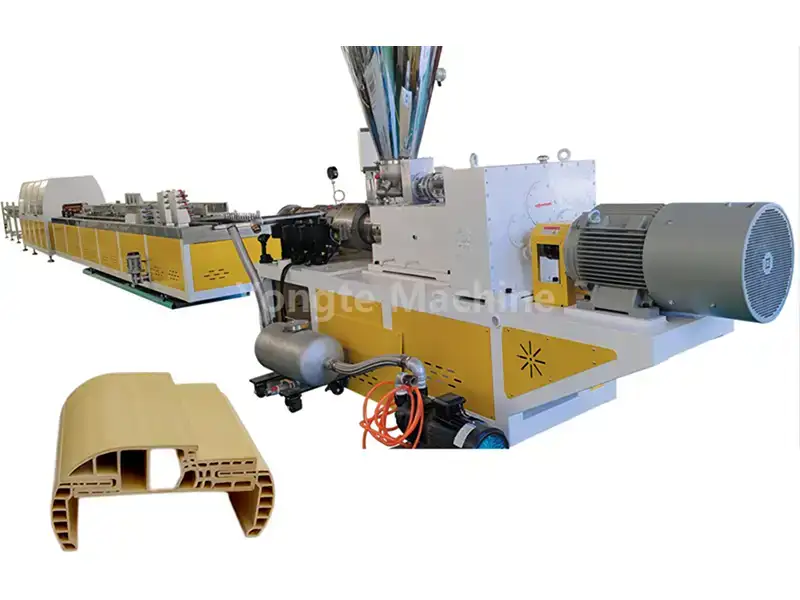

Full Line Equipment Composition & Working Principle

Each equipment in Yongte WPC Door Profile extrusion line is independently developed and matched for the whole WPC door profile production process, ensuring high precision and efficient connection between each working procedure, and fully meeting the production requirements of high-quality WPC door profiles

1. Automatic Feeder - Feeding WPC door profile raw material to the extruder: The spiral screw feeder is suitable for PVC and WPC compound materials and is entirely made of 304 stainless steel with seamless welding.
2. SJSZ65/132 Conical Twin Screw Extruder - Core parts of WPC door profile extrusion line With its deep-groove feeding section and gradual plasticizing section, the WPC door profile extruder provides a stable melt output for wood-plastic materials, ensuring efficient and stable production. The extruder is equipped with a servo motor to save 15-20% power, an optional vertical gearbox for stable and powerful production, bimetallic screws and SKD barrels for long-term use, and an automatic temperature control system.
3. WPC Door Frame Mold - Forming size and shape of WPC door profile Crafted from high-quality 3Cr17 mold steel, featuring precise zoned temperature control, a modular design for stable shaping dimensions, and quick-positioning pins for easy installation.
4. Calibration and Cooling Table - WPC door profile rapid cooling system Constructed from a single sheet of 304 stainless steel and featuring a well-planned pipeline design, this table offers overall electric lifting and left-right adjustment capabilities, as well as a water system that runs its entire length. It is ideal for rapid cooling systems, being straightforward to install and maintain. Additionally, the water tank includes a filter to prevent contamination.
5. Traction Machine - WPC door profile pull-off system High-quality rubber ensures durability, the tire tread surface guarantees traction friction, dual-stage reduction provides sufficient traction torque, and the bird-wing protective cover simplifies operation and maintenance.
6. Cutting Machine - cutting length of WPC door profile as per needs Featuring automatic fixed-length cutting, a 304 stainless steel panel, a fully enclosed dust collection system to minimize dust pollution, and equipped with a servo motor. It also includes special material cutting blades designed for high-speed cutting to prevent chipping.
7. Electric Control System - Speed adjustment/temperature control/operation of WPC door profile extrusion line Our electrical components employ internationally recognized high-quality brands, such as ABB frequency converters, Siemens or Schneider contactors, Omron temperature controllers, a Siemens PLC control system, and Innovance servo motors. The entire electrical cabinet system has been subjected to safety testing and conforms to international safety standards
8. Product Stacker - Collecting the finished WPC door profiles: 6 meter automatic stacker made of stainless steel, with an optional auto robot for automatic stacking.

Finished WPC Profile Applications

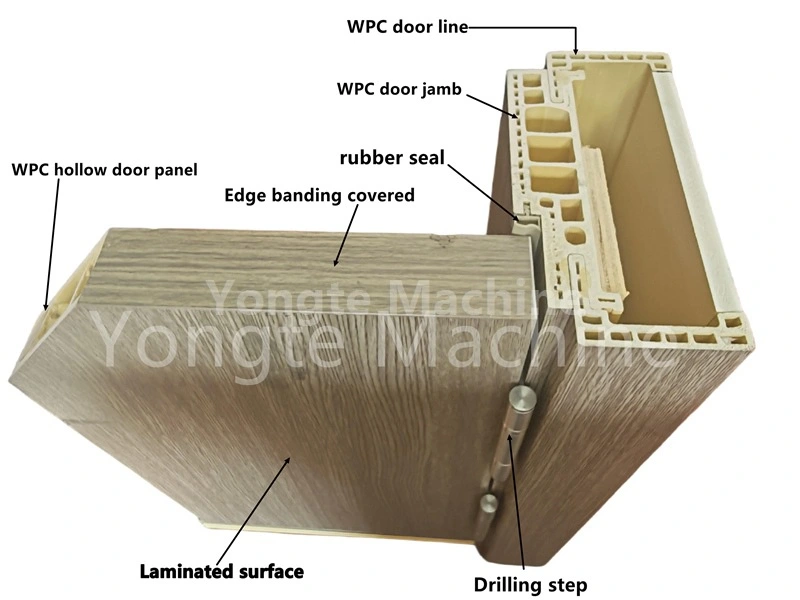

PVC wood plastic composite (PVC WPC) door profiles are environmentally friendly building materials that combine the natural aesthetics of wood with the unmatched durability of PVC. They offer advantages such as easy production, high strength, water resistance, anti-mildew and anti-insect properties, fire resistance, easy installation and maintenance, and the ability to customize size and appearance. These profiles are widely used for decorative purposes in door frames, door lines, and door jambs. Welcome to buy WPC Door Profile Extrusion Line!

Global Successful Turnkey Cases

Yongte’s high-quality, innovative WPC production machinery has undergone continuous technological optimization and upgrade, and our WPC Door Production Line has earned widespread recognition and high praise in both domestic and international markets with excellent performance and customized turnkey solutions. Our typical successful cases cover major global markets:

Russian WPC Building Material Factory - YT1200 WPC Door Production Line Project (2025)

Our Russian client adopted our YT1200 WPC Door Production Line in 2025, with a high extrusion capacity of 500kg/h. The line is used for mass production of eco-friendly WPC doors for residential and commercial buildings, featuring high automation, stable production and excellent product quality, which has become the core production equipment of the client’s WPC building material factory.

WPC Complete Plant to Canada - Recycled Fiberglass WPC Decking Project

We provided a turnkey WPC production plant that utilized recycled plastic and PCB recycled fiberglass for the core WPC layer, paired with weather-resistant material for the surface layer. The WPC decking products produced meet Canada's strict outdoor building material standards, with excellent cold resistance and weather resistance.

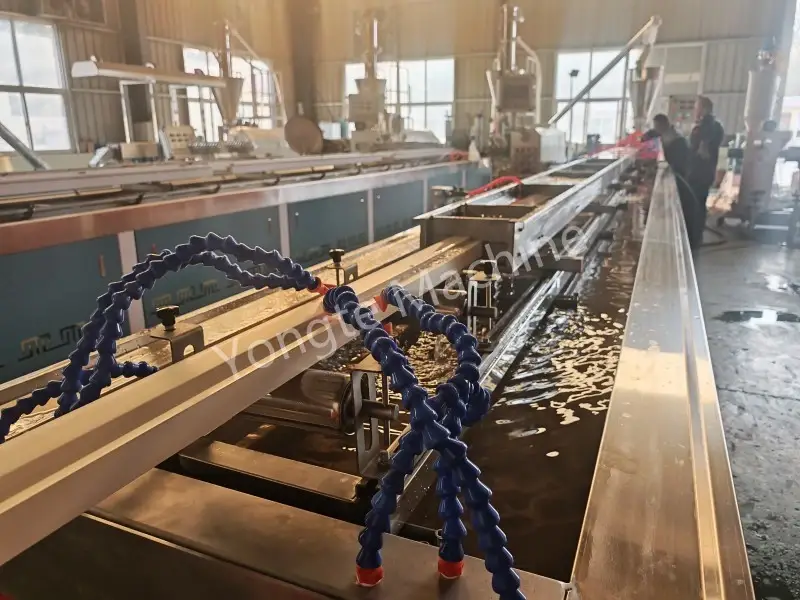

WPC Door Jamb Machine for India - Durable WPC door Jamb solution by solid foamed core technology

Yongte Solid WPC Door Jamb Making Machine was successfully installed in india customer's factory in 2024, and it is operating smoothly with excellent performance for making efficient, reliable, and eco-friendly WPC door jamb production solutions.
