WPC Door Board Extrusion Line

Yongte is a well-established and highly specialized manufacturer of quality WPC Door Board Extrusion Line. We provide a comprehensive range of advanced WPC door board machinery, designed to efficiently produce both premium-quality Solid WPC door boards and durable hollow WPC door boards. Our products are engineered to meet the demanding requirements of various sectors, such as the construction industry, interior decoration applications, and outdoor facility development, ensuring reliability and performance across diverse uses.

Product Type

1. Hollow WPC door board extrusion line

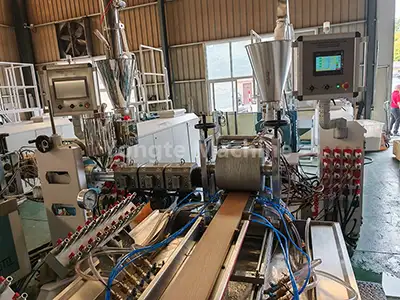

It is specifically designed for manufacturing WPC (wood-plastic composite) door boards with hollow shape from PVC resin and wood flour by extrusion and molding technology. The complete line is combined by automatic feeder, conical twin screw extruder with high efficiency, WPC hollow door panel mold with required width and thickness, vacuum calibration and water cooling table, stably caterpillar pull off machine, automatic length cutting machine, product stacker, and high quality electricity control system. This product integrates advanced technologies such as efficient mixing, precise extrusion, and fine molding, high automatic, easy operation, low power consumption, easy maintenance.

Technical Specifications

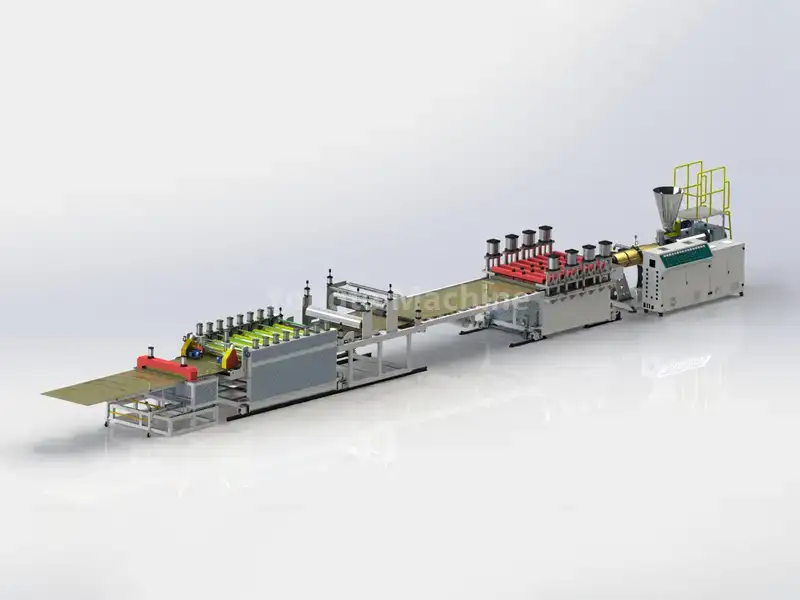

2, Solid WPC door board extrusion line

This kind of door board extrusion line from Yongte is engineered to produce high-quality WPC foam boards with solid shape, utilizing PVC resin and wood powder as its primary raw materials. It is capable of manufacturing both PVC foam boards and solid WPC foam boards, featuring a standard width of 1220mm and adjustable thickness ranging from 3mm to 40mm. The machine integrates advanced extrusion technology to ensure a uniform density and superior mechanical strength, foam board T die for low density, fast cooling calibrator system for crust skin surface, cooling stacker, strong force 10 pairs of roller pull off machine, high-precision cutting system, it delivers exact board thickness which is adjustable for 3-40mm by T die and calibrators .

Technical Specifications

Product Application

1. WPC door boards, with their core advantages such as

(1) waterproofing

(2) moisture resistance

(3) corrosion and insect resistance

(4) environmental friendliness (formaldehyde-free)

(5) ease of maintenance

(6) sound insulation and heat insulation

(7) lightweight and durable properties that enhance ease of installation

2. offer a smooth surface finish that provides various printing and lamination possibilities.

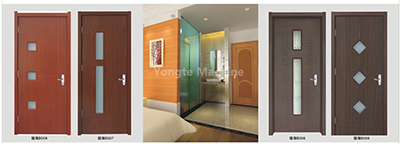

3. These WPC door boards are widely applicable to various scenarios, including

(1) residential

(2) commercial buildings

(3) public facilities.

Yongte Machine Advantages - humanized mechanical design and durable quality

After years of innovation and focusing on quality, we insist on utilizing high-strength, wear-resistant materials for our Wood Plastic machines. These machines undergo precision forging and multiple quality tests to ensure they can endure the wear from high-frequency use and the erosion of harsh environments.

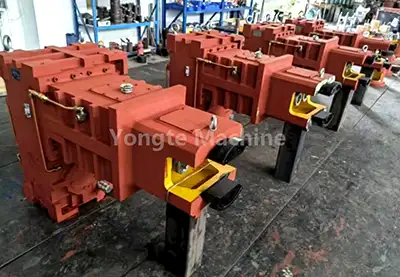

High torque durable Gearbox	high - efficiency Servo Motor
We equip high quality vertical directly connection gearbox with advantages of high transmission efficiency,strong load capacity, stably production, saving installation place,good sealing without oil leaking, excellent heat dissipation performance and easy for maintain.	We equip Innovance servo motor which can save 15-20% power consumption, with advantages of precise speed and torque control, fast response, low shaking and low noise,long using life and low maintenance cost, and intelligent control of speed and output.That provides powerful and stable power output, ensuring smooth operation under various working conditions.

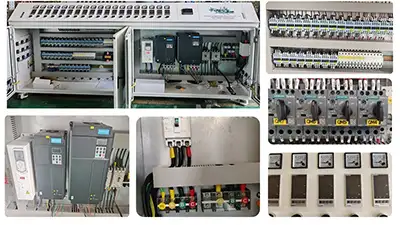

High automatic operation system	Advanced quality electricity control system
The complete WPC board production line is designed for high automation with auto feeding, auto temperature control, auto cutting, auto stacking. we also can supply automatic material mixing and dosing system to achieve a fully automatic production line. combined servo motor and PLC programed control system, it is also optional to achieve speed synchronization automatic adjustment	Equipped with ABB frequency converters, Siemens or Schneider contactors, Omron temperature controllers, Siemens PLC control system, all the cables and connections are well arranged and clearly marked,The entire electrical cabinet system adopts advanced intelligent technology, allowing for easy operation and precise parameter adjustment, users can set different working modes according to specific needs, greatly improving work efficiency.

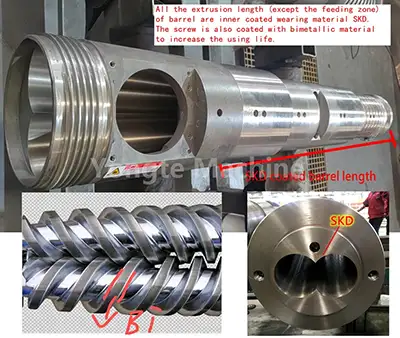

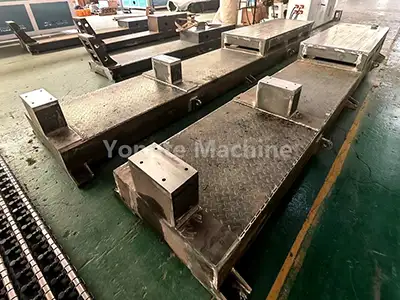

Strong machine basic made by solid steel plate	Screw barrel are made by wearing material
The machine's basic structure is constructed from solid steel plates, which are processed using CNC cutting and polishing to ensure precise dimensions and balance, enabling it to support continuous and stable operation. Even after running for over 20 years, the machine frame remains undamaged. All components that come into contact with materials or water are made from 304 stainless steel to prevent rust.	The screw and barrel are manufactured using wear-resistant materials specially designed for the processed material. For WPC board extruders, bimetallic screws and SKD barrels are used, which significantly improve the wear resistance and service life of the equipment. This design ensures that the extruder can handle a variety of materials, including those with high abrasiveness, without sacrificing performance. Furthermore, the optimized screw geometry enhances melting and mixing efficiency, resulting in a more uniform and high-quality final product.
Powder coating for surface finishing treatment	Professional Trial and Installation Service
After the machine is manufactured, we apply powder coating to enhance its appearance, providing superior anti-rust protection and consistent color. This process involves electrostatic spraying of thermosetting powder, which cures at high temperatures to form a dense, scratch-resistant layer. The coating is available in a range of RAL colors to match your factory’s aesthetic, and ensure long-term durability even in harsh industrial environments.	we offer professional trial and installation services to ensure the machine operates at its best performance. Our experienced technicians will conduct on-site trials, adjusting parameters to optimize production efficiency. They will also provide comprehensive installation guidance, ensuring seamless integration into your production line.

Successful cases

Yongte is committed to producing high-quality, innovative WPC manufacturing machine. Through continuous optimization, Yongte's WPC door board extrusion line has gained high recognition in domestic and international markets.

Russian WPC Door Panel Machine

Russian WPC Door Making Machine

Polish WPC Granulation Machine
