PVC WPC door profile machine

Description

The Yongte PVC WPC door profile machine serves as a comprehensive extrusion line dedicated to producing WPC door frames, jambs, and line profiles. By integrating all critical extrusion stages into a seamless, coordinated system, it allows manufacturers to achieve consistent profile shaping with dependable efficiency. This PVC WPC door profile equipment tackles typical WPC production challenges head-on. It resolves dimension instability by maintaining precise control during extrusion and calibration, guaranteeing that every output adheres to strict dimensional standards. Furthermore, it boosts low output through faster, more stable production rates, cuts down on excessive power usage via optimized drive and heating systems, and lessens the burden of manual labor by automating feeding, hauling, and cutting processes. Offered in two variants, YT200 (SJSZ51/105) and YT300 (SJSZ65/132), the PVC WPC door profile machine supports capacities between 150kg/h and 200kg/h. These options provide varying screw sizes and extrusion capabilities, enabling buyers to choose the ideal model based on their output needs and profile requirements. Such versatility suits both small workshops needing compact, easy-to-manage setups and large-scale plants demanding continuous, high-volume production. The full PVC WPC door profile line comprises an auto feeder, twin-screw extruder, mold, calibration cooling table, hauler, servo cutter, and automatic stacker. Each part plays a specific role: the feeder ensures steady material supply, the extruder plasticizes and forms the mix, the mold defines the cross-section, the cooling table stabilizes and chills the profile, the hauler maintains uniform pull, the servo cutter trims to length, and the stacker gathers finished goods for storage or packing. The entire system holds CE certification.

Product details

1. Automatic Feeder:	The spiral screw feeder is suitable for PVC and WPC compound materials and is entirely made of 304 stainless steel with seamless welding.

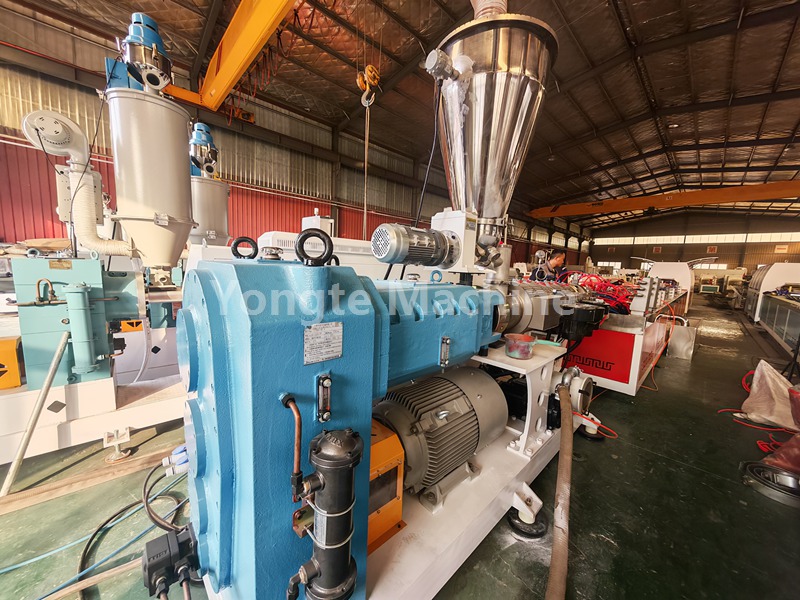

2. SJSZ65/132 Conical Twin Screw Extruder:	With its deep-groove feeding section and gradual plasticizing section, the WPC door profile extruder provides a stable melt output for wood-plastic materials, ensuring efficient and stable production. The extruder is equipped with a servo motor to save 15-20% power, an optional vertical gearbox for stable and powerful production, bimetallic screws and SKD barrels for long-term use, and an automatic temperature control system.
3. WPC Door Frame Mold:	Crafted from high-quality 3Cr17 mold steel, featuring precise zoned temperature control, a modular design for stable shaping dimensions, and quick-positioning pins for easy installation.

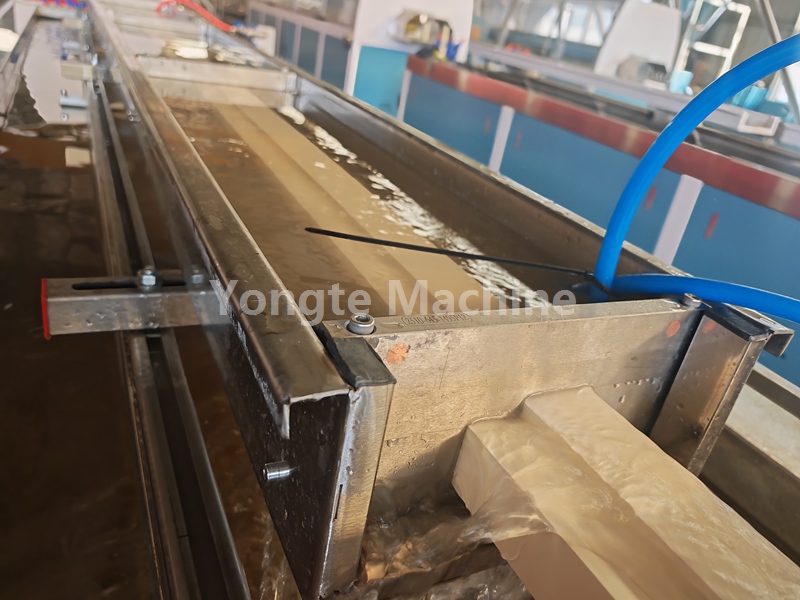

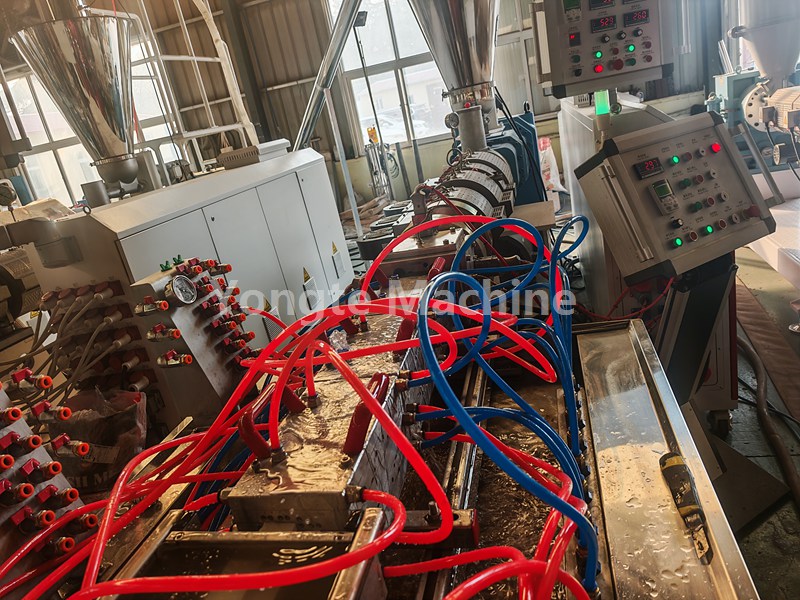

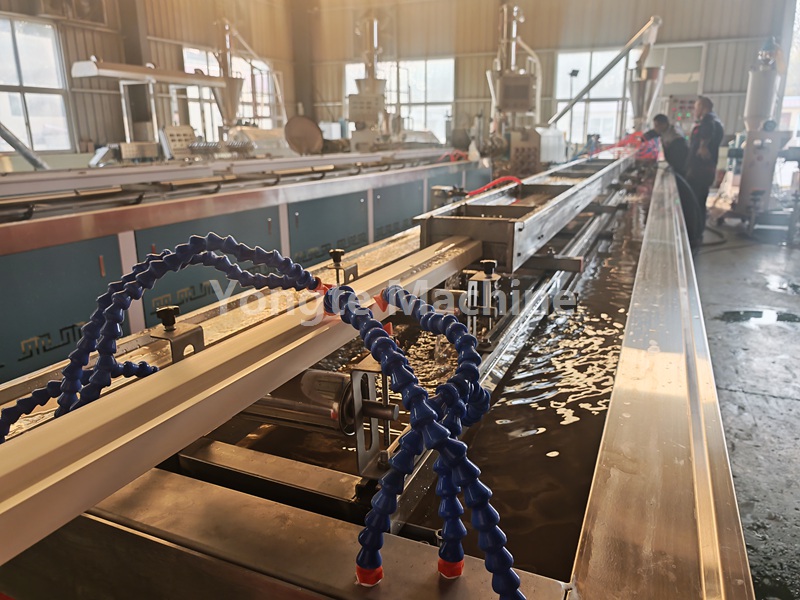

4. Calibration and Cooling Table:	Constructed from a single sheet of 304 stainless steel and featuring a well-planned pipeline design, this table offers overall electric lifting and left-right adjustment capabilities, as well as a water system that runs its entire length. It is ideal for rapid cooling systems, being straightforward to install and maintain. Additionally, the water tank includes a filter to prevent contamination.
5. Traction Machine:	High-quality rubber ensures durability, the tire tread surface guarantees traction friction, dual-stage reduction provides sufficient traction torque, and the bird-wing protective cover simplifies operation and maintenance.
6. Cutting Machine:	Featuring automatic fixed-length cutting, a 304 stainless steel panel, a fully enclosed dust collection system to minimize dust pollution, and equipped with a servo motor. It also includes special material cutting blades designed for high-speed cutting to prevent chipping.
7. Electric Control System:	Our electrical components employ internationally recognized high-quality brands, such as ABB frequency converters, Siemens or Schneider contactors, Omron temperature controllers, a Siemens PLC control system, and Innovance servo motors. This ensures precise process control, including closed-loop regulation of temperature, speed, and pressure, and also adheres to the voltage standards and safety certifications of various countries/regions. The entire electrical cabinet system has been subjected to safety testing and conforms to international safety standards, including EN ISO 12100 ((Safety of machinery), EN 60204-1 ((Electrical equipment of machines), and the EN 61000 series EMC standards.
8. Product Stacker:	A 6-meter automatic stacker made of stainless steel, with an optional auto robot for automatic stacking.

Product application

PVC wood plastic composite (PVC WPC) door profiles are environmentally friendly building materials that combine the natural aesthetics of wood with the unmatched durability of PVC. They offer advantages such as easy production, high strength, water resistance, anti-mildew and anti-insect properties, fire resistance, easy installation and maintenance, and the ability to customize size and appearance. These profiles are widely used for decorative purposes in door frames, door lines, and door jambs. Welcome to buy PVC WPC door profile machine!

PVC‑WPC door profiles are eco‑friendly building materials combining wood texture and PVC durability.

Features: high mechanical strength, water‑proof, anti‑mildew, termite‑resistant, fire retardant, easy installation & maintenance, customizable dimension & surface appearance.

Main end‑products: WPC door frames, door jambs, decorative door lines.

Successful cases

Yongte is committed to producing high-quality, innovative WPC manufacturing machine. Through continuous optimization, Yongte's wood-plastic composite equipment has gained high recognition in domestic and international markets.

Russian WPC Door Panel Machine

Complete WPC door panel and profile extrusion solution for Russian local building‑material manufacturer, for indoor door frame production.

India Solid PVC WPC door profile machine

Turn‑key YT300 full line, for mass‑production solid WPC door jamb profiles, 200kg/h output.

Polish WPC Granulation Machine

WPC recycling & granulation supporting equipment for European WPC profile factory.

Frequently Asked Questions

Q1: What raw materials can this PVC WPC door profile machine process?

A: Mainly PVC resin mixed with wood powder and related chemical additives. Wood powder fineness & moisture should meet WPC production requirement.

Q2: What is the output difference between YT200 and YT300 model?

A: YT200(SJSZ51/105): 120-150kg/h, for small‑medium output; YT300(SJSZ65/132): 150-200kg/h for large‑scale mass‑production.

Q3: Can you customize machine according to my door‑frame profile drawing?

A: Yes. We can design extrusion mould and adjust line configuration based on your finished profile dimension, material formula and capacity requirement.

Q4: What after‑sales support do you provide?

A: Overseas engineer on‑site commissioning, operation training, spare‑parts supply, long‑term technical support.

Q5: Is this machine CE certified?

A: Yes, the whole production line passes CE certification and meets EU machinery safety standards.
