1200mm PVC Thin Sheet Extrusion Line

Product Overview

Yongte 1200mm PVC thin sheet extrusion line is custom-developed for rigid and semi-rigid PVC thin sheet production. It integrates a high-torque conical twin-screw extruder, precision three-roll calendering unit, automatic temperature control system and intelligent feeding system, ensuring uniform thickness, smooth surface and long-term stable operation. Leveraging our proprietary advanced technology, including precision servo-driven extrusion control and optimized screw design, our PVC thin sheet extrusion line achieves an impressive production speed of 10 meters per minute while maintaining consistent thickness tolerance within ±0.02mm.

Core Technical Parameters

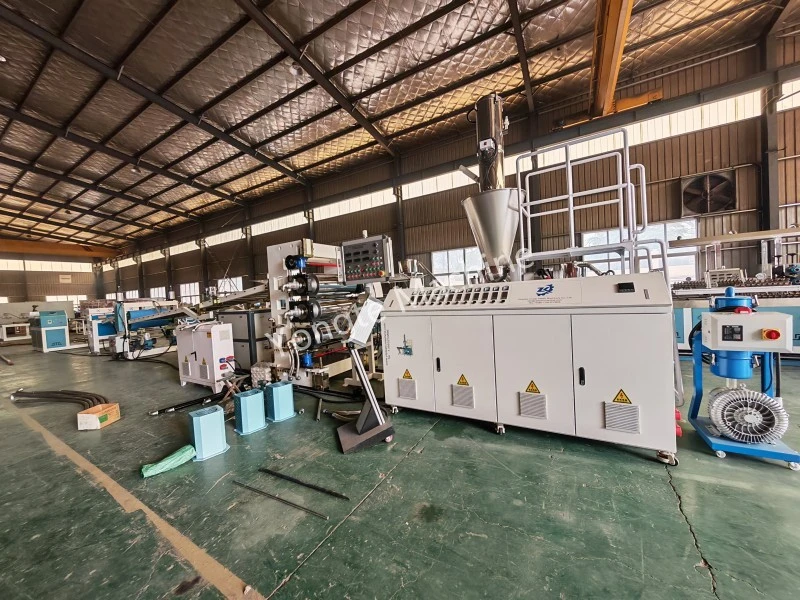

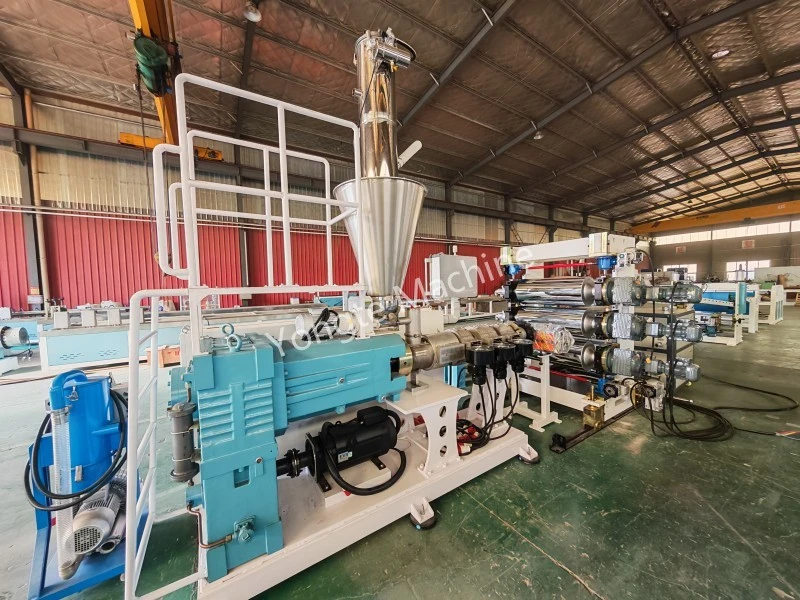

Complete Equipment List and Pictures

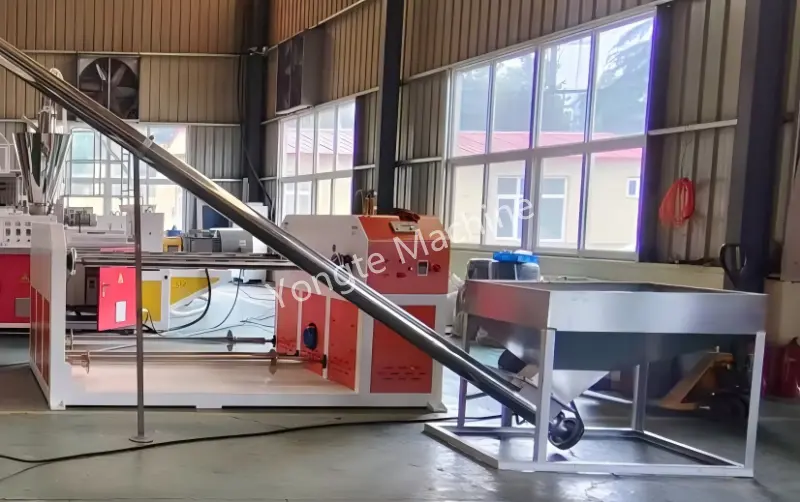

Auto Material Loader: 304 stainless steel automatic screw feeding, stable feeding and dust-free environmental protection.

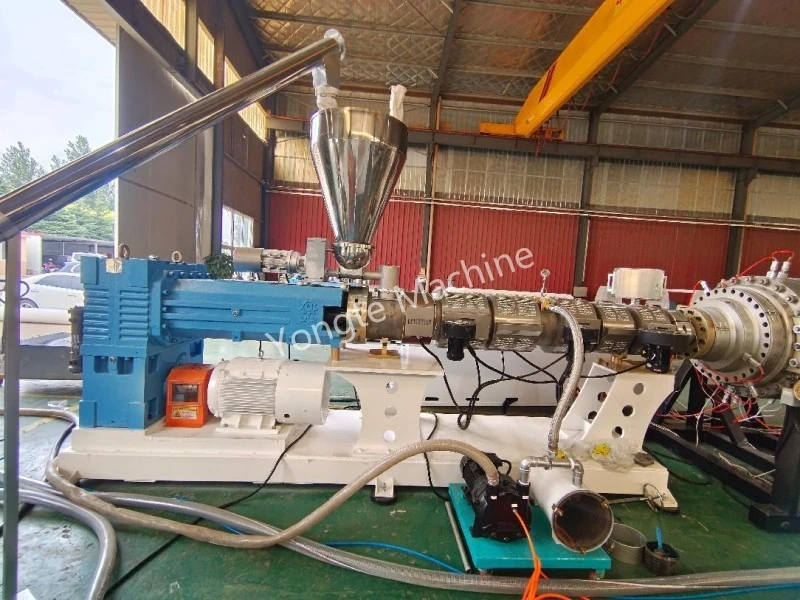

Conical Twin-Screw Extruder: The SJSZ80/156 high-torque main extrusion machine features 156mm large-diameter screw with a 22:1 L/D ratio, delivering exceptional plasticization efficiency while maintaining low shear stress—specifically optimized for PVC's heat-sensitive properties. Equipped with a hardened alloy screw barrel (HRC 58-62) and precision-machined conveying elements, it ensures uniform melt mixing and stable pressure output, effectively preventing material degradation even during extended production cycles. The extruder's servo speed control driving system (55kW servo motor) enables stepless speed regulation from 5 to 35 rpm, accommodating various PVC formulations including rigid, semi-rigid, and modified grades with calcium carbonate and additives.

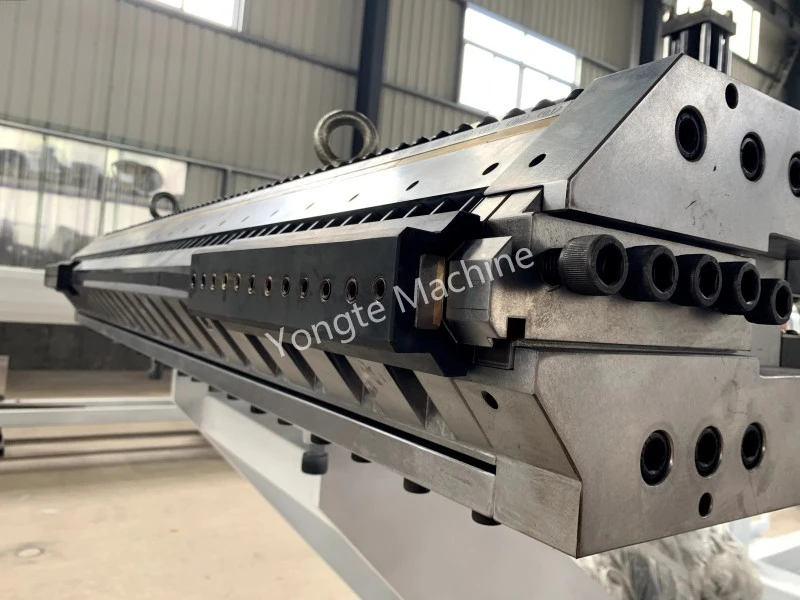

T-type Die: 1200mm wide hanger-type die, precise forming with thickness of 0.4–2mm.

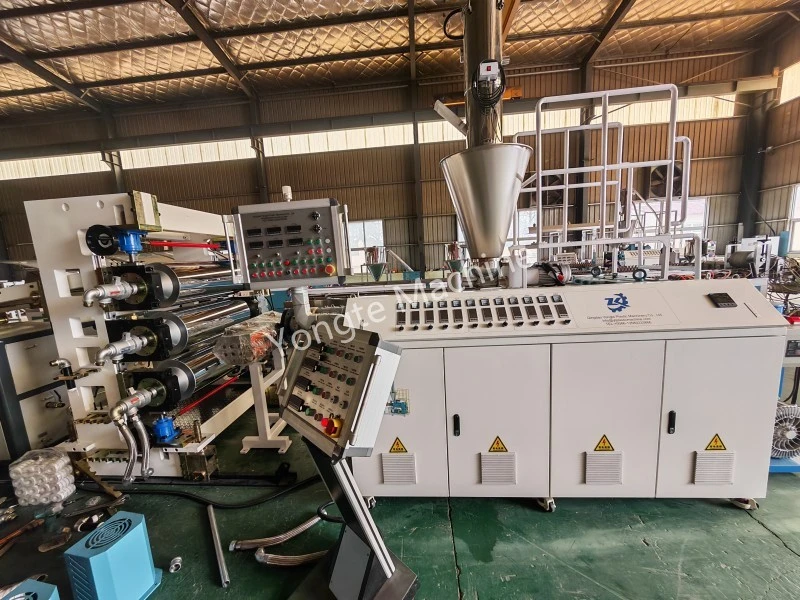

Three-Roll Calendering Unit: Featuring seamless steel tubes with precision quenching and tempering treatment, the roller surface achieves a hardness of HRC≥62 and a mirror-finish Ra≤0.2μm, ensuring exceptional wear resistance and sheet surface quality. Equipped with a servo-driven gap adjustment system (response time ≤0.1s), it enables micron-level thickness control (adjustment range 0.4–2mm) with repeatability within ±0.01mm. The triple-zone roller temperature control system, utilizing circulating heat transfer oil, maintains precise temperature stability of ±1℃ across the entire roller length (1200mm working width), eliminating thermal deformation and ensuring uniform sheet cooling. Each roller is independently adjustable for speed (5–35 rpm) and pressure (0–150N/cm), accommodating various PVC formulations and thickness requirements while minimizing internal stress in the finished sheet.

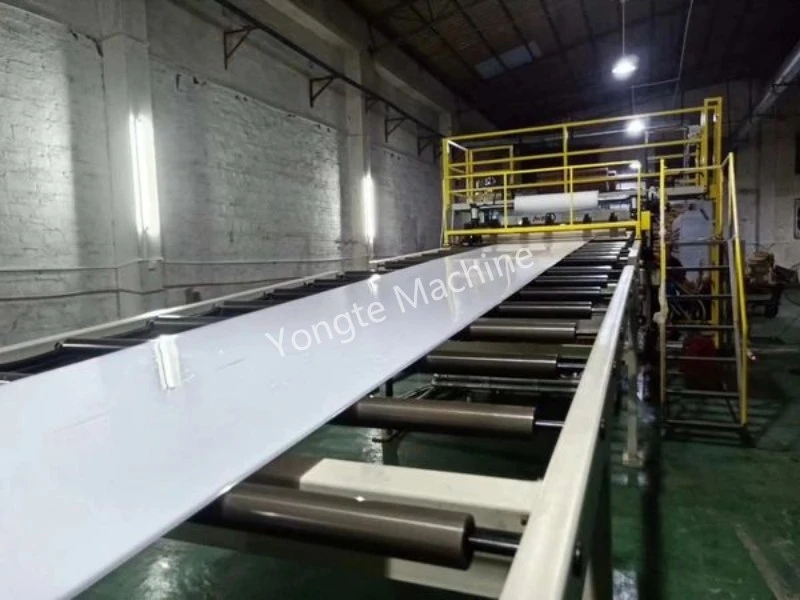

Cooling Bracket: 6m stainless steel roller conveyor bracket for uniform cooling and anti-warping.

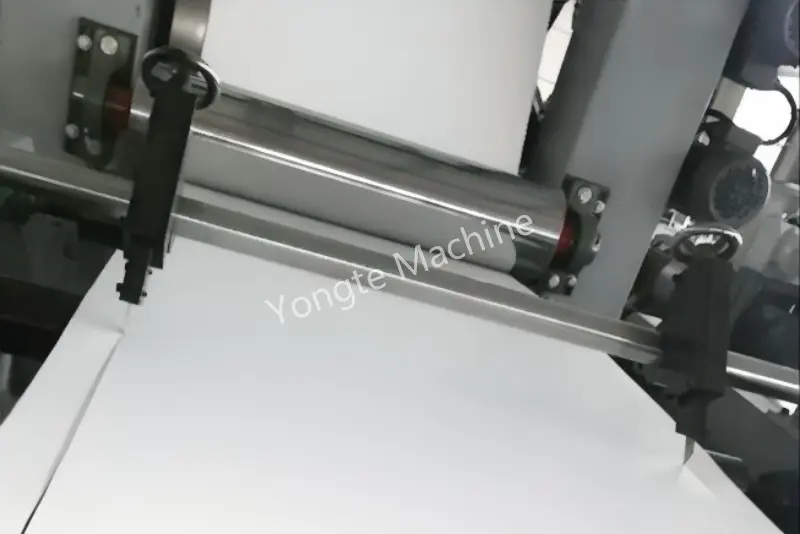

Online Automatic Edge Trimmer: Online automatic edge trimming, centralized waste recycling to reduce loss.

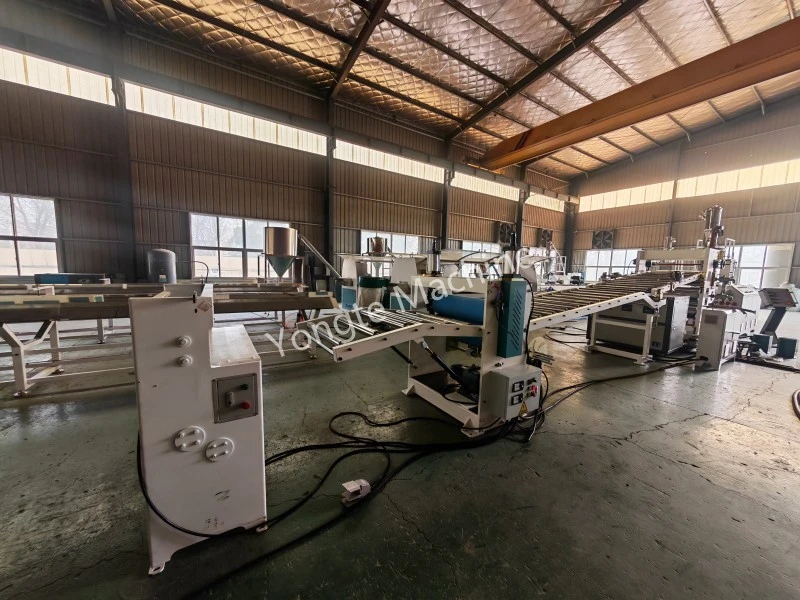

Haul-off Device: Double rubber roller servo traction, stable operation and stable tension.

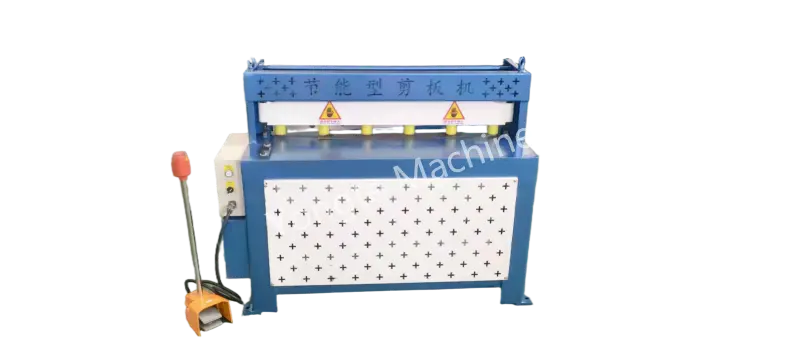

Automatic cutting machine: it can cut the PVC thin sheet into pieces with required length, then the PVC sheet shall be stacked together. this cutting machine equip with servo motor for high speed and automatic cutting. the cutting edge without any damage

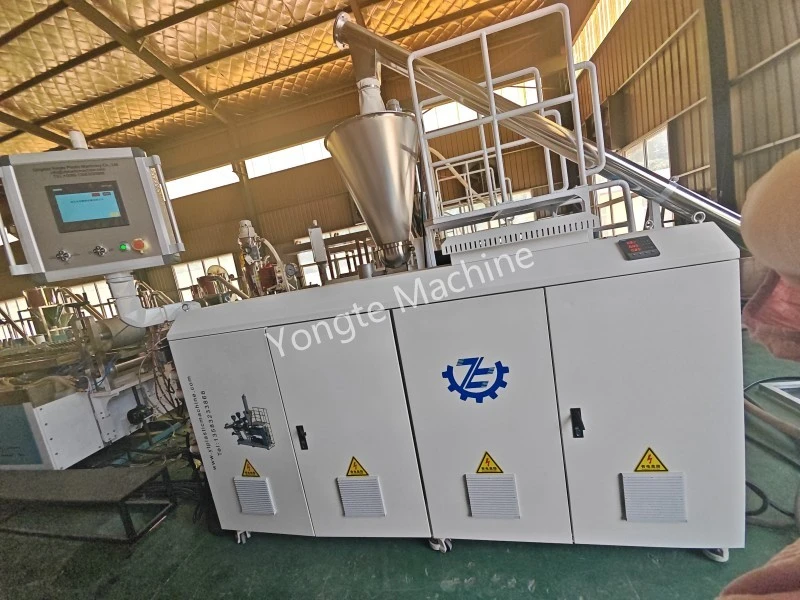

Intelligent Electric Control System: Omron temperature control, ABB inverter, Inovance servo, Siemens/Schneider contactor; optional PLC + 10-inch HMI touch screen for real-time monitoring and one-click adjustment of all parameters.

Key Advantages

1. High Torque & Excellent Plasticization: Segmented barrel, precise temperature control and optimized screw configuration ensure uniform mixing and sufficient plasticization, suitable for stable production of different formulas.
2. Stable & High-Speed Output: Powerful drive system with a linear speed of 15–30 m/min (adjustable according to thickness), stable output and lower energy consumption.
3. Ultra-Precision Thickness Control: Three-roll servo gap control + internal roller circulation cooling, with a thickness tolerance of ±0.03mm across the entire 600mm width, and a flat surface without defects.
4. Smart & Stable Feeding: Loss-in-weight metering feeding + closed-loop feedback, precise raw material ratio, reducing composition fluctuation and waste.
5. Intelligent Central Control: 10-inch HMI touch screen real-time monitors key data such as melt pressure, roller temperature and sheet thickness, with one-click parameter adjustment and easy operation.
6. Perfect Cooling & Forming: Adjustable air knife cooling conveyor + tension control system, ensuring full shaping without deformation or warping.
7. 24/7 Continuous Operation: Quick-change die lips and easy-to-clean roller system reduce downtime during material or specification changes, meeting the needs of large-batch continuous production.
8. Compact & Space-Saving: Compact layout, space-saving, reasonable maintenance channels, convenient for daily maintenance.
9. Full After-Sales Support: Provide full-cycle services such as on-site installation, operator training and spare parts supply to ensure long-term and reliable operation of the equipment.

Application

Specifically engineered and optimized for the production of high-quality PVC thin sheet materials, the resulting finished products exhibit exceptional and robust adhesion properties, ensuring reliable bonding in various applications. They also demonstrate outstanding durability and long-term performance, capable of withstanding environmental stressors and maintaining integrity over time. Furthermore, these products boast an excellent and refined appearance texture, providing a smooth, consistent, and visually appealing surface. These combined attributes fully satisfy and exceed the stringent quality standards and rigorous requirements set by high-end furniture manufacturing facilities, making them an ideal choice for premium furniture production.
