PVC Plate Making Machine

Yongte PVC Plate Making Machine is a high-performance, fully automatic production system specially designed for making top-quality PVC sheets, with PVC as the main raw material. We have a full range of these machines, each tailored to make different types of PVC sheets. You can use them to produce rigid construction sheets, soft packaging sheets, PVC flooring sheets, PVC foam sheets for advertising, and even customized furniture edge banding. This production line combines advanced technology, stable operation, and versatile functions, so it can effectively meet the various needs of customers worldwide in different industries. As a professional PVC sheet production solution, it's carefully designed to ensure steady output, great product quality, and cost-effective operation. That's why it's the perfect choice for manufacturers, whether you're a small workshop or a large industrial facility.

Technical Parameters of PVC Plate Making Machine

Note: All parameters can be customized according to customer requirements; specifications are subject to change without prior notice.

Complete Equipment Configuration of PVC Plate Making Machine

We offer PVC Plate Making Machine as a complete turnkey solution. It comes with all the essential components you need for non-stop production, so you won't have to buy any extra equipment. The standard setup includes:

1. PVC raw material mixer (hot and cold mixer for uniform material mixing)

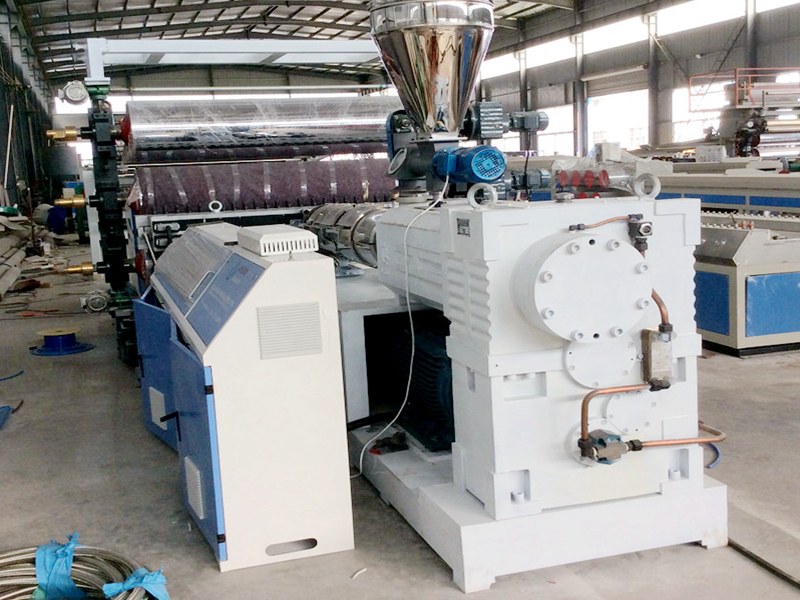

2. Conical twin-screw extruder: This extruder is designed for high-performance PVC sheet production. It has a conical twin-screw design that ensures the plastic melts evenly and the extrusion quality is consistent. It also comes with advanced temperature control systems to keep the processing conditions precise, which helps boost productivity and make the products more uniform. The extruder is built tough and runs efficiently, so it's a reliable choice for non-stop production needs.

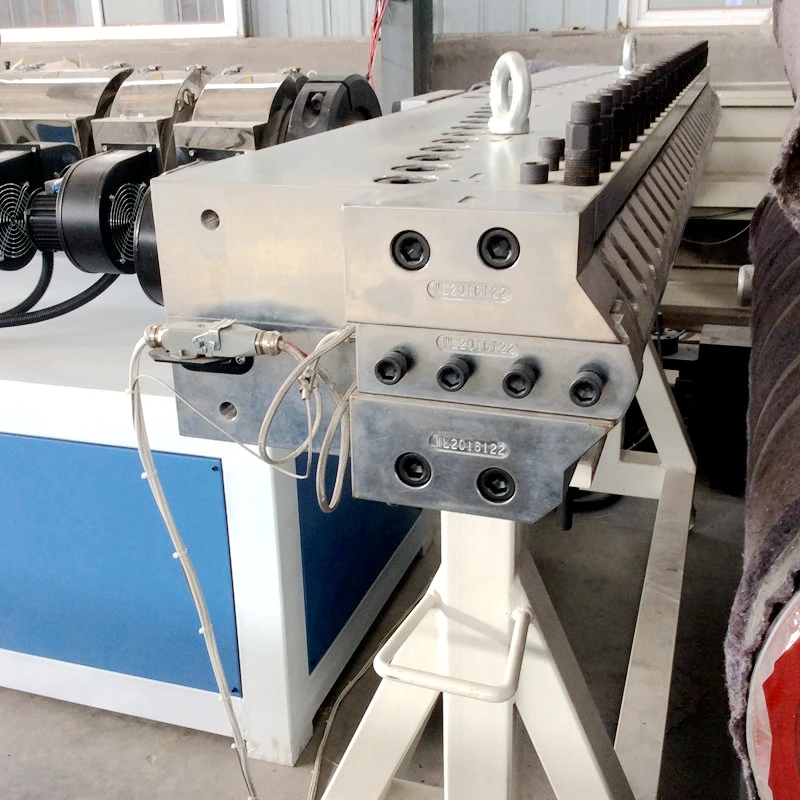

3. PVC sheet die (can be customized to your sheet specs): This die is precision-made to make sure the PVC sheets have even thickness and a smooth surface. It has an adjustable lip gap mechanism, so you can fine-tune it while running the machine to fit different sheet widths and thicknesses you need. What's more, the die is designed with efficient heating elements to keep the temperature evenly distributed. That way, the material won't degrade, and the product quality stays consistent. The die body is made of high-grade stainless steel, which resists corrosion well and is durable enough for long-term use in tough production environments.

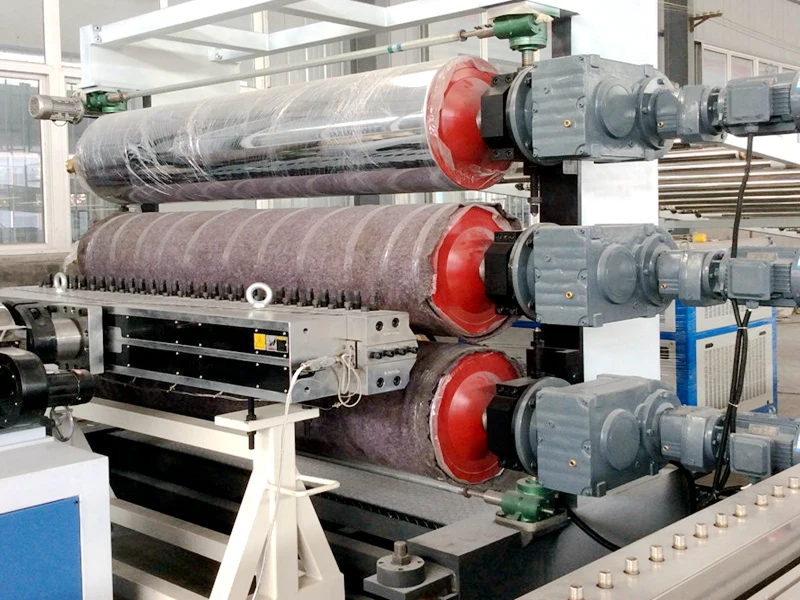

4. Three-roll calender with temperature control system: This system lets you control the temperature precisely during the calendering process, so the material flows evenly and there are fewer defects. The three-roll setup gives the sheets a really smooth surface and keeps the thickness consistent, which makes the final product better quality overall. Plus, the calender has an easy-to-use interface, so it's simple to operate and keep an eye on the process parameters. We can also put in specially designed rollers if you need PVC sheets with embossed, matte, or sanded surfaces.

5. Sheet cooling support and traction device: This device cools down the PVC sheets and pulls them steadily during production. It keeps the sheets in shape and flat, so they don't warp easily and the quality gets better. The cooling system here works fast to lower the sheet temperature, and the traction part controls the speed and tension precisely to make the whole process run smoothly.

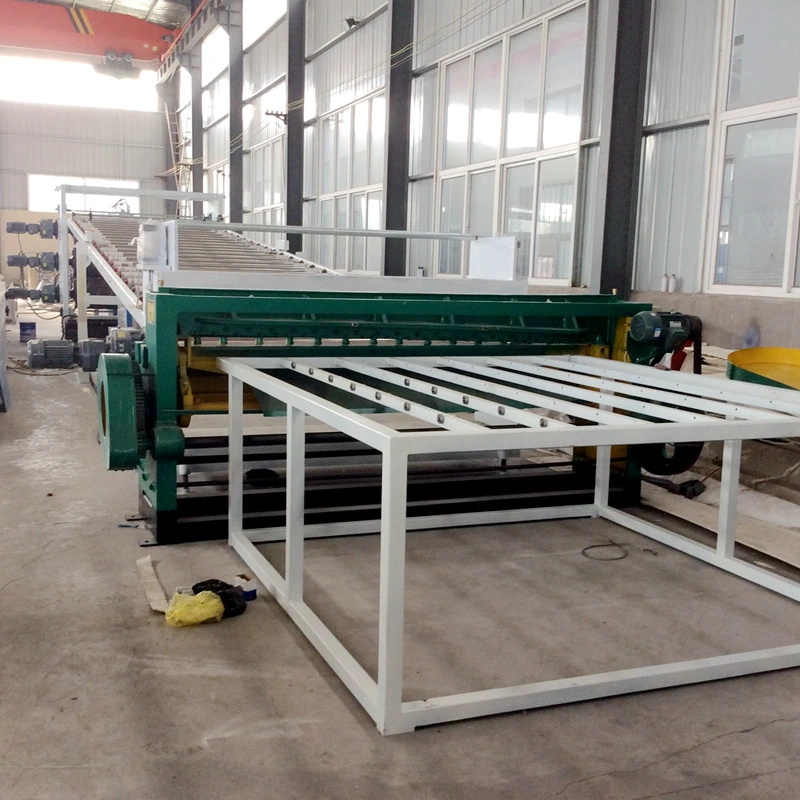

6. Automatic slitter and cross-cutter (microcomputer-controlled for fixed-length cutting and counting): This part is for cutting PVC sheets automatically and precisely. It makes sure the sizes are consistent and production runs efficiently. It uses microcomputer control to cut to exact lengths and count the sheets, which helps cut down on material waste and makes operations more accurate. Plus, this automatic slitter and cross-cutter simplifies the production process, so you don't need as much manual work and the whole workflow runs smoother.

7. Servo-controlled winder/stacker (makes sure the speed syncs up precisely and the winding/stacking stays neat): It has an automatic tension control system that keeps the material tension steady while winding, so the quality stays top-notch. There's also a high-precision guiding device to make sure the sheets line up correctly when winding or stacking. Plus, it comes with a built-in safety interlock system to prevent accidents and keep operators safe.

8. Intelligent control system: The control system is really easy to use, so you can operate and monitor things easily. You can adjust parameters in real time to make winding and stacking work better. The smart control system can check itself for problems, quickly spot and show any faults, which helps fix things fast and keeps downtime short.

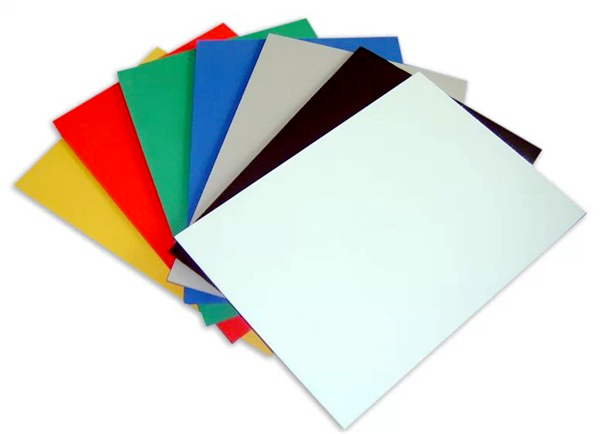

PVC Sheet Wide Application Fields

The PVC sheets produced by Yongte Extrusion Line are widely used in various industries due to their superior performance and cost-effectiveness, including:

Construction Industry: Roofing sheets, wall panels, window frames, door edges, and decorative materials, accounting for the largest proportion of application (around 60%) due to their corrosion resistance and durability.

Packaging Industry: Blister packs, clamshells, folding boxes, and packaging materials for food, medicine, electronics, toys, and clothing, thanks to their non-toxic, transparent, and easy-to-form properties.

Furniture Industry: Edge banding for particle board, density board, and solid wood furniture, protecting the board and improving environmental performance by preventing formaldehyde release.

Other Industries: Medical equipment packaging, refrigeration door curtains, advertising signs, banners, automotive interior trims, and industrial damping materials, leveraging their insulation, soundproofing, and anti-static properties.

Yongte After-Sales Service & Support

Yongte is committed to providing comprehensive after-sales service and technical support to ensure the smooth operation of your production line. We offer:

1-year quality warranty for all equipment components, with free replacement of defective parts (excluding wear parts).

On-site installation, commissioning, and operator training by our professional technical team.

7×24 hours online technical support to solve any operational or maintenance issues promptly.

Long-term supply of high-quality spare parts at preferential prices.

Customized solution design based on your specific production needs, output requirements, and budget.

Yongte PVC Plate Making Machine combines reliability, efficiency, and versatility to help you gain a competitive edge in the PVC sheet market.
