WPC door jamb making machine

Description

Yongte WPC door jamb making machine is a complete PVC WPC extrusion line specifically designed for manufacturing WPC door frames, door jambs and door line profiles. As an integrated production system, it combines all essential stages of the extrusion process into one continuous and coordinated line, enabling manufacturers to produce consistently shaped profiles with reliable efficiency. This WPC door jamb production equipment effectively addresses several common pain points encountered in WPC production. It solves the problem of unstable profile dimensions by maintaining precise control throughout the extrusion and calibration stages, ensuring that every finished profile meets consistent dimensional standards. It also improves low output by enabling higher and more stable production speeds, reduces high power consumption through an optimized drive and heating design, and minimizes heavy manual operation by incorporating automated feeding, hauling and cutting functions. The WPC door jamb machine is available in two models, YT200 (SJSZ51/105) and YT300 (SJSZ65/132), with capacities ranging from 150kg/h to 200kg/h. These two configurations offer different extrusion capacities and screw sizes, allowing users to select the most appropriate model according to their required output scale and profile specifications. This flexibility makes the line suitable both for small-scale workshops that need a compact and manageable production setup and for large-volume WPC profile manufacturing plants that demand continuous and high-output operation. The complete WPC door frame line includes auto feeding, twin screw extruder, mould, calibration cooling table, tractor, servo cutting machine and automatic stacker. Each component performs a distinct function in the overall process: the auto feeding system supplies raw material steadily, the twin screw extruder plasticizes and shapes the compound, the mould determines the profile cross-section, the calibration cooling table stabilizes dimensions and cools the profile, the tractor provides consistent pulling force, the servo cutting machine cuts profiles to the required length, and the automatic stacker collects finished products for packaging or storage. The entire line is CE certified.

Product details

1. Automatic Feeder:	The spiral screw feeder is suitable for PVC and WPC compound materials and is entirely made of 304 stainless steel with seamless welding.

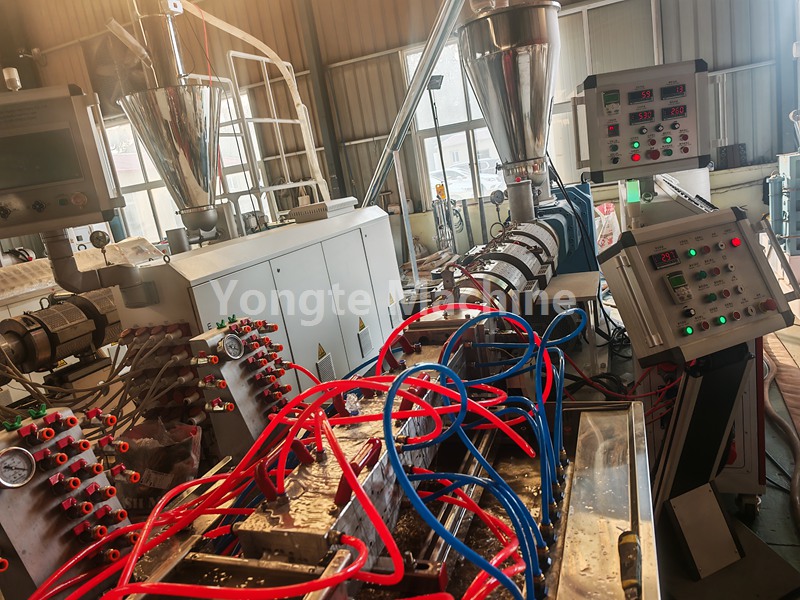

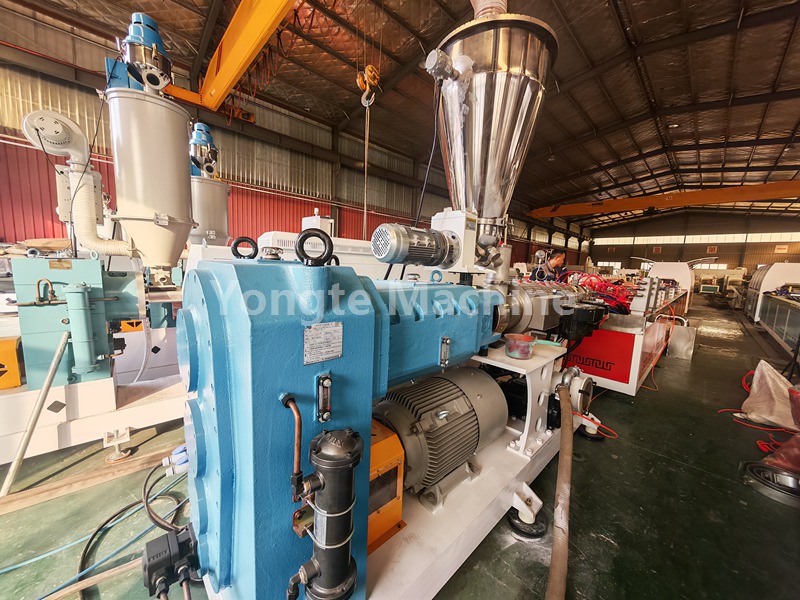

2. SJSZ65/132 Conical Twin Screw Extruder:	With its deep-groove feeding section and gradual plasticizing section, the WPC door profile extruder provides a stable melt output for wood-plastic materials, ensuring efficient and stable production. The extruder is equipped with a servo motor to save 15-20% power, an optional vertical gearbox for stable and powerful production, bimetallic screws and SKD barrels for long-term use, and an automatic temperature control system.
3. WPC Door Frame Mold:	Crafted from high-quality 3Cr17 mold steel, featuring precise zoned temperature control, a modular design for stable shaping dimensions, and quick-positioning pins for easy installation.

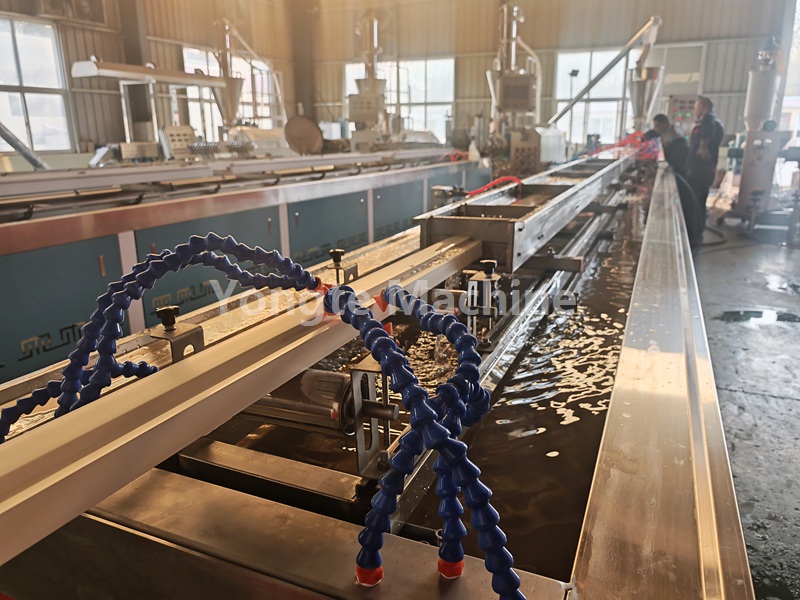

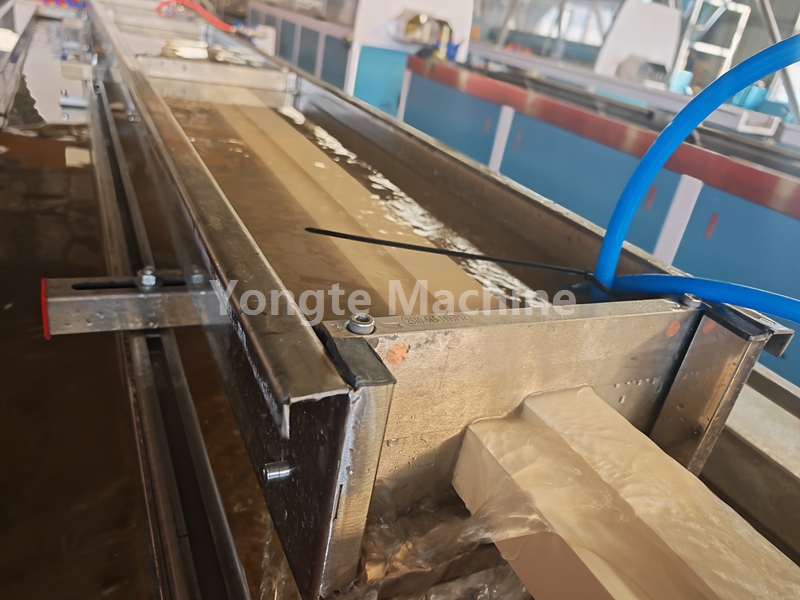

4. Calibration and Cooling Table:	Constructed from a single sheet of 304 stainless steel and featuring a well-planned pipeline design, this table offers overall electric lifting and left-right adjustment capabilities, as well as a water system that runs its entire length. It is ideal for rapid cooling systems, being straightforward to install and maintain. Additionally, the water tank includes a filter to prevent contamination.

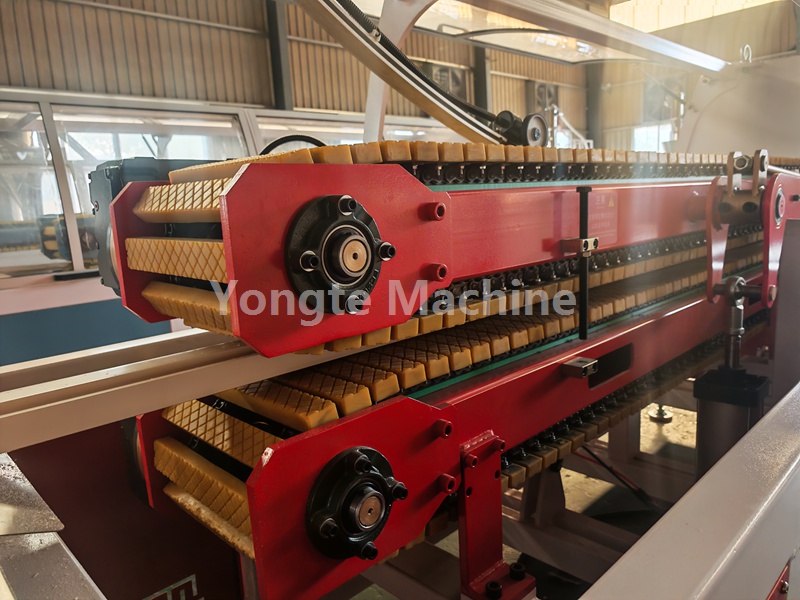

5. Traction Machine:	High-quality rubber ensures durability, the tire tread surface guarantees traction friction, dual-stage reduction provides sufficient traction torque, and the bird-wing protective cover simplifies operation and maintenance.
6. Cutting Machine:	Featuring automatic fixed-length cutting, a 304 stainless steel panel, a fully enclosed dust collection system to minimize dust pollution, and equipped with a servo motor. It also includes special material cutting blades designed for high-speed cutting to prevent chipping.
7. Electric Control System:	Our electrical components employ internationally recognized high-quality brands, such as ABB frequency converters, Siemens or Schneider contactors, Omron temperature controllers, a Siemens PLC control system, and Innovance servo motors. This ensures precise process control, including closed-loop regulation of temperature, speed, and pressure, and also adheres to the voltage standards and safety certifications of various countries/regions. The entire electrical cabinet system has been subjected to safety testing and conforms to international safety standards, including EN ISO 12100 ((Safety of machinery), EN 60204-1 ((Electrical equipment of machines), and the EN 61000 series EMC standards.
8. Product Stacker:	A 6-meter automatic stacker made of stainless steel, with an optional auto robot for automatic stacking.

Product application

PVC wood plastic composite (PVC WPC) door profiles are environmentally friendly building materials that combine the natural aesthetics of wood with the unmatched durability of PVC. They offer advantages such as easy production, high strength, water resistance, anti-mildew and anti-insect properties, fire resistance, easy installation and maintenance, and the ability to customize size and appearance. These profiles are widely used for decorative purposes in door frames, door lines, and door jambs. Welcome to buy WPC door jamb making machine!

PVC‑WPC door profiles are eco‑friendly building materials combining wood texture and PVC durability.

Features: high mechanical strength, water‑proof, anti‑mildew, termite‑resistant, fire retardant, easy installation & maintenance, customizable dimension & surface appearance.

Main end‑products: WPC door frames, door jambs, decorative door lines.

Successful cases

Yongte is committed to producing high-quality, innovative WPC manufacturing machine. Through continuous optimization, Yongte's wood-plastic composite equipment has gained high recognition in domestic and international markets.

Russian WPC Door Panel Machine

Complete WPC door panel and profile extrusion solution for Russian local building‑material manufacturer, for indoor door frame production.

India Solid WPC door jamb making machine

Turn‑key YT300 full line, for mass‑production solid WPC door jamb profiles, 200kg/h output.

Polish WPC Granulation Machine

WPC recycling & granulation supporting equipment for European WPC profile factory.

Frequently Asked Questions

Q1: What raw materials can this WPC door jamb making machine process?

A: Mainly PVC resin mixed with wood powder and related chemical additives. Wood powder fineness & moisture should meet WPC production requirement.

Q2: What is the output difference between YT200 and YT300 model?

A: YT200(SJSZ51/105): 120-150kg/h, for small‑medium output; YT300(SJSZ65/132): 150-200kg/h for large‑scale mass‑production.

Q3: Can you customize machine according to my door‑frame profile drawing?

A: Yes. We can design extrusion mould and adjust line configuration based on your finished profile dimension, material formula and capacity requirement.

Q4: What after‑sales support do you provide?

A: Overseas engineer on‑site commissioning, operation training, spare‑parts supply, long‑term technical support.

Q5: Is this machine CE certified?

A: Yes, the whole production line passes CE certification and meets EU machinery safety standards.
