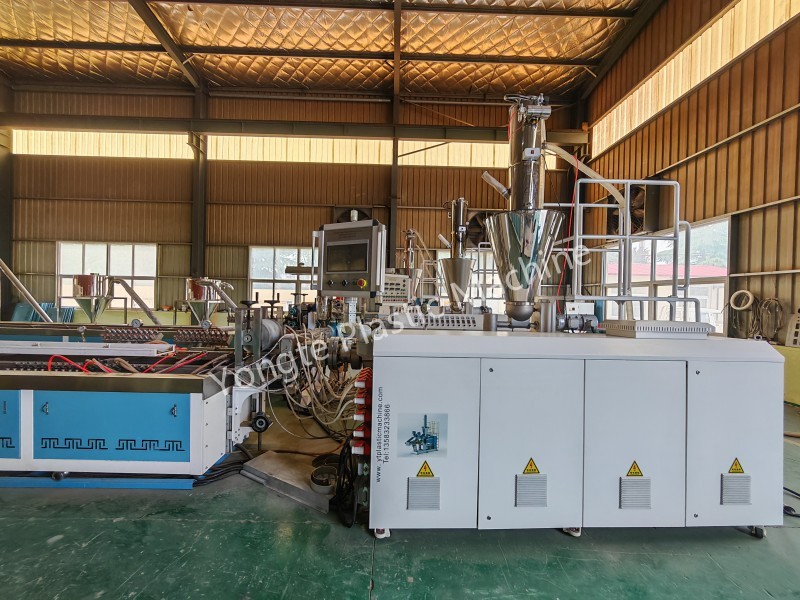

Wood Plastic Extrusion Machine
Model:SJSZ65/132
Yongte is Professional Wood Plastic Extrusion Machine manufacturer. CE certified conical twin-screw extruder for PVC/PE/PP wood plastic profiles. Complete production line, low energy, long service life, global turnkey projects. Get quote now.
Wood Plastic Extrusion Machine & Complete WPC Extrusion Production Line | Yongte Plastic Machinery
20+ Years Professional Manufacturer | CE Certified | Full Turnkey WPC Production Solution
Optimize your wood plastic production with high automation, low energy consumption and stable output. We support plastic waste recycling to realize cost reduction and eco-friendly green manufacturing.
1. Description
Yongte (Qingdao Yongte Plastic Machinery) is Wood Plastic Extrusion Machine professional manufacturer with over 20 years of R&D and manufacturing experience in WPC extrusion equipment. We supply CE-certified full turnkey WPC production lines to global customers.
The core equipment is the SJSZ/YTHD series conical twin-screw extruder, specially optimized for high wood flour loading (30%–70%). It is compatible with PVC, PE, PP and recycled plastic materials for various WPC profile production.
2. Full WPC Extrusion Line Composition
A complete Yongte WPC production line includes the extruder + matched downstream equipment:
- Auto Feeding & Mixing System: High-speed mixer + storage silo
- Core Equipment: Conical Twin Screw wood plastic extrusion machine
- Custom WPC Extrusion Mold: Interchangeable for different profiles
- 304 Stainless Steel Vacuum Calibration & Fast Cooling Table
- Double-track Haul-off Tractor with high friction rubber belt
- Auto Fixed-length Cutting Machine
- Automatic Product Stacker
Optional Auxiliary Equipment
- Online 3D wood grain embossing machine
- Co-extrusion unit
3. Main Extruder Models & Core Technical Parameters
PVC WPC Series (Door frame, wall panel, skirting, indoor profiles)
| Model | Screw Spec | Output Capacity | Main Power | Typical Product |
|---|---|---|---|---|
| YTHD65/132 | 65/132mm | 150-200kg/h | 37-45kw | WPC door jamb, small wall panel |
| YTHD80/156 | 80/156mm | 350–400kg/h | 55-75kw | WPC solid door, wide wallboard |
| YTHD92/188 | 92/188mm | 400-600kg/h | 110-132kw | WPC board, WPC door panel |
PE/PP Outdoor WPC Series (Decking, fence, pergola, recycled plastic lumber)
| Model | Screw Spec | Output Capacity | Raw Material Adaptation |
|---|---|---|---|
| SJSZ65/132 | 65/132mm | 150-200kg/h | Recycled PP PE + wood powder composite WPC decking/fence/wall cladding profile |
| SH72 | 72mm | 320–450kg/h | Mixed PP/PE high-fiber formula |
| SJSZ80/156 |
|
300-400kg/h |
Large-size WPC panel/board, WPC column |
| SJSZ92/188 | 92/188mm | 500–700kg/h | Large-size WPC panel/board, WPC column |
4. Key Advantages of Yongte wood plastic extrusion machine
-
Superior Plasticizing Performance
Optimized conical twin-screw groove design ensures uniform melting & mixing even with high wood flour content, no material agglomeration or unplasticized particles.
-
Energy Saving 15%–20%
ABB inverter + Siemens electrical control + Omron temperature control system reduces power consumption vs ordinary extruders.
-
Durable Core Parts Warranty
3-year warranty for gearbox, main motor, screw & barrel; wear-resistant bimetallic barrel for long service life.
-
High Flexibility
Replace molds quickly to switch production between WPC door, decking, wall panel, fence, furniture board. Optional co-extrusion for two-color / skin-layer WPC products.
-
Global Standard & Service
CE certified, full turnkey solution (raw material formula training, factory layout, installation, overseas after-sales team); partial machine stock for fast delivery.
-
Eco-Friendly Solution
Supports 100% recycled plastic waste as raw material, meets circular economy green building material demands.
5. Main Production Applications
PVC-WPC (Indoor)
- WPC solid door, door frame, door jamb
- Wall panel, ceiling board, skirting line, decorative profiles
- Foamed furniture board, cabinet sheet
PE/PP-WPC (Outdoor Weatherproof)
- WPC decking floor, garden fence, railing
- Pergola, flower box, park bench, outdoor lumber
- Wall cladding, exterior decorative profiles
6. Optional Upgrade Configurations
- Online 3D deep wood grain embossing unit for realistic wood texture
- Secondary single-screw co-extruder for color skin layer
- Automatic punching & welding auxiliary machine
- Central auto feeding & automatic batching system for large factories
- Water cooling recycling system to lower operation cost
7. Service Support
- Free customized production line layout design
- WPC raw material formula technical training
- Overseas engineer installation & commissioning
- Lifetime spare parts supply & remote technical guidance
Global WPC Project Cases
WPC complete plant to Canada for recycling waste fiberglass into WPC decking products
Canada Project: Turnkey production line for recycled waste fiberglass. The core layer uses recycled plastic + PCB fiberglass, matched with weather-resistant co-extrusion layer, specially producing outdoor WPC decking.
WPC Profile Machine working in Romania for making WPC decking/fence/pergola with turnkey project
Romania Project: Co-extruded WPC full line, replacing traditional single-layer products. The finished WPC decking, fences and pergolas have an outdoor service life of more than 10 years.
India Project: Aiming at road waste mixed with multi-color plastics, customized formula + anti-aging co-extruded surface layer to produce environmentally friendly building materials.
