Waste WPC Recycling Machine

Yongte Waste WPC Recycling Machine converts recycled PP/PE plastic waste and wood fiber into high-performance WPC products including decking, wall cladding, fence, pergola and panels. The machine features an integrated extrusion system that ensures consistent material mixing and uniform product quality. Advanced temperature control and automated feeding mechanisms enhance production efficiency while minimizing energy consumption. Yongte’s WPC machine is engineered for high-efficiency, stable, and cost-effective WPC production. It supports a wide range of raw materials: recycled PP/PE, wood powder, fiberglass, sand, recycled PCB material, textile waste and other fillers.

With optimized mechanical design and exclusive formulas, our waste WPC recycling machine line achieves:

• High wood powder loading: up to 70%
• Lower raw material cost: 20–30% cost reduction by using recycled plastic
• Low unqualited product: Stable dimensional performance for mass production
• High output: 150-600kg/h different models can be equipped
• low energy consumption: 15-20% less consumption by using servo motor and speed controller
• High automatic: automatic production line with advanced design

Waste WPC recycling machine Full Process (From Waste to Finished Products)

Our one-stop turnkey WPC project service is a core strength of Yongte, seamlessly integrating customized plastic recycling machines, wood powder making machines, WPC granulation machines, WPC extrusion lines, auxiliary equipment, and intelligent control systems. We deliver end-to-end solutions covering the entire process from raw material processing to finished product manufacturing, ensuring optimal equipment compatibility and streamlined process optimization for clients.

1. Plastic Recycling – Crush, wash, dry waste plastic
2. Wood Powder Making – Chip, crush, grind wood into fine powder
3. Material Mixing – High-speed heating mixing with formula
4. WPC Granulation – Parallel twin-screw extrusion & pelletizing
5. Profile Extrusion – Conical twin-screw profile forming
6. Co-extrusion – Weather-resistant surface layer (10+ years outdoor life)
7. 3D Embossing – Realistic wood grain & anti-slip
8. Sanding & Brushing – Natural wood-like finish

Technical Specifications

Raw Materials

• Plastic: Recycled PP/PE
• Fiber/filler: Wood powder, fiberglass, sand, recycled PCB, textile waste, etc.
• Fiber ratio: 60–70%
• Additives: PE wax, stearic acid, coupling agent, pigments
• Surface: Co-extrusion anti-UV & anti-aging layer

Plastic Recycling Machine

• Input: PP/PE waste, film, bags, bottles, tanks
• Function: Crushing, washing, dewatering, squeezing, drying
• Capacity: 300–500 kg/h

Wood Powder Making Machine

• Chipping → Crushing → Grinding → Drying
• Capacity: 400–500 kg/h

WPC Mixing Machine

• Type: Heating mixer
• Capacity: 500–600 kg/h

Recycled WPC Granulation Machine

• Extruder: SH75 parallel twin screw
• Output: WPC granules / flakes
• Capacity: 400–500 kg/h

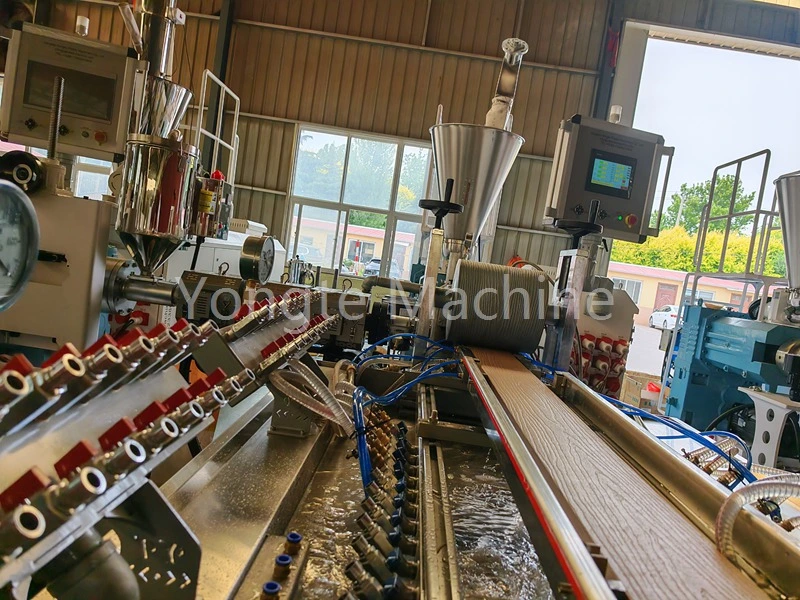

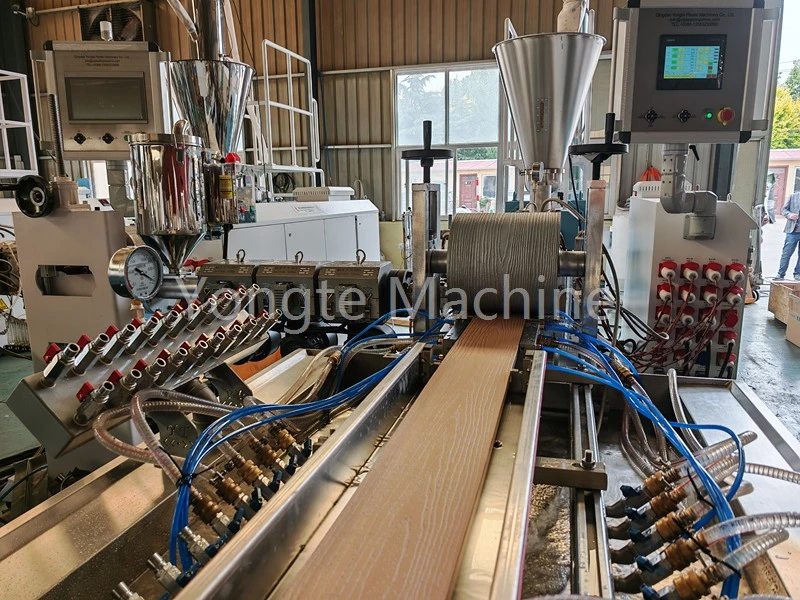

WPC Profile Extrusion Line

• Main extruder: SJSZ65/132 conical twin screw
• Co-extruder: SJ35 / SJ45 single screw
• Capacity: 150–200 kg/h
• Products: WPC decking, cladding, fence, pergola, post, panel

Surface Treatment for WPC products

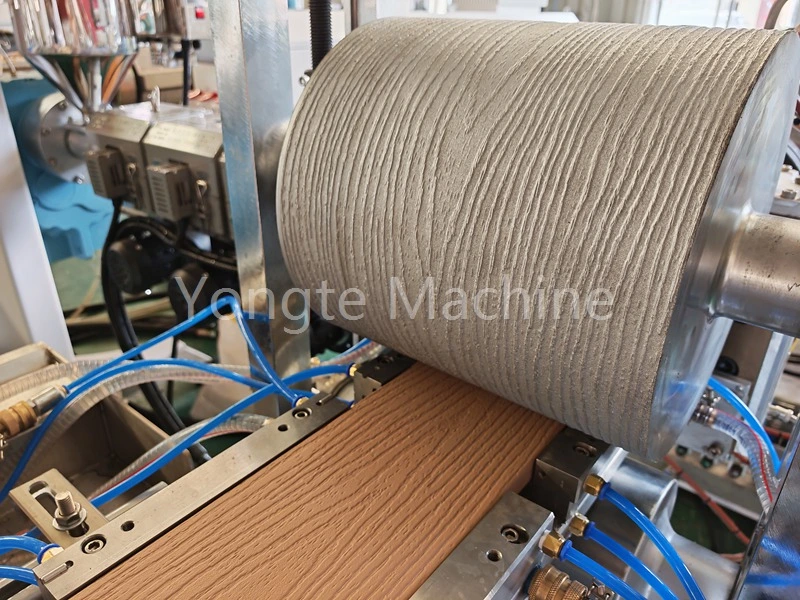

• Online 3D deep wood embossing
• Offline light embossing / sanding / brushing
• Sanding & brushing for co-extrusion wood texture

Waste WPC Recycling Machine Core Advantages

• Robust Gearbox & High-Efficiency Servo MotorStable transmission, strong load, 15–20% energy saving, low noise, long service life.
• High Automation SystemAuto feeding, temperature control, cutting, stacking. 80% less labor, supports unmanned production.
• Premium Electrical ComponentsABB inverter, Siemens PLC/contactors, Omron controller.Compliance: EN ISO 12100, EN 60204-1, EN 61000 EMC.
• Heavy-Duty Structure & Wear PartsSolid steel base, 304 stainless steel contact parts.Bimetallic screws / SKD barrels → 1.5–2× longer life.
• Pre-shipment Test & Overseas ServiceFull performance testing before delivery.On-site installation, commissioning and operator training.
• 3-Year Warranty & Lifetime SupportCore parts warranty + lifelong technical support + spare parts supply.

WPC Product Application

Wood Plastic Composite WPC products combine the texture and physical processing properties of wood (cuttable, sawable, strong nail-holding power) with the corrosion resistance of plastics (insect-proof, mildew-proof, waterproof). Wood Plastic Composite products are widely used in the construction industry.

Global WPC Project Cases

WPC complete plant to Canada for recycling waste fiberglass into WPC decking products

we provided a turnkey WPC production plant that utilized recycled plastic and PCB recycled fiberglass for the core WPC layer, paired with weather-resistant material for the surface layer

WPC Profile Machine working in Romania for making WPC decking/fence/pergola with turnkey project

our Romanian customer has adopted advanced WPC co-extrusion machine to replace traditional single-layer WPC, now offering products with over 10 years of warranty.

WPC Production Solution for india customer to transform plastic road wastage into green building material

in our WPC production project for an Indian client, the customer employed road waste mixed with various colored plastics for the core layer, complemented by an anti-aging co-extruded surface layer featuring custom colors.
