PP Sheet Extrusion Line

Yongte is a professional manufacturer of PP Sheet Extrusion Line in China. It specializes in plastic processing systems designed to continuously produce flat PP sheets/boards from PP pellets (including recycled materials), which are widely used in packaging, construction, agriculture, and industrial liners. We offer various models of PP Sheet Extrusion Lines with widths ranging from 800 to 3000mm and thicknesses from 0.2 to 10mm.

Technical Specifications of PP Sheet Extrusion Line

Model	Max Width	Thickness Range	Capacity	Total Power
SJ65/33	800mm	0.2–3mm	150-200 kg/h	100 kW
SJ75/33	1000mm	0.3–5mm	250-300 kg/h	120–130 kW
SJ90/33	1200–1500mm	0.5–8mm	300-400 kg/h	180–200 kW
SJ120/33	1500-2000mm	0.5-10mm	400-500 kg/h	250-300kw
SJ150/33	2000-3000mm	0.5-10mm	450-600 kg/h	300-400kw

Components & Workflow of PP Sheet Extrusion Line

Material Feeding & Drying: Equipped with hopper-integrated volumetric/dosing feeder for precise material control; optional dehumidifying dryer available for moisture-sensitive recycled PE materials, ensuring optimal processing conditions.

Single-Screw Extruder: Equipped with multi-zone temperature-controlled barrel (160–220°C for PP processing), featuring precision screw design to ensure efficient plasticization and melting of pellets. Integrated vacuum venting system effectively removes volatiles and moisture, while hydraulic screen changer enables non-stop operation. The single-screw configuration is optimized for standard production, with a twin-screw variant available for high-performance mixing applications (regrind materials, additives, and colorants). .

Sheet Die (T-Die): Equipped with precision-adjustable lip design for accurate width/thickness control (standard width range 600–3000mm, thickness capability 0.2mm to 10+mm). The die features internally optimized flow channels to ensure uniform melt distribution, complemented by independent temperature control zones that maintain consistent material viscosity during extrusion.

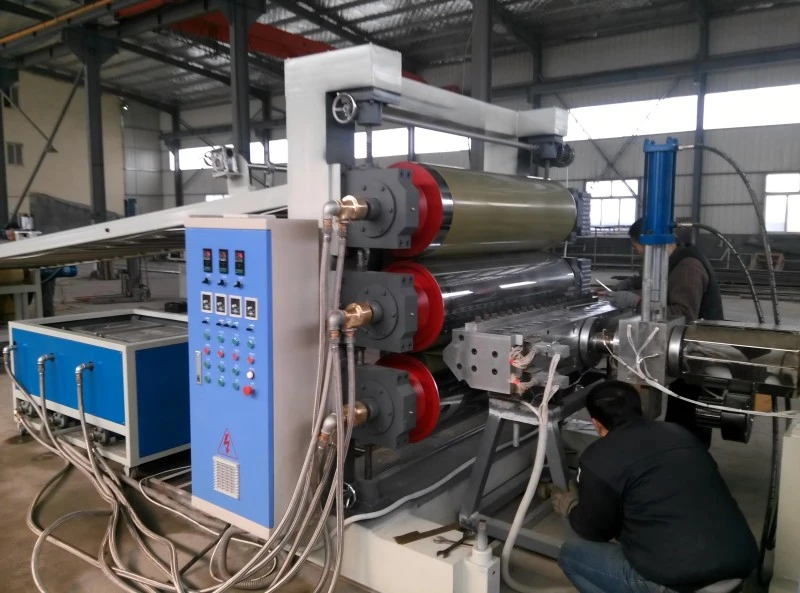

Three-Roll Calendar: Equipped with mirror-finish hard chrome rollers featuring independent temperature control (adjustable 80–120°C), which precisely flattens the extruded melt sheet to ensure consistent thickness (±0.02mm tolerance) and high-gloss surface finish. The roller nip pressure system enables uniform material compression, complemented by synchronized speed control that prevents sheet stretching or distortion during calendering.

Cooling & Traction Unit: Conveyor/cooling rollers, tension control system to prevent warping.

Cutting & Winding: Equipped with dual-mode processing capabilities – automatic cross-cutting system for sheet production (with precision length control ±1mm) and roll winding unit for coil formation. Integrated PLC control system ensures synchronized operation of cutting/winding speed with upstream traction unit, featuring tension feedback regulation to prevent sheet deformation during processing.
