WPC Wall Panel Machine

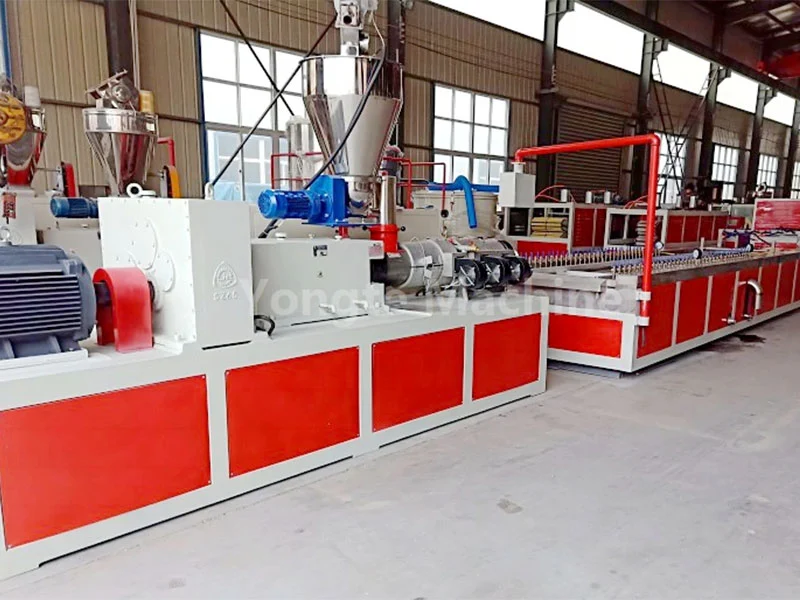

Yongte is a professional manufacturer of WPC Wall Panel Machine, primarily producing wall panels through an extrusion molding process. Raw materials, including PVC resin, wood flour, and calcium carbonate, are mixed according to our optimized formula to create high-quality, cost-effective products. Under high temperature and pressure from a professionally designed conical twin-screw extruder, the WPC compound materials are heated, melted, and plasticized. The material is then extruded through a mold customized to the required product size and shape. After calibration, cooling, and cutting, the finished WPC wall panel is obtained. The Yongte WPC Wall Panel Machine offers several advantages, including durable quality, user-friendly design, high automation, high output, energy efficiency, environmental friendliness, ease of operation, and easy maintenance. Additionally, it is CE-certified and adheres to EU machine standards, making it widely applicable in the construction, decoration, and advertising industries.

Product Parameter (Specification)

Product details

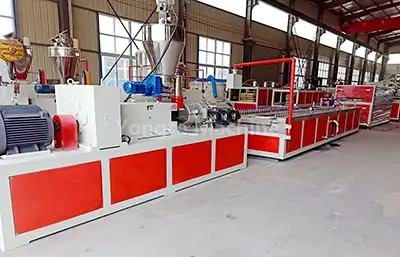

1. Automatic Feeder:	The spiral screw feeder is suitable for PVC and WPC compound materials. It is entirely made of 304 stainless steel with seamless welding.

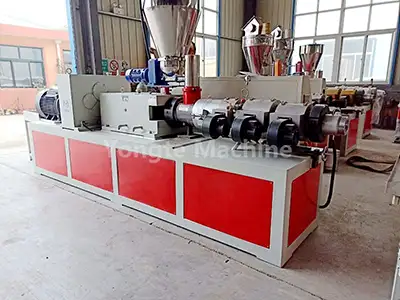

2. SJSZ65/132 Conical Twin Screw Extruder:	Featuring a deep-groove feeding section and a gradual plasticizing section, this extruder provides a stable melt output for wood-plastic materials, ensuring efficient and stable production. It is equipped with a servo motor to save 15-20% power, a vertical gearbox for stable and powerful production, a bimetallic screw and SKD barrel for long-term use, and an automatic temperature control system.

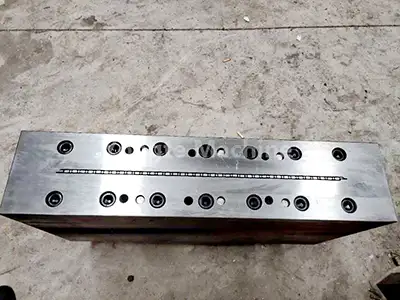

3. Wall Panel Mold:	Manufactured from high-quality 3Cr17 mold steel, this mold features precise zoned temperature control, a modular design for stable shaping dimensions, and quick-positioning pins for easy installation.

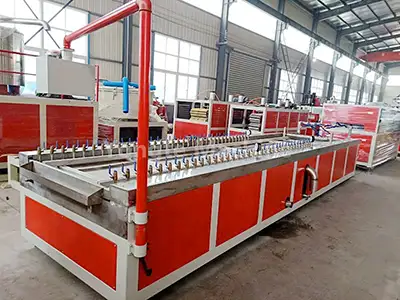

4. Calibration and Cooling Table:	Constructed from a single sheet of 304 stainless steel, this table has a reasonable pipeline design. It features overall electric lifting and left-right adjustment, as well as a water system along its entire length. It is suitable for rapid cooling systems, easy to install and maintain, and the water tank is equipped with a filter to prevent contamination.

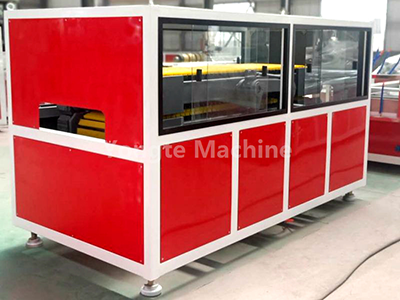

5. Traction Machine:	High-quality rubber ensures durability, the tire tread surface guarantees traction friction, dual-stage reduction provides sufficient traction torque, and the bird-wing protective cover simplifies operation and maintenance.

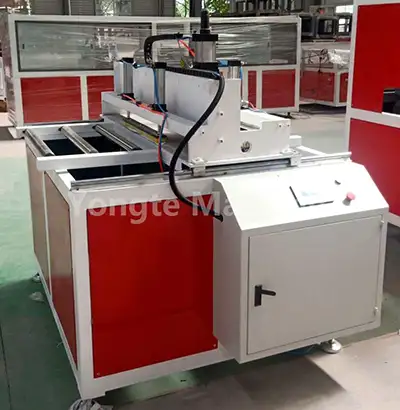

6. Cutting Machine:	Featuring automatic fixed-length cutting, 304 stainless steel panel, and fully enclosed dust collection system to reduce dust pollution, this machine is equipped with a servo motor and special material cutting blades for high-speed cutting, avoiding chipping.

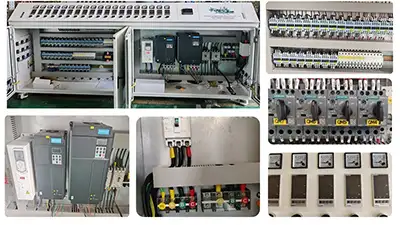

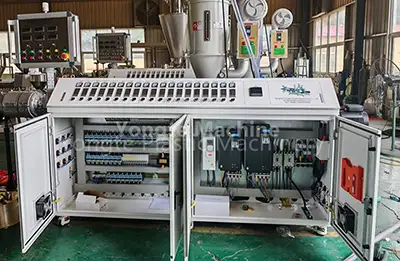

7. Electric Control System:	Equipped with ABB inverters, Omron temperature controllers, Siemens contactors, and an optional PLC control system. All contactors and wires in our electrical cabinets are neatly arranged, with wire numbers clearly labeled per standardized protocols. Sufficient clearance between components facilitates easy maintenance by electricians. All auxiliary wiring utilizes quick-connect plugs (eliminating on-site wiring for customers), ensuring operational convenience and safety.

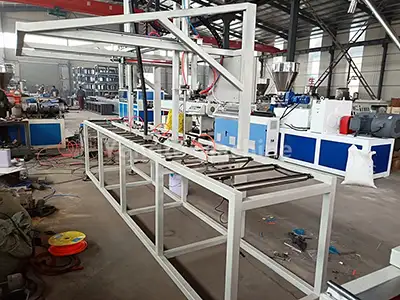

8. Product Stacker:	6-meter auto stacker made of stainless steel is available, with an auto robot optional for automatic stacking.

Yongte Advantages: Human-Centered Design & Industrial-Grade Durability

With years of technological innovation and an unwavering focus on quality, Yongte engineers its wood-plastic (WPC) production machines with high-strength, wear-resistant materials. Each unit undergoes precision forging and multi-stage quality inspections to withstand high-frequency operation and harsh industrial environments—delivering long-term reliability and consistent performance for your production line.

Advantage	Detailed Benefits & Technical Highlights	Picture

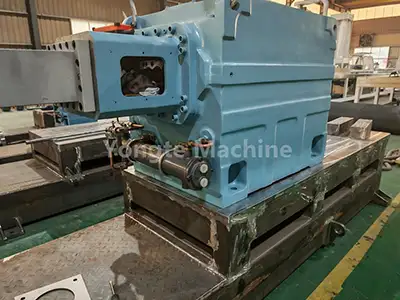

High-Torque Durable Gearbox	Equipped with premium vertical direct-connection gearboxes, featuring: 1. High transmission efficiency and strong load-bearing capacity 2. Stable production output and space-saving compact design 3. Superior sealing (no oil leakage) and efficient heat dissipation 4. Easy maintenance for reduced downtime

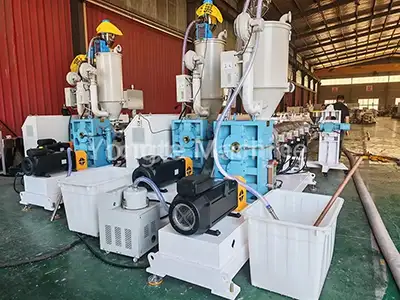

Energy-Saving Servo Motor	Integrated with Innovance servo motors, the system offers: 1. 15–20% reduction in power consumption, providing a cost-saving advantage. 2. Precise control over speed and torque, coupled with rapid response times. 3. Low vibration, minimal noise, and anextended service life. 4. Intelligent regulation of speed and output, ensuring seamless integration with production demands.

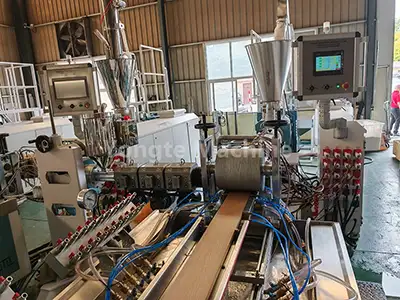

Highly Automated Operation System	The complete WPC wall panel machine is engineered for full automation: 1. Automatic feeding, temperature regulation, precision cutting, and stacking 2. Optional automatic material mixing and dosing system for turnkey solutions 3. PLC-programmed control + servo motor synchronization (automatic speed adjustment) 4. Minimizes labor costs and human error, ensuring consistent product quality
Advanced Electrical Control System	Constructed with premium components and adherence to international standards: 1. ABB frequency converters, Siemens/Schneider contactors, Omron temperature controllers 2. Siemens PLC control system for intuitive operation 3. Cables and connections are neatly arranged and clearly labeled 4. Meets EN ISO 12100 (machinery safety), EN 60204-1 (electrical equipment), and EN 61000 series (EMC) standards

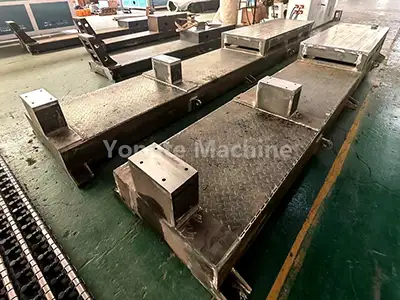

Heavy-Duty Frame (Solid Steel Construction)	The machine base is crafted from thick, solid steel plates, 1. CNC-cut and precision-polished to ensure dimensional accuracy and operational balance. It supports over 20 years of continuous, stable operation without structural damage. 2. All material and water-contacting parts are made of 304 stainless steel, (providing rust-proof and corrosion-resistant properties.
Wear-Resistant Screw & Barrel	Custom-engineered for WPC processing demands: 1. Bimetallic screws and SKD barrels (for WPC extruders) 2. WR7/WR5 wear-resistant materials (for pelletizer screws and barrels) 3. 1.5-2 times longer service life compared to standard components 4. Ensures consistent plasticization and extrusion performance
Powder Coating Surface Treatment	Post-manufacturing surface finish: 1. High-quality powder coating for a sleek and uniform appearance 2. Superior anti-rust and corrosion protection (ideal for industrial environments) 3. Long-lasting color retention for maintaining equipment aesthetics
Professional Testing & On-Site Service	Comprehensive support from factory to production floor: 1. Rigorous pre-shipment testing (performance, stability, and quality validation) 2. On-site installation by Yongte’s professional engineering team 3. Hands-on operator training for smooth commissioning 4. Ensures fast startup and optimal machine performance 5. 3 years warranty term and lifetime service support

Global WPC Project Cases

For instance, in a previous project for a Canadian customer, we provided a turnkey WPC production plant that utilized recycled plastic and PCB recycled fiberglass for the core WPC layer, paired with weather-resistant material for the surface layer. Similarly, in our WPC production project for an Indian client, the customer employed road waste mixed with various colored plastics for the core layer, complemented by an anti-aging co-extruded surface layer featuring custom colors. Additionally, our Romanian customer has adopted advanced WPC co-extrusion machine to replace traditional single-layer WPC, now offering products with over 10 years of warranty.

WPC complete plant to Canada for recycling waste fiberglass into WPC decking products

WPC Profile Machine working in Romania for making WPC decking/fence/pergola with turnkey project

WPC Production Solution for india customer to transform plastic road wastage into green building material

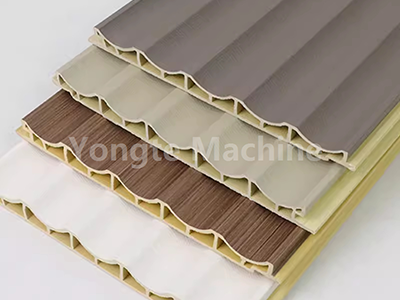

Product application

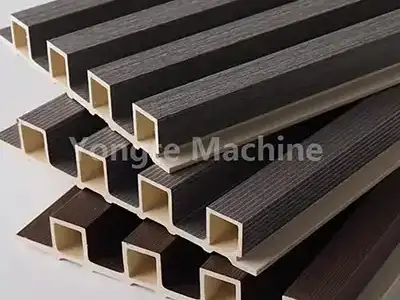

WPC wall panels are environmentally friendly, durable, heat-insulating, fire-resistant, and easy to clean and maintain. They can be widely used in the decoration of homes and public buildings as decorative materials for ceilings, wall panels, partition walls, and more.
