WPC Profile Co-extrusion Line

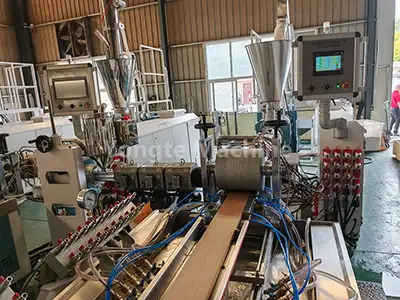

Yongte advanced WPC profile co-extrusion line integrates high output, energy efficiency, and reliability, empowering the creation of premium, long-lasting weatherproof WPC products from recycled materials. The machine efficiently melts and plasticizes wood-plastic granules (or fragments) using a conical twin-screw extruder, and a single screw extruder for the modified PE granules, before extruding them into a specialized co-extrusion mold to form the required size and shape. The design, featuring a barrel diameter that decreases from large to small, ensures not only the mixing effect of the material but also a stable melt pressure within the mold cavity, compressing the wood-plastic material (achieving a final product density of 1.3 g/cm³) to ensure the strength of the final product. Additionally, the machine is equipped with a high-speed cooling and calibration table, a stable traction system, and automatic cutting equipment. The line can produce various WPC products by changing the mold.

Yongte WPC Profile Co-Extrusion Line addresses the limitations of insufficient weather resistance and uneven color caused by using recycled materials. By co-extruding a layer of high-quality modified PE onto the surface of the WPC core, we can create wood-plastic products with custom wood grain colors, which can withstand outdoor use for over 10 years.

Product Parameter (Specification)

Product details

1. Automatic Feeder:	The main extruder is equipped with a screw feeder, while the co-extruder features a vacuum suction feeder.

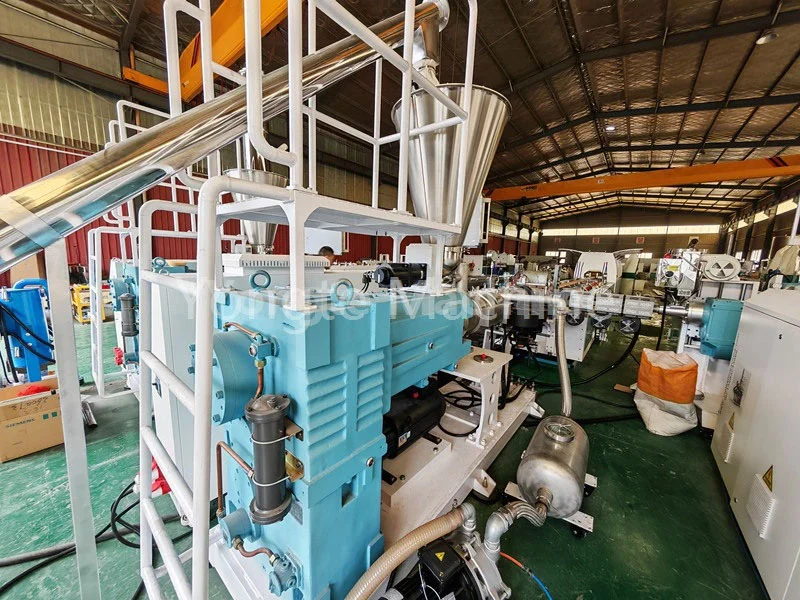

2. SJSZ65/132 Conical Twin Screw Extruder:	Equipped with a servo motor to save 15-20% power, a vertical gearbox for stable and powerful production, a bimetallic screw and SKD barrel for long-term use, and an automatic temperature control system
3. SJ35 Co-extruder:	Equipped with a drying hopper and automatic system, featuring a specially designed screw shape to ensure the melting and uniform material flow.
4. Co-extrusion Mold:	Made of high-quality 3Cr17 mold steel, featuring a rational co-extrusion die cavity and core layer die cavity flow design, precise zoned temperature control, a modular design for stable shaping dimensions, and quick-positioning pins for easy installation.
5. Online 3D Embossing Equipment:	To enhance the wood grain appearance and anti-slip effect of Wood Plastic Composite, we have equipped an online 3D deep embossing machine. This equipment can be installed on the calibration table of the WPC extrusion line to create a more realistic wood grain effect. The embossing roller is interchangeable to produce various wooden textures.
6. Calibration and Cooling Table:	Made from a single sheet of 304 stainless steel with a reasonable pipe design, it features overall electric lifting and left-right adjustment, and a water system along its entire length. It is suitable for rapid cooling systems, easy to install and maintain, and the water tank is equipped with a filter to prevent contamination.
7. Traction Machine:	High-quality rubber ensures durability, the tire tread surface guarantees traction friction, dual-stage reduction provides sufficient traction torque, and the bird-wing protective cover simplifies operation and maintenance.
8. Cutting Machine:	Equipped with automatic fixed-length cutting, a 304 stainless steel panel, a fully enclosed dust collection system to reduce dust pollution, a servo motor, and special material cutting blades for high-speed cutting to avoid chipping.
9. Electric Control System:	Equipped with an ABB inverter, Omron temperature controller, Siemens contractor, and a PLC control system is optional. All contactors and wires in our electrical cabinets are neatly arranged, with wire numbers clearly labeled according to a set pattern. Sufficient clearance between components allows for easy operation by electricians. All auxiliary wiring uses quick-connect plugs (eliminating the need for customer wiring), ensuring convenience and safety.
10. Product Stacker:	6-meter automatic stacker.

Product application

Addressing critical industry pain points of recycled WPC materials—insufficient weather resistance and uneven color—Yongte’s advanced co-extrusion technology adds a high-quality modified PE surface layer to the WPC core. This dual-layer structure not only enables customizable wood grain finishes and color options but also delivers superior weatherability: the outdoor WPC profiles resist UV radiation, moisture, and temperature fluctuations, ensuring a service life of over 10 years.

Yongte Machine Advantages: Human-Centered Design & Industrial-Grade Durability

For years, Yongte has remained committed to innovation and quality excellence in wood plastic (WPC) machinery manufacturing. We adhere to using high-strength, wear-resistant materials, combined with precision forging and multi-stage quality inspections, ensuring our machines withstand high-frequency operation and harsh industrial environments—delivering long-term reliability for your production line.

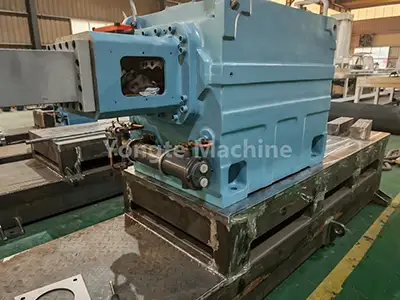

1. High-Torque Durable Gearbox	Equipped with premium vertical direct-connection gearboxes, our WPC machines offer unparalleled performance: High transmission efficiency and strong load-bearing capacity for stable, continuous production Compact design saves installation space, ideal for workshops with limited area Superior sealing to prevent oil leakage, paired with excellent heat dissipation for extended service life User-friendly maintenance design reduces downtime and operational costs
2. High-Efficiency Servo Motor	Powered by Innovance servo motors, the system delivers tangible value for your production: 15-20% energy savings compared to standard motors, cutting long-term operational costs Precise speed and torque control, ensuring consistent product quality and stable output Fast response, low vibration, and ultra-quiet operation—improving workshop environment Long service life and minimal maintenance requirements, reducing total cost of ownership (TCO) Intelligent speed and output regulation, adapting to dynamic production demands

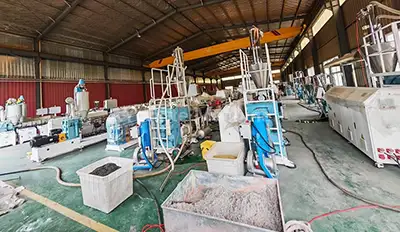

3. High-Automation Operation System	The fully integrated WPC production line is designed for maximum efficiency and simplicity: Automated processes include auto feeding, temperature control, cutting, and stacking—reducing labor costs Optional automatic material mixing and dosing system for a complete turnkey solution PLC programmable control system combined with servo motor technology enables automatic speed synchronization adjustment Intuitive operation interface minimizes training time and human error
4. Advanced & Compliant Electrical Control System	We prioritize safety, stability, and international compliance with top-tier components: Equipped with ABB frequency converters, Siemens/Schneider contactors, and Omron temperature controllers Siemens PLC control system ensures reliable performance and easy programming Neatly arranged cables with clear labeling for quick troubleshooting and maintenance Complies with global safety standards: EN ISO 12100 (Machinery Safety), EN 60204-1 (Machine Electrical Equipment), and EN 61000 series EMC standards—meeting export requirements worldwide

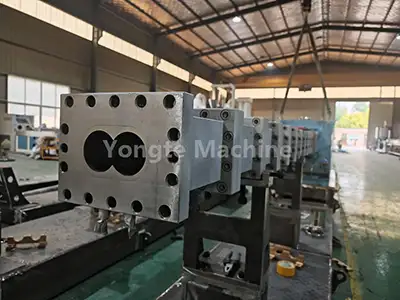

5. Heavy-Duty Frame & Wear-Resistant Screw Barrel	Built for long-lasting performance in demanding production environments: Machine base constructed from solid steel plates, processed via CNC cutting and polishing for precise dimensions and structural balance Rigid frame design supports 20+ years of continuous operation without deformation All material/water-contacting parts made of 304 stainless steel to prevent rust and corrosion Screw and barrel tailored to WPC processing needs: Bimetallic screws and SKD barrels for WPC extruders WR7/WR5 wear-resistant materials for pelletizer screws/barrels 1.5-2x longer service life compared to standard components Powder coating finish enhances aesthetics, provides superior anti-rust protection, and ensures color consistency
6. 3 Years warranty & Comprehensive After-Sales Support	Warranty term: 3 years warranty for the main machine parts Pre-shipment testing: Every machine undergoes performance and stability checks to guarantee high-quality output Professional on-site support: Our engineering team provides installation, commissioning, and operator training to ensure smooth startup Lifelong technical consultation and spare parts supply for uninterrupted production

Global WPC Project Cases

For instance, in a previous project for a Canadian customer, we provided a turnkey WPC production plant that utilized recycled plastic and PCB recycled fiberglass for the core WPC layer, paired with weather-resistant material for the surface layer. Similarly, in our WPC production project for an Indian client, the customer employed road waste mixed with various colored plastics for the core layer, complemented by an anti-aging co-extruded surface layer featuring custom colors. Additionally, our Romanian customer has adopted advanced WPC co-extrusion machine to replace traditional single-layer WPC, now offering products with over 10 years of warranty.

WPC complete plant to Canada for recycling waste fiberglass into WPC decking products

WPC Profile Machine working in Romania for making WPC decking/fence/pergola with turnkey project

WPC Production Solution for india customer to transform plastic road wastage into green building material
