WPC Extruder
Model:YT-450
Yongte is a professional manufacturer based in China for WPC extruder,it adopts optimized mechanical structure and exclusive formula, realizing high automation, low energy consumption and stable mass production.We help customers realize waste recycling, cost reduction and green production.

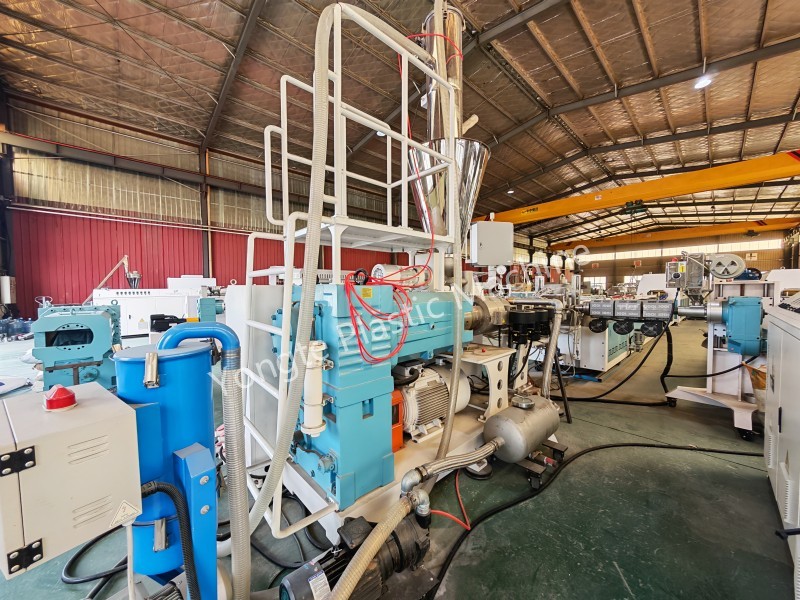

Yongte WPC Extruder (Wood Plastic Composite Extrusion Line)
1. Description
Yongte (Qingdao Yongte Plastic Machinery) is a professional Chinese manufacturer with 20+ years of WPC extrusion R&D and manufacturing, supplying CE-certified full turnkey WPC production lines worldwide.
The core equipment is conical twin-screw extruder (SJSZ/YTHD series) — the heart of all WPC profile production lines, specially optimized for high wood flour loading (30%–70% wood powder + PVC/PE/PP/recycled plastic).
2. Full WPC Extrusion Line Composition
A complete Yongte WPC production line includes the extruder + matched downstream equipment:
- Auto feeding & mixing system (high-speed mixer + storage silo)
- Core: Conical Twin Screw WPC Extruder
- Custom WPC extrusion mold (changeable for different profiles)
- 304 stainless steel vacuum calibration & fast cooling table
- Double-track haul-off tractor (high friction rubber belt)
- Auto fixed-length cutting machine
- Optional: Online 3D wood grain embossing machine, co-extrusion unit
- Automatic product stacker
3. Main Extruder Models & Core Technical Parameters
PVC WPC Series (Door frame, wall panel, skirting, indoor profiles)
| Model | Screw Spec | Output Capacity | Main Power | Typical Product |
|---|---|---|---|---|
| YTHD65/132 | 65/132mm | 150-200kg/h | 37-45kw | WPC door jamb, small wall panel |
| YTHD80/156 | 80/156mm | 350–400kg/h | 55-75kw | WPC solid door, wide wallboard |
| YTHD92/188 | 92/188mm | 400-600kg/h | 110-132kw | WPC board, WPC door panel |
PE/PP Outdoor WPC Series (Decking, fence, pergola, recycled plastic lumber)
| Model | Screw Spec | Output Capacity | Raw Material Adaptation |
|---|---|---|---|
| SJSZ65/132 | 65/132mm | 150-200kg/h | Recycled PP PE + wood powder composite WPC decking/fence/wall cladding profile |
| SH72 | 72mm | 320–450kg/h | Mixed PP/PE high-fiber formula |
| SJSZ80/156 |
|
300-400kg/h |
Large-size WPC panel/board, WPC column |
| SJSZ92/188 | 92/188mm | 500–700kg/h | Large-size WPC panel/board, WPC column |
4. Key Advantages of Yongte WPC Extruder
-
Superior Plasticizing Performance
Optimized conical twin-screw groove design ensures uniform melting & mixing even with high wood flour content, no material agglomeration or unplasticized particles.
-
Energy Saving 15%–20%
ABB inverter + Siemens electrical control + Omron temperature control system reduces power consumption vs ordinary extruders.
-
Durable Core Parts Warranty
3-year warranty for gearbox, main motor, screw & barrel; wear-resistant bimetallic barrel for long service life.
-
High Flexibility
Replace molds quickly to switch production between WPC door, decking, wall panel, fence, furniture board. Optional co-extrusion for two-color / skin-layer WPC products.
-
Global Standard & Service
CE certified, full turnkey solution (raw material formula training, factory layout, installation, overseas after-sales team); partial machine stock for fast delivery.
-
Eco-Friendly Solution
Supports 100% recycled plastic waste as raw material, meets circular economy green building material demands.
5. Main Production Applications
PVC-WPC (Indoor)
- WPC solid door, door frame, door jamb
- Wall panel, ceiling board, skirting line, decorative profiles
- Foamed furniture board, cabinet sheet
PE/PP-WPC (Outdoor Weatherproof)
- WPC decking floor, garden fence, railing
- Pergola, flower box, park bench, outdoor lumber
- Wall cladding, exterior decorative profiles
6. Optional Upgrade Configurations
- Online 3D deep wood grain embossing unit for realistic wood texture
- Secondary single-screw co-extruder for color skin layer
- Automatic punching & welding auxiliary machine
- Central auto feeding & automatic batching system for large factories
- Water cooling recycling system to lower operation cost
7. Service Support
- Free customized production line layout design
- WPC raw material formula technical training
- Overseas engineer installation & commissioning
- Lifetime spare parts supply & remote technical guidance
Global WPC Project Cases
WPC complete plant to Canada for recycling waste fiberglass into WPC decking products
Canada Project: Turnkey production line for recycled waste fiberglass. The core layer uses recycled plastic + PCB fiberglass, matched with weather-resistant co-extrusion layer, specially producing outdoor WPC decking.
WPC Profile Machine working in Romania for making WPC decking/fence/pergola with turnkey project
Romania Project: Co-extruded WPC full line, replacing traditional single-layer products. The finished WPC decking, fences and pergolas have an outdoor service life of more than 10 years.
India Project: Aiming at road waste mixed with multi-color plastics, customized formula + anti-aging co-extruded surface layer to produce environmentally friendly building materials.
