WPC Door Polishing Machine
  • WPC Door Polishing MachineWPC Door Polishing Machine

WPC Door Polishing Machine

Model:SR-RP1300
1300mm width SR-RP1300 WPC Door polishing Machine with 5-36m/min speed, dust collection system and 3 years warranty. CE certified for pre-lamination surface preparation. Get quote now!

Yongte WPC Door Polishing Machine is engineered for precision surface finishing of WPC doors, delivering a consistently smooth and uniform texture. Equipped with advanced adaptive polishing technology, it automatically adjusts to varying door thicknesses and material densities, ensuring optimal polishing results across diverse WPC formulations. The machine features an intuitive interface that allows operators to precisely configure parameters including polishing speed (1-5 m/min) and pressure (0.2-0.8 MPa), while its reinforced steel frame construction guarantees stable performance during continuous 24/7 operation. An integrated high-efficiency dust collection system captures over 95% of polishing debris, maintaining a clean workspace and minimizing maintenance downtime. This combination of precision, adaptability, and operational efficiency makes it ideal for large-scale WPC door manufacturing facilities. Post-polishing, door panels exhibit enhanced surface smoothness that improves adhesive bonding strength by up to 30% and provides an optimal substrate for subsequent painting or lamination processes.

Technical Parameters of WPC door polishing machine

Parameter/Model

SR-RP1300

Max processing width

1300mm

Mini processing length

540mm

Thickness range

2-150mm

conveyor speed

5-36m/min

Sand belt size

1330×2200mm

power of first shaft motor

37KW

second sand frame motor power

22KW

driving power of belt conveyor

4KW (Frequency Conversion Speed Control)

power of lift motor

Lifting motor for conveyor belt 0.55 kW

first roll

¢270 eccentric spiral steel roller

second sand roller

¢210 spiral eccentric rubber roller hardness 70SH+ polishing pad

compressed air pressure

0.6Mpa

consumption of compressed air

14m³/h

Dust suction capacity

9000m³/h

outline dimension

2036*2536*2150

weight

3800kg

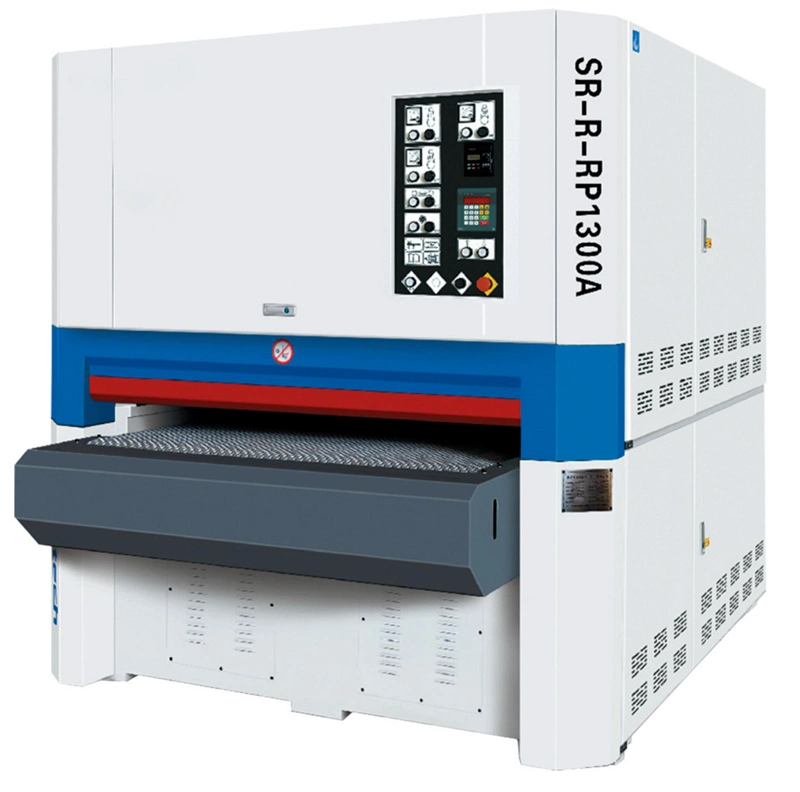

Pictures of WPC door polishing machine

WPC Door polishing Machine

WPC Door polishing Machine

WPC Door polishing Machine
