Rubber foamed water permeable pipe making machine

Rubber foamed water permeable pipe making machine

Yongte Rubber foamed water permeable pipe making machine utilizes high-efficiency extrusion technology to recycle waste rubber tires and transform them into premium rubber soaker hoses. Through extensive R&D and rigorous testing, Yongte has developed a proprietary formula specifically for producing nano-rubber tubes—ensuring uniform water distribution in irrigation systems while enhancing water conservation and anti-clogging performance.

Rubber foamed water permeable pipe features interconnected open pores, good flexibility and compression resilience. Widely used in road subgrade drainage, tunnel & basement blind drainage, slope protection, sponge city, golf course, farmland salt-alkali land improvement, river embankment and landfill leachate collection for water seepage collection and drainage. The compression and resilience performance of rubber foamed permeable pipe allows elastic deformation under soil pressure and recovers its original pore structure after unloading. It is suitable for projects with uneven settlement and cyclic dynamic loads such as road subgrade, slope protection, sports field and sponge city. But it is not recommended for deep burial or long-term high static load conditions due to creep property of foam rubber.

Our eco-friendly rubber irrigation pipe making machines reduce landfill waste and support sustainable manufacturing practices. Equipped with advanced automation, they deliver high productivity and consistent product quality.

Yongte offers complete rubber soaker pipe production lines, including rubber tire recycling machines, rubber powder grinding machines, and rubber soaker hose extrusion lines.

Yongte Key advantages include:

• High Automation：One‑key operation, less labor, stable output
• Energy Saving：15–20% lower power consumption by servo system
• Consistent Quality：Precision extrusion, uniform product structure
• Turnkey Service：Formula + Installation + Training + After‑sales
• Waste Recycling：Turn waste plastic/tires into high‑value products
• Long Warranty：36‑month warranty + lifetime technical support

Technical Specifications of Rubber foamed water permeable pipe making machine

Parameter	Specification
Material	Recycled Rubber powder, PE granules, Chemical additives
Pipe Diameter Range	9-32mm (adjustable)
Production Speed	3-10 m/min (adjustable)
Output Capacity	80-120kg/h
Extruder Model	SJ65 Single screw extruder
Main motor power	22kw Innovance servo motor with speed control
winder	Auto winder, single position or double position optional
Installation power	Around 60kw (for rubber pipe extrusion line)
Power consumption	Around 20kw
Machine length	16 meters





Product details and features of Rubber foamed water permeable pipe making machine

1, Rubber tyre recycling machine (optional)

This machine is designed to convert waste rubber tires into fine rubber powder through a systematic process encompassing steel wire extraction, tire cutting, shredding, crushing, powder grinding, and filtration. Leveraging advanced recycling and separation technology, it efficiently segregates steel wire, rubber powder, and fiber from waste rubber tires, achieving a production capacity of 500-600 kg/hour. The processed rubber powder can be directly utilized for manufacturing rubber soaker hoses.



2, rubber powder grinding machine (optional)

This machine is engineered for processing recycled rubber flakes into fine rubber powder, featuring a high-speed grinding disk with adjustable blades to ensure uniform particle size. Its integrated cooling system prevents overheating, maintaining consistent powder quality with a grinding capacity of 200-300 kg/hour. This rubber powder grinding machine is essential when using rubber flakes as raw material.

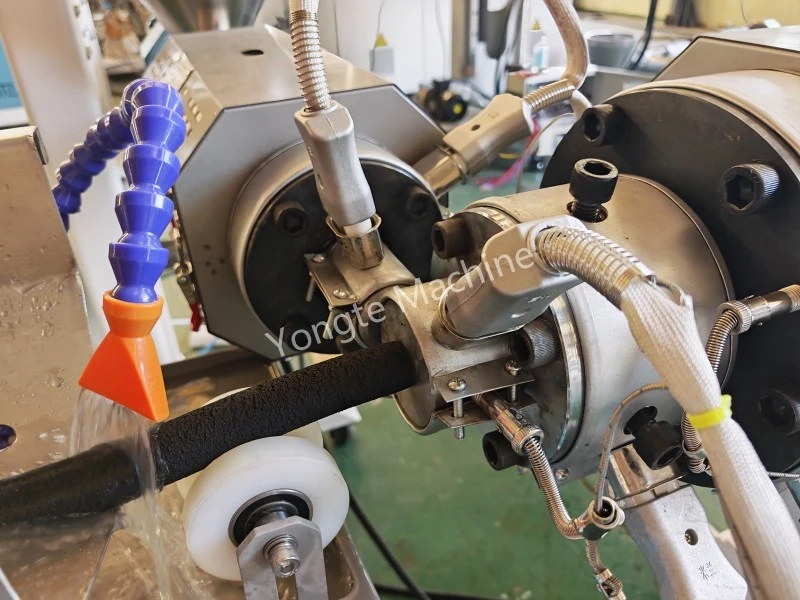

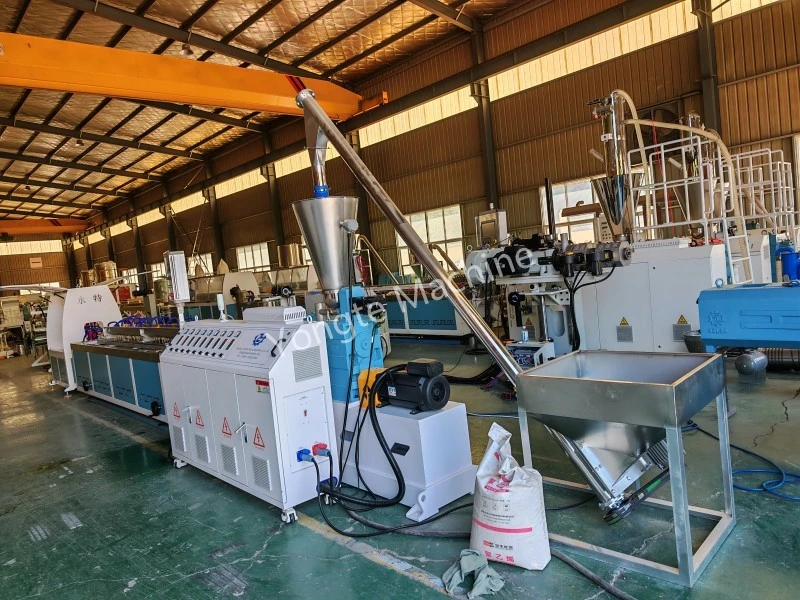

3, rubber soaker hose extrusion line

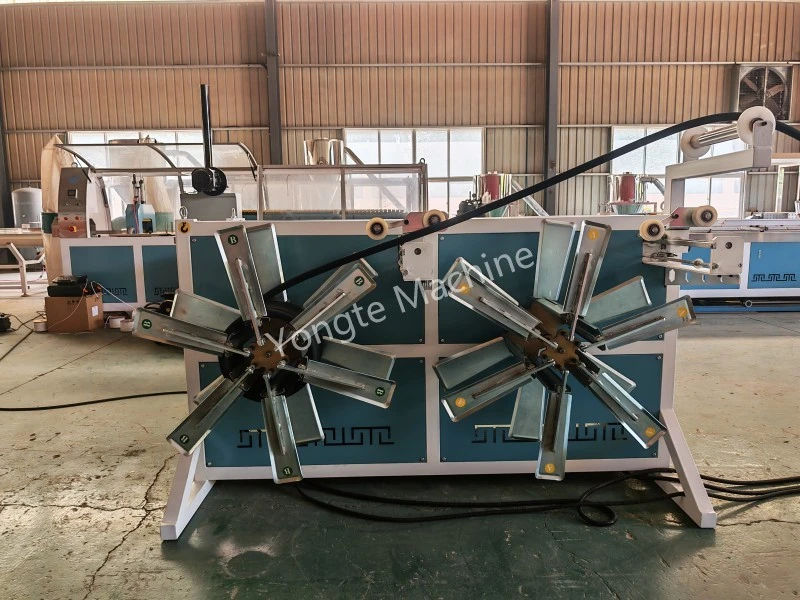

The line integrates advanced extrusion technology to produce high-quality rubber soaker hoses with precise dimensions and uniformly distributed foamed nano pores. Comprising an auto feeder, single-screw extruder, nano pipe mold, rapid cooling tank, stable traction machine, and automatic winding system, it ensures consistent operation and simplified maintenance.



Advantages of rubber soaker hose:

1. High permeability efficiency: the nanoscale pores are uniform, the permeability rate is increased by 2-3 times, and it is stable for a long time

2. Strong anti-clogging ability: the nanoscale pores allow water molecules to pass through, while blocking larger particles such as silt and microorganisms (similar to the "molecular sieve" effect), reducing the risk of blockage.

3. Extended Service Life: By combining rubber and PE materials, the rubber seepage pipe achieves an extended service life of 10-15 years with significantly enhanced aging resistance

4. Low installation and maintenance costs: Simple installation with connectors that plug in for immediate use, flexibility to bend and roll up, resistance to blockages, and a long maintenance-free cycle reduce overall costs by 40%-60%.

5. Superior Environmental Performance: The rubber seepage pipe is manufactured using recycled waste tires and supports multiple recycling cycles, offering exceptional economic and environmental benefits .



Application scenarios of rubber Water Permeation Tube.

1. Agricultural water-saving irrigation: as underground water transmission pipes in drip irrigation and seepage irrigation systems, it can accurately control water and reduce soil salinization (nano filtration prevents sand from blocking the drippers).

2. Groundwater Remediation and Water Source Protection: Facilitates groundwater infiltration purification of contaminated sites through nanomaterial adsorption of heavy metals and organic pollutants, while enabling efficient filtration of water source inputs.

3. Urban Rainwater Management: As a permeable pipe in urban construction, it enables rapid rainwater infiltration and pollutant filtration to effectively alleviate waterlogging.

4. Sewage treatment and reuse: underground infiltration treatment of industrial wastewater and domestic sewage, nano-coating can absorb COD, heavy metals and other pollutants.
