PE Profile Extrusion Line

The Yongte durable PE Profile Extrusion Line is utilized to manufacture PE profiles in a range of sizes and shapes through advanced extrusion and molding technology. The resulting PE profiles are durable, featuring excellent performance, high flexibility, superior strength, resistance to cracking, good weather resistance, and a long lifespan. The equipment is characterized by its high capacity, energy efficiency, eco-friendliness, high automation, and straightforward operation and maintenance.

Product Parameter

Product Details

Equipment	Details	Picture

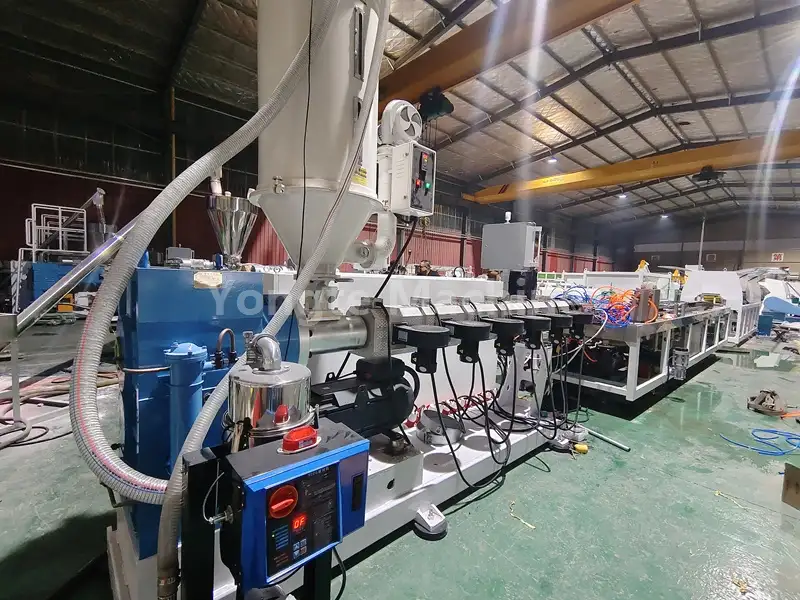

Automatic feeder and hopper	Available with either a screw feeder or vacuum suction feeder, depending on the material. The drying hopper is equipped to remove moisture.
SJ90 Single - screw extruder	Equipped with a 45KW - 55KW servo motor to save 15 - 20% power, a vertical gearbox for stable and powerful production, a bimetallic screw and SKD barrel for longevity, and an automatic temperature control system.
Lumber profile die head	The extrusion die is specifically designed for utilizing 100% recycled material, featuring a good flow design to ensure sufficient extrusion pressure.
Calibrators	Constructed from high - quality 3Cr17 mold steel, designed with a rapid vacuum calibration system and a 4 - 6 - meter long water cooling tank.

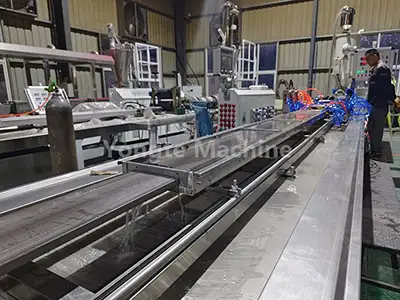

Calibration and cooling table	Fabricated from a single sheet of 304 stainless steel, featuring a well - designed pipeline, overall electric lifting and left - right adjustment capabilities, and a water system along its entire length. It is suitable for rapid cooling systems, easy to install and maintain, and the water tank includes a filter to prevent contamination.
Traction machine	High - quality rubber ensures durability, the tire tread surface ensures traction friction, dual - stage reduction provides ample traction torque, and the bird - wing protective cover simplifies operation and maintenance.
Cutting machine	Automatic fixed - length cutting, 304 stainless steel panel, fully enclosed dust collection system to minimize dust pollution, equipped with a servo motor, and special material cutting blades for high - speed cutting, preventing chipping.
Electric control system	Equipped with an ABB inverter, Omron temperature controller, Siemens contactor, and PLC control system is optional.
Product stacker	6 - meter automatic stacker.

Product Application

Welcome to buy PE Profile Extrusion Line. The exceptional weather resistance of PE lumber profiles ensures their outstanding performance and longevity in various outdoor applications, making them an ideal choice for environments exposed to harsh weather conditions. These profiles are highly durable against UV radiation, moisture, temperature fluctuations, and other environmental factors, which allows them to maintain structural integrity and appearance over time. As a result, they are widely used in products such as outdoor fence systems, outdoor fence poles, plastic beach chairs, plastic sunbeds, and plastic shade sheds, where reliability and resistance to weathering are essential for both functionality and user satisfaction.

Yongte Machine Advantages: Humanized Mechanical Design & Durable Quality

Component	Features	Pictures
High-Torque, Durable Gearbox	1.vertically direct-connected 2.high transmission efficiency 3.reliable sealing to prevent oil leakage 4.excellent heat dissipation 5.robust load capacity 6.stable production 7.space-saving installation 8.ease of maintenance
High-Efficiency Servo Motor	1. Equipped with an Innovance servo motor, achieving 15–20% energy savings through precise speed and torque control. 2. Features (1) Rapid response (2) Minimal vibration (3) Low-noise operation (4) Extended service life (5) Reduced maintenance costs (6) Intelligent speed and output regulation capabilities
Highly Automated Operating System	1. Automatic feeding 2. Precise temperature control 3. Automatic cutting 4. Integrated with servo motor and PLC-programmed control system (optional) 5. For speed synchronization and intelligent automatic adjustment 6. Optional customized automatic material mixing and dosing system
Advanced Quality Electricity Control System	1. Equipped with (1) ABB frequency converters (2) Siemens/Schneider contactors (3) Omron temperature controllers 2. Integrated with a Siemens PLC control system 3. Features (1) neatly arranged, clearly labeled cables and connections (2) advanced intelligent technology (3) real-time fault diagnosis with alarm functions

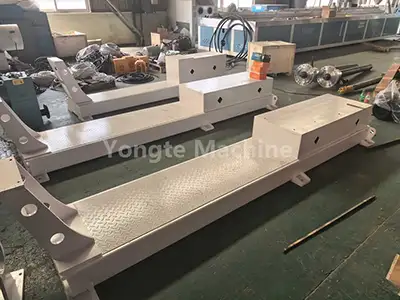

Strong Machine Base Made of Solid Steel Plate	1. Constructed with solid steel plates, CNC-cut and polished 2. All material/water contact components made of 304 stainless steel 3. Features powder coating post-manufacturing for corrosion prevention and enhanced appearance with anti-rust protection

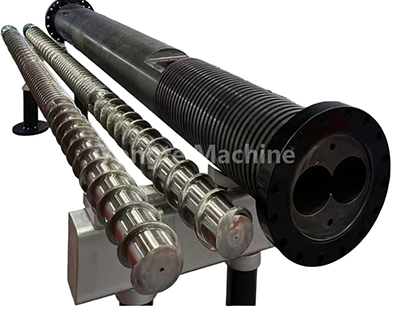

Screw Barrels Made from Wear-Resistant Materials	1. Bimetallic screws and SKD barrels with optimized screw geometry (1) enhancing wear resistance (2) extending service life 2. Capable of processing various materials 3. delivering more uniform and high-quality final products
Professional Trial and Installation Service	1. On-site trials conducted by experienced technicians 2. Combined with comprehensive installation guidance 3. Ensure the machine operates at peak efficiency 4. Enable seamless integration into the production line
3 - Year Warranty and Lifetime Support	1. 36-month warranty starting from the day of delivery 2. Free service during the warranty period for quality-related damage 3. Lifelong service supply

Successful cases

Devoted to the crafting of high-quality and innovative plastic extrusion equipment, Yongte’s PE Profile Extrusion Line has achieved extensive acknowledgment in domestic as well as international markets via sustained tech and quality upgrades.

China PVC Rain Gutter Profile Making Machine

four cavity PVC profile extrusion machine installed in China

China ABS Profile Extrusion Line
