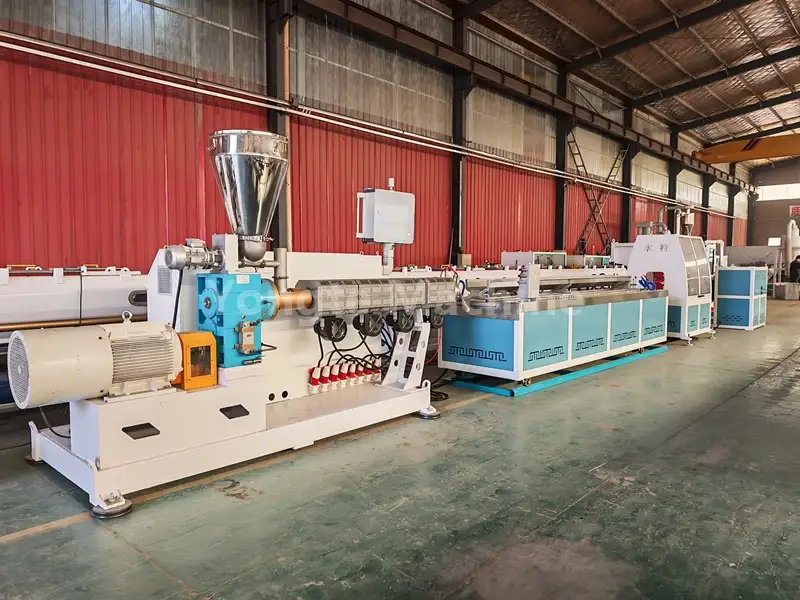

PP Profile Making Machine

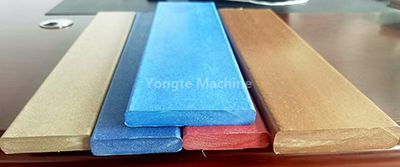

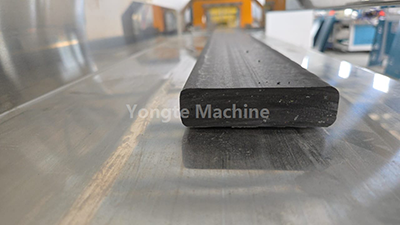

Yongte advanced PP Profile Making Machine is engineered to produce high-precision polypropylene (PP) profiles—including solid profiles, hollow profiles, and co-extruded profiles. The line integrates advanced extrusion, high-speed calibration, rapid water cooling, stable traction, and automatic cutting technologies to deliver profiles with consistent dimensions, excellent surface finish, and superior mechanical properties. Ideal for construction, automotive, furniture, and industrial applications, it supports continuous production of eco-friendly, durable, and cost-efficient PP products. Key advantages include high production capacity, energy efficiency, eco-friendliness, advanced automation, and simplified operation and maintenance.

Product Parameter

Product Details

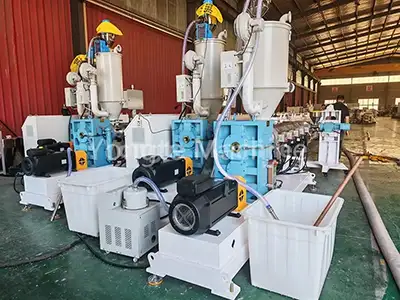

1. Automatic Feeder and Hopper:	A screw feeder or vacuum suction feeder is optional, depending on the material type. The system includes a drying hopper to remove moisture from raw materials, ensuring stable extrusion quality.

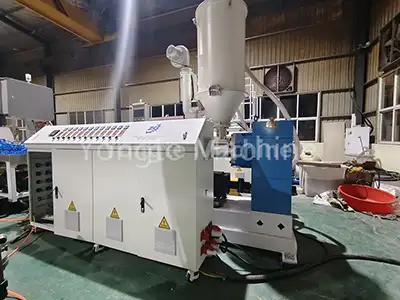

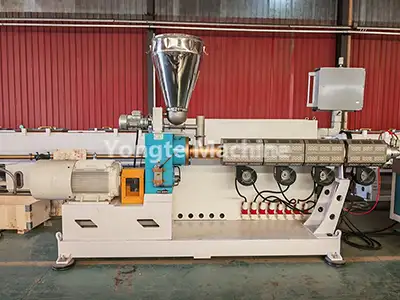

2. Single Screw Extruder:	Equipped with a servo motor (which reduces power consumption by 15-20%), a vertical gearbox for stable and high-torque production, bimetallic screws and SKD barrels for extended service life, and an automatic temperature control system for precise thermal management.

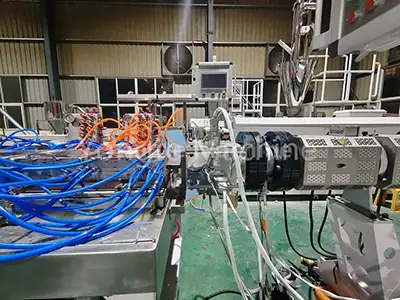

3. Die Head:	The extrusion die is specially engineered for 100% recycled material compatibility, featuring an optimized flow design to maintain sufficient extrusion pressure and uniform material distribution.

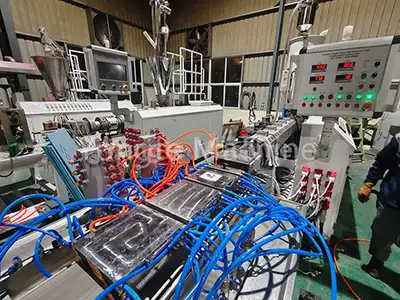

4. Calibrators:	Constructed from high-quality 3Cr17 mold steel, featuring a fast vacuum calibration system and a 4-6 meter water cooling tank for precise profile shaping and rapid cooling.

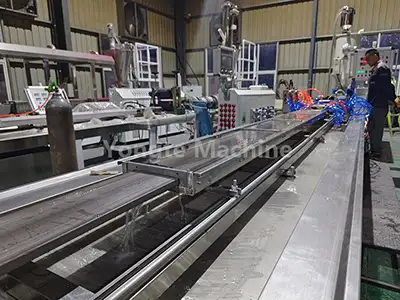

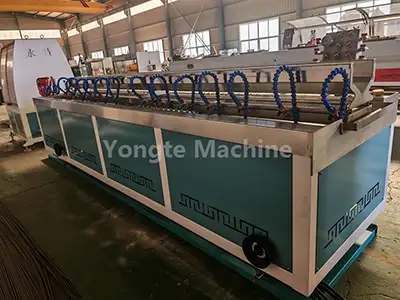

5. Calibration and Cooling Table:	Made of 304 stainless steel with an optimized pipeline design. It supports electric height adjustment and left-right alignment, with a full-length water circulation system for rapid cooling. Easy to install and maintain, the water tank includes a filter to prevent contamination of profiles.

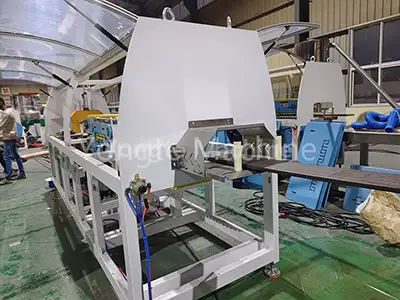

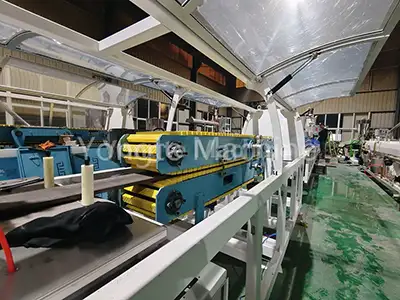

6. Traction Machine:	High-quality rubber tires ensure long-term durability and sufficient traction friction. Dual-stage reduction gears provide stable traction torque, and the bird-wing protective cover simplifies daily operation and maintenance.
7. Cutting Machine:	automatic fixed-length cutting system with a 304 stainless steel panel and fully enclosed dust collection system to minimize dust pollution. Equipped with a servo motor and specialized cutting blades for high-speed, chip-free cutting of PP profiles.

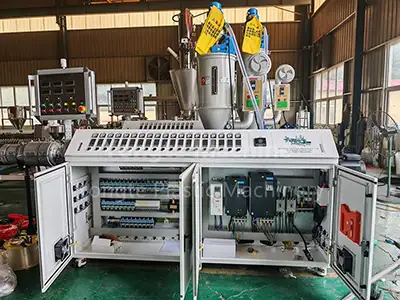

8. Electric Control System:	Equipped with ABB inverters, Omron temperature controllers, and Siemens contactors.
9. Product Stacker:	A 6-meter automatic stacker for orderly collection of finished profiles, reducing manual handling.

Product Application

The PP profiles produced are widely used in the following industries:

Automotive: Interior trim strips, door handles, dashboard frames, and underbody components (lightweight, impact-resistant).

Furniture: Chair legs, table edges, cabinet trim, and drawer slides (durable, easy to clean).

Industrial: Equipment guards, conveyor guides, and packaging profiles (chemical-resistant).

Daily Necessities: Shelf brackets, tool handles, and plastic accessories (lightweight and cost-effective).

Yongte Machine Advantages: Humanized Mechanical Design & Durable Quality

After years of technological innovation and unwavering focus on quality, we insist on using high-strength, wear-resistant materials for our plastic extrusion machinery. These machines undergo precision forging and multiple rigorous quality tests to ensure they can withstand wear from high-frequency use and erosion in harsh industrial environments, delivering long-term reliability and stable performance.

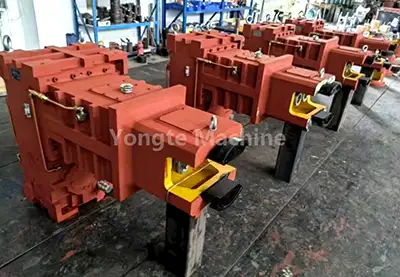

High-torque, durable gearbox	High-efficiency Servo Motor
We equip a high-quality, vertically direct-connected gearbox that boasts advantages such as high transmission efficiency, robust load capacity, stable production, space-saving installation, reliable sealing to prevent oil leakage, excellent heat dissipation, and ease of maintenance.	Equipped with an Innovance servo motor, the system achieves 15–20% energy savings with precise speed/torque control, rapid response, minimal vibration, low noise, extended lifespan, and reduced maintenance costs. Its intelligent regulation ensures stable power delivery for smooth operation in diverse industrial conditions.

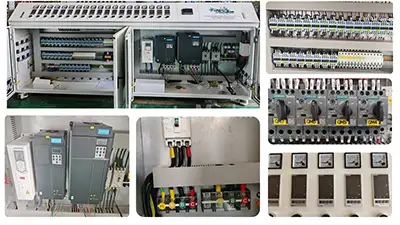

Highly Automated Operation System	Advanced Quality Electricity Control System
The complete production line features high automation with automatic feeding, precise temperature control, automatic cutting, and orderly stacking. Optional customized systems include automatic material mixing/dosing for full automation, plus integrated servo motor and PLC control with speed synchronization and intelligent adjustment.	Equipped with ABB inverters, Omron temperature controllers, Siemens contactors, and optional Siemens PLC control. Electrical cabinets feature neatly arranged components with standardized labeled wires, sufficient clearance for easy maintenance, and quick-connect auxiliary plugs (no on-site wiring required) ensuring convenience and reliability.

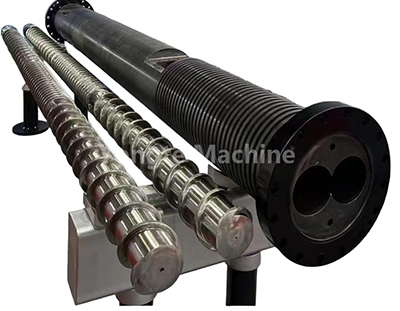

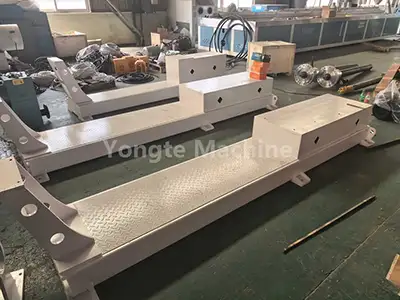

Robust machine base constructed with solid steel plates	Screw barrels are made from wear-resistant materials.
The machine's structure uses solid steel plates, CNC-cut and precision-polished for dimensional accuracy and balance, enabling continuous stable operation. The frame remains intact after 20+ years of use. All material/water contact components are 304 stainless steel to prevent corrosion. The machine surface is coated with powder using electrostatic spraying, where the thermosetting powder cures at high temperatures to form a dense, scratch-resistant layer.	Bimetallic screws and SKD barrels are utilized to substantially improve the wear resistance and extend the service life of equipment. This design ensures that the extruder can process a range of materials, including those with high abrasiveness, without compromising performance. Furthermore, the optimized screw geometry enhances melting and mixing efficiency, resulting in a more uniform and superior final product.
Professional Trial and Installation Service	3 - Year Warranty and Lifetime Support
We offer professional trial and installation services to ensure that the machine operates at its peak efficiency. Our professional technicians conduct on-site trials, carefully adjusting parameters to optimize production efficiency. They also provide comprehensive installation guidance, ensuring a seamless integration into your production line.	1. 36-month comprehensive warranty, which includes all core mechanical components, electrical systems, and precision parts to ensure long-term operational reliability 2. Free service during the warranty period for quality-related damage 3. Lifelong service supply: whenever customer needs

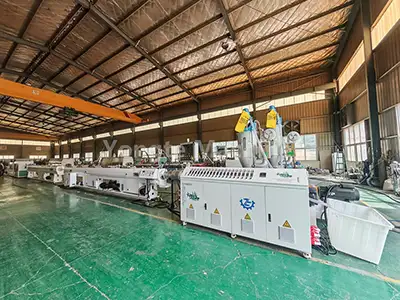

Successful cases

Yongte upholds the commitment to manufacturing high-quality, innovative plastic extrusion machines. Through sustained upgrades in technology and quality, its PP Profile Making Machine has earned widespread acknowledgment in both domestic and international markets.

China PVC Rain Gutter Profile Making Machine

four cavity PVC profile extrusion machine installed in China

China ABS Profile Extrusion Line
