ABS Profile Extrusion Line

Yongte ABS profile extrusion line is specially designed for producing high-quality rigid plastic profiles, widely used for window frames, door frames, decorative strips, building profiles, and other structural sections. Adopting an optimized screw barrel system, vacuum calibration forming, and intelligent temperature control, this line ensures high output, stable operation, smooth surface, and high dimensional accuracy. It is widely used by plastic profile factories, building material manufacturers, and export-oriented processors worldwide.

Key Features of Yongte ABS profile extrusion line

• High precision extrusion with stable dimension tolerance
• Output 80–150 kg/h for mass production
• Low energy consumption & low material waste
• Heavy-duty structure for 24-hour continuous working
• CE certified & 3-year warranty
• Customizable voltage, speed, and profile size

Technical Parameters of ABS profile extrusion line

Detailed Pictures of ABS profile extrusion line

1, material auto feeder:

The material auto feeder is designed for efficient and continuous feeding of ABS raw materials into the ABS profile extrusion line. It features an automatic control system that ensures precise and consistent material supply, reducing manual intervention and enhancing productivity.

2, high efficiency ABS extrusion system:

The high efficiency extrusion system is engineered to process ABS materials with optimal speed and quality. It incorporates advanced screw design and temperature control mechanisms to ensure uniform melting and extrusion, resulting in consistent profile dimensions and surface finish. This system also minimizes energy consumption while maintaining high output rates, making it both cost-effective and environmentally friendly.

3, ABS profile mold:

It features a precision-engineered mold cavity that ensures the accurate shaping of ABS profiles with tight tolerances. The mold is constructed from high-quality, heat-resistant materials to withstand prolonged exposure to high temperatures without deformation, thereby guaranteeing consistent product quality over extended production runs. Additionally, the mold design incorporates efficient cooling channels to accelerate the solidification process, reducing cycle times and enhancing overall productivity.

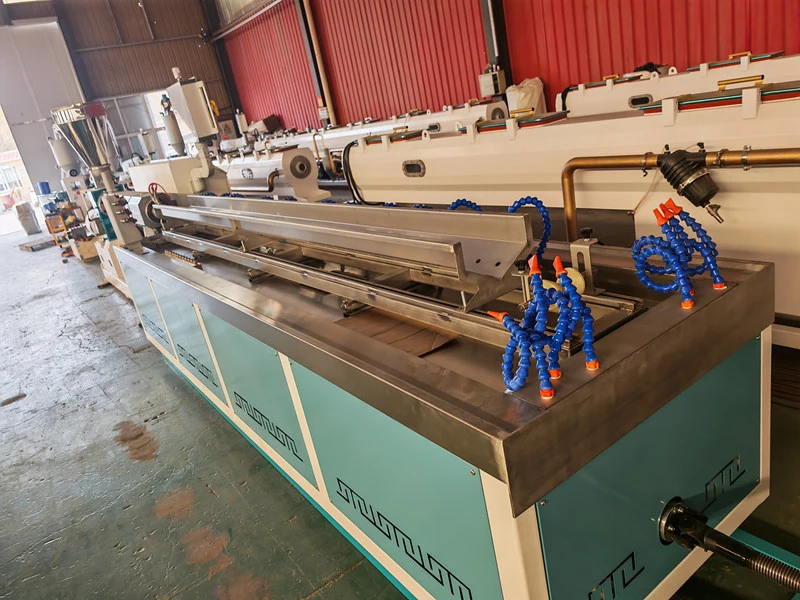

4, vacuum calibration and water cooling system:

This system utilizes a vacuum calibration mechanism to ensure precise shaping of the ABS profiles immediately after extrusion, maintaining dimensional accuracy and surface finish. The integrated water cooling system rapidly cools the profiles, solidifying them uniformly to prevent deformation and enhance structural integrity, thereby optimizing the production efficiency and quality of the window and door profiles.

5, Double caterpillar traction and auto cutting system:

This system utilizes dual rubber caterpillar to provide consistent and powerful traction force, ensuring smooth and stable movement of the ABS profiles during the production process. The auto cutting system, integrated seamlessly, accurately cuts the profiles to the desired lengths with high precision, enhancing production efficiency and reducing material waste.

6, Product stacker:

The product stacker is designed to automatically stack the finished ABS window and door profiles

7, Electric control system:

The electric control system is the brain of the ABS profile extrusion line, ensuring smooth operation and precise control of all components. It features a user-friendly interface that allows operators to easily monitor and adjust production parameters, enhancing overall efficiency and reducing downtime. The system also includes advanced safety features to protect both the machine and the operators during operation.

Advantage of ABS profile

One of the main advantages is its excellent dimensional stability. This ensures that the window and door profiles maintain their precise shapes and sizes over time, even under varying environmental conditions. Additionally, it offers good thermal insulation properties, which helps in reducing energy consumption for heating and cooling in buildings. Another significant advantage is its resistance to impact and weathering, making it highly durable and suitable for long-term use in both residential and commercial applications.

• ABS / PVC window profiles
• Door frames and sashes
• Building decorative profiles
• Furniture edge strips
• Custom plastic sections

Why Choose Our ABS Profile Extrusion Machine

Why Choose Yongte ABS Profile Machine?

1. High Efficiency & Stable Output

Optimized screw design for better plasticizing

Output: 80–150 kg/h depending on model

Suitable for long-term mass production

2. High Precision & Good Profile Quality

Vacuum calibration cooling system

Stable shape, no deformation

Smooth surface & high dimensional accuracy

3. Durable & Reliable Structure

Heavy-duty steel frame

High-quality electrical components

Long service life & low failure rate

4. Easy Operation & Low Maintenance

PLC touch screen control

User-friendly interface

One-person operation available

5. Complete After-Sales Support

3-year warranty on core parts

Overseas installation & training available

Lifetime technical support
