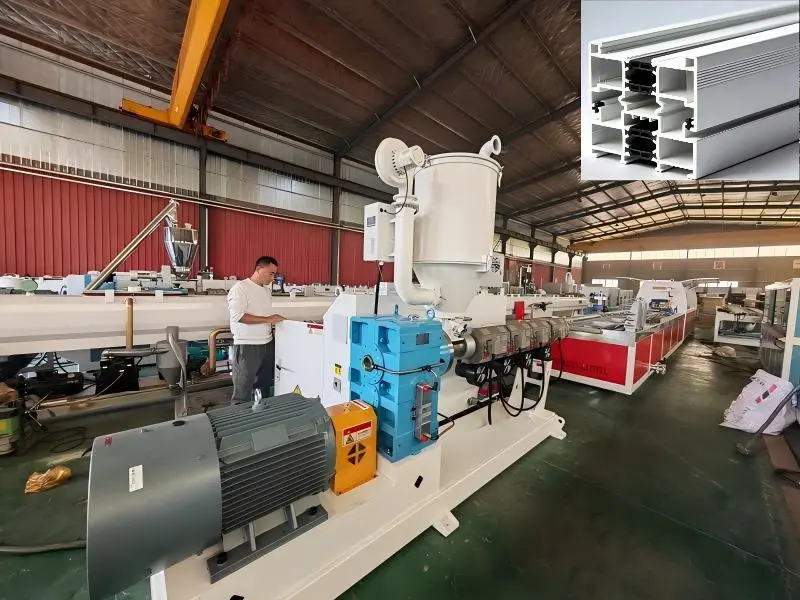

ABS Window Door Profile Machine

Yongte ABS window door profile machine is specifically engineered for precision manufacturing of high-precision, durable ABS (Acrylonitrile Butadiene Styrene) profiles—ideal for window frames, door sashes, and architectural trim.. Integrating advanced extrusion technology with high-grade components, it delivers consistent performance and dimensional accuracy. The intuitive control interface enables operators to efficiently configure production parameters, while its rugged steel frame ensures stable operation even under continuous heavy-duty conditions. This specialized equipment achieves high throughput rates to meet large-scale production demands, with precision machining capabilities that guarantee compliance with strict quality standards. The machine's optimized design minimizes material waste and energy consumption, enhancing overall manufacturing efficiency and cost-effectiveness for door and window profile producers.

Technical Parameters of ABS window door profile machine

Detailed Pictures

1, material auto feeder:

The material auto feeder is designed for efficient and continuous feeding of ABS raw materials into the ABS window door profile machine. It features an automatic control system that ensures precise and consistent material supply, reducing manual intervention and enhancing productivity.

2, high efficiency extrusion system:

The high efficiency extrusion system is engineered to process ABS materials with optimal speed and quality. It incorporates advanced screw design and temperature control mechanisms to ensure uniform melting and extrusion, resulting in consistent profile dimensions and surface finish. This system also minimizes energy consumption while maintaining high output rates, making it both cost-effective and environmentally friendly.

3, ABS window door profile mold:

It features a precision-engineered mold cavity that ensures the accurate shaping of ABS profiles with tight tolerances. The mold is constructed from high-quality, heat-resistant materials to withstand prolonged exposure to high temperatures without deformation, thereby guaranteeing consistent product quality over extended production runs. Additionally, the mold design incorporates efficient cooling channels to accelerate the solidification process, reducing cycle times and enhancing overall productivity.

4, vacuum calibration and water cooling system:

This system utilizes a vacuum calibration mechanism to ensure precise shaping of the ABS profiles immediately after extrusion, maintaining dimensional accuracy and surface finish. The integrated water cooling system rapidly cools the profiles, solidifying them uniformly to prevent deformation and enhance structural integrity, thereby optimizing the production efficiency and quality of the window and door profiles.

5, Double caterpillar traction and auto cutting system:

This system utilizes dual rubber caterpillar to provide consistent and powerful traction force, ensuring smooth and stable movement of the ABS profiles during the production process. The auto cutting system, integrated seamlessly, accurately cuts the profiles to the desired lengths with high precision, enhancing production efficiency and reducing material waste.

6, Product stacker:

The product stacker is designed to automatically stack the finished ABS window and door profiles

7, Electric control system:

The electric control system is the brain of the ABS window door profile machine, ensuring smooth operation and precise control of all components. It features a user-friendly interface that allows operators to easily monitor and adjust production parameters, enhancing overall efficiency and reducing downtime. The system also includes advanced safety features to protect both the machine and the operators during operation.

Advantage of ABS window and door profile

One of the main advantages is its excellent dimensional stability. This ensures that the window and door profiles maintain their precise shapes and sizes over time, even under varying environmental conditions. Additionally, it offers good thermal insulation properties, which helps in reducing energy consumption for heating and cooling in buildings. Another significant advantage is its resistance to impact and weathering, making it highly durable and suitable for long-term use in both residential and commercial applications.
