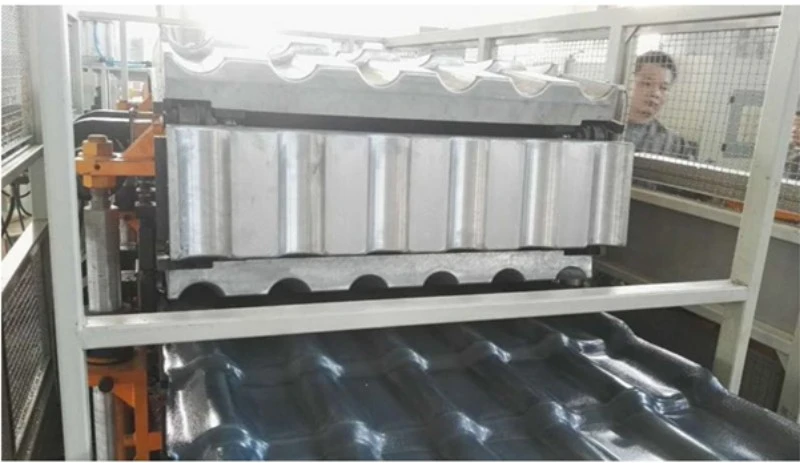

PVC Roof Sheet Production Line
Model:SJSZ80/156
The advanced PVC Roof Sheet Production Line integrates high automation technology with rigorously selected premium components, ensuring outstanding durability and long-term operational reliability under the most demanding conditions. It features a high-efficiency extrusion system, precision mold and calibration unit, and durable embossing mechanism, complemented by an intelligent automatic temperature control system
Yongte PVC Roof Sheet Production Line is meticulously engineered to manufacture premium-grade PVC corrugated sheets, which are widely applied as roofing sheet of construction. it delivers superior production efficiency with high-speed output capabilities, ensures stable and reliable operational performance even under demanding conditions, and features an intuitive, user-friendly operation design that simplifies workflow and reduces training time for operators.
The advanced PVC Roof Sheet Production Line integrates high automation technology with rigorously selected premium components, ensuring outstanding durability and long-term operational reliability under the most demanding conditions. It features a high-efficiency extrusion system, precision mold and calibration unit, and durable embossing mechanism, complemented by an intelligent automatic temperature control system that continuously monitors and adjusts thermal parameters in real time, guaranteeing uniform sheet quality and structural integrity throughout extended and high-volume production cycles. Additionally, the production line incorporates a high-precision cutting mechanism that delivers consistently clean, smooth, and dimensionally accurate edges on every sheet, fully complying with the stringent performance and aesthetic standards required across a wide range of industrial and construction applications.
Technical Parameter of PVC Roof Sheet Production Line
|
Model |
SJSZ80/156 |
|
Max panel width |
1200mm |
|
Extruder |
SJSZ80/156 conical twin screw extruder |
|
Main motor power |
75 KW |
|
Working material |
PVC resin, CaCo3 and Chemical additives |
|
Screw material |
38CrMoAIA with bimetallic |
|
Barrel material |
38CrMoAIA with SKD coated |
|
Extrusion capacity |
350kg/h |
|
Machine Length |
28 meter |
|
Inverter |
ABB brand |
|
Contractor |
Siemens brand |
|
Temperature controller |
Omron brand |
|
PLC control system |
Siemens brand or MG brand |
|
Servo motor |
Innovance brand |
|
Quality certification |
CE certified |
Equipment list of PVC Roof Sheet Production Line
|
NO. |
Machine name |
Quantity |
|
1 |
SJSZ80/156 Conical double screw extruder |
1set |
|
2 |
SJ 50Single screw co extruder |
1 set |
|
3 |
Two-roll calendaring machine (with embossing, with LOGO ) |
1set |
|
4 |
Thermostatic controller |
1 set |
|
5 |
Glazed tile forming machine: SJLW220×1050 |
1 set |
|
6 |
Glazed tile tracking cutter |
1 set |
|
7 |
Extrusion die and distributor |
1set |
|
8 |
Roof tile mould (main roof tile, Oblique roof tile, Tee roof tile, Plug roof tile) |
7 sets |
|
9 |
Pressing machine and heating oven |
1 set |
Hot Tags: PVC Roof Sheet Production Line, China, Advanced, Durable, Quality, Factory, Manufacturer, Supplier, in Stock, CE, 3 Years Warranty
