Acrylic Sheet Making Machine

Product Overview

Yongte Acrylic Sheet Making Machine is a specialized multi-layer co-extrusion system designed for producing high-gloss, consistent ABS and HIPS plastic sheets. We offer a complete range of single-screw extruders—from SJ65/33 to SJ150/36—tailorable to ABA/ABC/AB composite sheet configurations. The entire Acrylic Sheet Making Machine line accommodates both virgin raw granules and recycled plastic materials, and is extensively used in packaging, automotive interiors, building decoration, and electronic enclosure production. All units are CE-certified, providing reliable and cost-effective manufacturing solutions for plastic sheet producers globally.

Core advantages

✅ Multi-layer co-extrusion support (ABA/ABC/AB)：One line produces single & composite sheets, save extra equipment investment

✅ Adapt to virgin & recycled PMMA：Reduce raw material cost by 20–30% with recycled granules

✅ Global brand electric parts (Siemens/ABB/Omron)：Stable operation, low failure rate, 3-year service life

✅ Adjustable width 800–3000mm & thickness 0.5–10mm：Customize sheet size to match your market demand

✅ High output 50–500kg/h：Suitable for small batch trial & large-scale mass production

✅ Complete automatic line：Auto feeding, calendering, cutting & stacking, cut labor cost

Technical Specifications

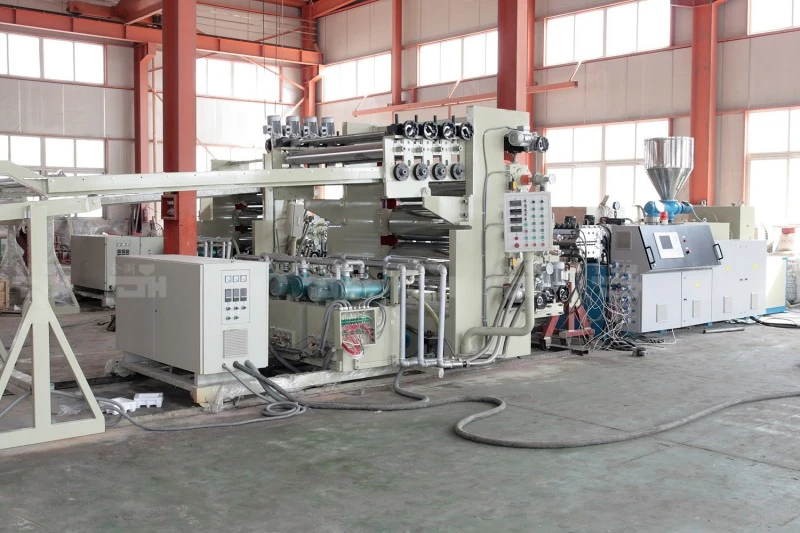

Pictures of Full Line Components

1, Auto Feeder & Drying Hopper:  Ensures consistent material supply and removes moisture from raw materials to prevent defects during extrusion.

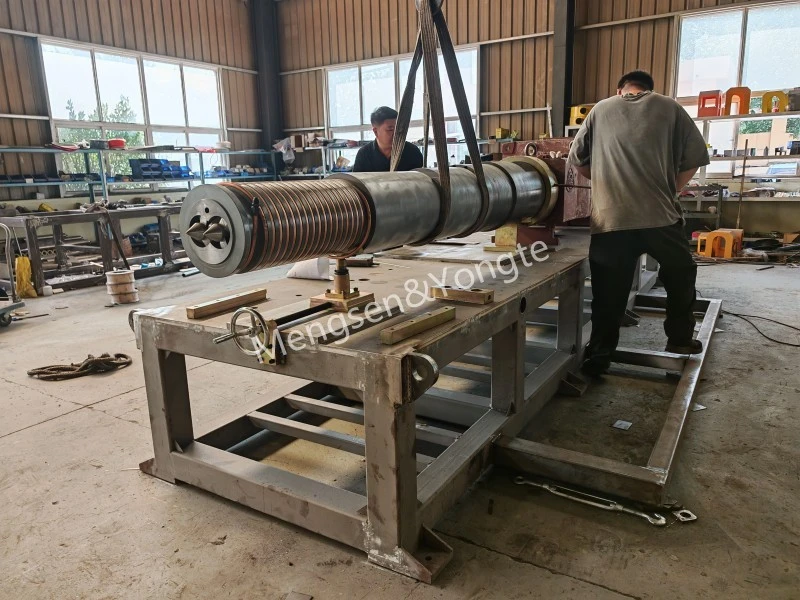

2, Venting Single Screw Extruder and co-extruder:  Comprises a high-torque screw barrel assembly that melts and homogenizes the polymer under precise temperature control, ensuring uniform melt flow and stable output for consistent product quality.

3, Precision T-Die Mold: Critical components that shape the molten polymer into the desired sheet size, featuring precision-machined flow channels to minimize pressure loss and eliminate dead spots, thereby ensuring dimensional accuracy and surface finish consistency.

4, Plastic sheet Three roller calendaring system consists of precisely aligned rollers that further refine sheet thickness and surface quality after extrusion through the T-die. The system allows for fine adjustment of roller gaps and temperatures to accommodate various polymer types and desired sheet specifications, ensuring uniform calendering and minimizing dimensional variations across the web.

5, Cooling stacker for plastic sheet employs a series of temperature-controlled rollers to gradually cool the extruded sheet while maintaining dimensional stability and surface finish. The cooling rate is precisely regulated to prevent internal stresses and warpage, which could otherwise compromise downstream processing or final product performance.

6,Plastic sheet Double roller Traction device ensures consistent sheet thickness and uniform surface quality by applying controlled pressure and synchronized speed between the two rollers. This traction mechanism also helps eliminate slippage or distortion during conveyance, thereby enhancing overall process stability and product consistency.

7, Plastic sheet fixed length Auto cutter employs a servo-driven cutting mechanism synchronized with the line speed to achieve accurate and repeatable sheet lengths. The cutter activates based on real-time encoder feedback, ensuring minimal deviation even during high-speed operation. Its blade assembly is designed for quick replacement and easy maintenance, reducing downtime while maintaining clean, burr-free edges on every cut.

8, Plastic sheet Stacker or winder Automatically aligns and stacks finished sheets with consistent spacing, or winds them onto cores under controlled tension to prevent deformation. Equipped with sensors to detect sheet edges and adjust positioning in real time, ensuring uniform layering and minimizing manual intervention.

Application Fields

The Plastic sheets produced by this line are widely used in:

Packaging Industry: Food packaging trays, cosmetic boxes, blister packaging.

Automotive Industry: Interior trim panels, dashboard components, door panels.

Construction Industry: Decorative panels, partition boards, sound insulation sheets.

Electronics Industry: Instrument housings, keyboard panels, plastic casings.

Other Fields: Toy parts, medical devices (non-implantable), advertising signs.

;
